Description

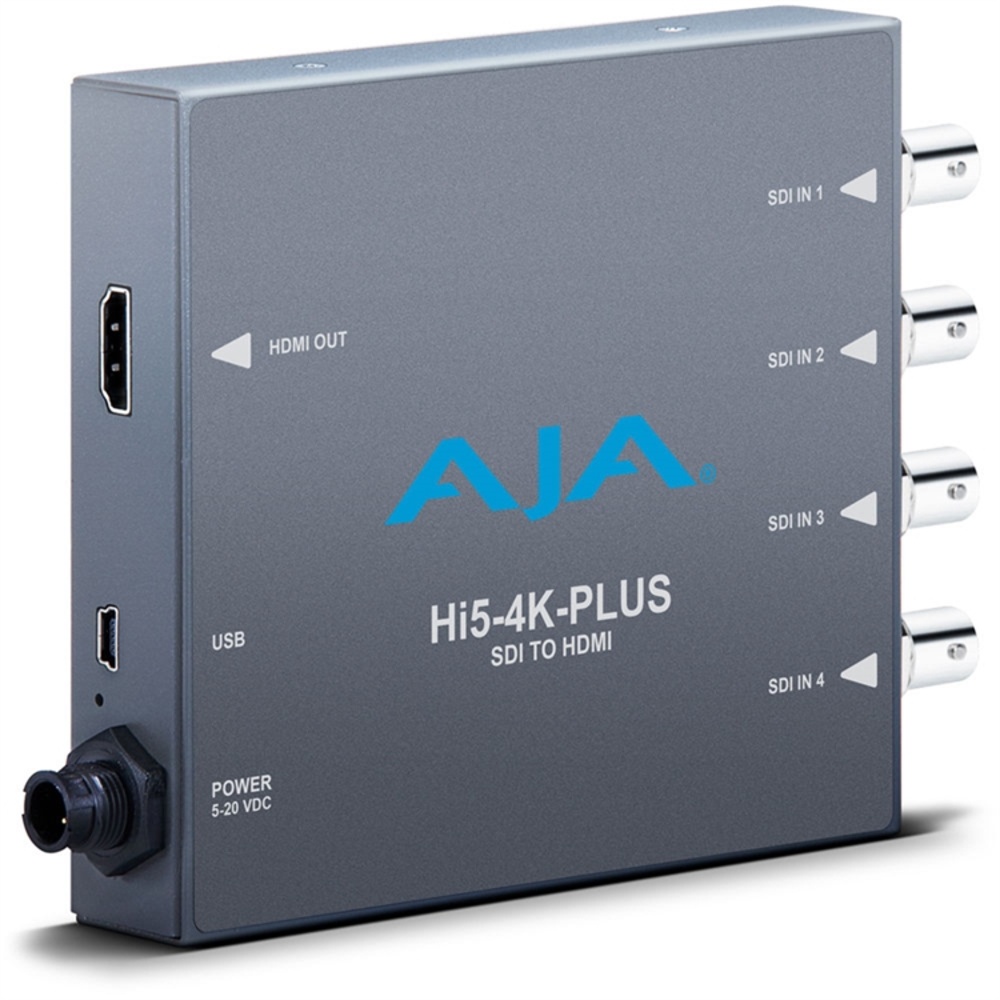

AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter: a signal converter.
Highlights include HFR support, simplified monitoring connection, integrates 4K monitors, < 8 channels of audio and 4 x 3G-SDI inputs.
Key specifications: weight 0.3 kg; dimensions (W x D x H) 10 x 15 x 23 cm; video input digital 4 x 3G-SDI BNC, SMPTE-259/292/424; audio input digital SDI embedded audio, 24-bit, 8-Channel.
In the box: AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter and DWP-U-R1 Worldwide Power Supply for AJA Mini-Convertors.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Video Formats | 4 x 3 GB SDI (Level A or B-Dual Link) 4K 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4K 4096 x 2160PsF (Level B-Dual link) 23.98, 24, 25, 29.97, 30 UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Ultra HD: 3840 x 2160PsF (Level B-Dual link) 23.98, 24, 25, 29.97, 30 4 x 1.5 GB SDI 4K: 4096 x 2160p 23.98, 24, 25, 29.97, 30 4K: 4096 x 2160PsF 23.98, 24, 25, 29.97, 30 UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30 UltraHD: 3840 x 2160PsF 23.98, 24, 25, 29.97, 30 2 x 3 GB SDI (Level B-Dual Stream) 4K: 4096 x 2160p 23.98, 24, 25, 29.97, 30 4K: 4096 x 2160PsF 23.98, 24, 25, 29.97, 30 UltraHD: 3840 x 2160p 23.98, 24, 25, 29.97, 30 UltraHD: 3840 x 2160PsF 23.98, 24, 25, 29.97, 30 1 x 3 GB SDI (Level A or B-Dual Link) 2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2K: 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD: 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 HD: 1920 x 1080i 25, 29.97, 30 HD: 1280 x 720p (Level A only) 50, 59.94, 60 1 x 1.5 GB SDI 2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30 2K: 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30 HD: 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 HD: 1920 x 1080i 25, 29.97, 30 HD: 1280 x 720p 50, 59.94, 60 1 x 270 Mb SDI SD: 625i 25 SD: 525i 29.97 |
|---|---|
| Video Input Digital | 4 x 3G-SDI BNC, SMPTE-259/292/424 |
| Video Output Digital | 1 x HDMI Type A connector HDMI v1.4a 4K/UltraHD 4:2:2 up to 30 fps, 4:2:0 up to 60 fps HDMI v2.0 4K/UltraHD 4:2:2/4:4:4 up to 60 fps |
| HDCP | The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption. By definition, HD-SDI inputs to the Hi5-4K are unencrypted.The HDMI specification requires HDMI monitors to support unencrypted inputs |
| Audio Input Digital | SDI embedded audio, 24-bit, 8-Channel |
| Audio Output Digital | SDI embedded audio, 24-bit, 8-Channel |
| Power | 5 to 20 VDC regulated, 8 W, power supply required (included with purchase) |
| Environment | Operating Temperature: 0 to 40°C Storage Temperature: -40 to 60°C Operating Relative Humidity: 10 to 90% non-condensing Operating Altitude: < 3,000 m |
| Dimensions (W x D x H) | 10 x 15 x 23 cm |
| Weight | 0.3 kg |
In the box
- AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter
- DWP-U-R1 Worldwide Power Supply for AJA Mini-Convertors
