Description

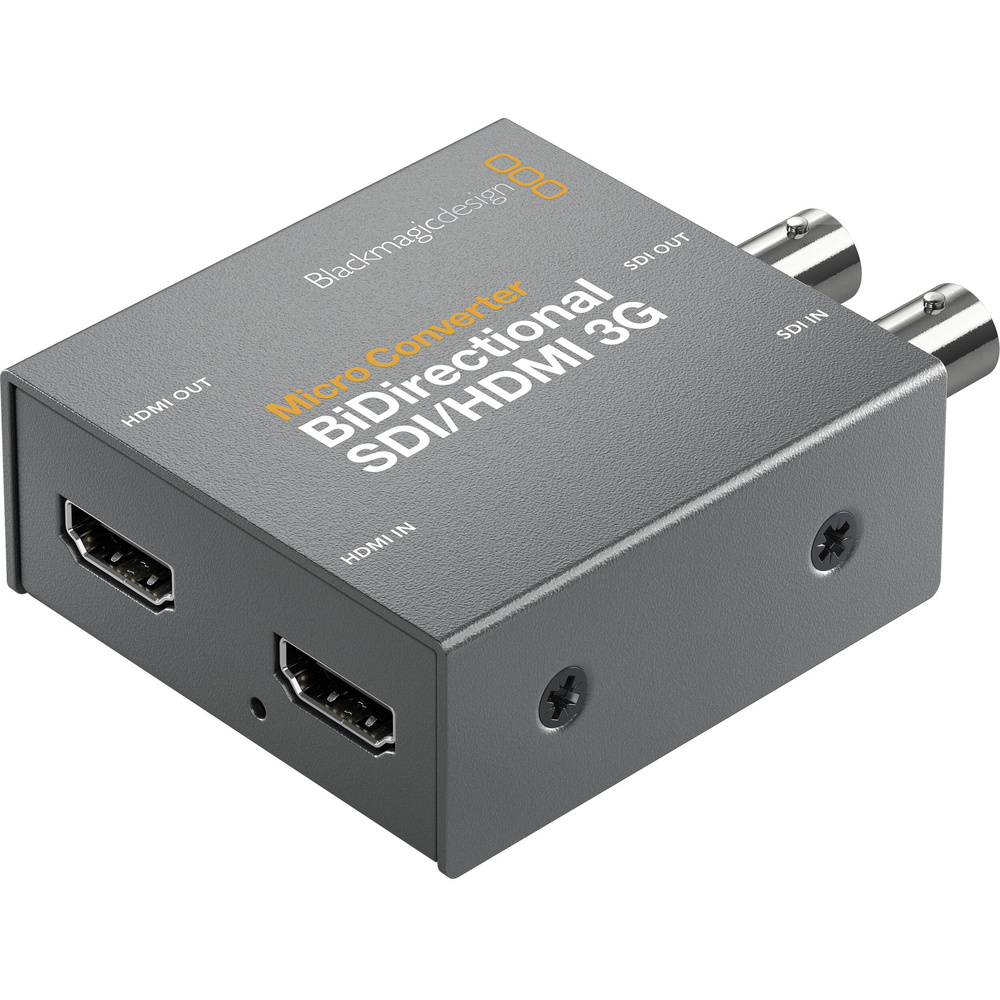

The Blackmagic Micro Converter Bidirectional SDI/HDMI 3G is a compact signal converter for camera, monitor and production setups that need SDI and HDMI to work together. It suits users who need to convert in both directions from a small unit, including live production, field monitoring and mixed-format rigs.
It converts SDI to HDMI and HDMI to SDI at the same time, with automatic input signal detection and support for up to DCI 2K60 video. Connections include 1 x 3G-SDI BNC, 1 x HDMI 2.0 input or output, and 1 x USB-C input. Embedded audio is supported over HDMI and SDI. It uses 2.5 W of power and works in temperatures from 0 to 40°C.
In practice, it can sit between a camera, switcher, monitor or projector when a workflow needs one SDI path and one HDMI path. It is suitable with macOS 10.15, macOS 11.1 or later, and Windows 10 64-bit. The box includes the Blackmagic Micro Converter BiDirectional SDI/HDMI 3G and a power supply.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (3G-SDI) 1x HDMI (2.0) |
| Audio Inputs | No |
| Video Outputs | 1x BNC (3G-SDI) 1x HDMI (2.0) |
| Audio Outputs | No |
| Other I/O | 1x USB-C Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDR Support | No |
| Hardware | |
| Tally Light | No |
| Wireless | No |
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 (64-Bit Only) |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | 2.5 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 3.13 x 1.8 x 0.98" / 79.5 x 45.7 x 24.89 mm |
| Weight | 5.9 oz / 167 g |
In the box
- Blackmagic Micro Converter BiDirectional SDI/HDMI 3G
