Description

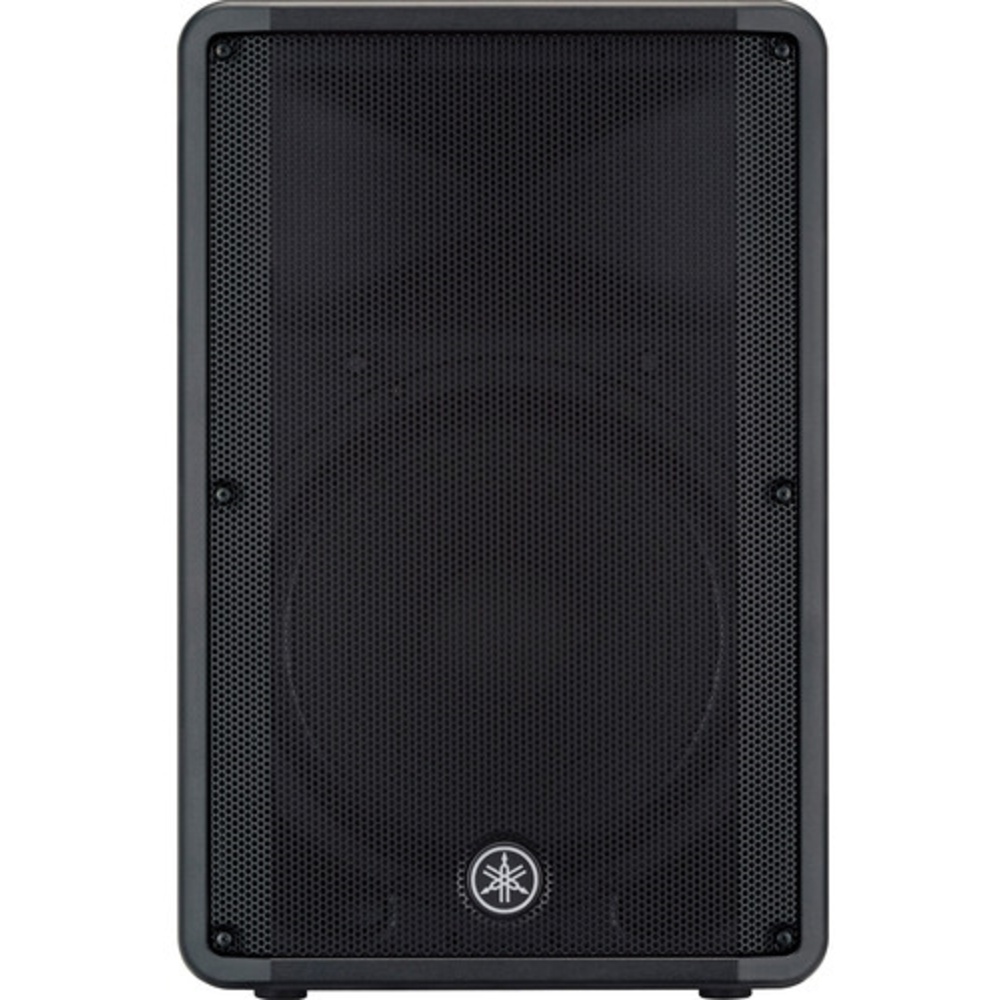

The Yamaha DBR15 15" 1000W Powered Speaker sits in our Powered Speakers range.

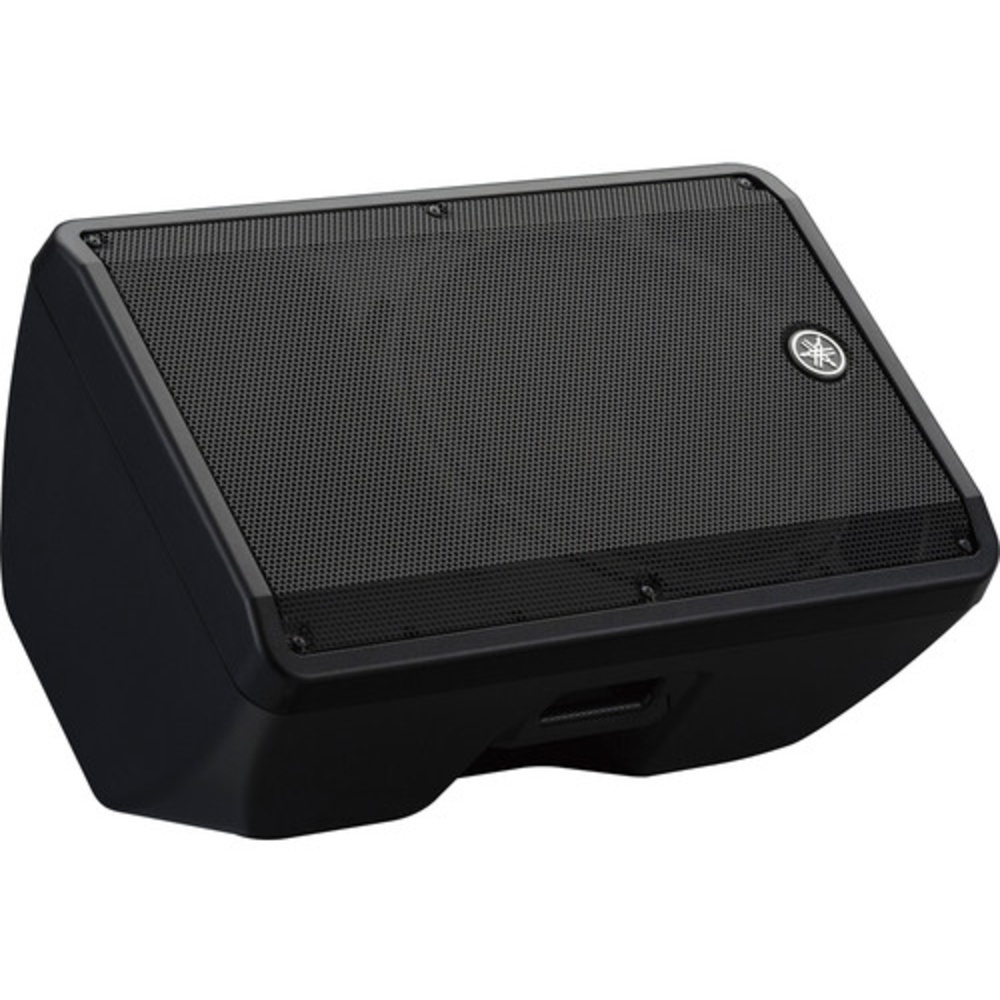

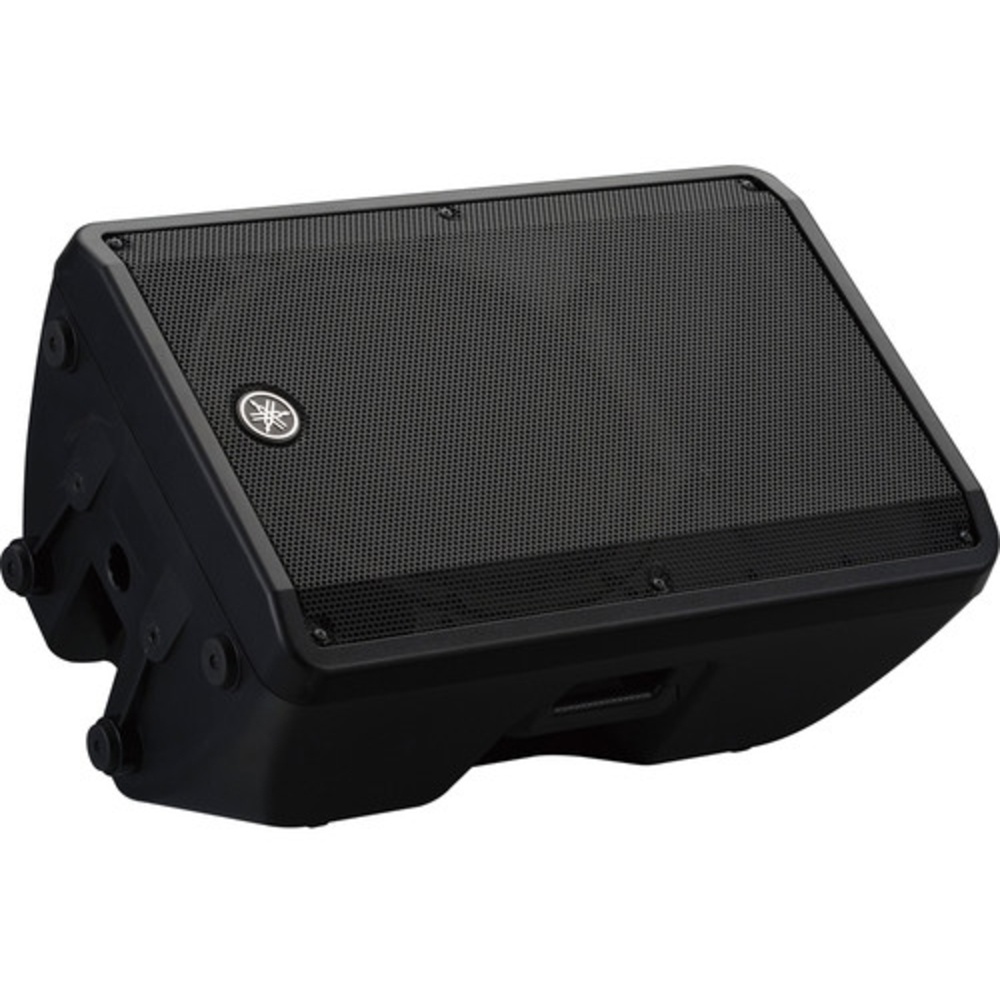

Highlights include class D amplifier, 15" woofer & 1.4" HF driver, on-board 2-Channel mixer, floor, FOH, rigged applications and built-in rigging points.
Key specifications: mounting 1 x 1.38" / 35 mm Pole Socket (Bottom); frequency range 50 Hz to 20 kHz -10 dB; weight 19.3 kg; dimensions 455 x 700 x 378 mm; configuration Active 2-Way.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| PA Speaker | |
|---|---|
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1000 W Peak |
| Amplifier Power Rating | LF: 800 W Peak |
| Drivers | |
| HF Driver | 1 x 1.4" / 35.6 mm Compression Driver |
| LF Driver | 1 x 15" / 387 mm Woofer |
| LF Voice Coil | 2.5" / 6.35 cm |
| Magnet | HF: Ferrite |
| Performance | |
| Frequency Range | 50 Hz to 20 kHz -10 dB |
| Maximum SPL | 132 dB SPL |
| Coverage Angle | 90° H x 60° V |
| Connectivity | |

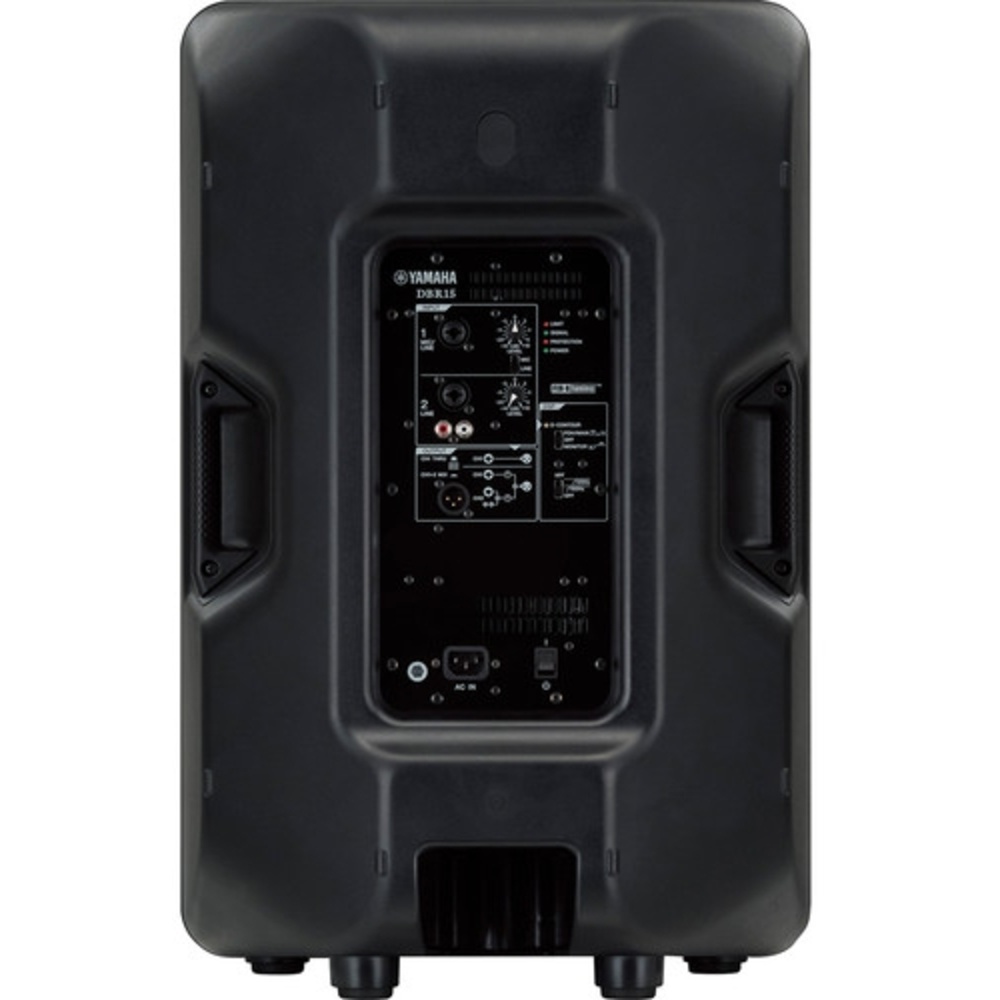

| Audio | I/O 2 x Combo XLR-1/4" TRS Input |
| Signal Processing | |
| Crossover | 2.1 kHz |
| Power | |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Consumption | 74 W (1/8 Power) |
| Physical | |

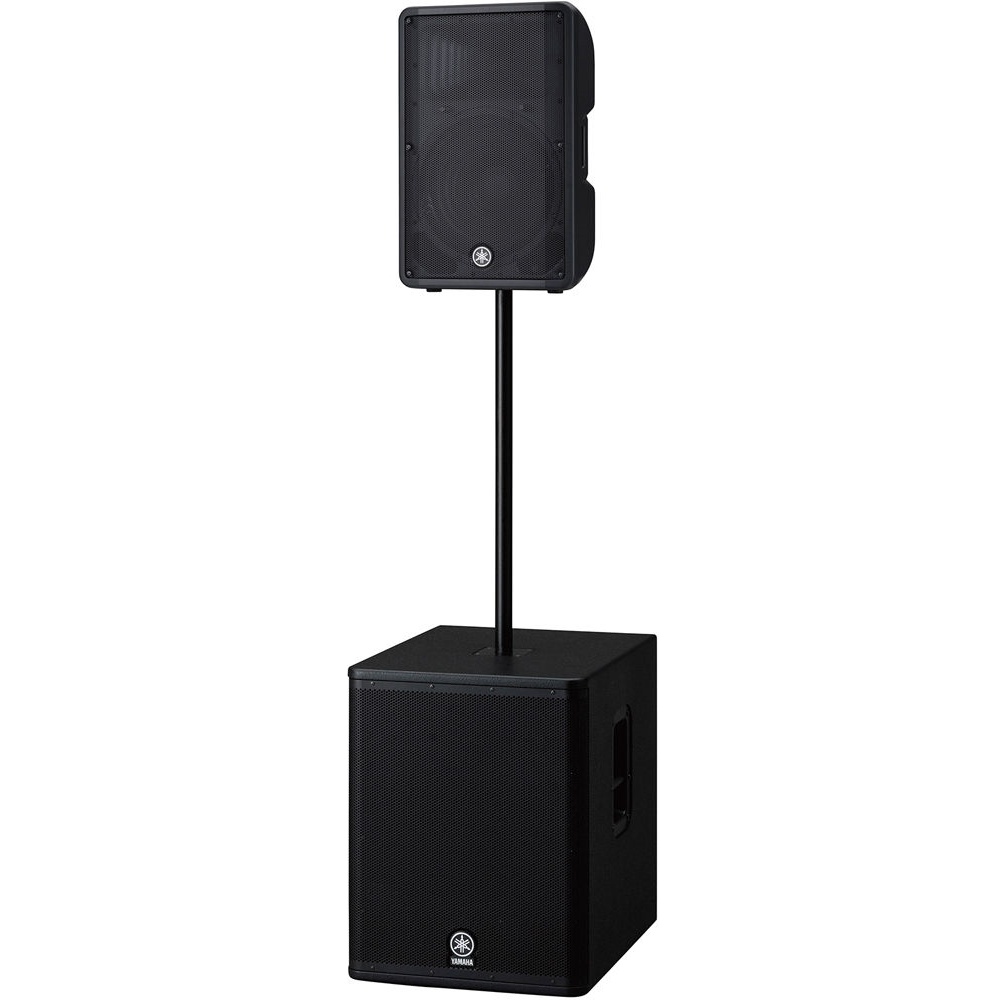

| Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom) |

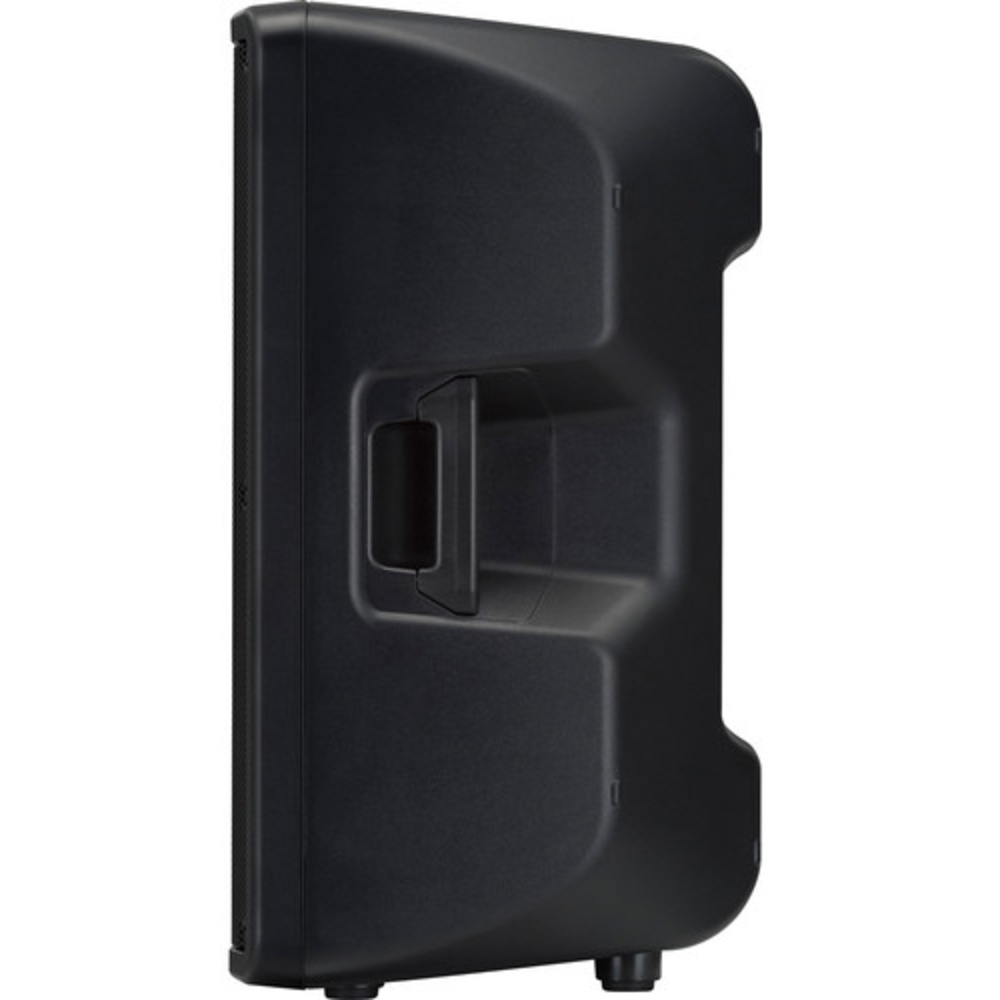

| Handles | 2 x Side |
| Cooling | Fan (Variable Speed) |
| Construction Material | Plastic |
| Dimensions | 455 x 700 x 378 mm |
| Weight | 19.3 kg |
In the box
- Yamaha DBR15 15" 1000W Powered Speaker
