Description

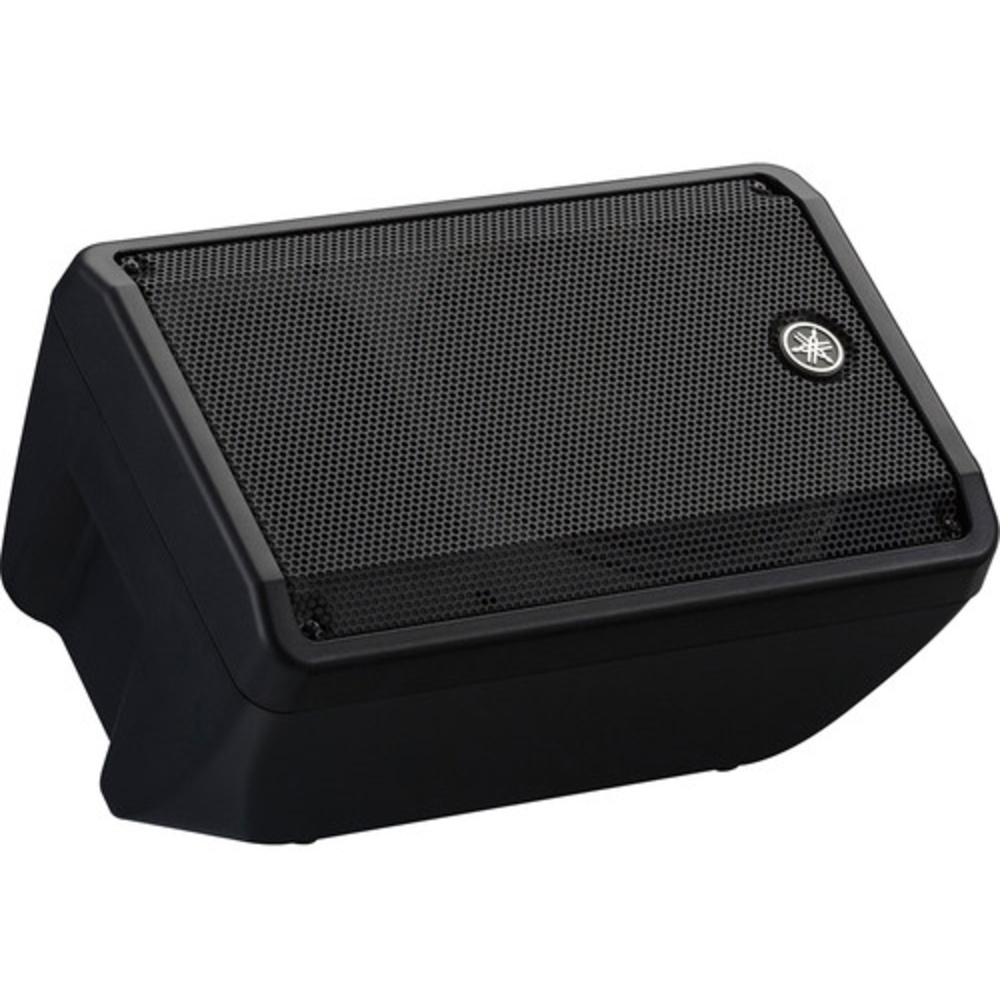

The Yamaha DBR10 10" 700W Powered Speaker sits in our Powered Speakers range.
Highlights include class D amplifier, 10" woofer & 1" HF driver, on-board 2-Channel mixer, floor, FOH, rigged applications and built-in rigging points.
Key specifications: mounting 1 x 1.38" / 35 mm Pole Socket (Bottom); frequency range 55 Hz to 20 kHz -10 dB; weight 10.5 kg; dimensions 308 x 493 x 289 mm; configuration Active 2-Way.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| PA Speaker | |
|---|---|
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 700 W Peak |
| Amplifier Power Rating | LF: 500 W Peak |
| Drivers | |
| HF Driver | 1 x 1" / 25 mm Compression Driver |
| LF Driver | 1 x 10" / 25.4 cm Woofer |
| LF Voice Coil | 2" / 5.1 cm |
| Magnet | HF: Ferrite |
| Performance | |
| Frequency Range | 55 Hz to 20 kHz -10 dB |
| Maximum SPL | 129 dB SPL |
| Coverage Angle | 90° H x 60° V |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" TRS Input |
| Signal Processing | |
| Crossover | 2.1 kHz |
| Power | |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Consumption | 60 W (1/8 Power) |
| Physical | |
| Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom) |
| Handles | 1 x Top |
| Cooling | Fan (Variable Speed) |
| Construction Material | Plastic |
| Dimensions | 308 x 493 x 289 mm |
| Weight | 10.5 kg |
In the box
- Yamaha DBR10 10" 700W Powered Speaker
