Description

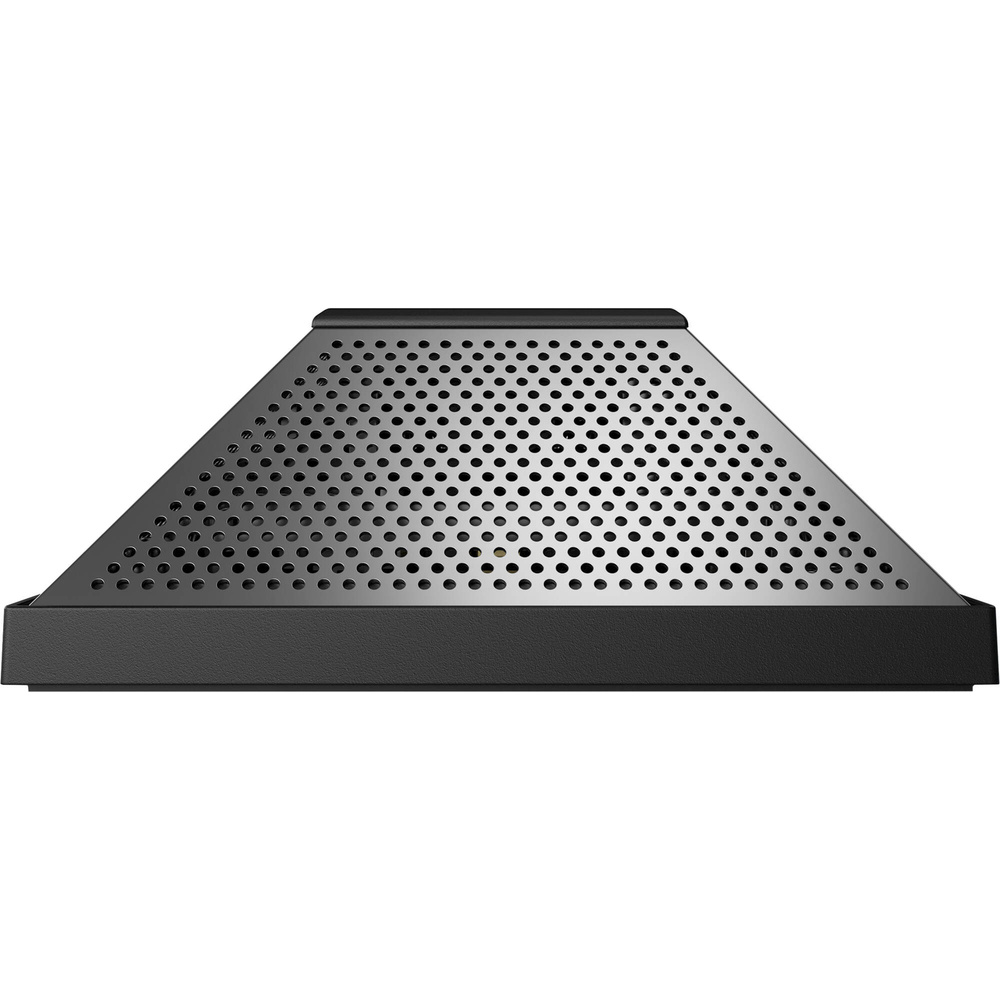

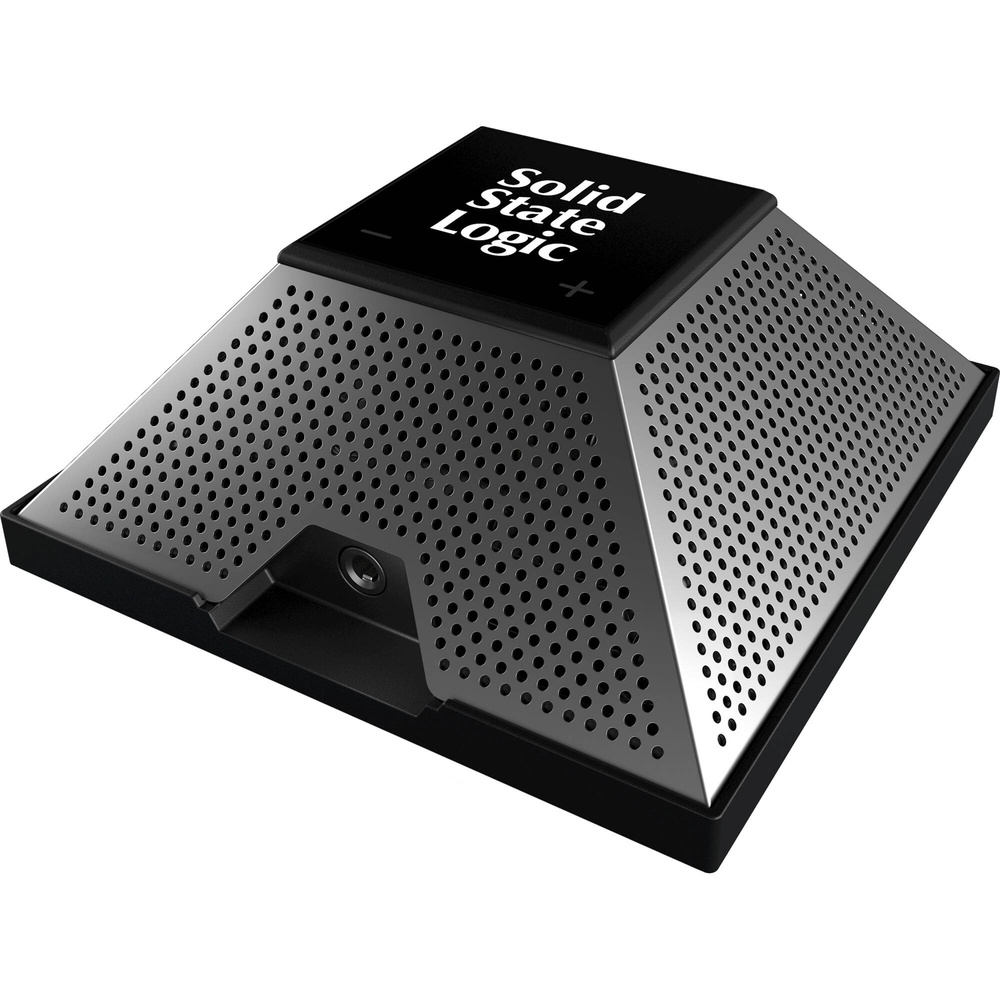

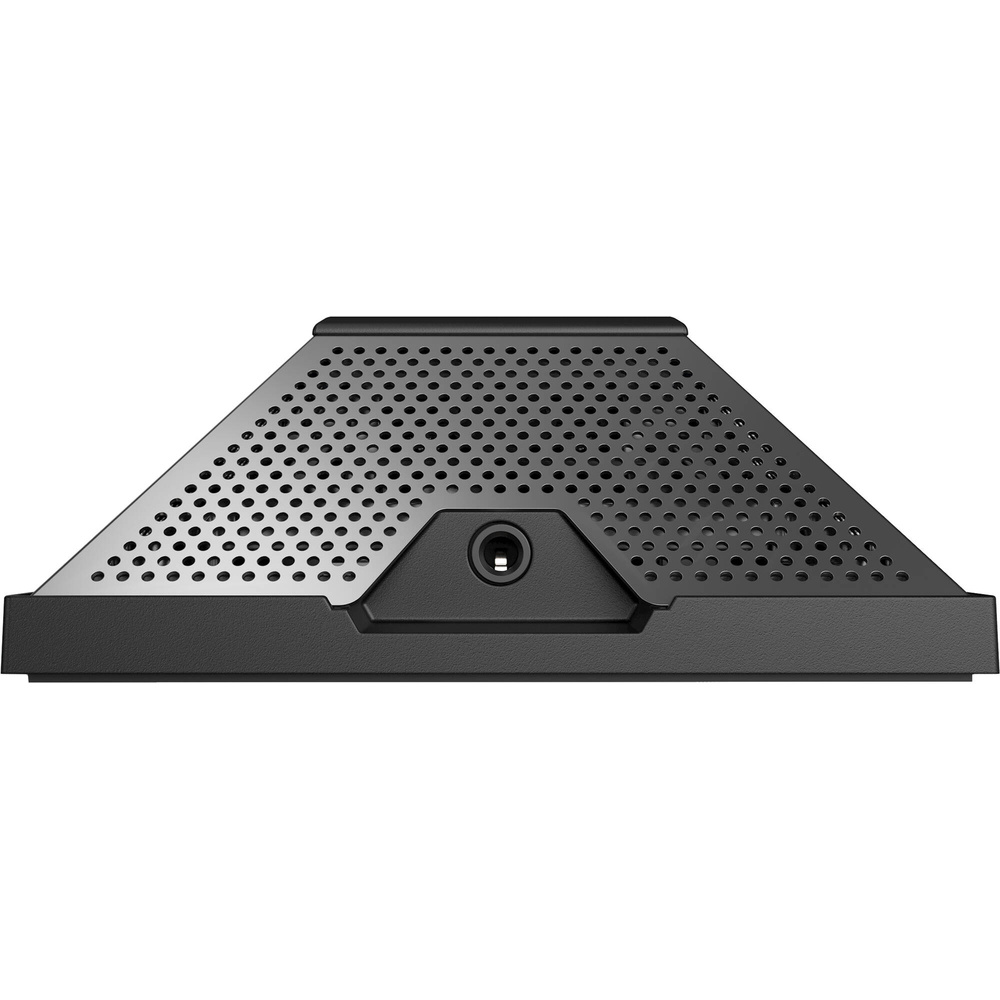

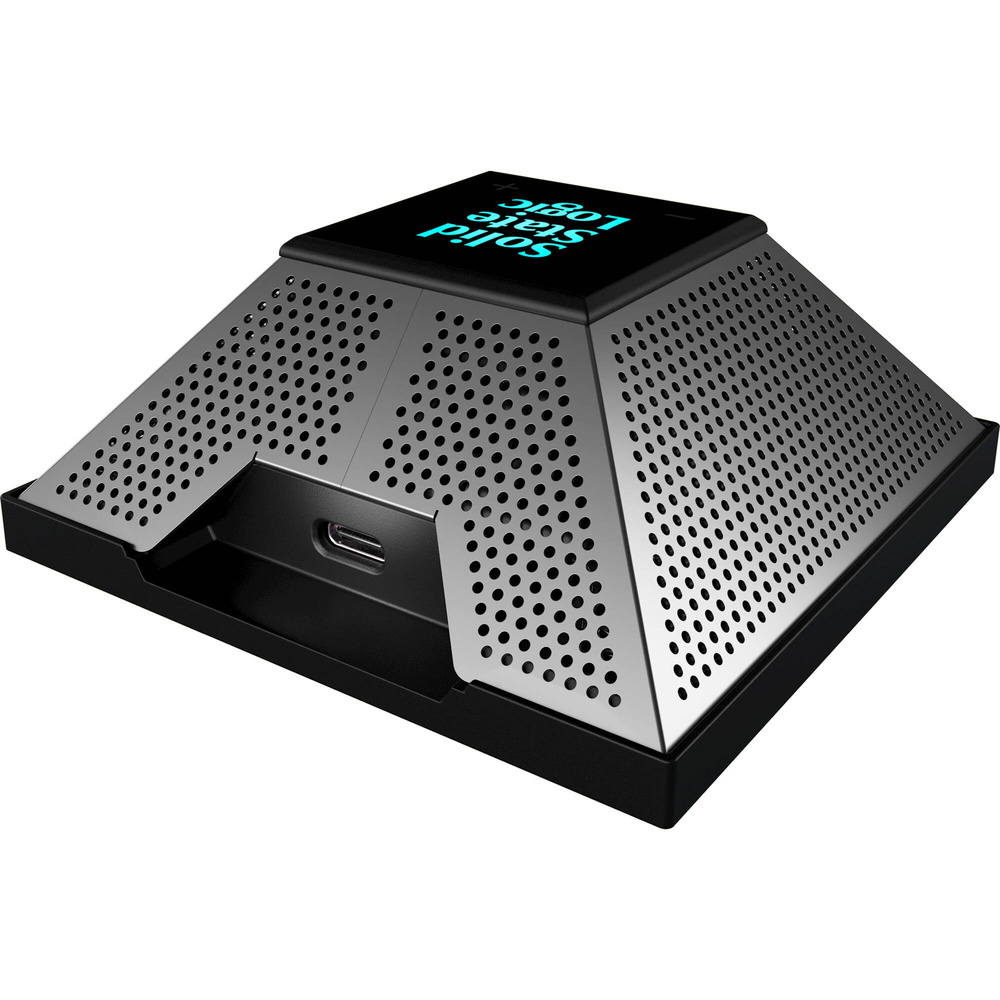

The Solid State Logic SSL CONNEX is a portable USB microphone for conferencing, web streaming and recording on the move. It suits users who want a compact mic for speech, vocals or instruments, whether on a desk, on a stand or mounted to a boom arm. The boundary style format makes it easy to place in small setups without extra hardware.
It uses a quad electret condenser array with four capsules and supports mono, stereo and tetrahedral capture. Four DSP user modes plus an immersive mode let you choose how the mic records, and immersive mode gives access to all four microphones. It also includes touch-sensitive mute and push-to-talk, plus headphone volume control on the unit.
In practice, it connects by USB-C and can be used with a computer, tablet or mobile device with a compatible USB connection. The mic includes a 2 m USB-C to USB-C cable and a USB-C female to USB-A male adapter, along with a 1/4 to 5/8 thread adapter for mounting. A 3.5 mm headphone output is built in for direct monitoring.
Specifications
| Microphone | |
|---|---|
| Primary Applications | Web-Streaming, Recording to Mobile Device, Conferencing |
| Form Factor | Boundary/Surface Mount / Stand/Boom Mount |
| Intended Sound Sources | Vocals, Speech/Voice Over, Instrument |
| Sound Field | Mono, Stereo, Tetrahedral |
| Capsule | 4 x Electret Condenser |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Indicators | 1 x Blue/Green/Violet/White/Yellow Single LED |
| On-Board Controls | Headphone Volume, Mic Mute, Push-to-Talk |
| Windscreen | None |
| Connectivity | |
| Output Connectors (Analogue) | None |
| USB & Digital Output | 1 x USB-C Female (on Mic) |
| Headphone Output | 1 x 1/8" / 3.5 mm |
| Cable Length | 6.6' / 2 m |
| Wireless Connectivity | None |
| Bluetooth | None |
| Digital Audio | |
| Sample Rate | 44.1 / 48 / 88.2 / 96 kHz |
| Digital Signal Processing | Sound Presets |
| OS Compatibility | Windows 10 or Later macOS 10.14 or Later *As of November, 2022: Cheque with manufacturer for the most up-to-date compatibility |
| Power | |
| Bus Power | USB |
| Physical | |
| Colour | Silver |
| Mounting | Mounting Thread, Tabletop (via Integrated Hardware) Mic Clip/Stand Adapter (Included) |
| Mounting Thread Size | 1/4"-20 Female (5/8"-27 Female with Included Adapter) |
| Included Case | None |
| Included Filters | None |
| Operating Temperature | 1 to 40°C |
| Storage Temperature | -20 to 50°C |
Product details
| Length Meters | 2 m |
|---|---|
| Length Feet | 6.6 ft |
In the box
- Solid State Logic SSL CONNEX Portable USB Microphone
- 1/4 to 5/8" Thread Adapter
- USB-C to USB-C Cable (2m)
- USB-C Female to USB-A Male Adapter
