Description

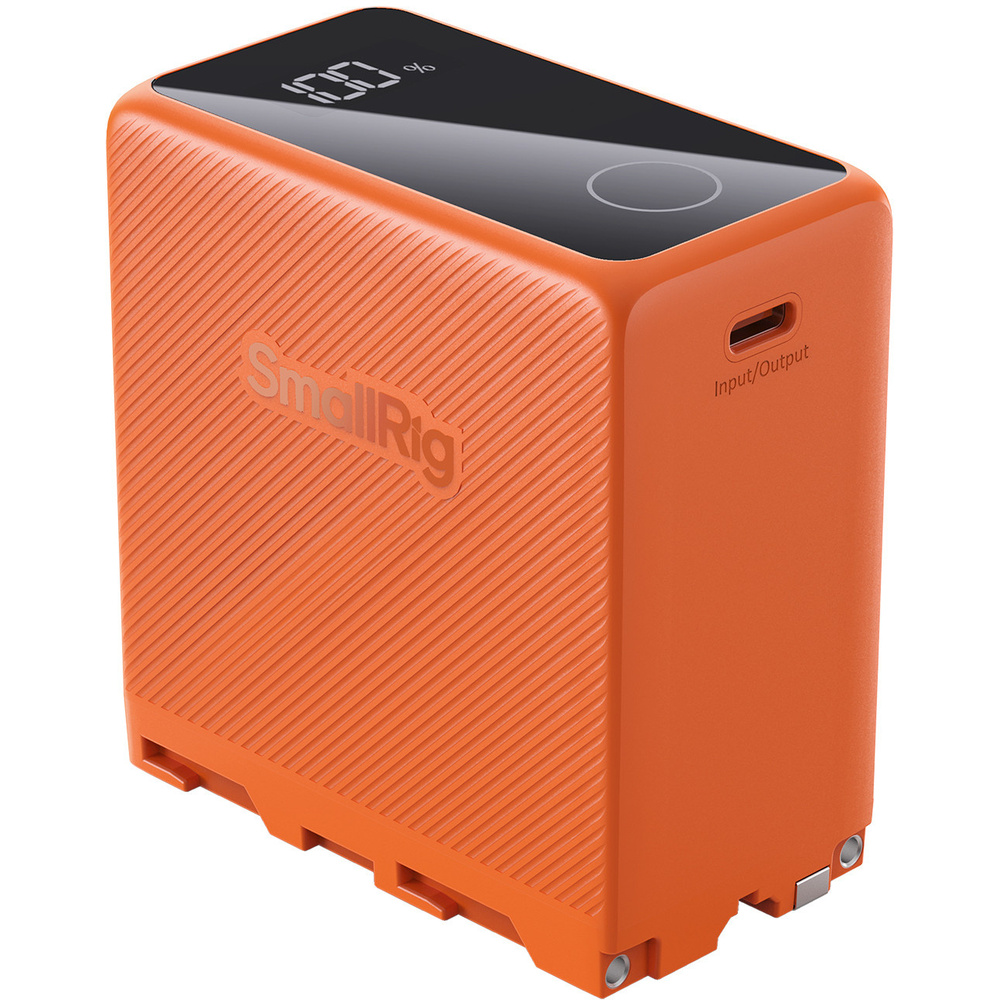

The SmallRig 4576 NP-F970 USB-C Rechargeable Camera Battery is a rechargeable lithium-ion battery for camera rigs and other production gear that uses the Sony NP-F style. It suits shooters who want a compact on-camera power source with a built-in level display and USB charging options. It can also be used as a portable power source for compatible devices.
It has a 10500mAh capacity at 7.3V, giving 76.65Wh of power. USB-C input and output support 5V/3A, 9V/3A and 12V/3A, with PD3.0, QC3.0, QC2.0, FCP, AFC and PPS protocols. USB-C PD 36W fast charging is supported, and the USB-A output provides 5V/3A, 9V/3A and 12V/2.25A. The battery measures 74.6 x 71.6 x 38.5mm and weighs 379 ± 10g including cable and cover.

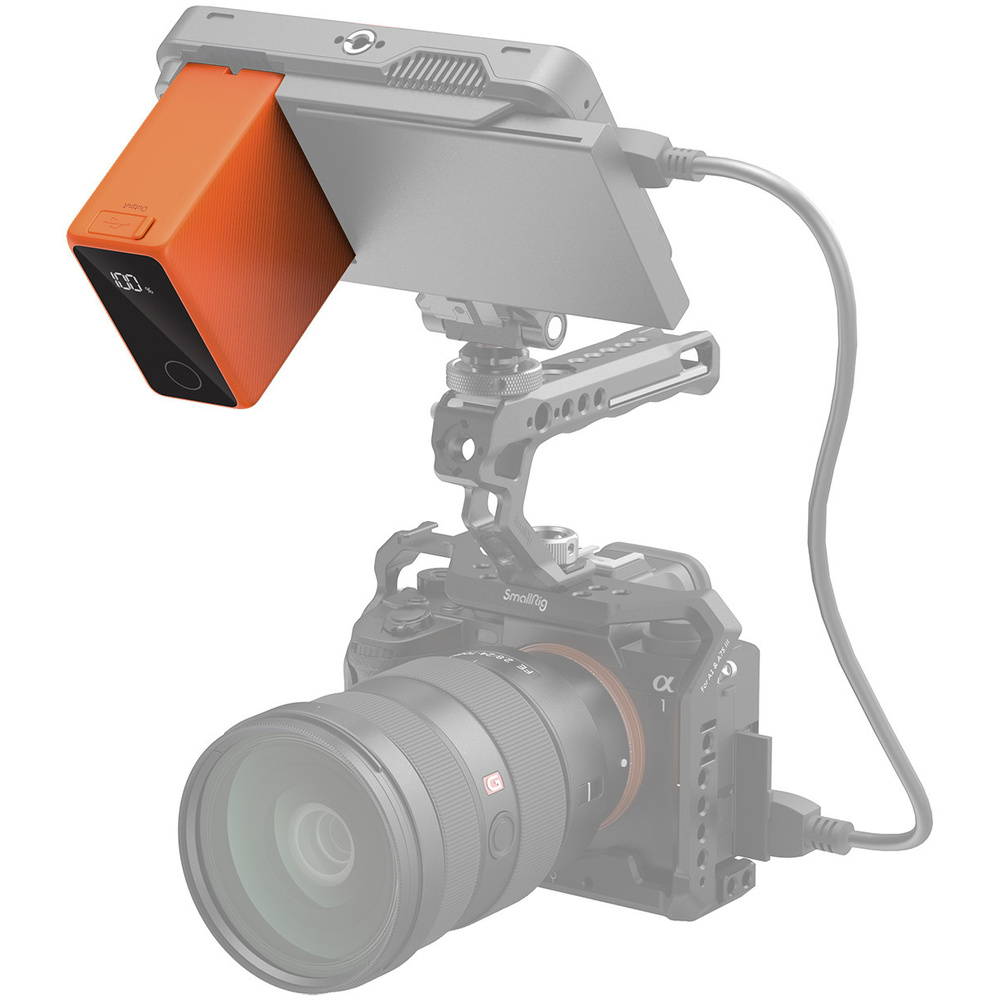

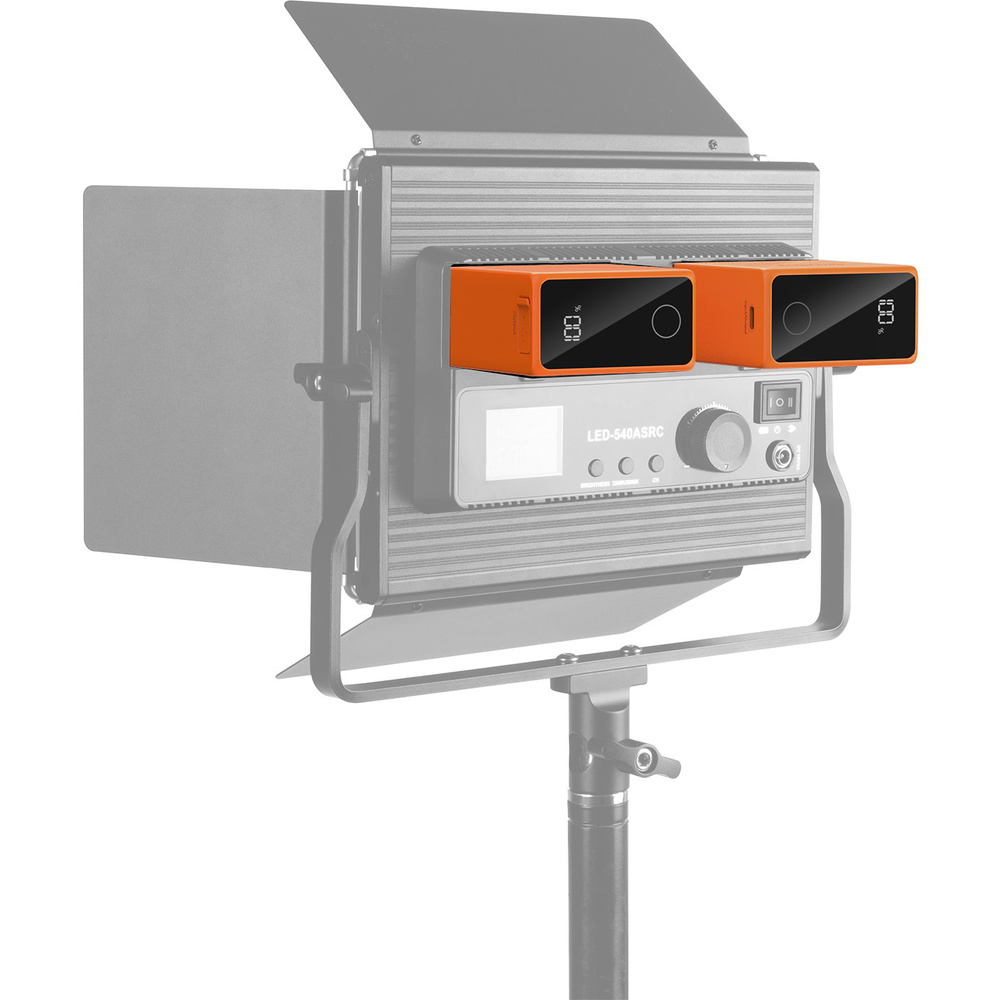

It suits cameras, monitors, LED video lights and other gear that uses Sony NP-F type batteries. In use, it can sit on an on-camera setup or power compatible accessories through its USB outputs.
Specifications
| Product Dimensions | 74.6 x 71.6 x 38.5mm / 2.9 x 2.8 x 1.5in |
|---|---|
| Package Dimensions | 118 x 116 x 54mm / 4.64 x 4.56 x 2.12in |
| Product Weight (including cable and cover) | 379 ± 10g / 13.4 ± 0.3oz |
| Package Weight | 550 ± 10g / 19.4 ± 0.3oz |
| Battery Type | Lithium-Ion |
| Battery Capacity Parameters | 10500mAh / 7.3V / 76.65Wh |
| Charging Voltage | 8.4V |
| Nominal Voltage | 7.3V |
| USB-C Input / Output | 5V / 3A, 9V / 3A, 12V / 3A |
| USB-C Protocol | PD3.0 / QC3.0 / QC2.0 / FCP / AFC / PPS |
| USB-A Output | 5V / 3A, 9V / 3A, 12V / 2.25A |
| USB-A Protocol | QC3.0 / QC2.0 / FCP / AFC |
| USB-C Overcurrent Protection | ≥3.5A |
| USB-A Overcurrent Protection | 5V / 9V≥3.5A, 12V≥2.6A |
| Main Port Max Discharge Current | 10A |
| Main Port Over-discharge Current Protection Threshold | 11A |
| Discharge Cut-off Voltage | 5.2V |
| Operating Temperature | Charge: 0℃ to 45℃ / 32°F to 113°F Discharge: -10℃ to 45℃ / 14°F to 113°F |
| Battery Weight | 362.0 ± 10.0g / 12.8 ± 0.3oz |
| Material(s) | PC+ABS |

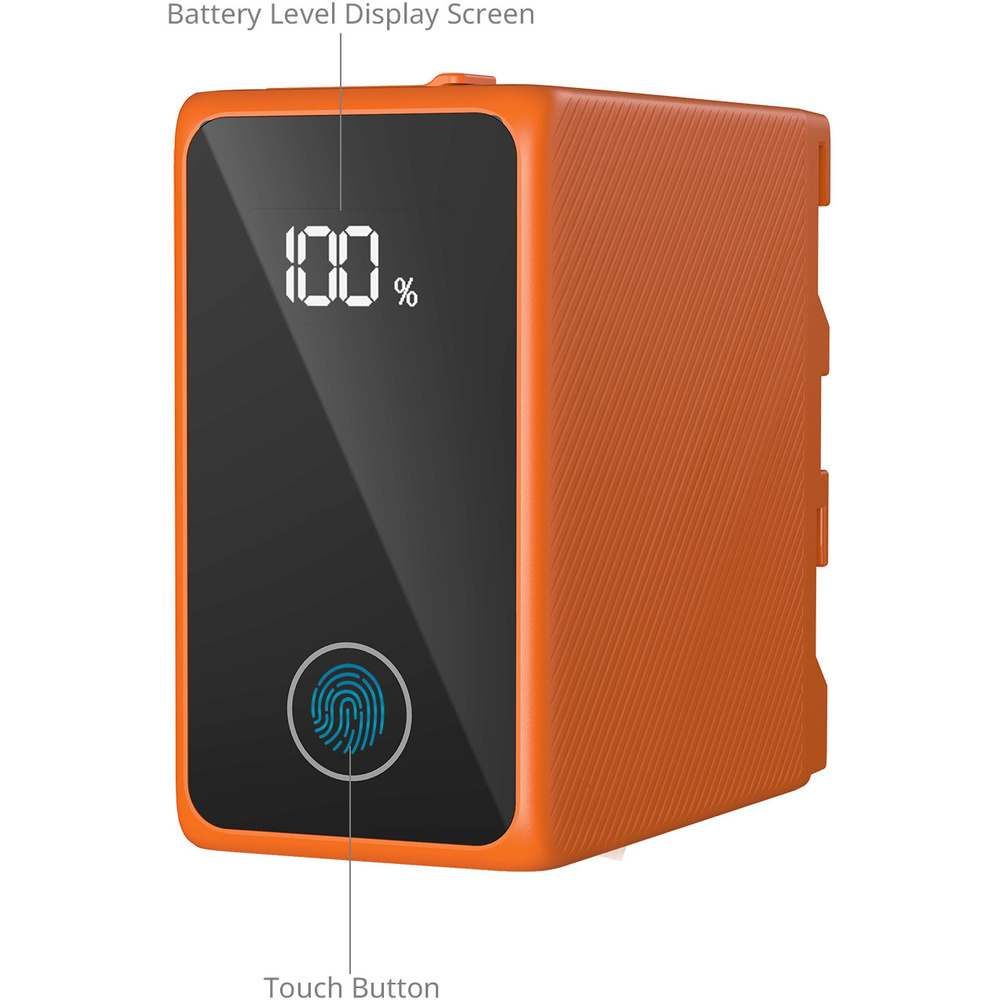

| Button Function | Single-click to display the battery percentage when not charging; press four times to turn off the USB-C and USB-A ports to enter sleep mode; single-click or re-plug to wake up the ports. |
Product details
| Battery Mount / Series | Sony NP-F970 |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 10,500 mAh |
| Battery | Lithium-Ion |

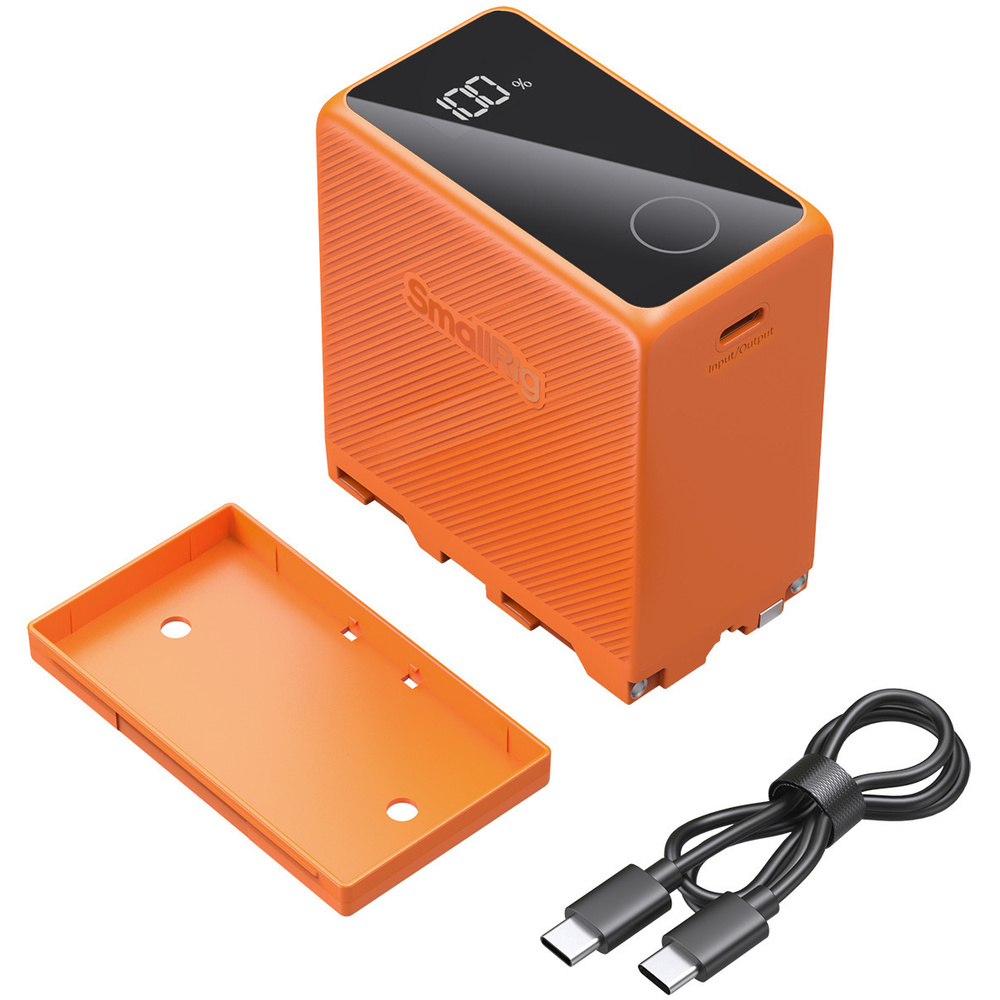

In the box
- NP-F970 USB-C Rechargeable Camera Battery
- Battery Cover
- USB-C to USB-C Charging Cable
- Operating Instruction
- User Manual
- Guarantee Card
