Description
The SmallRig 4469 NP-F970 USB-C Rechargeable Camera Battery is a rechargeable lithium-ion power option for cameras and production gear that use the NP-F970 format. It suits users who want a higher-capacity battery for longer shoots, and it can also work as a power source for compatible accessories and small devices.

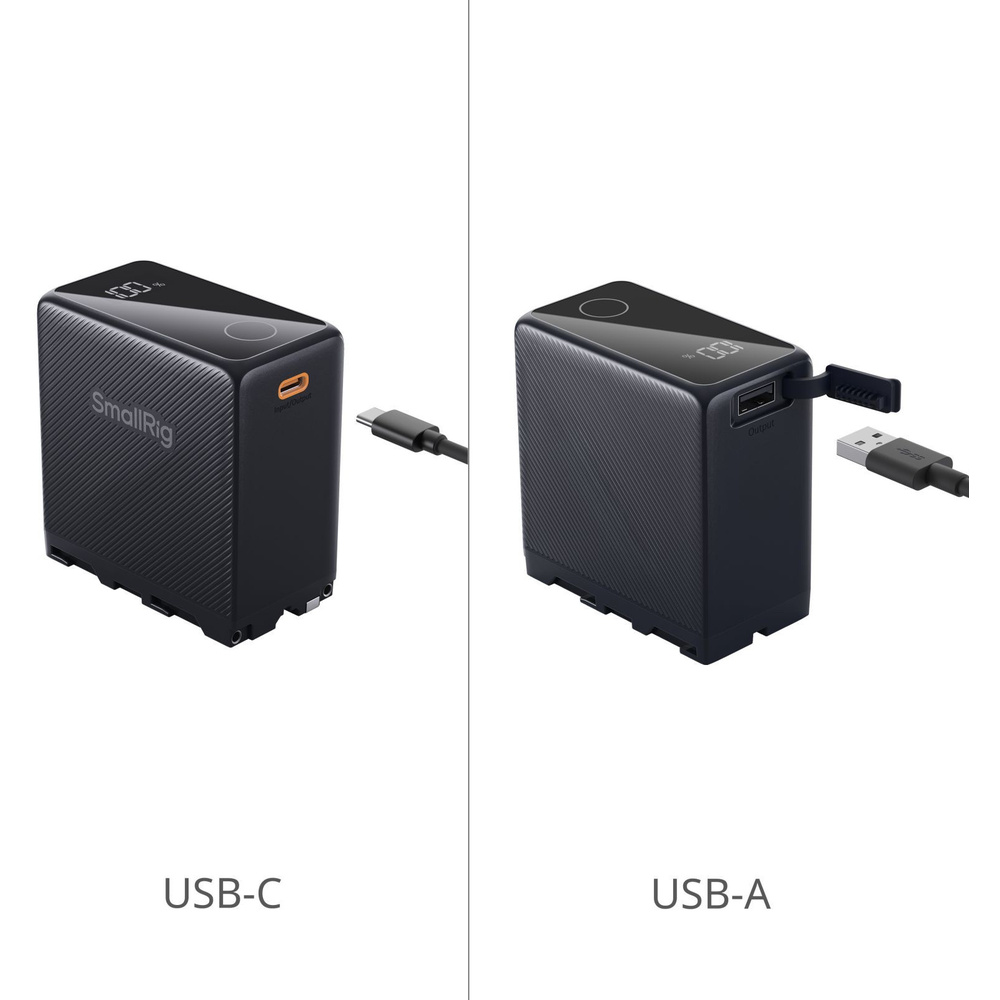

It has a 10500mAh capacity at 7.3V, rated at 76.65Wh, with USB-C input and output plus a USB-A output. USB-C supports PD 3.0, QC 3.0, QC 2.0, FCP, AFC and PPS, and USB-C fast charging is rated at 36W. The battery also includes a level display screen, a charging voltage of 8.4V, and operating ranges from 0°C to 45°C for charging and -10°C to 45°C for discharging.

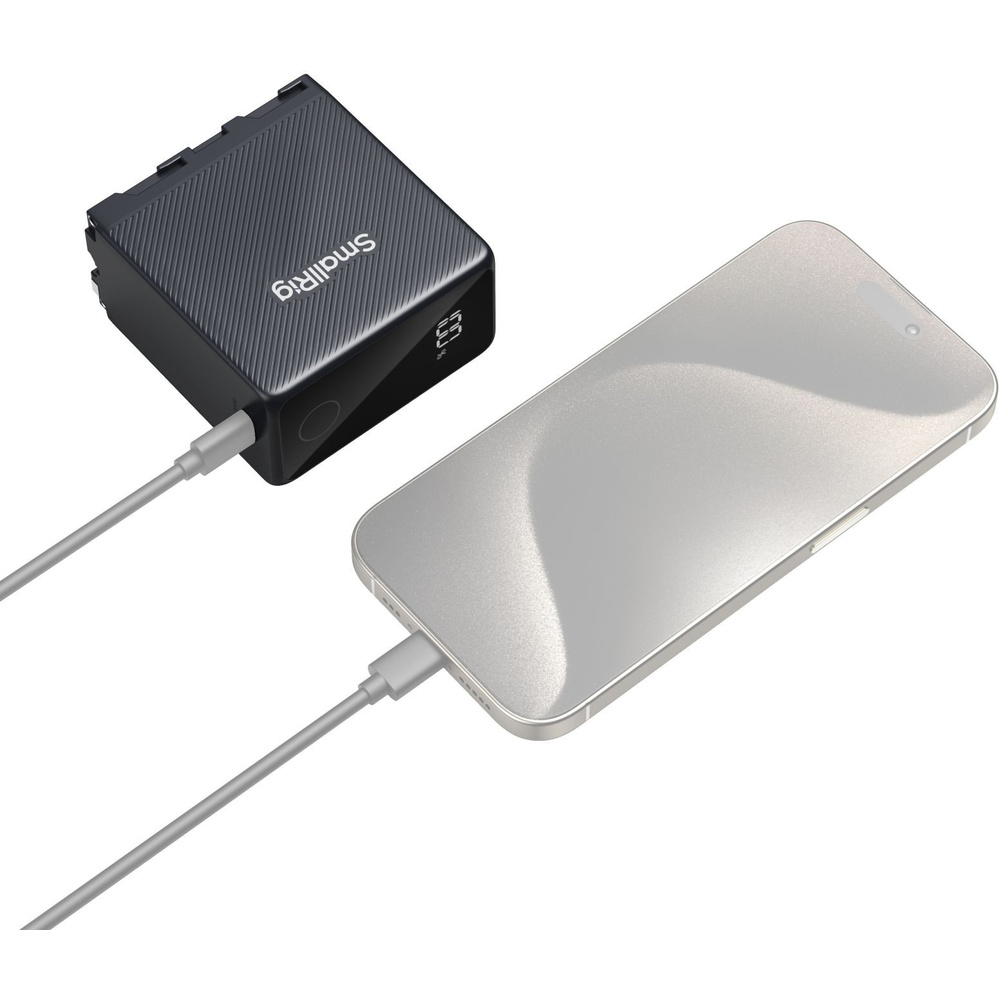

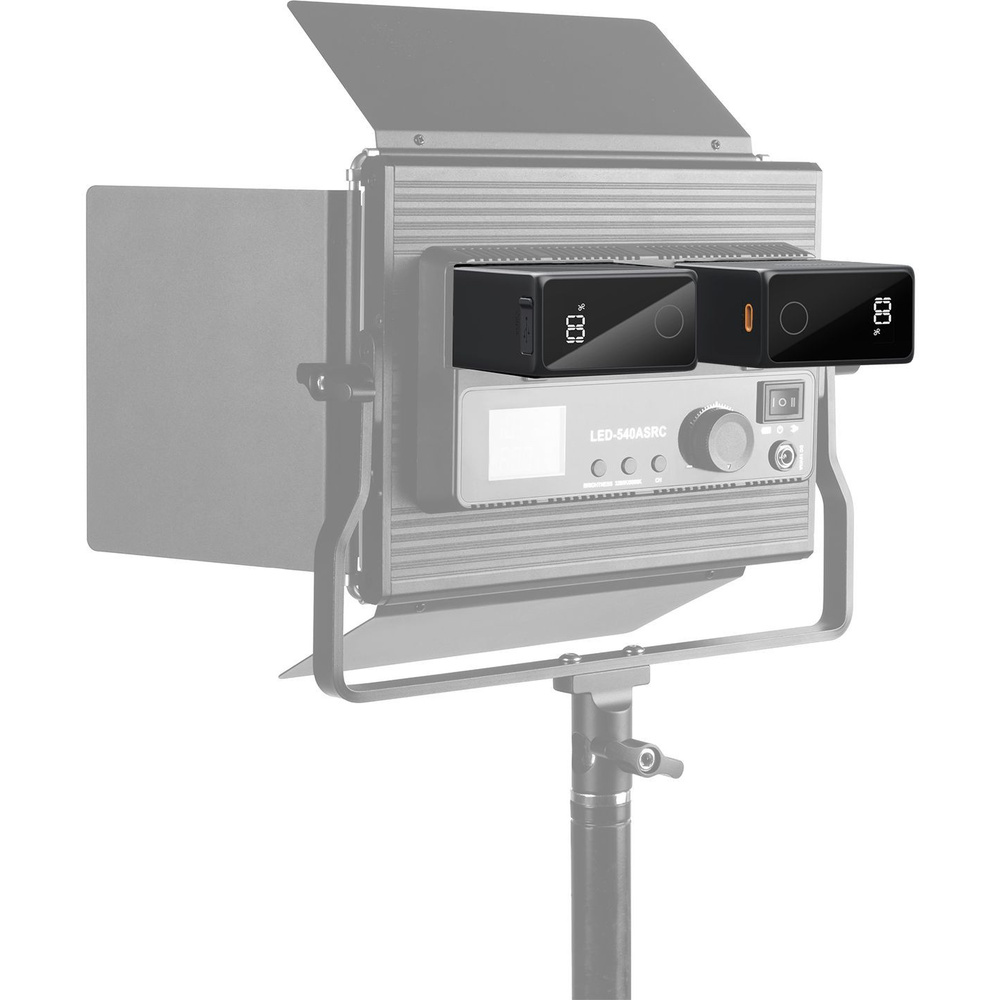

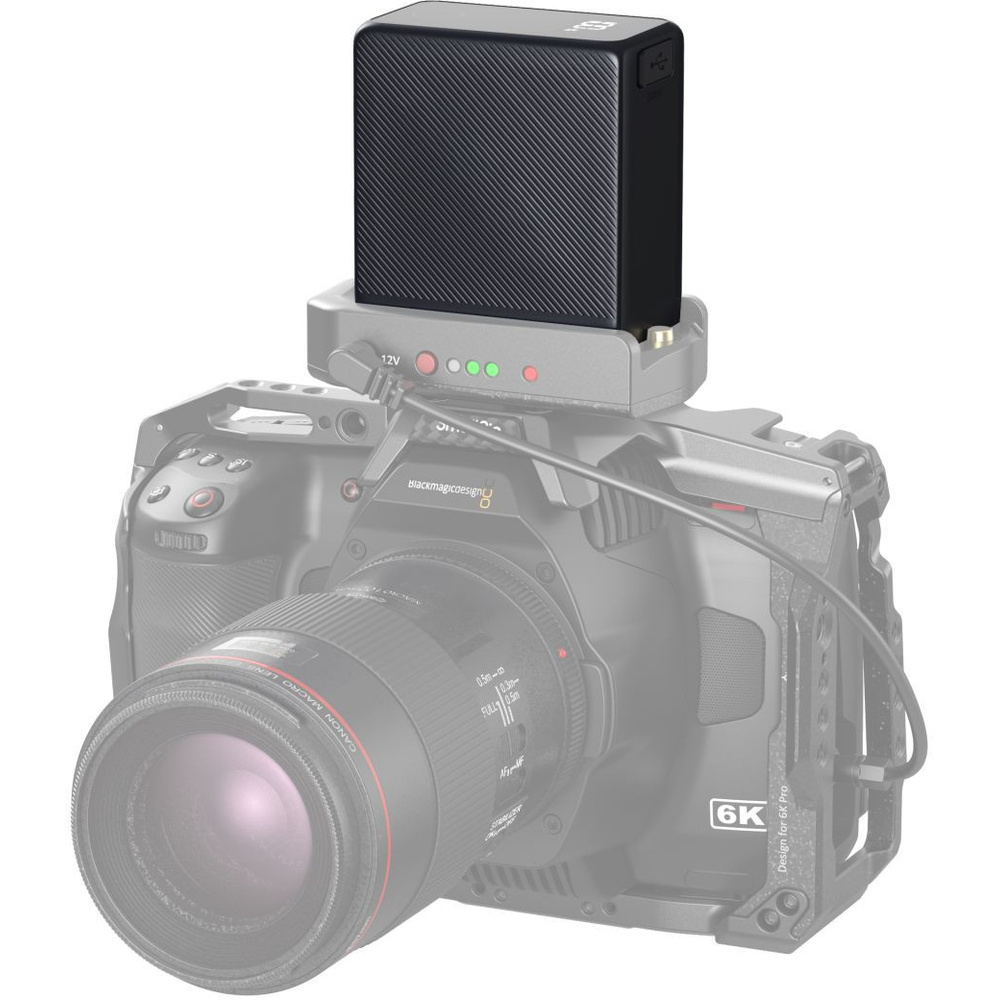

In practice, it is used with gear that accepts Sony NP-F970 style batteries, including cameras, monitors, LED lights and other production equipment. It also pairs with devices that can charge from USB-C or USB-A when used as a power source.
Specifications
| Product Dimensions | 74.6 x 71.6 x 38.5mm / 2.9 x 2.8 x 1.5in |
|---|---|
| Package Dimensions | 118 x 116 x 54mm / 4.64 x 4.56 x 2.12in |
| Product Weight (including cable and cover) | 379 ± 10g / 13.4 ± 0.3oz |
| Package Weight | 550 ± 10g / 19.4 ± 0.3oz |
| Battery Type | Lithium-Ion |
| Battery Capacity Parameters | 10500mAh / 7.3V / 76.65Wh |
| Charging Voltage | 8.4V |
| Nominal Voltage | 7.3V |
| USB-C Input / Output | 5V / 3A, 9V / 3A, 12V / 3A |
| USB-C Protocol | PD3.0 / QC3.0 / QC2.0 / FCP / AFC / PPS |
| USB-A Output | 5V / 3A, 9V / 3A, 12V / 2.25A |
| USB-A Protocol | QC3.0 / QC2.0 / FCP / AFC |
| USB-C Overcurrent Protection | ≥3.5A |
| USB-A Overcurrent Protection | 5V / 9V≥3.5A, 12V≥2.6A |
| Main Port Max Discharge Current | 10A |
| Main Port Over-discharge Current Protection Threshold | 11A |
| Discharge Cut-off Voltage | 5.2V |
| Operating Temperature | Charge: 0℃ to 45℃ / 32°F to 113°F Discharge: -10℃ to 45℃ / 14°F to 113°F |
| Battery Weight | 362.0 ± 10.0g / 12.8 ± 0.3oz |
| Material(s) | PC+ABS |
| Button Function | Single-click to display the battery percentage when not charging; press four times to turn off the USB-C and USB-A ports to enter sleep mode; single-click or re-plug to wake up the ports. |
Product details
| Battery Mount / Series | Sony NP-F970 |
|---|---|
| Batteries / Chargers | Batteries Only |
| Wattage | 10,500 mAh |
| Battery | Lithium-Ion |
In the box
- NP-F970 USB-C Rechargeable Camera Battery
- Battery Cover
- USB-C to USB-C Charging Cable
- Operating Instruction
- User Manual
- Guarantee Card
