Description
The Sennheiser ASA Active Antenna Splitter for EW-D EM Receiver (470 - 694MHZ) is a wireless mic accessory. Designed for EW-D EM Receiver. Compatible with Evolution Wireless Digital EW-D systems and EW-D EM receivers.
Highlights include 4-way active antenna splitter, supports EW-D EM receivers, antenna amplifier supply on ANT RF in A and B, IIP3 greater than 25 dBm and operating temperature range -10 to +55 °C.
Key specifications: frequency range 470 - 694 MHz; weight approx. 1100 g; dimensions approx. 212 x 168 x 43 mm; manufacturer part number EW-D ASA CN/ANZ (Q-R-S); article number 508998.
In the box: Sennheiser ASA active antenna splitter for EW-D EM receiver (470 - 694MHZ), NT 12-35 CS Power Supply and 8 x BNC Cables. Manufacturer model number EW-D ASA CN/ANZ(Q-R-S).
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Manufacturer part number | EW-D ASA CN/ANZ (Q-R-S) |
|---|---|
| Article number | 508998 |
| Frequency range | 470 - 694 MHz |
| Antenna splitter type | Active antenna splitter |

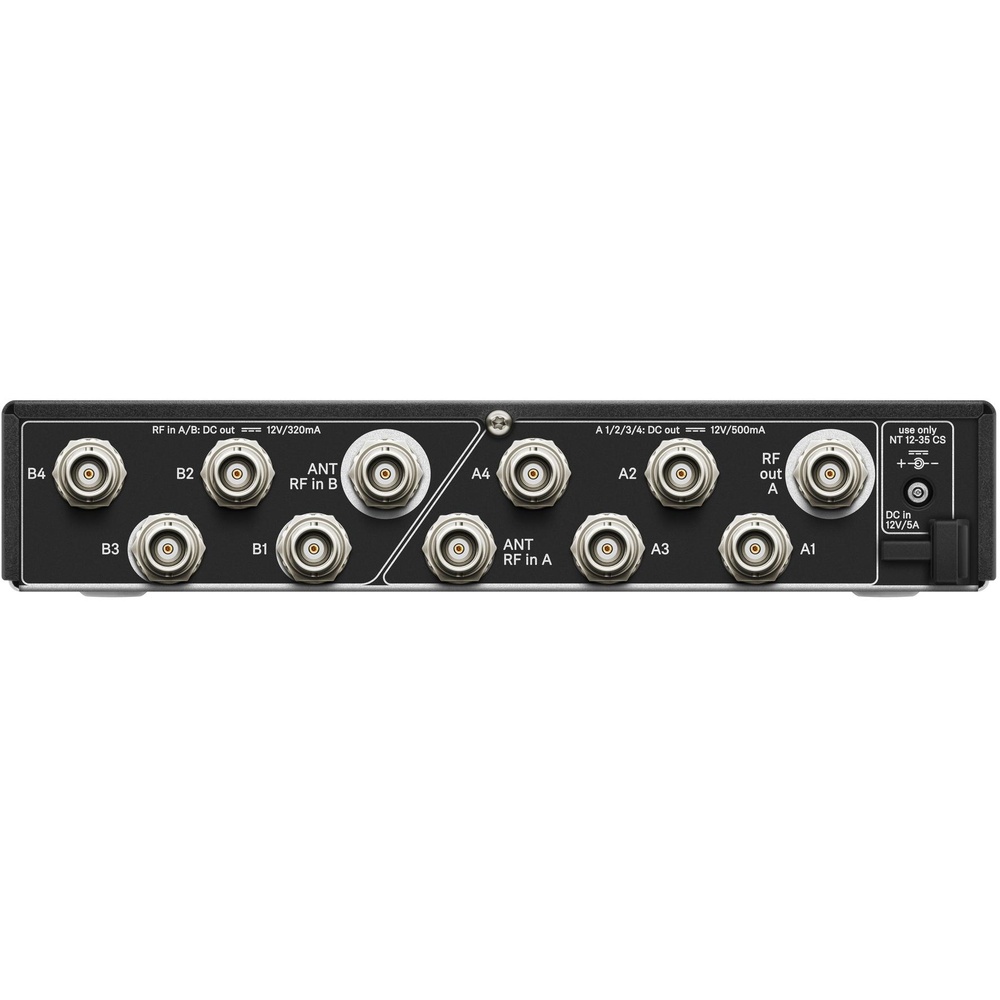

| RF antenna inputs | 2 x BNC |
| RF outputs | 4 x BNC per side (A1-A4, B1-B4) |
| Impedance | 50 Ω |
| Return loss | 10 dB (all RF outputs) |
| Operating voltage | +12 V DC from NT 12-35 CS power supply |
| Current consumption | 210 mA |
| Dimensions | approx. 212 x 168 x 43 mm |
| Weight | approx. 1100 g |
Product details
| Compatible With | Evolution Wireless Digital EW-D systems and EW-D EM receivers |
|---|
In the box
- Sennheiser ASA Active Antenna Splitter for EW-D EM Receiver (470 - 694MHZ)
- NT 12-35 CS Power Supply
- 8 x BNC Cables
