Description

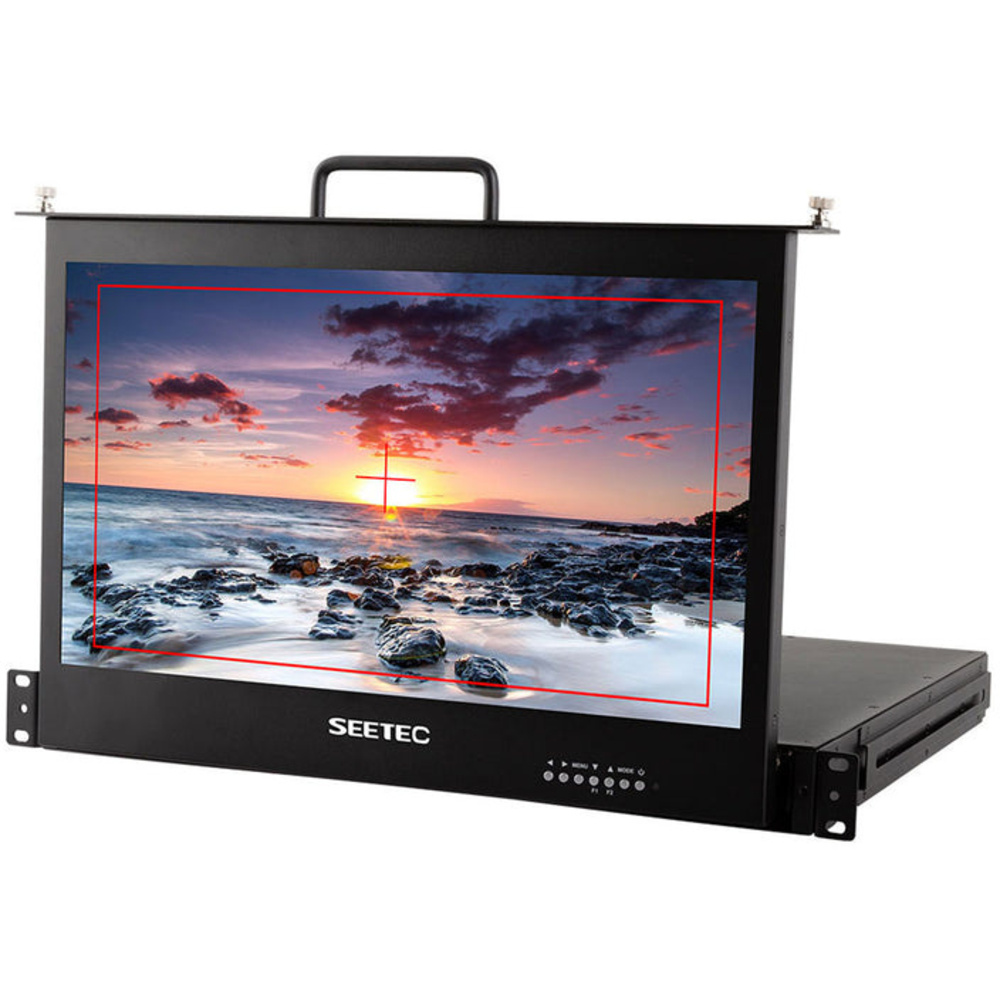

Seetec SC173-HD-56 17.3" Full HSD Pullout Rackmount Broadcast Monitor - HDMI SDI In/Out: a production monitor.
Highlights include 17.3" 1920x1080 full HD display, rack-mountable or stand alone, brightness rating 300 cd/m2, contrast ratio 700:1 and 4K HDMI, DVI, VGA, YPbPr, RCA Inputs.
Key specifications: brightness 300cd/m²; screen size 17.3"; resolution 1920×1080 pixels; dot pitch 0.1989(H)×0.1989(V) mm; aspect ratio 16:9.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. Manufacturer model number SC173-HSD-56(with SDI).
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input | 1 X BNC /SDI 1 X HDMI / HDMI 1 X DVI /DVI 1 X VGA /VGA 1 X YPbPr /YPbPr 1 X Video /Video 1 X RCA /Audio |
|---|---|
| Model | SC173-HD-56 |
| Screen Size | 17.3" |
| Color Depth | 16.7m |
| Resolution | 1920×1080 pixels |
| Dot pitch | 0.1989(H)×0.1989(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| SDI Support Format | 480i/576i 720p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| Output | 1 X BNC / SDI |
| HDMI Support Format | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| Audio | Stereo Headphone |
| Input Voltage | DC7-24V |
| Power Consumption | ≤10W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 485Lx462Hx43.5D (mm) |
| Unit Weight | 7.7kg |
Product details
| Screen Resolution | 1920 x 1080 |
|---|
