Description

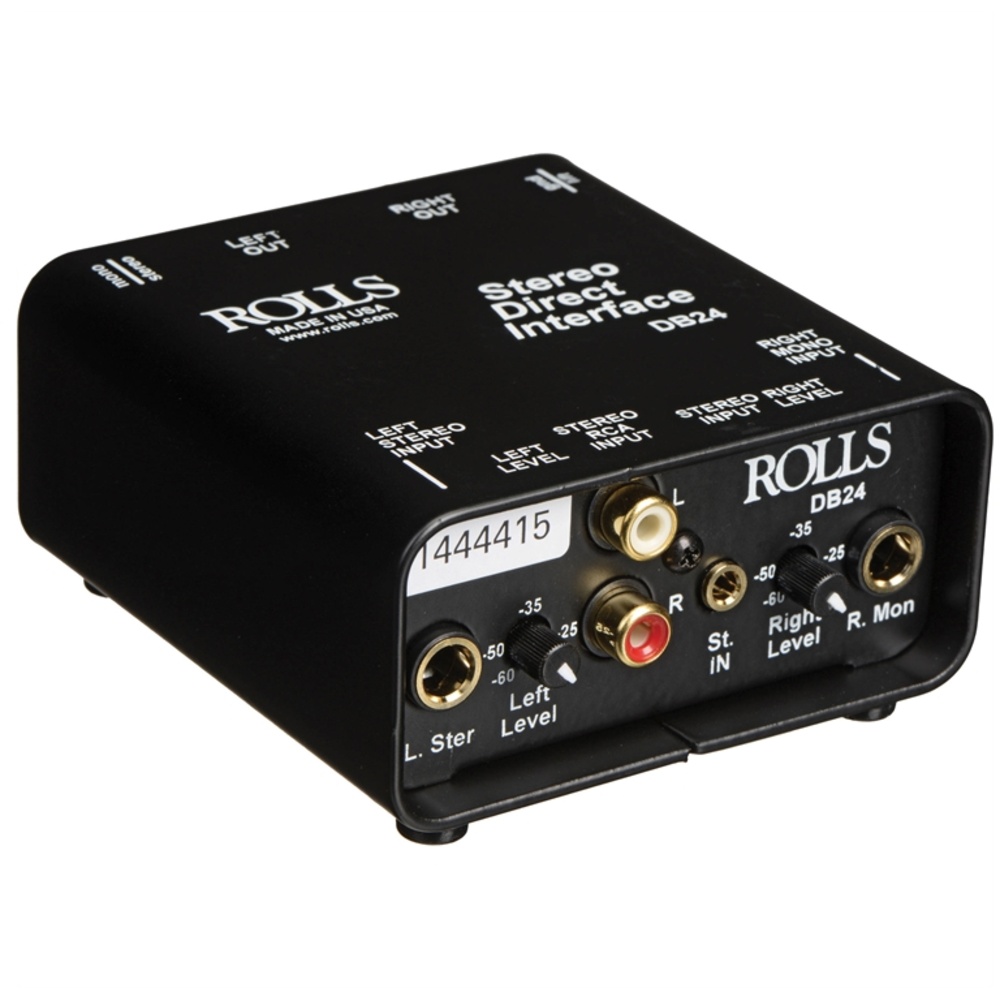

The Rolls DB24 - Stereo Direct Interface is a direct injection (D.I.) box.
Highlights include dual channel, passive, 1/4" mono, 1/8" stereo and RCA inputs, input level controls and ground lift switches.
Key specifications: frequency response 50 Hz to 15 kHz, +/-3.0 dB; weight 0.68 kg; dimensions (WxDxH) 3.42 x 3.3 x 1.45" (87 x 84 x 37 mm); type Passive; input connections 2 x 1/4" TS phone 1 x 1/8" TRS stereo mini 2 x RCA.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Type | Passive |
|---|---|
| Input Connections | 2 x 1/4" TS phone 1 x 1/8" TRS stereo mini 2 x RCA |
| Output Connectors | 2 x XLR |
| Input Impedance | 600 to 20 kΩ |
| Output Level | +4 dBm |
| Controls | 2 x Variable attenuators |
| Frequency Response | 50 Hz to 15 kHz, +/-3.0 dB |
| Dimensions (WxDxH) | 3.42 x 3.3 x 1.45" (87 x 84 x 37 mm) |
| Weight | 0.68 kg |
| Specialities | Individual ground lift switches |
In the box
- Rolls DB24 - Stereo Direct Interface
