Description

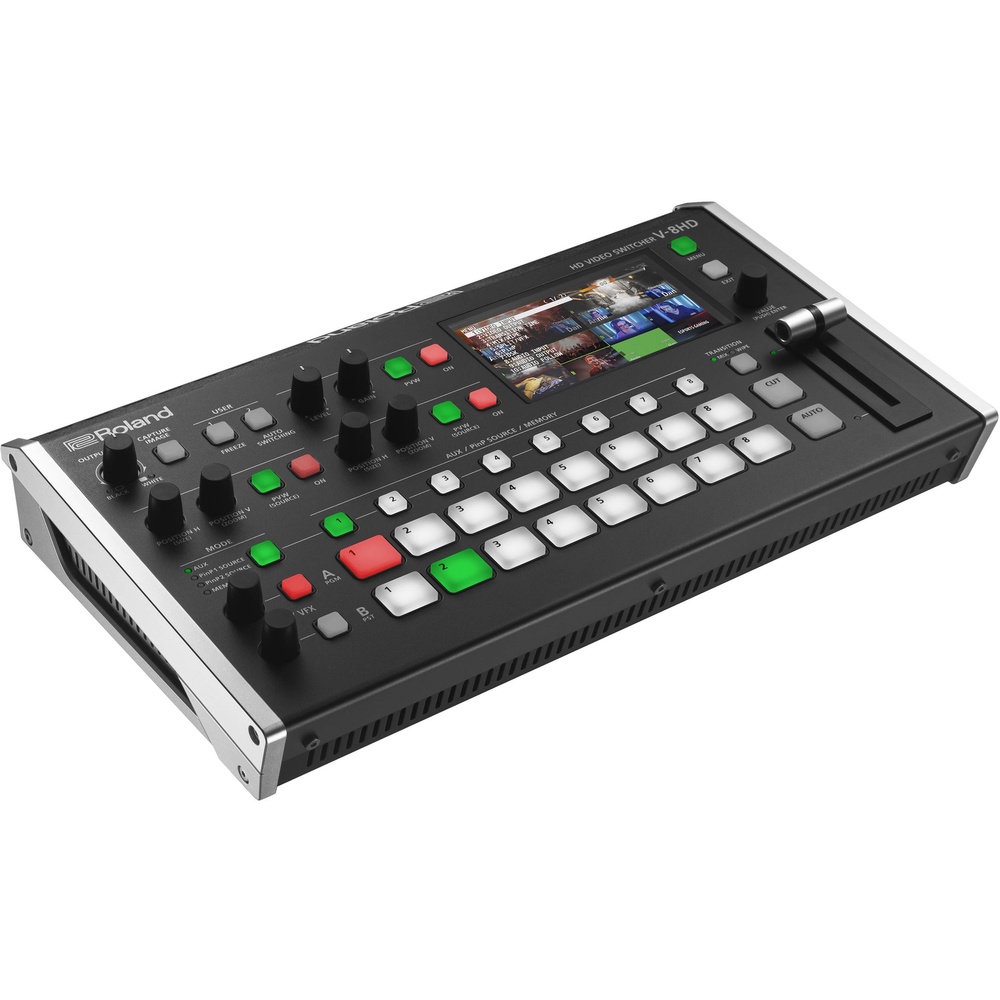

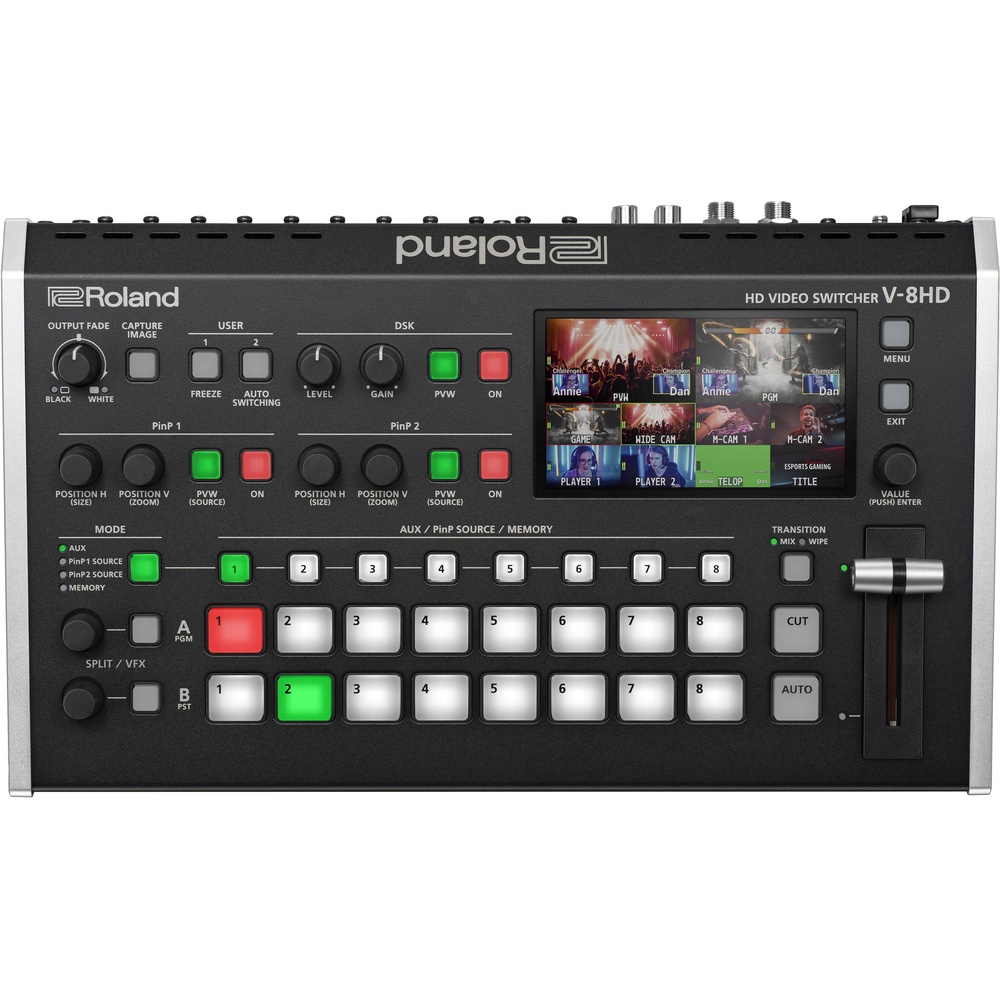

The Roland V-8HD 8 Channel HDMI Video Switcher sits in our Video Switchers range.
Highlights include 8 x HDMI inputs, 3 x HDMI outputs, up to 1080p60 resolution support, multi-format, HDCP support, 8-Bit, 4:2:2 video processing and mix-effects bus, 4.3" TFT LCD display.
Key specifications: weight 4.41 lb / 2 kg; dimensions 12.48 x 7.6 x 2.76" / 317 x 193 x 70 mm; available M/E layers 5 M/E; downstream keys 2 x Chroma, Luma; generators 1 x Pattern.
In the box: Roland V-8HD HDMI video switcher, rack ears and Power supply.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Mix Effects | |
|---|---|
| Available M/E Layers | 5 M/E |
| Effect Types | 8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys | 2 x Chroma, Luma |
| Generators | 1 x Pattern |
| Audio Mixing | 18-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton |
| Processing Resolution | 1080p at 29.97/50/59.94 |
| Colour Processing | 8-Bit 4:2:2 YCbCr |
| Audio Processing | 48 kHz / 24-Bit |
| Input | |
| Number of Video Input Sources | 8 |
| Video Input Connectors | 8 x HDMI Female |
| Input Video Format | HDMI (8-Bit 4:2:2 YCC) 1080p: 23.98/24/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps 576p: 50 fps PAL: 50 fps 480p: 59.94 fps NTSC: 59.94 fps WUXGA (1920 x 1200): 60 fps |
| Audio Input Connectors | 1 x 2RCA Stereo Analogue Female |
| Input Audio Format | Analogue: 48 kHz / 24-Bit |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Output | |
| Video Output Channels | 3 |
| Video Output Connectors | 2 x HDMI Female (Loop Output) 1 x HDMI Female (Preview) |
| Output Video Format | HDMI (8-Bit 4:2:2 YCC) 1080p: 50/59.94 fps 1080i: 50/59.94 fps |
| Audio Output Connectors | 1 x 1/4" TRS Stereo Analogue Female |
| Output Audio Format | Analogue: 48 kHz / 24-Bit |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | 1-Way Multiview viaHDMI |
| Monitor Output | 1 x HDMI |
| Connectivity | |
| Other I/O | 1 x USB Type-A Firmware Input 1 x USB Type-B Control Input |
| HDCP Support | Yes |
| Display | |
| Display Size | 4.3" |
| Screen Resolution | 480 x 272 |
| Power | |
| Power Connector | 1 x Barrel (12 to 17 VDC) Input |
| Power Consumption | Device: 3.3 A39.6 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| General | |
| Dimensions | 12.48 x 7.6 x 2.76" / 317 x 193 x 70 mm |
| Weight | 4.41 lb / 2 kg |
In the box
- Roland V-8HD HDMI Video Switcher
- Rack Ears
- Power Supply
