Description

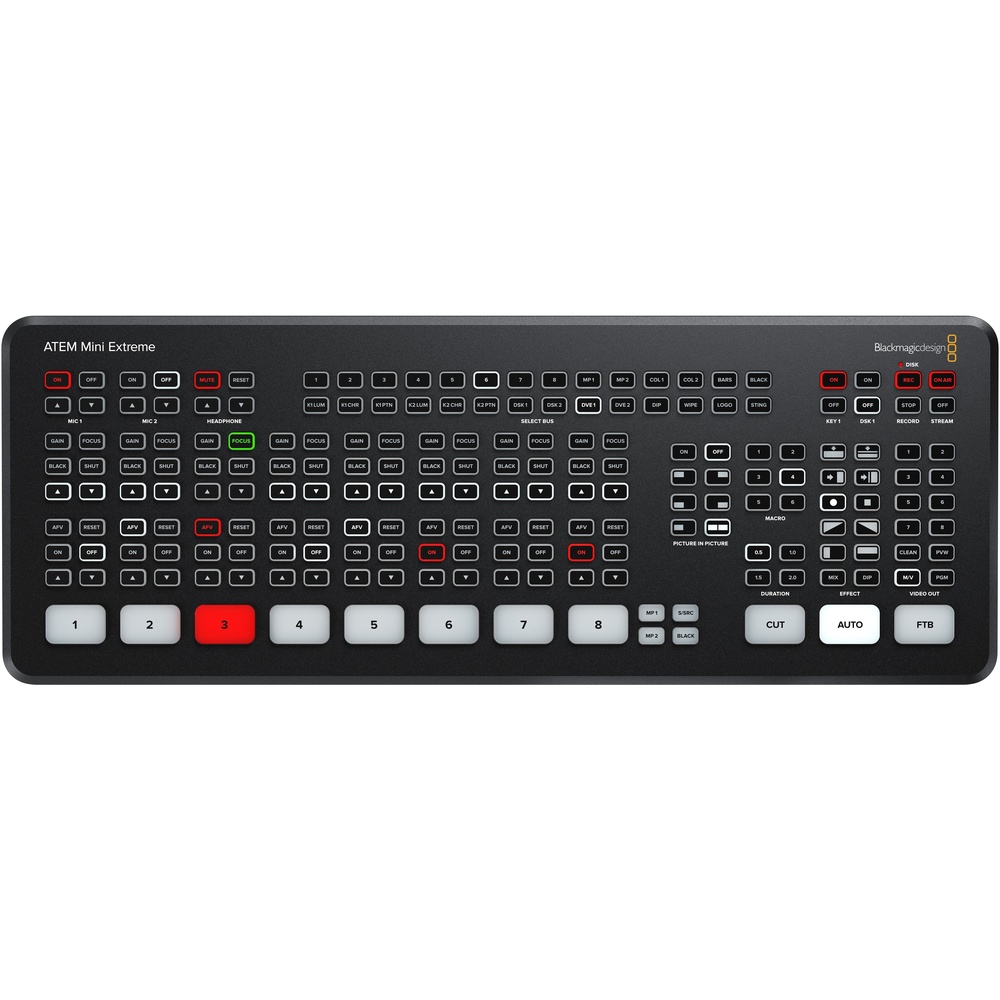

Blackmagic Design ATEM Mini Extreme: a video switcher.
Highlights include 8-Channel HDMI live streaming switcher, supports up to 1080p60, RTMP streaming via ethernet or USB-C, record programme out and 11-Input, 2-Channel Audio mixer.
Key specifications: weight 2.72 lb / 1.23 kg; dimensions 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm; available M/E layers 9 M/E; effect types 2x DVE 4x Luma Key 4x Chroma Key; graphics memory 20 Images.
Manufacturer model number SWATEMMINICEXT.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Available M/E Layers | 9 M/E |
|---|---|
| Effect Types | 2x DVE 4x Luma Key 4x Chroma Key |
| Graphics Memory | 20 Images |
| Downstream Keys | 2x Chroma, Luma, DVE |
| Generators | 5x Pattern 2x Colour |
| Audio Mixing | 2-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software |
| Processing Resolution | 1080p |
| Input | |
| Number of Video Input Sources | 8 |

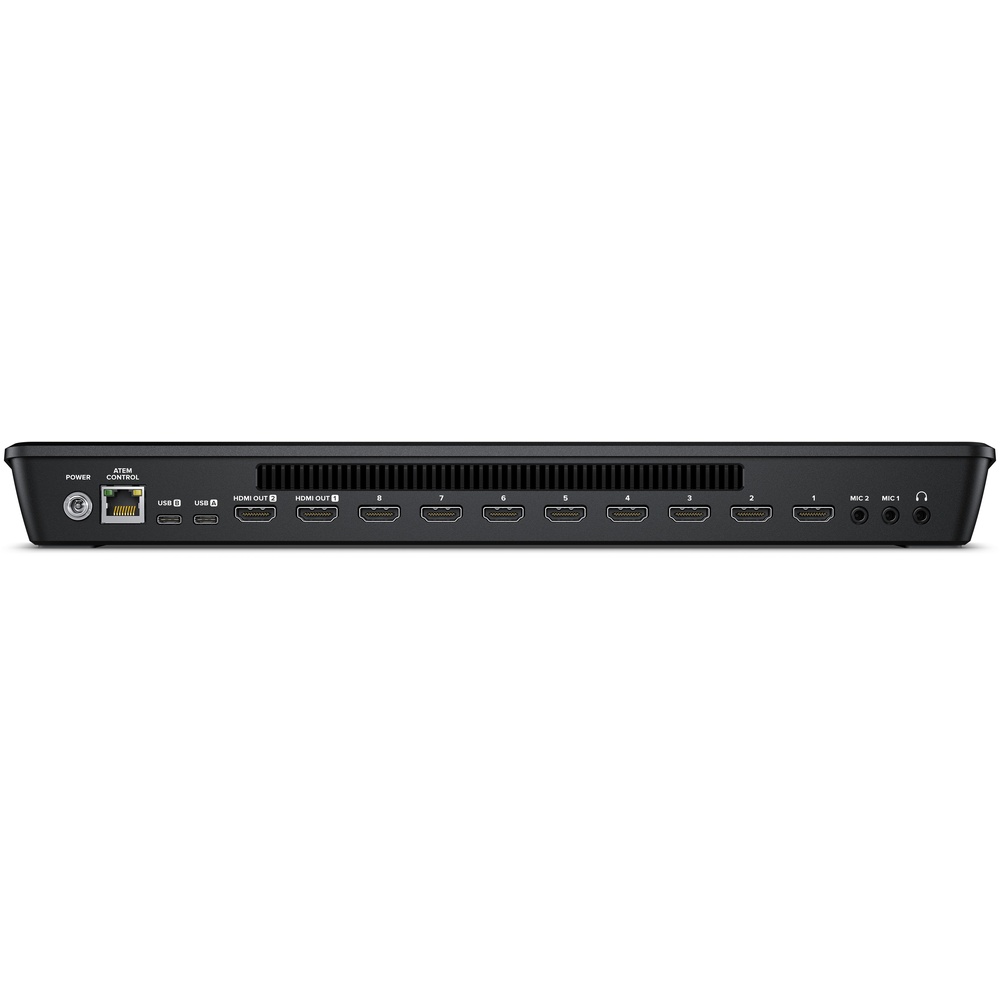

| Video Inputs | 8x HDMI |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analogue Female |
| Input Audio Format | Analogue |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Output | |
| Video Output Channels | 2 |
| Video Outputs | 2x HDMI |
| Output Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Outputs | 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analogue Female |
| Embedded Audio Output | HDMI: 2-Channel |
| Multiview Output | 16-Way Multiview via HDMI |
| Connectivity | |
| Other I/O | 1x RJ45 2x USB-C |
| HDCP Support | No |
| IP Video | H.264: 1920 x 1080 Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
| Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
| Hardware | |
| OS Compatibility | Computer: macOS 10.15 or Later / Windows 10 or Later Mobile: Android/iOS |
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 1x Barrel (12 VDC ) Input |
| Power Consumption | Device: 36 W |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 70% Humidity |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Dimensions | 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm |
| Weight | 2.72 lb / 1.23 kg |
In the box
- Blackmagic ATEM Mini Extreme
