Description
Manfrotto Nitrotech 612 Fluid Video Head and Carbon Fiber Twin Leg Tripod with Ground Spreader: a video tripod system.
Highlights include variable continuous fluid pan & tilt drag system, flat base mount ideal for various applications and carbon fiber twin leg tripod for greater rigidity. Fluid video head with continuous counterbalance system (4 - 12kg).
Key specifications: load capacity 3.99 to 11.97 kg at CoG 5.5 cm; maximum height 176.0 cm; minimum height 49.0 cm; weight 2.3 kg; materials Carbon Fibre.
Check the load rating against the weight of your camera, lens and accessories. In the box: Manfrotto nitrotech 612 fluid video head and carbon fiber twin leg tripod with ground spreader, 612 Nitrotech Fluid Video Head, pan bar, 504PLONGR Camera Plate, 2 x 1/4"-20 Screw and 2 x 3/8"-16 Screw and 4 more items. Manufacturer model number MVK612TWINGC.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Camera Plate | |
|---|---|
| Camera Plate Features | Quick Release |
| Camera Mounting Screw | 1/4"-20 Male with Locating Pin 3/8"-16 Bushing Included |
| Tripod Platform | |
| Base Mount | 3/8"-16 Female |
| Pan & Tilt | |
| Drag Control | Pan: Continuous Tilt: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Physical | |
| Load Capacity | 3.99 to 11.97 kg at CoG 5.5 cm |
| Counter Balance | Continuous (3.99 to 11.97 kg) |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 2 x 3/8"-16 Female Thread |
| Operating Temperature | -20 to 50°C |
| Weight | 2.3 kg |
| General | |
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 20.00 kg |
| Maximum Working Height | 158 cm (with Spreader) |
| Minimum Working Height | 33.5 cm (with Spreader) |
| Folded Length | 69 cm |
| Materials | Carbon Fibre |
| Weight | 3.27 kg |
| Legs | |
| Leg Lock Type | Lever Lock |
| Leg Positions | Continuously Adjustable |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Feet Features | Dual Spiked |
| Spreader | Ground (Included) |
Product details
| Closed Length | 85 cm |
|---|---|
| Load Capacity | 12.0 kg |
| Weight | 6.00 kg |
| Maximum Height | 176.0 cm |
| Minimum Height | 49.0 cm |
| Material | Carbon Fiber |
In the box
- Manfrotto Nitrotech 612 Fluid Video Head and Carbon Fiber Twin Leg Tripod with Ground Spreader

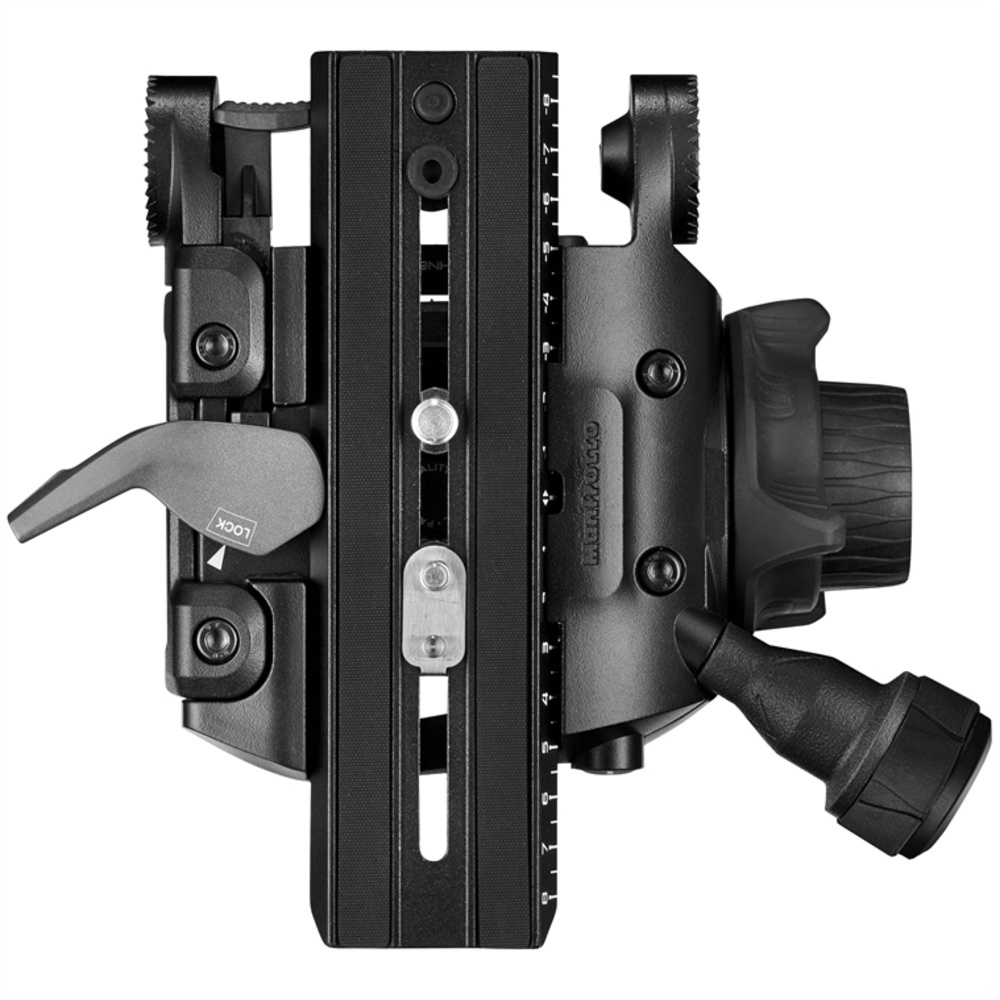

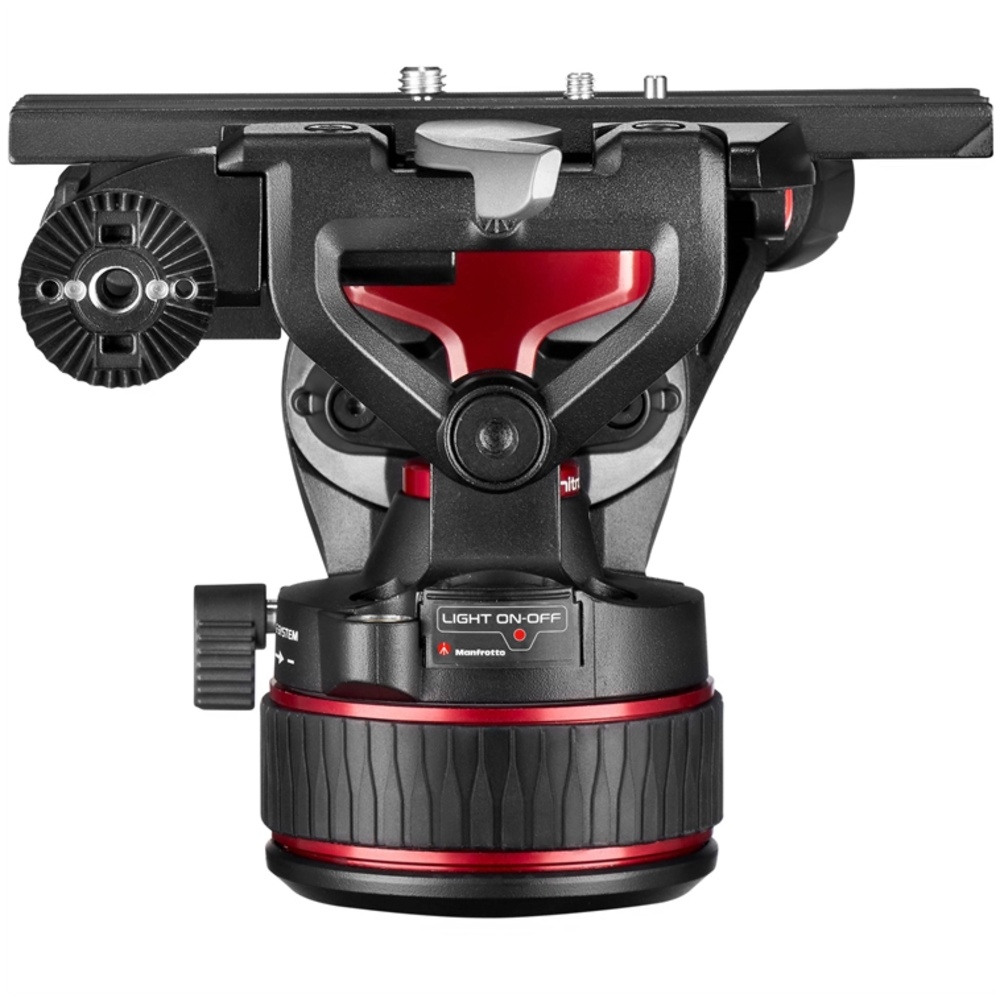

- 612 Nitrotech Fluid Video Head
- Pan Bar

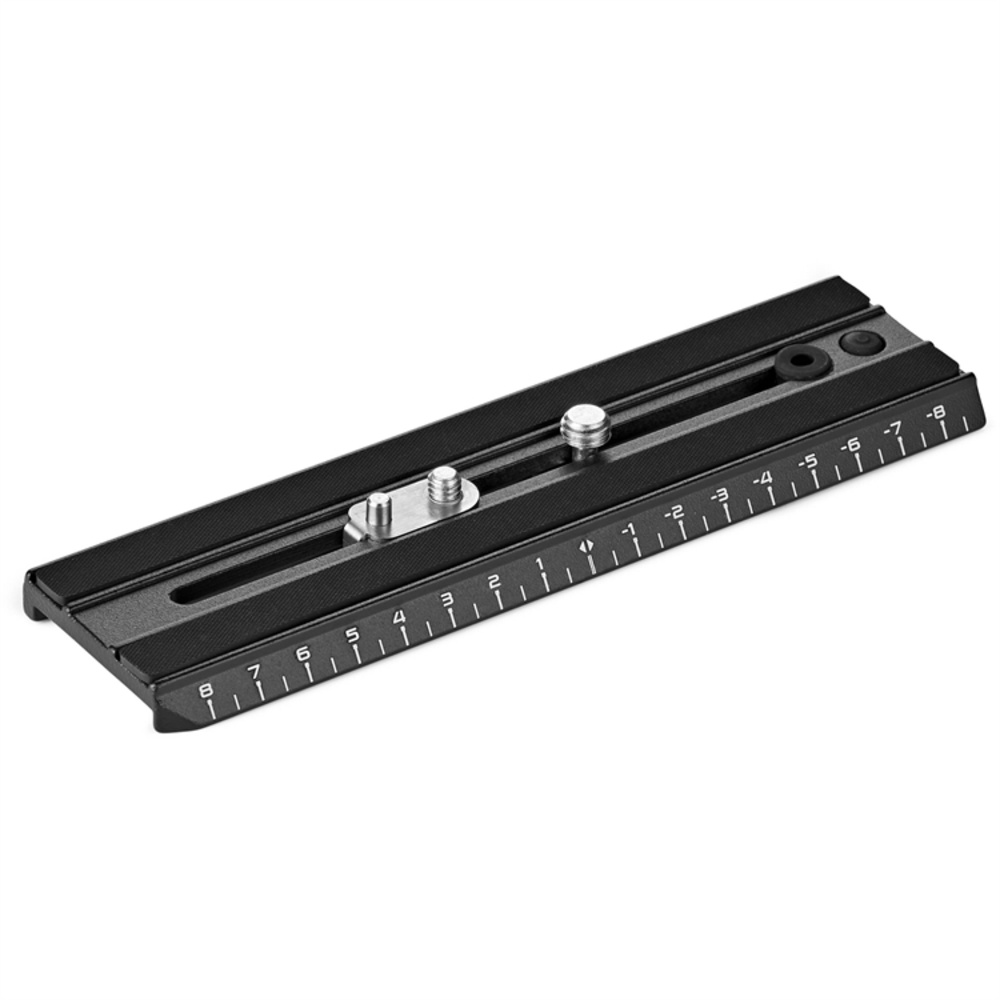

- 504PLONGR Camera Plate
- 2 x 1/4"-20 Screw
- 2 x 3/8"-16 Screw
- 2 x Anti-Rotation Pin
- Spare Rosette
- Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
- 100 to 75mm Adapter Ring
