Description

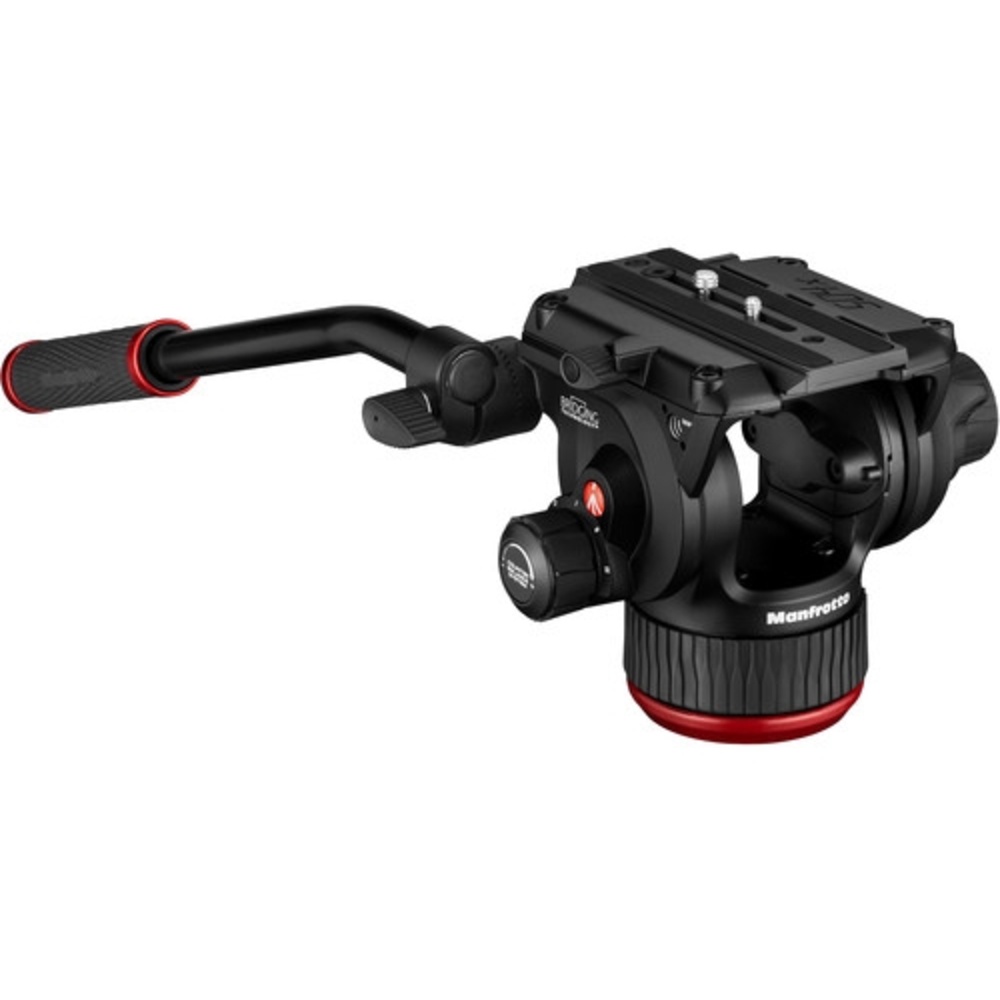

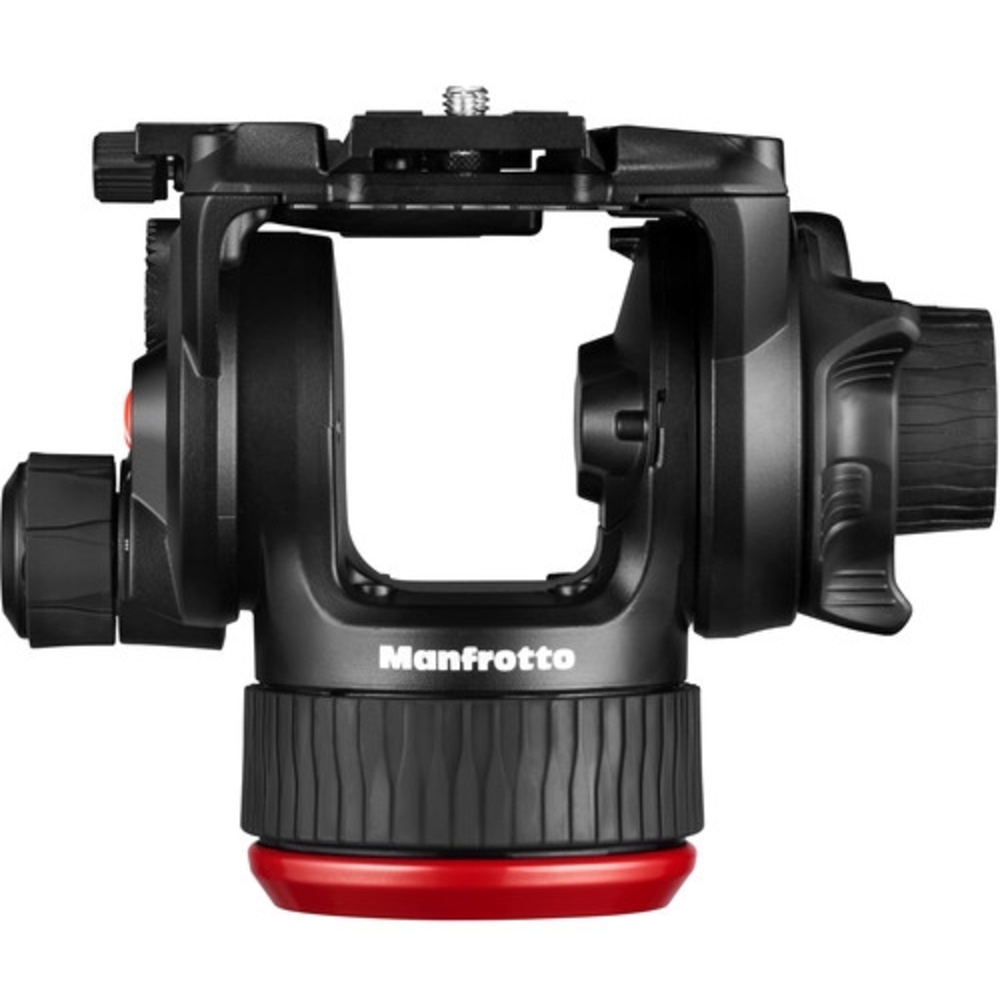

The Manfrotto 504X Fluid Video Head & MVTTWINMA Aluminum Tripod with Mid-Level Spreader is a video tripod system.
Highlights include fluid head with 12kg maximum load, aluminium tripod, mid-level spreader, levelling Ball, carry bag, 4-Step counterbalance system and flat base head with 3/8"-16 thread.
Key specifications: camera mounting screw 1 x 1/4"-20 Male 1 x 3/8"-16 Male; load capacity 26.46 lb / 12 kg; weight 4.41 lb / 2 kg; dimensions 5.86" / 14.88 cm; material Aluminium.
Check the load rating against the weight of your camera, lens and accessories. In the box: Manfrotto 504X fluid video head with flat base, Manfrotto aluminium twin leg video tripod with mid-level spreader, levelling Ball and carry bag. Manufacturer model number MVH504XAH.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Camera Plate | |
|---|---|
| Camera Plate Features | Quick Release, Sliding Balance Plate |
| Camera Plate Type | 504PLONG |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Tripod Platform | |
| Base Mount | 3/8"-16 Female |
| Pan & Tilt | |
| Drag Control | Tilt: Continuous Pan: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | None |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Physical | |
| Material | Aluminium |
| Load Capacity | 26.46 lb / 12 kg |
| Counter Balance | Incremental 4-Step Plus 0 (0 to 14.3 lb / ) |
| Bubble Level | 1 |
| Dimensions | 5.86" / 14.88 cm |
| Weight | 4.41 lb / 2 kg |
| General | |
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 55 lb / 24.95 kg |
| Maximum Working Height | 60" / 152.40 cm |
| Minimum Working Height | 23" / 58.42 cm |
| Folded Length | 27" / 68.58 cm |
| Materials | Aluminium |
| Weight | 7.2 lb / 3.27 kg |
| Legs | |
| Leg Sections | 3 |
| Feet Features | Rubber, Dual Spiked |
| Spreader | Mid-Level (Included) |
In the box
- Manfrotto 504X Fluid Video Head with Flat Base
- Manfrotto Aluminium Twin Leg Video Tripod with Mid-Level Spreader
- Levelling Ball
- Carry Bag
