Description

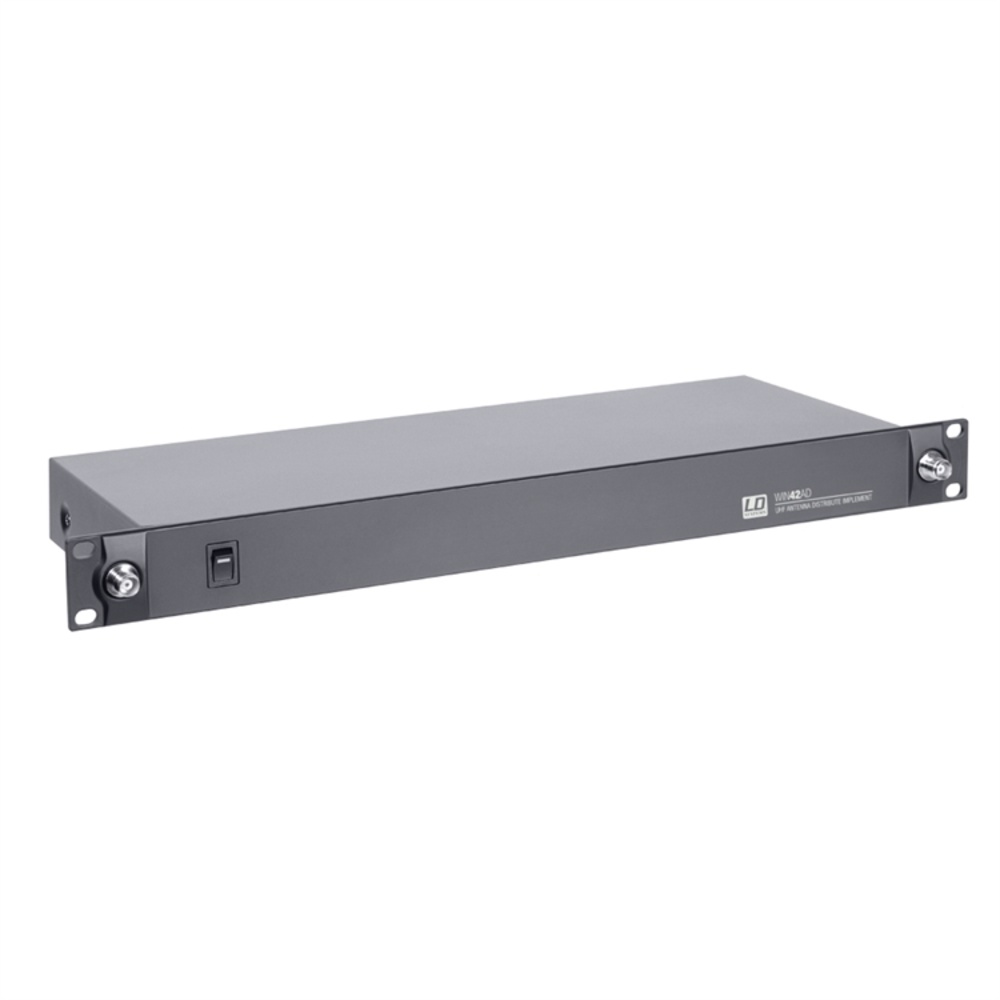

LD Systems WIN 42 AD 4-Way Antenna Split Box: a wireless mic accessory. Compatible with 4 radio receivers.

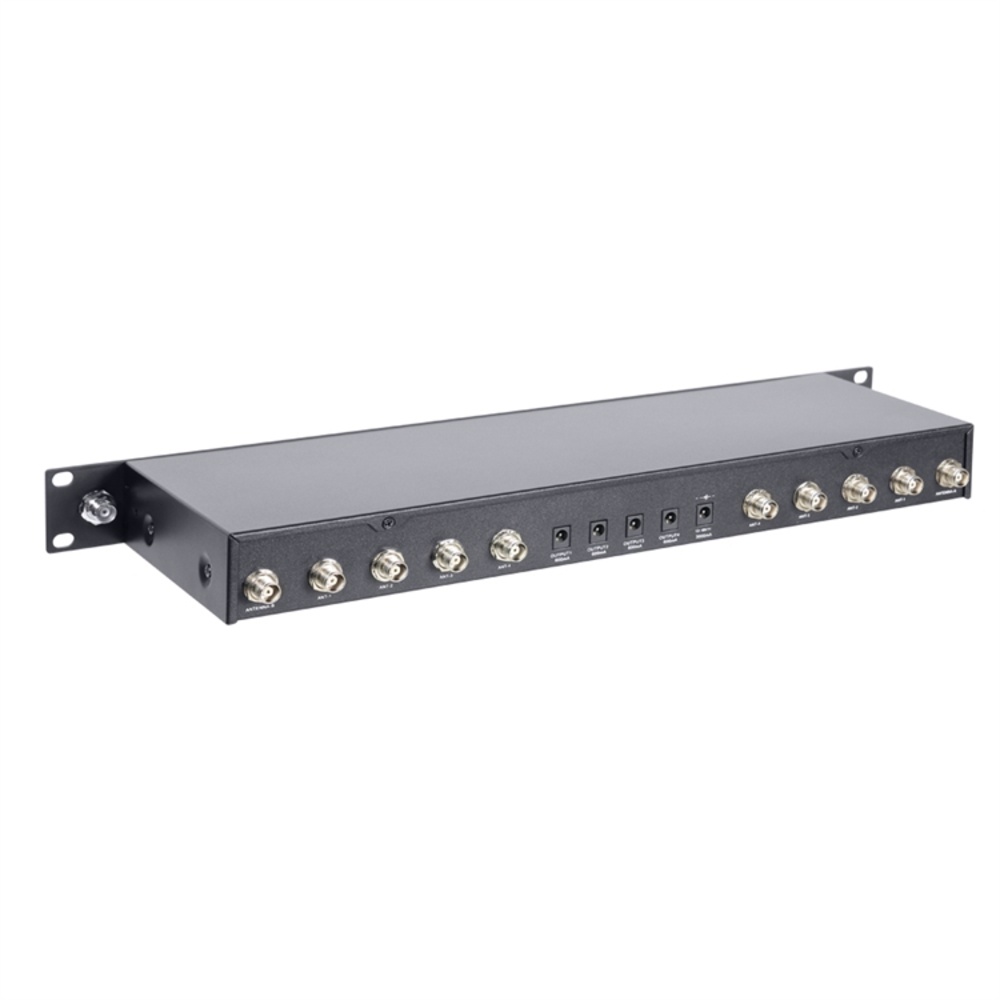

Highlights include 2 BNC antenna inputs, 4 x 2 BNC antenna outputs, 9 V power supply for antenna booster and Power feed for 4 radio receivers.
Key specifications: weight 4.672 kg; compatible with 4 radio receivers; product type Wireless Microphone System Accessories; type Antenna Splitter; frequency band 500 MHz - 900 MHz.
In the box: 4 x Output 600 mA, 10 x BNC Kabel, 0.5m, plastic case, 2 x BNC adapter, Power supply and 4 x DC cable, 0.5m. Manufacturer model number LDWIN42AD.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | Wireless Microphone System Accessories |
|---|---|
| Type | Antenna Splitter |
| Frequency band | 500 MHz - 900 MHz |
| Frequency bandwidth | 400 MHz |
| Signal gain | 3 dB |
| Antenna inputs | 2 |
| Antenna input connection | BNC |
| Input impedance | 50 Ohm(s) |
| Antenna outputs | 4 x 2 |
| Antenna output connection | BNC |
| Output impedance | 50 Ohm(s) |
| Power supply | 12 - 18 V DC, 3A |
| Operating voltage | 12 V DC - 18 V DC (100 mA) |
| Width | 482 mm |
| Height | 44.4 mm |
| Depth | 160 mm |
| Weight | 4.672 kg |
Product details
| Compatible With | 4 radio receivers |
|---|
In the box
- 4 x Output 600 mA
- 10 x BNC Kabel, 0.5m

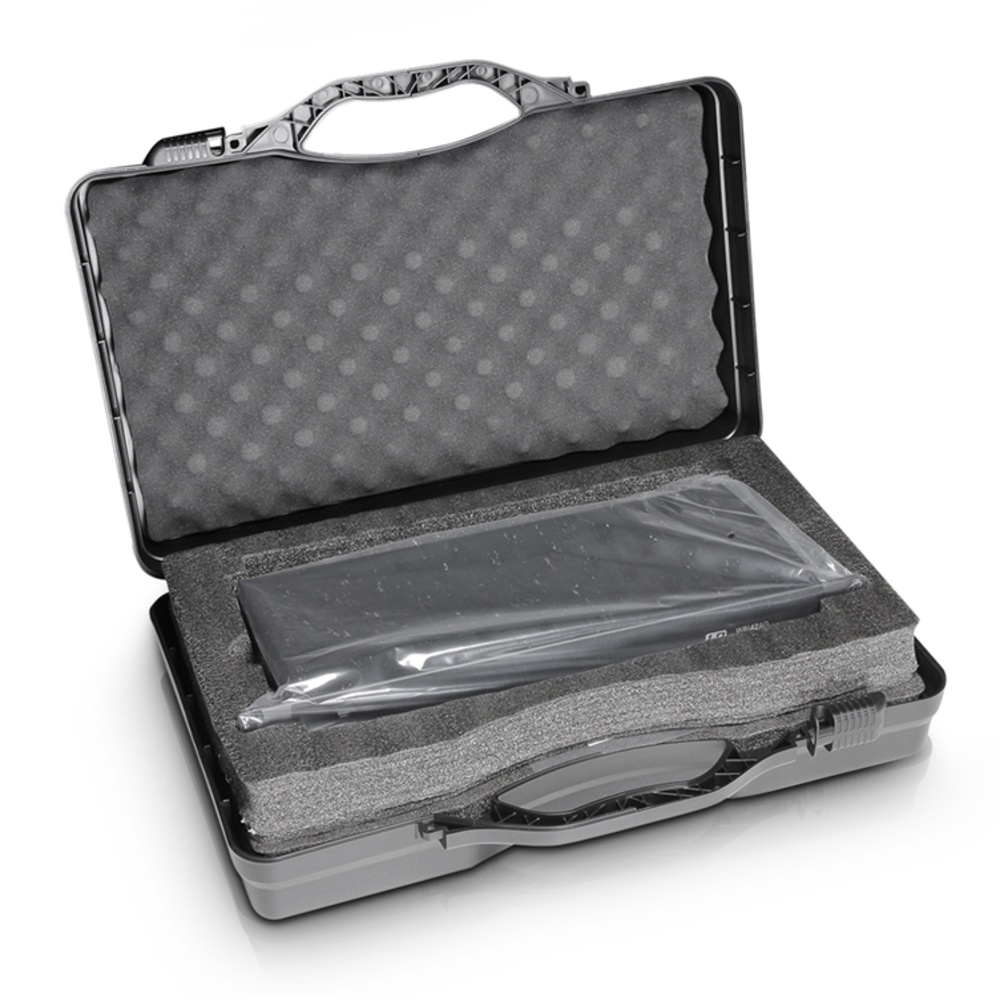

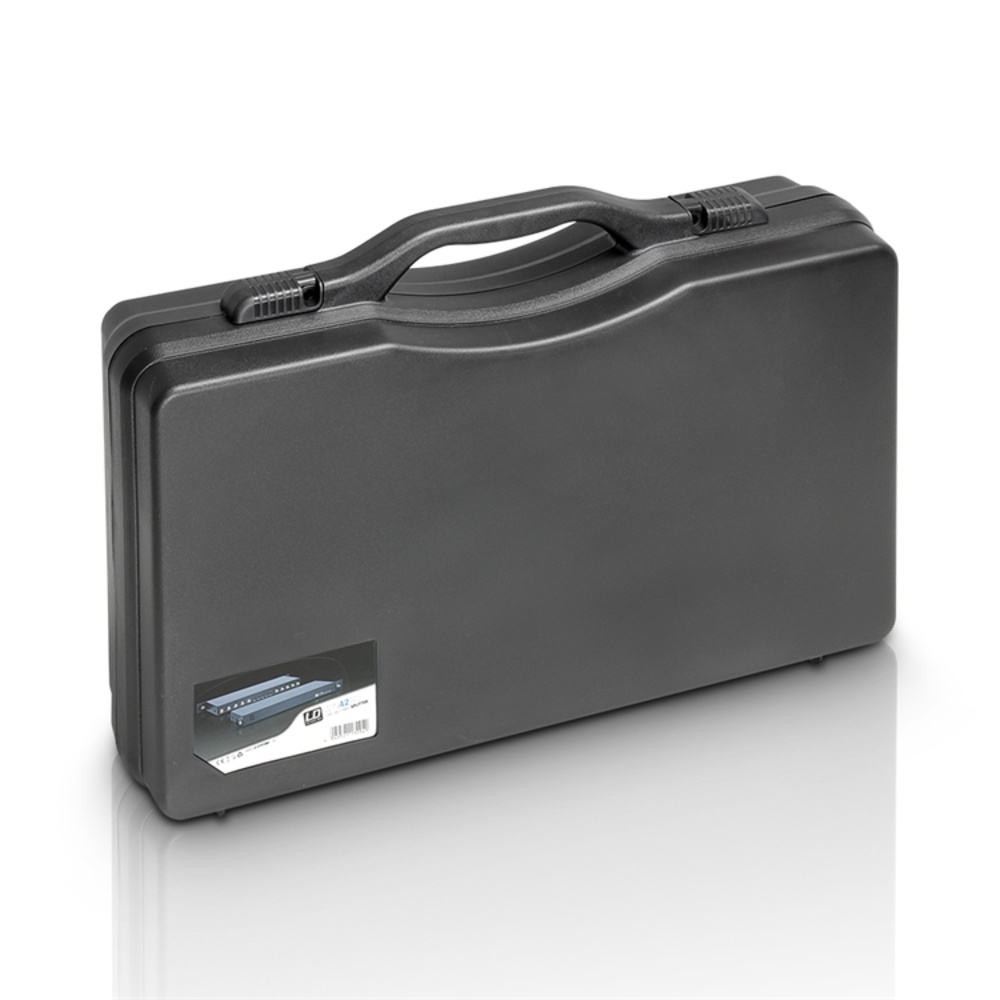

- Plastic case
- 2 x BNC adapter
- Power supply
- 4 x DC cable, 0.5m
