Description

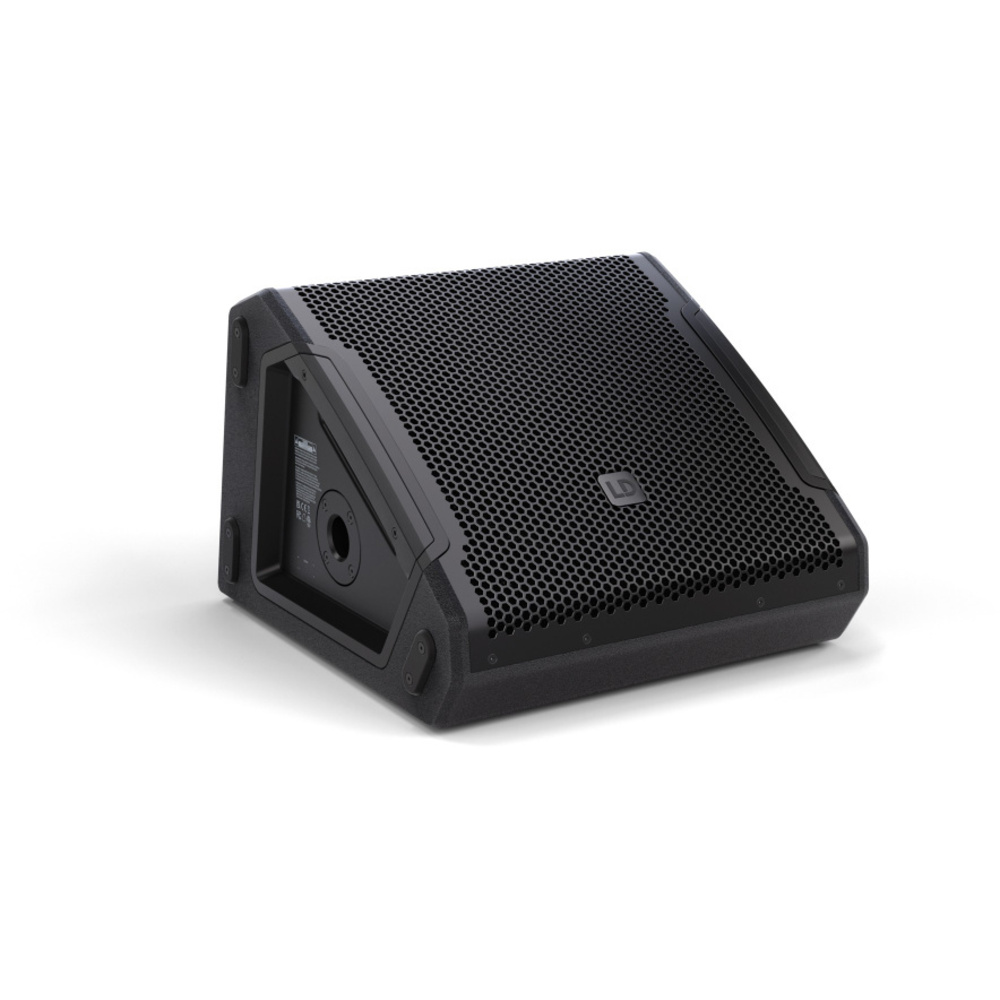

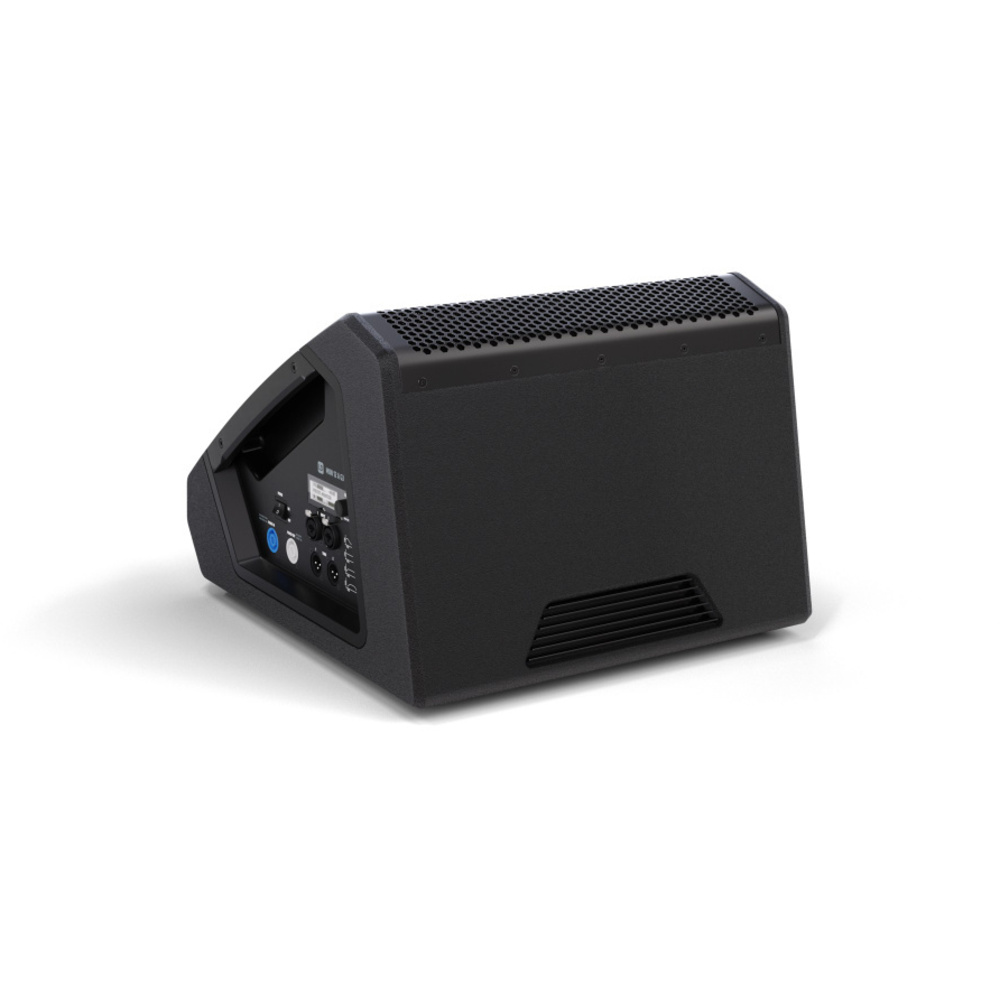

The LD Systems Stinger MON12AG3 12" Powered Coaxial Stage Monitor is a PA system.
Highlights include 12" low-frequency driver, 1" high-frequency driver, 126 dB Max SPL and XLR-1/4" input jack combo connector.
Key specifications: frequency response (-3 dB) 68 - 18000 HZ; weight 17,4 kg; product type Stage monitors; type Powered; system output (RMS) 300 W.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: LD Systems Stinger MON12AG3 12" Powered Coaxial Stage Monitor and IEC Power Cable. Manufacturer model number LDMON12AG3.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | Stage monitors |
|---|---|
| Type | Powered |
| Color | Black |
| System output (RMS) | 300 W |
| System output (Peak) | 1200 W |
| Max. SPL Average (Sine burst) | 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) |
| Max. SPL Peak (Sine burst) | 127 dB (fullspace @1m, 10% THD) |
| Frequency response (-3 dB) | 68 - 18000 HZ |
| Frequency response (-10 dB) | 55 - 20000 Hz |
| Crossover frequency | 1400 Hz |
| Monitor angle | 33° |
| Dispersion (H x V) | 50° x 90° |
| Width | 425 mm |
| Depth | 453 mm |
| Height | 315 mm |
| Features | 3-band EQ (High, Mid, Low), Delay line, Notch filter |
| Weight | 17,4 kg |
| Low/mid Woofer dimensions | 12 " |
| Woofer dimensions (mm) | 304.8 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer type | Coaxial loudspeaker |
| Woofer voice coil | 2.5 " |
| Woofer voice coil (mm) | 65 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | 15 mm Birch Plywood, 15 mm MDF |
| Horn | CD Horn |
| Tweeter dimensions | 1 " |
| Tweeter dimensions (mm) | 25.4 mm |
| Tweeter magnet | Ferrite |
| Tweeter brand | Custom-made |
| Tweeter voice coil | 1.75 " |
| Tweeter voice coil (mm) | 44.45 mm |
| Amplifier | Class D |
| Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
| Operating Temperature | 0 - 40 °C |
| Humidity Range | < 80 % ( non-condensing ) |
| Fuse | T4AL 250 V |
| Controls | On / off switch, Rotary/push encoder |
| Indicators | LC display |
| Operating voltage | SMPS |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 150 W |
| Power in / out | PowerCON compatible |
| Line inputs | 2 |
| Line input connectors | 6.3 mm jack, XLR - combo |
| Line thru | 2 |
| Line through connector | XLR |
In the box
- LD Systems Stinger MON12AG3 12" Powered Coaxial Stage Monitor
- IEC Power Cable
