Description

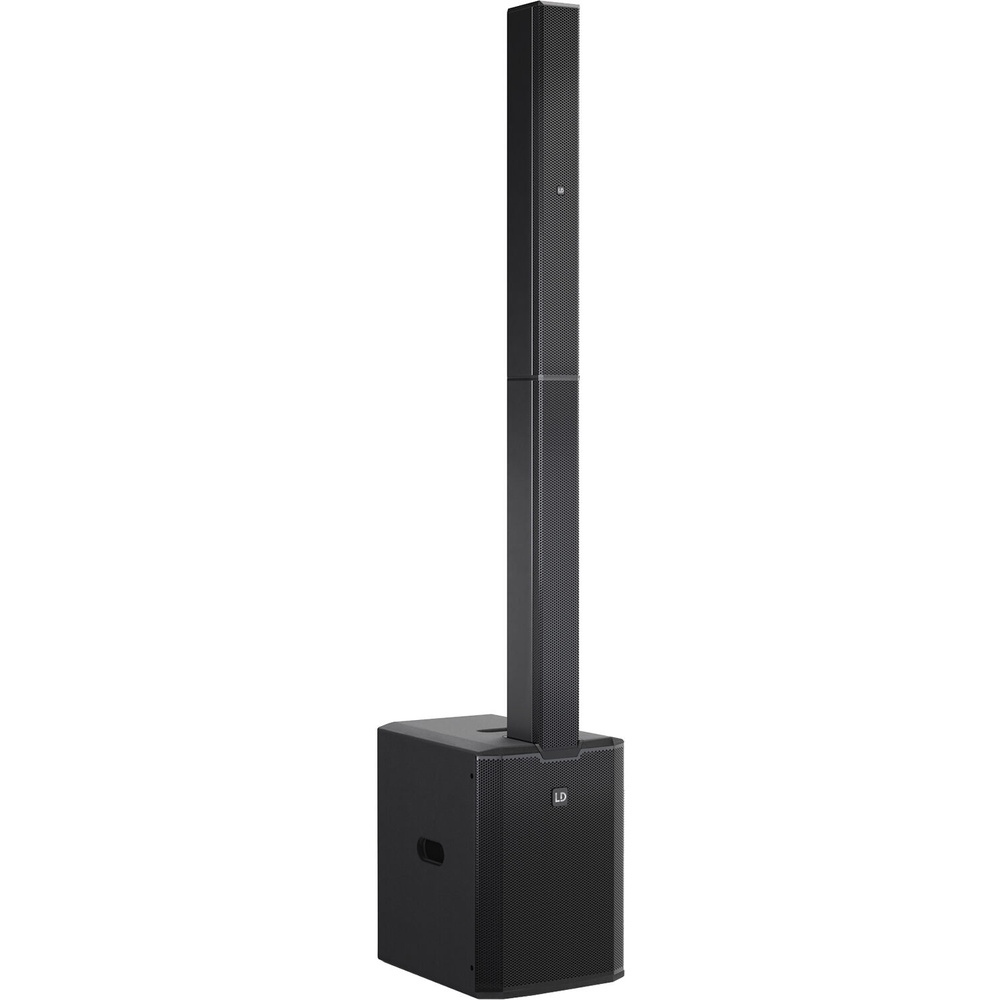

The LD Systems MAUI 28 G3 MIX Portable 2060W Powered Column PA System (Black) sits in our PA Systems range.
Highlights include for DJs, singer-songwriters, Small bands, Bluetooth Audio with stereo streaming, powered subwoofer module with sat out, 4-Input, 6-Channel Mixer with AEQ and FX and twelve midrange 3.5" and two 1" tweeters.
Key specifications: frequency response 37 Hz to 20 kHz; speaker configuration 1x 3-Way Speaker Column with Subwoofer; number of input channels 2 (2 x Mono); amplifier power rating 1030 W RMS 2060 W Peak; amplifier class Class-D.
In the box: LD Systems MAUI 28 G3 MIX Portable 2060W Powered Column PA System (Black), 2 x Column Speakers, subwoofer and Power cord.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Portable PA System | |
|---|---|
| Speaker Configuration | 1x 3-Way Speaker Column with Subwoofer |
| Number of Input Channels | 2 (2 x Mono) |
| Amplifier Power Rating | 1030 W RMS 2060 W Peak |
| Amplifier Class | Class-D |
| Speakers | |
| Enclosure Type | Bass-Reflex |
| HF Driver | 2x 1" / 25.4 mm Horn-Loaded Tweeter |
| HF Voice Coil | 1" / 25.4 mm |
| MF Driver | 12x 3.5" / 88.9 mm |
| MF Voice Coil | 0.75" / 19.05 mm |

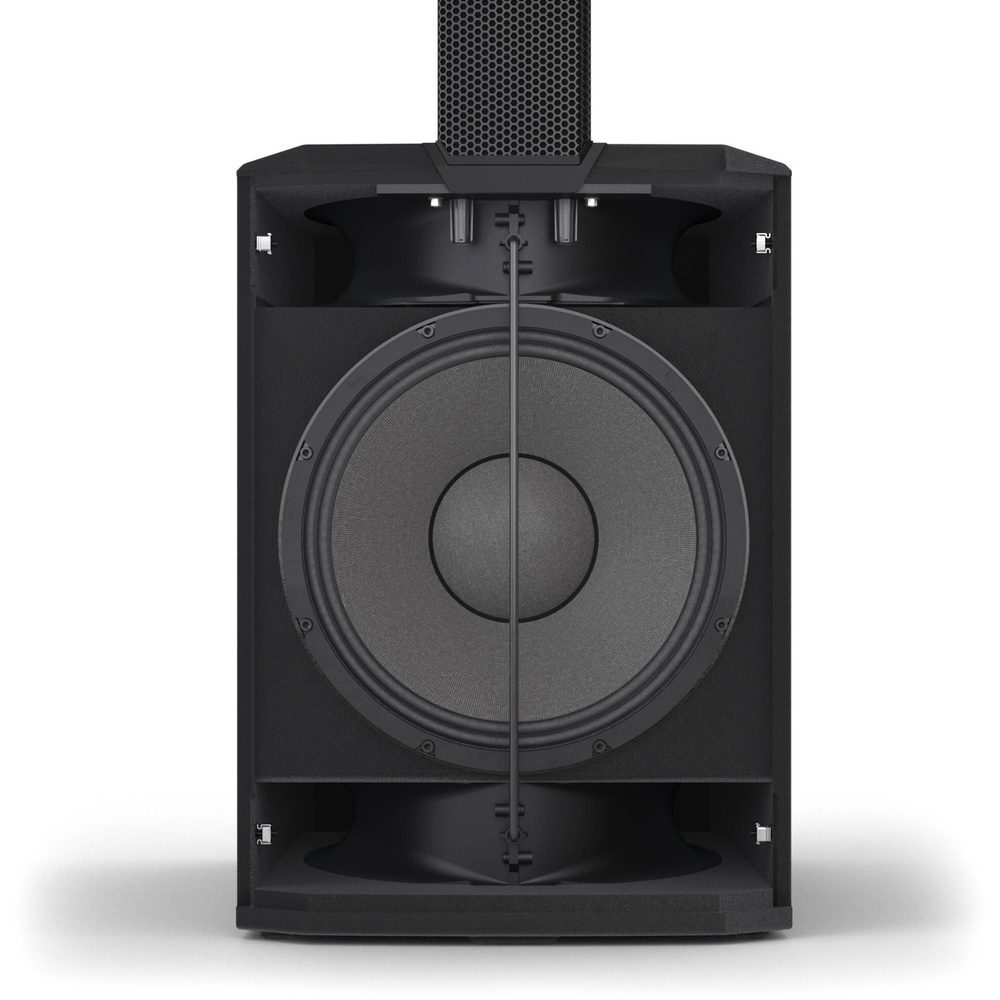

| Subwoofer Driver | 1x 12" / 304.8 mm Woofer |
| Subwoofer Voice Coil | 3" / 76.2 mm |
| Magnet | HF Driver: Neodymium MF Driver/Subwoofer: Ferrite |
| Signal Processing | |
| Input Pad | No |
| AEQ | Yes |
| Effects | Yes |
| DSP | 24-Bit DSP at 48 kHz |
| Dynamic Processing | Multiband Limiter |
| Performance | |
| Frequency Response | 37 Hz to 20 kHz |
| Maximum SPL | 127 dB |
| Coverage Angle | 120° H x 30° V |
| Protections | DC Fault, Output Limiter, Short Circuit, Thermal |
| Connectivity | |

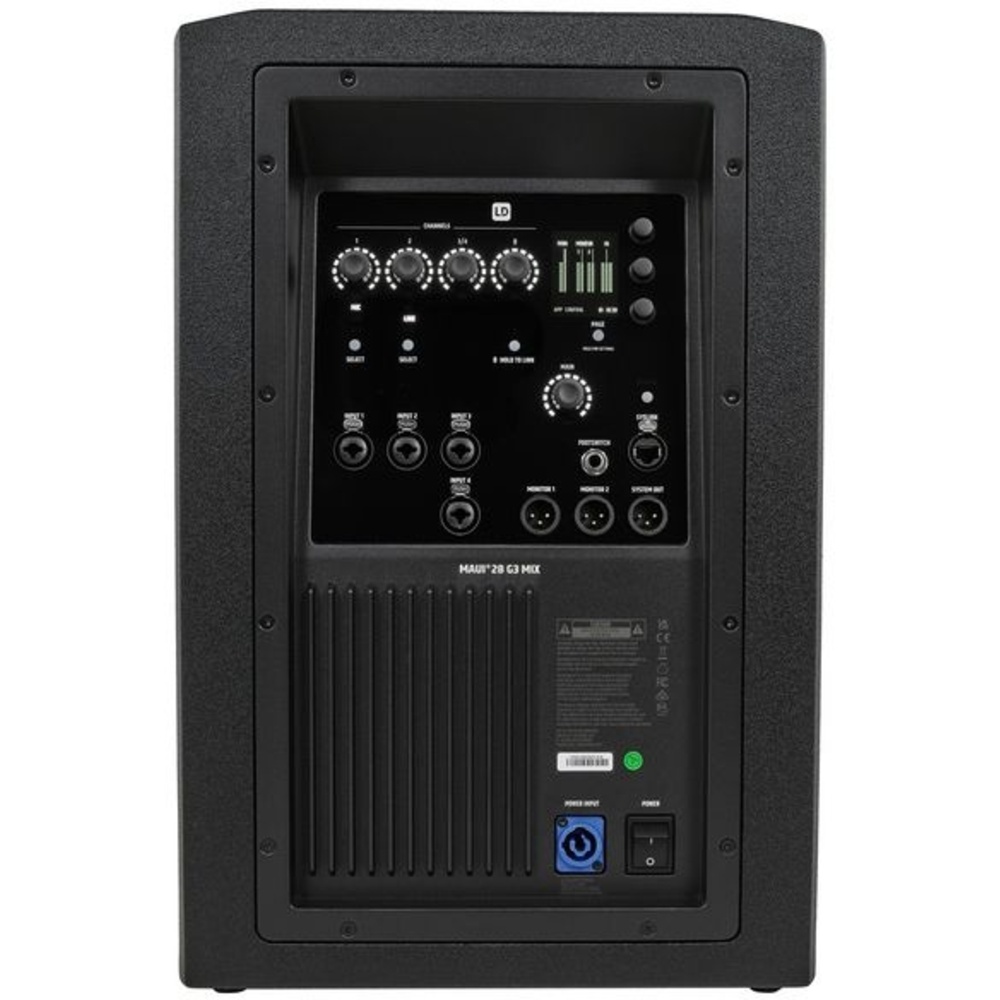

| Audio I/O | 4x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input 2x XLR 3-Pin Male Balanced Monitor Output 1x XLR 3-Pin Male Balanced Mix Output 1x 1/4" TS Female Footswitch Input |
| USB I/O | No |
| Mobile App Compatible | Yes: Android & iOS App Name: MAUI G3 Mix Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Network I/O | No |
| Wireless Connectivity | Bluetooth |
| Bluetooth | 5.0 |
| Bluetooth Profiles | A2DP |
| Power | |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 5 A L 250 V) 220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V) |
| Power Consumption | 400 W |
| AC Power I/O | 1x IEC Input |
| Physical | |
| Transport Options | Subwoofer: 1x Handle (Top) |
| Cooling | Convection |
| Construction Material | Aluminium, Plywood, Polyurethane |
| Environmental Resistance | No |
| Dimensions | System: 80.8" / 2052 mm (Full Assembly) Subwoofer: 20.7 x 18.6 x 14.6" / 527 x 472 x 370 mm Top Speaker: 60.6 x 5.3 x 4.1" / 1540 x 135 x 103 mm |
| Weight | System: 79.8 lb / 36.2 kg (Full Assembly) Subwoofer: 52 lb / 23.6 kg Top Speaker: 27.8 lb / 12.6 kg |
In the box
- LD Systems MAUI 28 G3 MIX Portable 2060W Powered Column PA System (Black)
- 2 x Column Speakers
- Subwoofer
- Power Cord
Reviews
There are no reviews yet.
