Description
LD Systems MON 8 A G3 Powered 1200W 8" Coaxial Stage Monitor: a PA system.
Highlights include compact high-performance stage Monitor, Class-D Power amp: 300W RMS / 1200W Peak, coaxial Design: 1" titanium HF driver, 8" woofer with 2.5" voice coil and CD horn with 50 x 90° dispersion.
Key specifications: mounting 1 x 1.38" / 35 mm Pole Socket; frequency Range/Response 59 Hz to 20 kHz (-10 dB) 68 Hz to 18 kHz (-3 dB); weight 29.1 lb / 13.2 kg; dimensions 14.5 x 13.4 x 10.9" / 36.8 x 34 x 27.8 cm; configuration 2-Way.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: LD Systems MON 8 A G3 Powered 1200W 8" Coaxial Stage Monitor and Power cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Configuration | 2-Way |
|---|---|
| Enclosure Type | Bass-Reflex |
| Total Output Power | 300 W RMS / 600 W Programme / 1200 W Peak |
| Amplifier Class | Class-D |
| Drivers | |
| LF Driver | 1x 8" / 20.3 cm Woofer Voice Coil: 2.5" / 63.5 mm |
| HF Driver | 1x 1" / 25.4 mm Tweeter Voice Coil: 1.75" / 44.45 mm |
| Performance | |
| Frequency Range/Response | 59 Hz to 20 kHz (-10 dB) 68 Hz to 18 kHz (-3 dB) |
| Maximum SPL | 121 dB SPL (Peak) |
| Coverage Angle | 50° H x 90° V |
| Protections | Output Limiter, Overcurrent, Overvoltage, Thermal |
| Signal Processing | |
| Crossover Frequency | 2500 Hz |
| AEQ & Filters | Preset AEQ Curves |
| Dynamic Processing | Limiter |
| Alignment Delay | Up to 30 ms (33' / 10 m) |
| Digital Signal Processing | Venue Settings |
| Connectivity | |

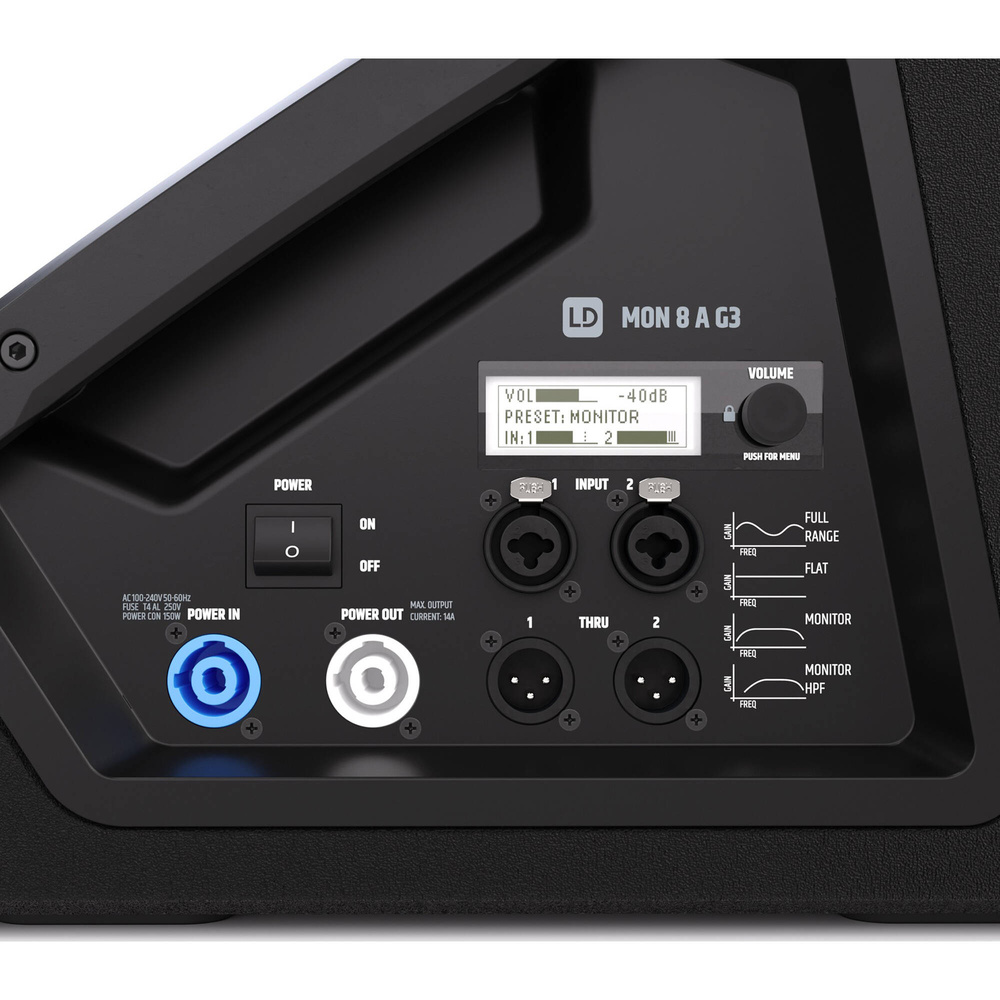

| Audio I/O | 2x Combo XLR-1/4" TRS Line Input 2x XLR 3-Pin Line Thru |
| Network I/O | No |
| USB I/O | No |
| Wireless | No |
| Mobile App Compatible | No |
| Power | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1x powerCON Input 1x powerCON Output |
| Physical | |
| Colour | Black |

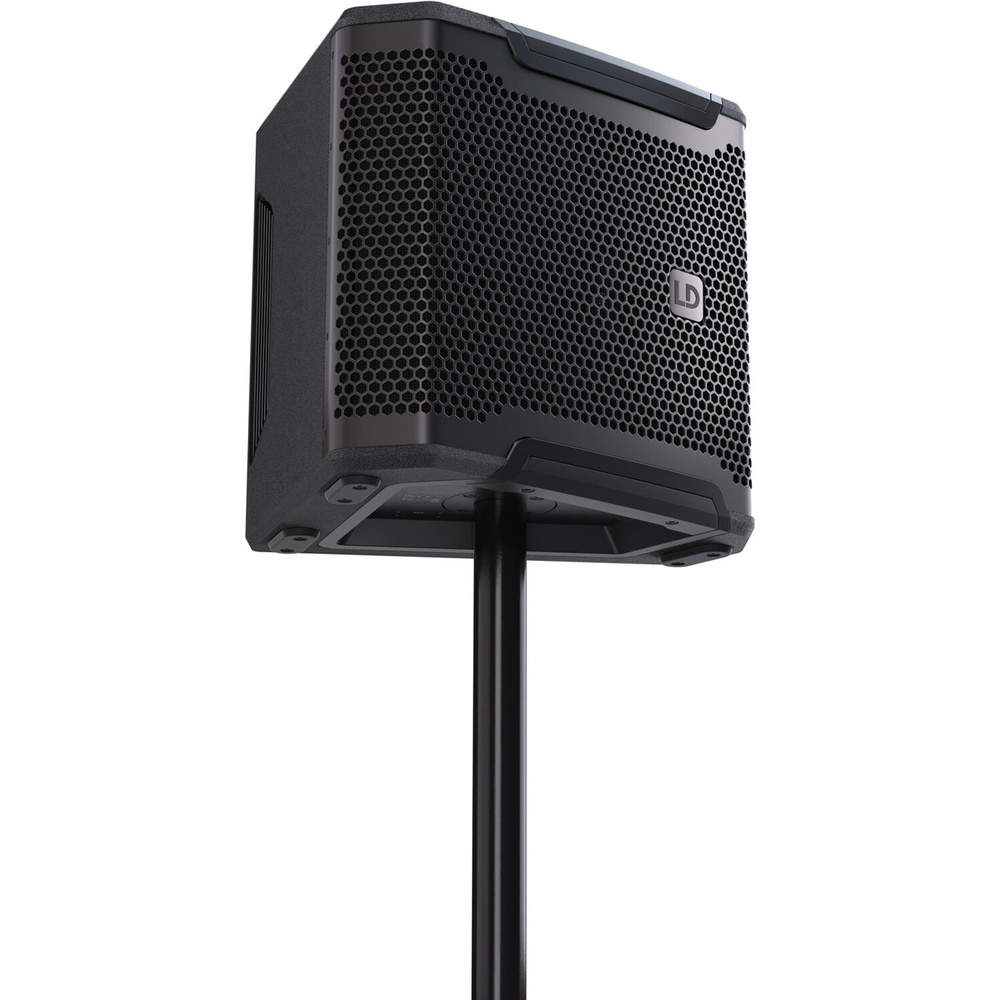

| Mounting | 1 x 1.38" / 35 mm Pole Socket |
| Handles | 2x Side |
| Construction Material | Plywood |
| Environmental Resistance | No |
| Dimensions | 14.5 x 13.4 x 10.9" / 36.8 x 34 x 27.8 cm |
| Weight | 29.1 lb / 13.2 kg |
In the box
- LD Systems MON 8 A G3 Powered 1200W 8" Coaxial Stage Monitor
- Power Cable
