Description

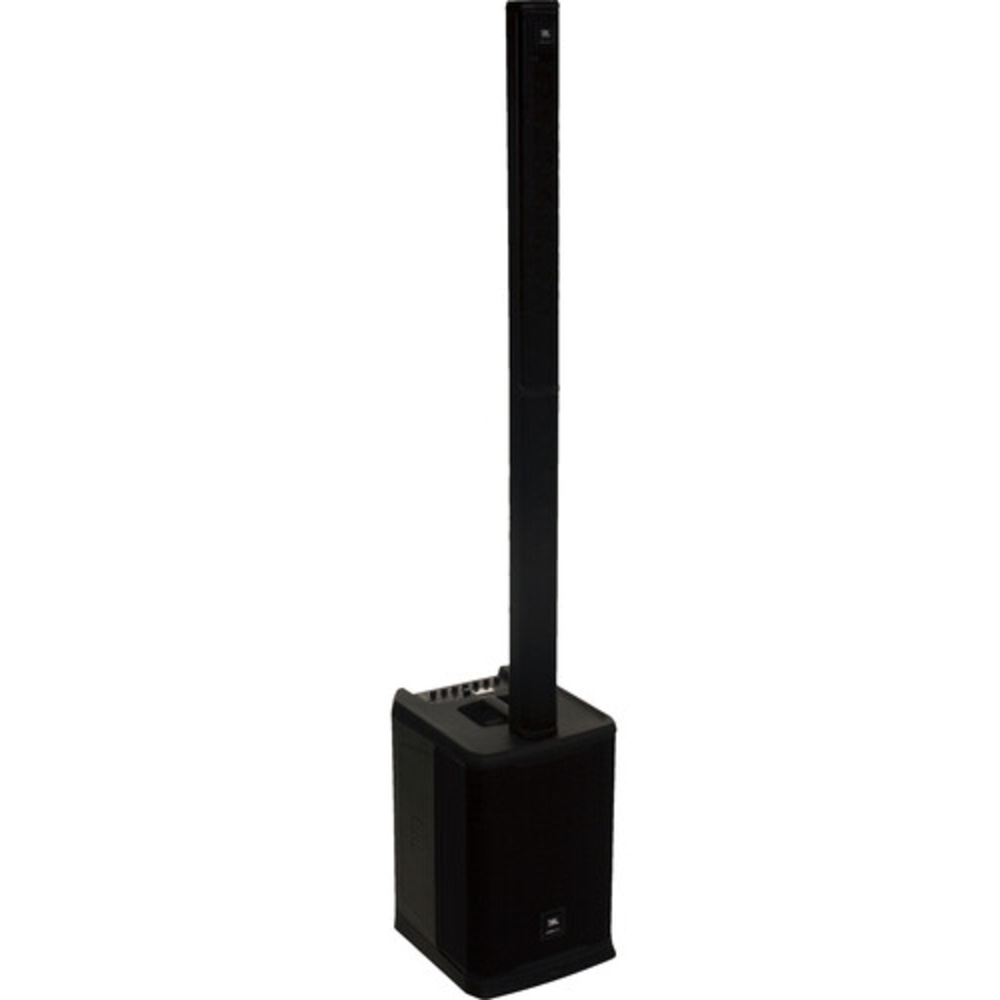

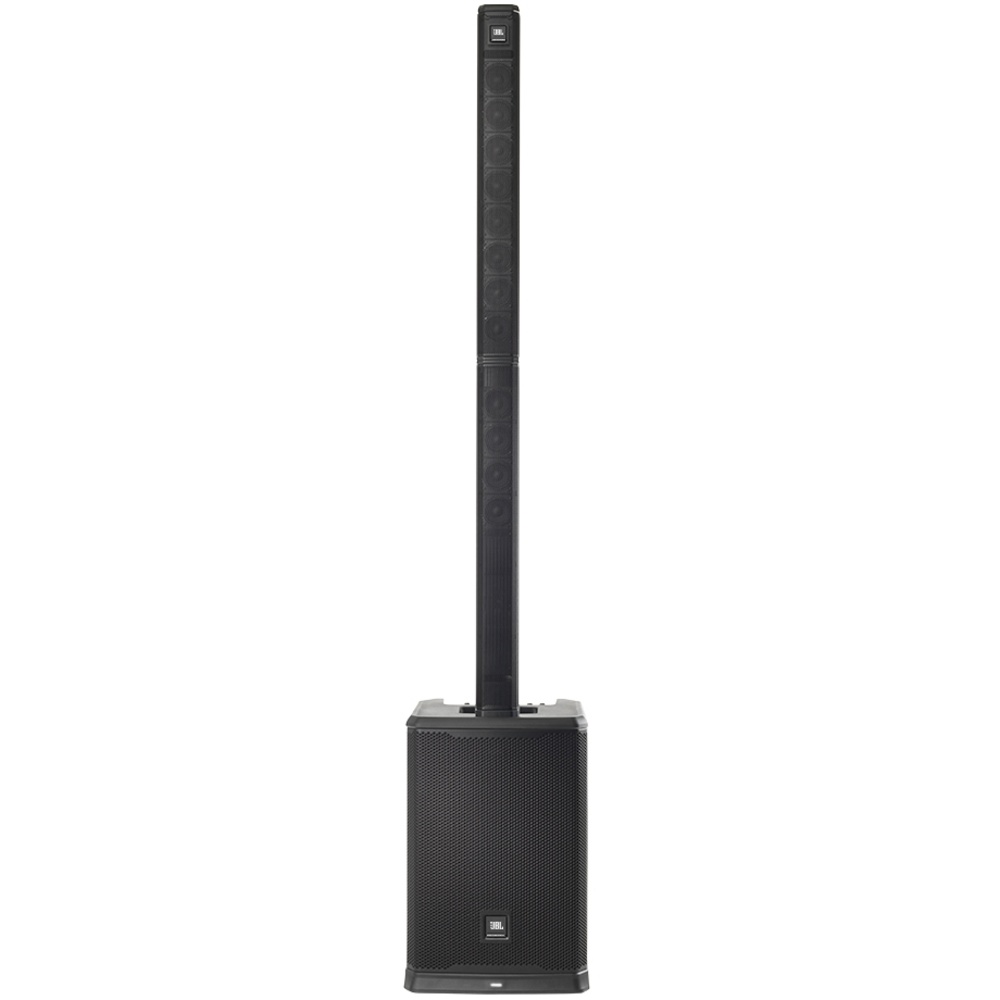

The JBL PRX ONE is a powered column PA system for live sound, presentations and mobile events. It suits users who need one portable system to handle vocals, music and speech without extra outboard gear. The built-in mixer and DSP make it practical for small to medium rooms, solo performers, DJs and event setups.

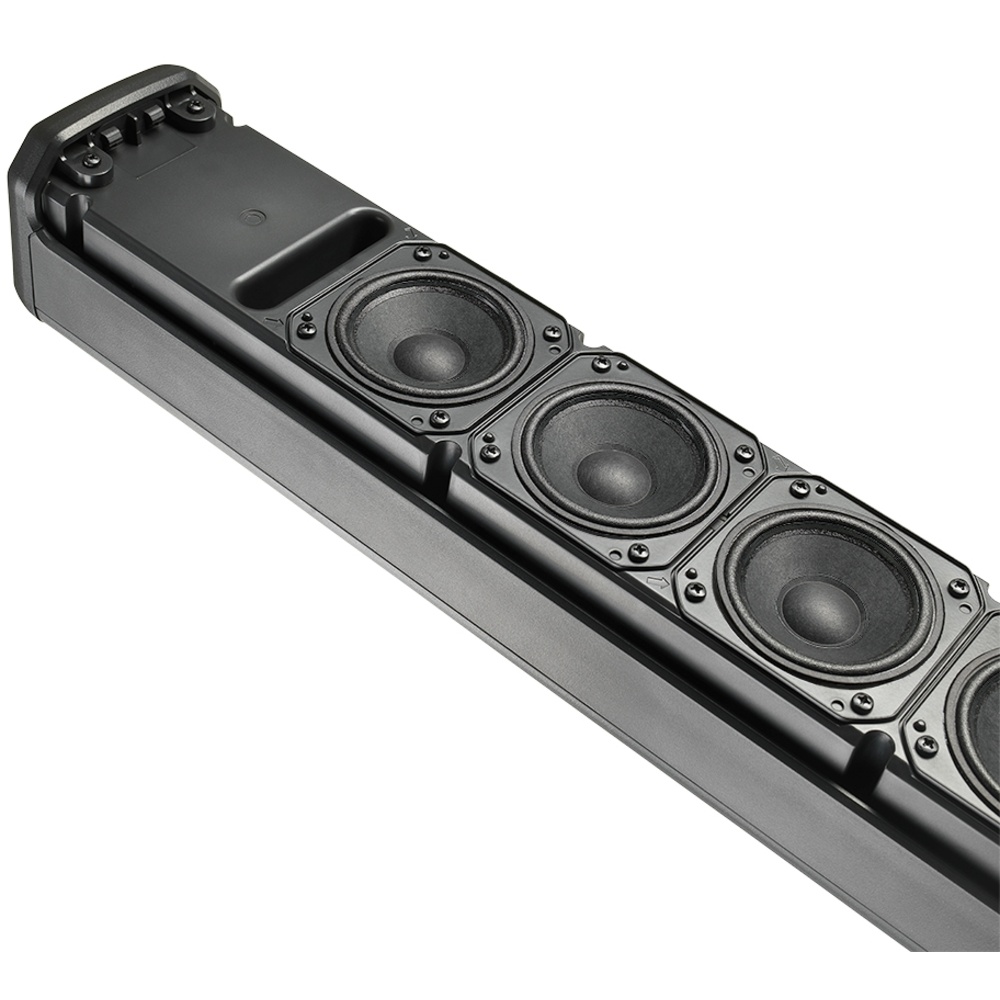

It uses a 12-inch woofer with 12 2.5-inch tweeters, 130° horizontal dispersion and 30° vertical dispersion. Output is rated at 2000W peak and 1000W RMS, with a maximum SPL of 130dB. The frequency range is 35Hz to 20kHz at -10dB, and 40Hz to 20kHz at -3dB. It also includes four XLR combo inputs, two 1/4-inch Hi-Z inputs, one 1/8-inch Bluetooth summed input and one XLR pass-through.

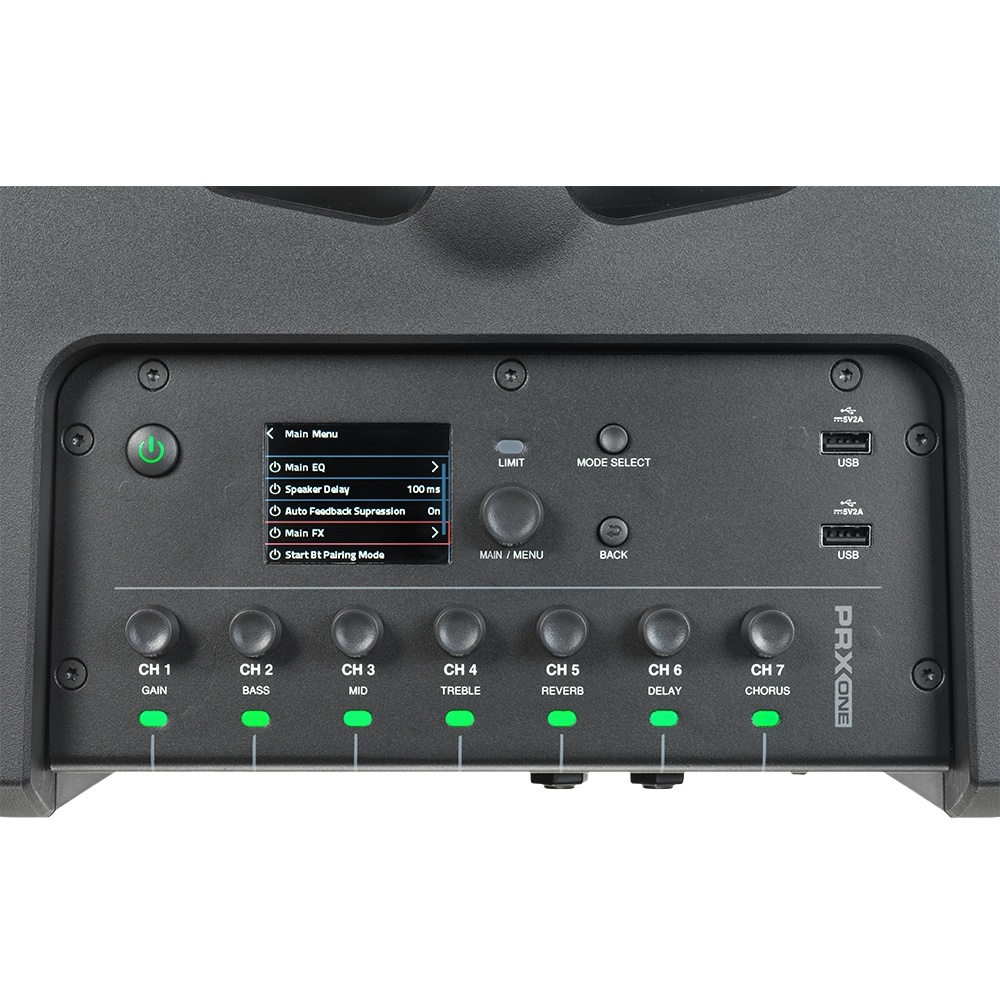

In use, it can connect to microphones, instruments and a music source, then be adjusted from the onboard digital mixer or mixer app. It runs from 100 to 230V AC at 50 to 60Hz. The box includes the PRX powered column PA system, a 3m IEC lead, a padded array carrying bag and a quick start guide.
Specifications
| System Type | Powered Column PA Speaker |
|---|---|
| Woofer Size | 12” / 30.48cm |
| Tweeter Size | 2.5” / 6.35cm |
| Tweeter COUNT | 12 |
| Max SPL | 130dB |
| Frequency Range -10 | 35-20kHz |
| Frequency Range -3 | 40-20kHz |
| Horizontal Dispersion | 130° |
| Vertical Dispersion | 30° |
| Power Rating | 2000W Peak 1000W RMS |
| AC Power Input | 300W 100-230V AC 50-60Hz |
| Input Impedance | 4kΩ balanced Combo4kΩ balanced Combo 2MΩ balanced Hi-Z Jack2MΩ balanced Hi-Z Jack 10kΩ 3.5mm single ended 2 channel.10kΩ 3.5mm single ended 2 channel |
| CROSSOVER FREQ | 260Hz |
| I/O | 4 XLR Combo Jacks 2 1/4” Hi-Z 1 1/8”/BT Summed 1 XLR Pass Through |
| Cabinet | PP |
| Net Weight | 25.7kg |
| Gross Weight | 31.75kg |
| Dimensions | W482mm x D647mm x H850mm |
In the box
- PRX Powered Column PA System
- 3m/10ft IEC

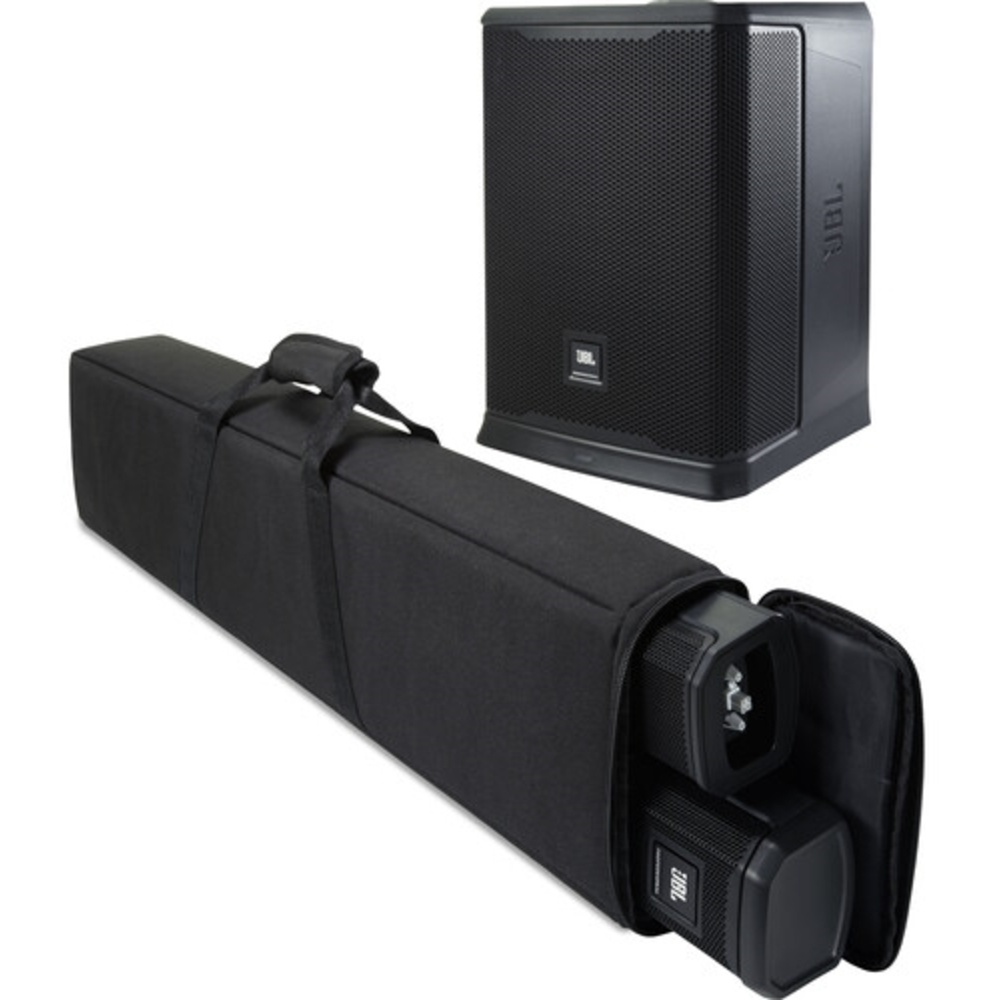

- Padded Array Carrying Bag
- Quick Start Guide
