Description

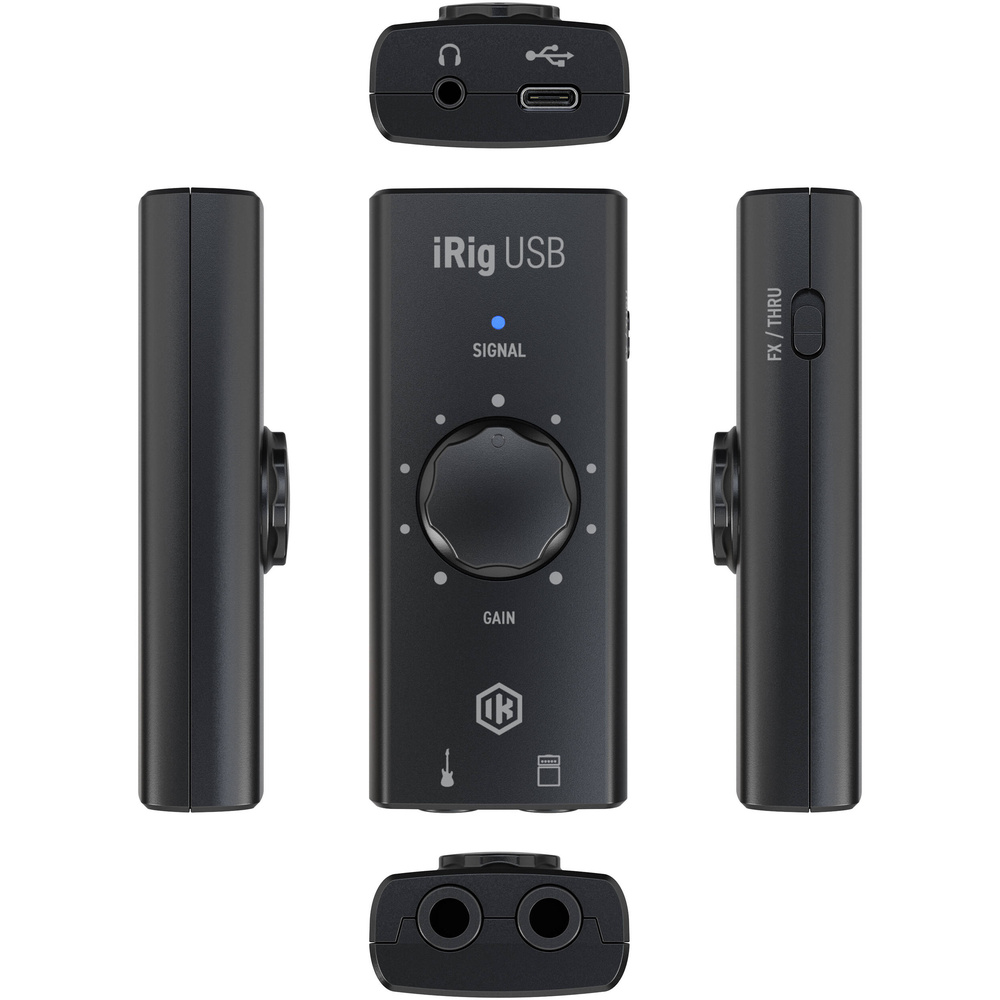

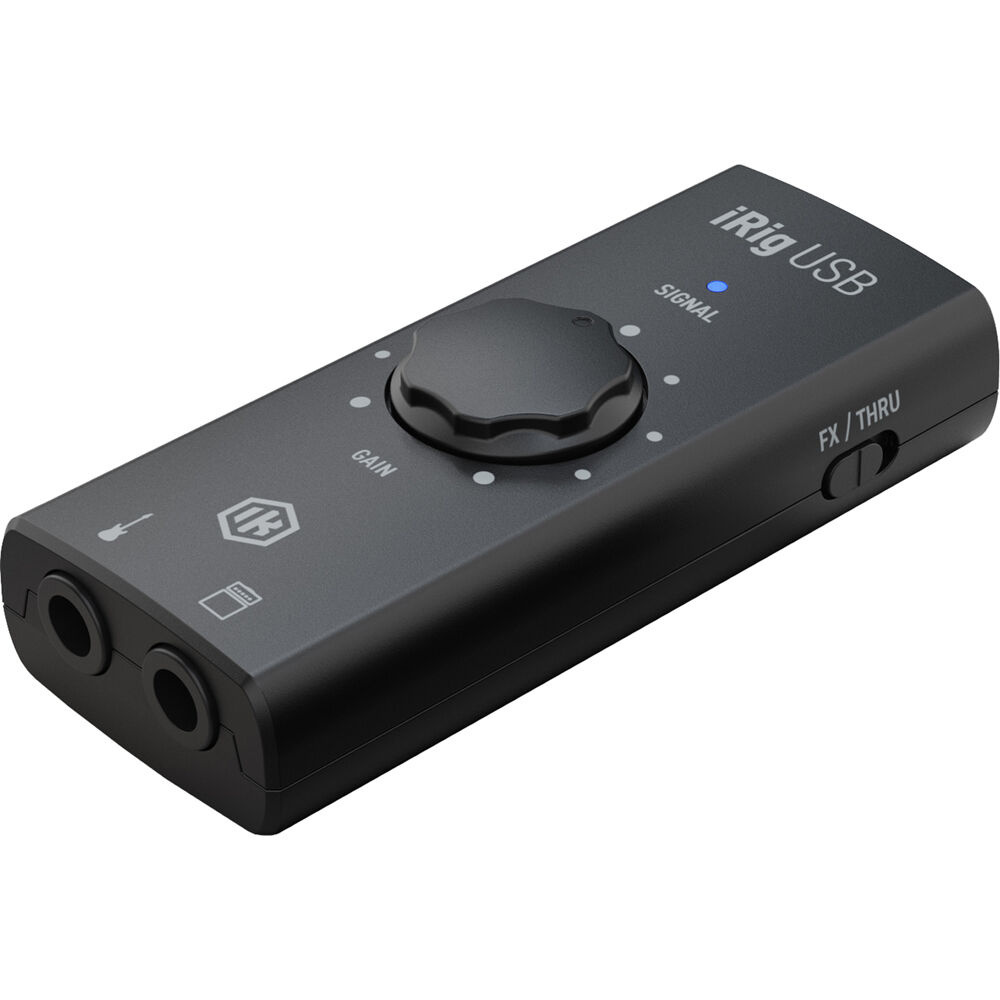

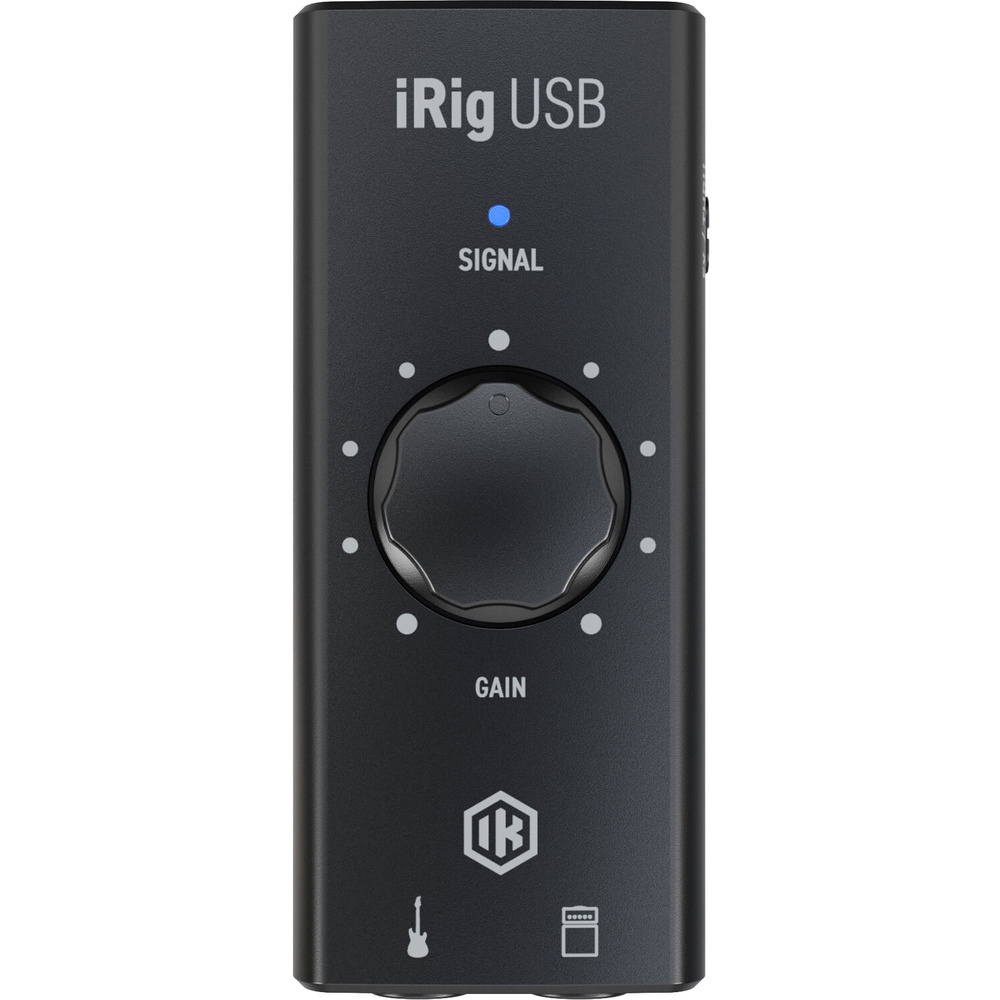

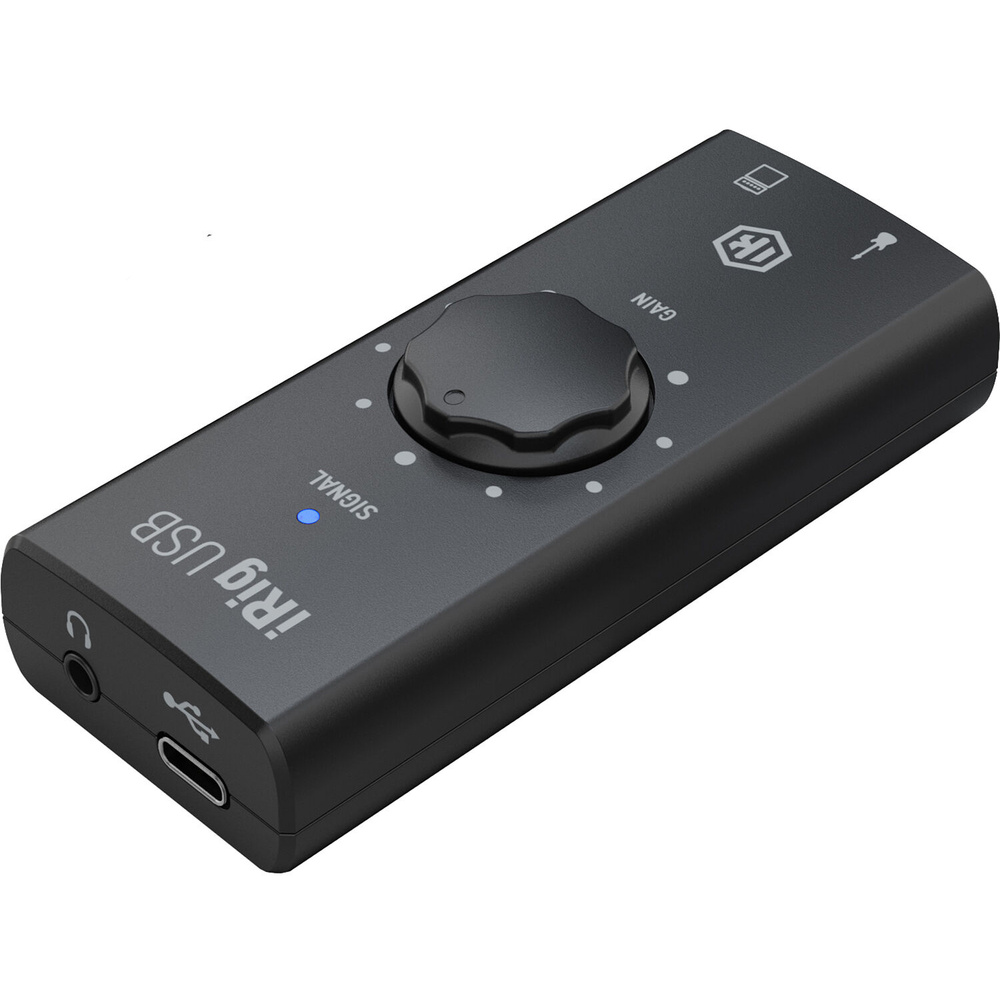

The IK Multimedia iRig USB-C Guitar Interface sits in our Audio Input & Output range.
Highlights include portable Guitar/Bass Audio interface, bus powered / Mac, Windows, iOS, Android, 1/4" Hi-Z guitar in, 1/4" amp out / 3.5mm headphones out and 24-Bit / 48 kHz AD/DA Conversion.
Key specifications: weight 1.9 oz / 54.0 g; dimensions 3.9 x 1.7 x 1" / 9.9 x 4.2 x 2.5 cm; channels of I/O 1 Input / 1 Output; maximum sampling rate 48 kHz / 24-Bit; input level adjustment Knob.
In the box: IK Multimedia iRig USB-C Guitar Interface and USB-C to USB-C Cable (23.6"). Manufacturer model number IP-IRIG-USB-IN.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Channels of I/O | 1 Input / 1 Output |
|---|---|
| Built-In DSP | None |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | None |
| Built-In Microphone | None |
| Input Level Adjustment | Knob |
| Expansion Slots | None |
| Connectivity | |
| Analogue Audio I/O | 1 x 1/4" TS Hi-Z Input 1 x 1/4" TS Unbalanced Hi-Z Output 1 x 1/8" / 3.5 mm TRS Headphone Output |
| Digital Audio I/O | None |
| Host Connection | USB-C |
| Host Connection Protocol | Not Specified by Manufacturer |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless | None |
| Performance | |
| Frequency Response | Hi-Z Inputs: 20 Hz to 20 kHz ±0.5 dB (at 48 kHz) Hi-Z Outputs: 10 Hz to 20 kHz ±1 dB (at 48 kHz) Headphone Outputs: 10 kHz to 20 Hz ±1 dB (at 48 kHz) |
| Maximum Input Level | +13.5 dBu |
| Headphone Output Power | 6 mW into 50 Ohms |
| Impedance | Hi-Z Inputs: 500 Kilohms Hi-Z Outputs: 3.3 Kilohms Headphone Outputs: 22 Ohms |
| Dynamic Range | Hi-Z Inputs: 90 dBA Hi-Z Outputs: 97 dBA Headphone Outputs: 94 dBA |
| Digital Audio | |
| Sample Rates | 44.1 / 48 kHz |
| Bit Depths | 24-Bit |
| Audio Storage & Playback | |
| Media/Memory Card Slot | None |
| Compatibility | |
| OS Compatibility | macOS 10.6 or Later Windows 10 or Later 5 or Later *As of October, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Included Plug-Ins | Guitar & Bass |
| Mobile App Compatible | Yes: Android & iOS *As of October, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Power | |
| Power Requirements | USB Bus Power |
| Physical | |
| Dimensions | 3.9 x 1.7 x 1" / 9.9 x 4.2 x 2.5 cm |
| Weight | 1.9 oz / 54.0 g |
In the box
- IK Multimedia iRig USB-C Guitar Interface
- USB-C to USB-C Cable (23.6")
