Description

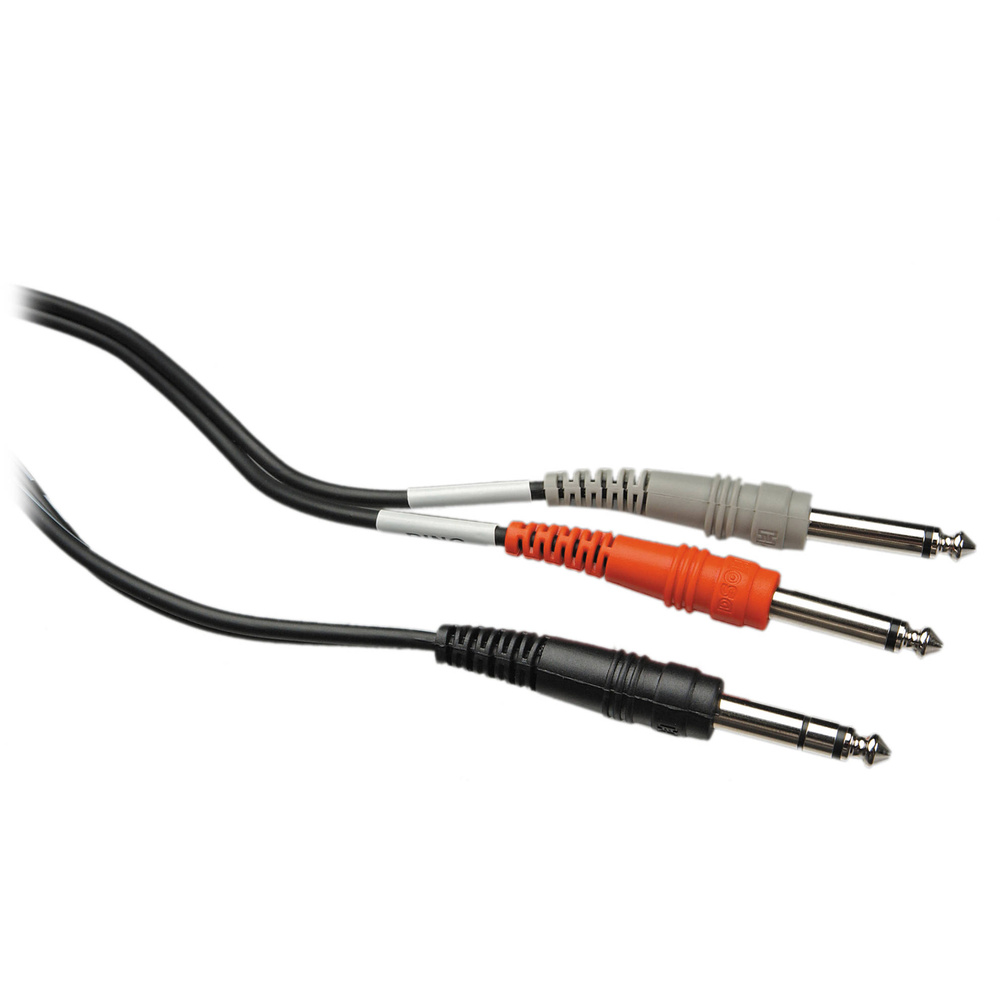

The Hosa STP-202 is a 2 m insert cable for linking a mixing console insert point to an external effects processor. It suits users who need a straightforward send and return connection in a compact audio setup. The cable uses a 1/4 in TRS male plug at one end and dual 1/4 in TS male plugs at the other, with TIP set to send and RING set to return.
It uses oxygen-free copper conductors and an OFC spiral shield for the signal path. The cable is black and measures 2 m, or 6.6 ft. The connector layout makes the send and return lines easy to identify when patching insert points on mixers and connecting unbalanced phone-jack processors.
In practice, it is used with mixing consoles that have insert jacks and effects processors with unbalanced phone jacks. One end connects to the console insert point and the two TS leads connect to the processor send and return paths. No in-box items are listed.
Specifications
| Manufacturer part number | STP-202 |
|---|---|
| Cable length | 2 m (6.6 ft) |
| Connector 1 | 1/4 in TRS male |
| Connector 2 | Dual 1/4 in TS male |
| Configuration | TIP = Send, RING = Return |
| Conductor material | Oxygen-Free Copper (OFC) |
| Shielding type | OFC spiral shield |
| Cable type | Insert cable |
| Cable color | Black |
| Shipping weight | 0.29 lbs |
Product details
| Length Meters | 2 m |
|---|---|
| Length Feet | 6.67 ft |
| Cable Connector | 1/4" TS Male |
| Compatible With | Mixing consoles with insert jacks and effects processors with unbalanced phone jacks |
