Description

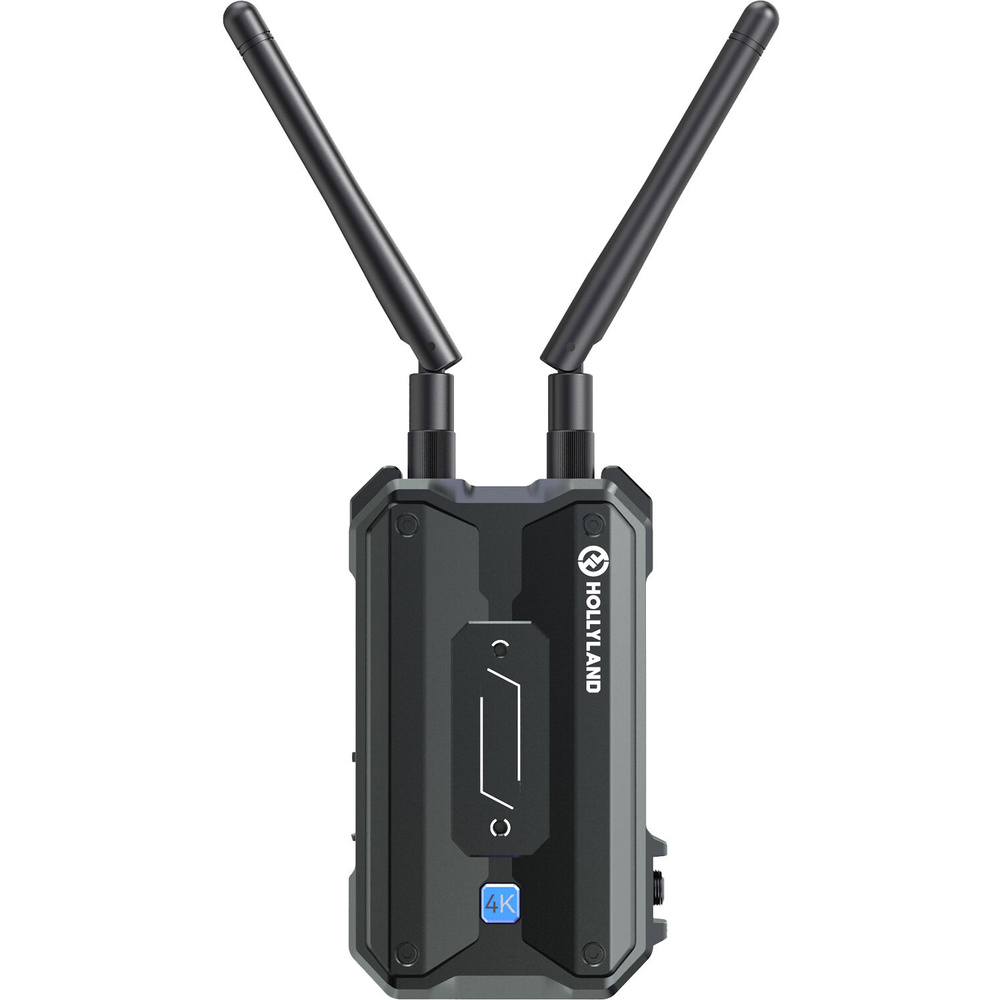

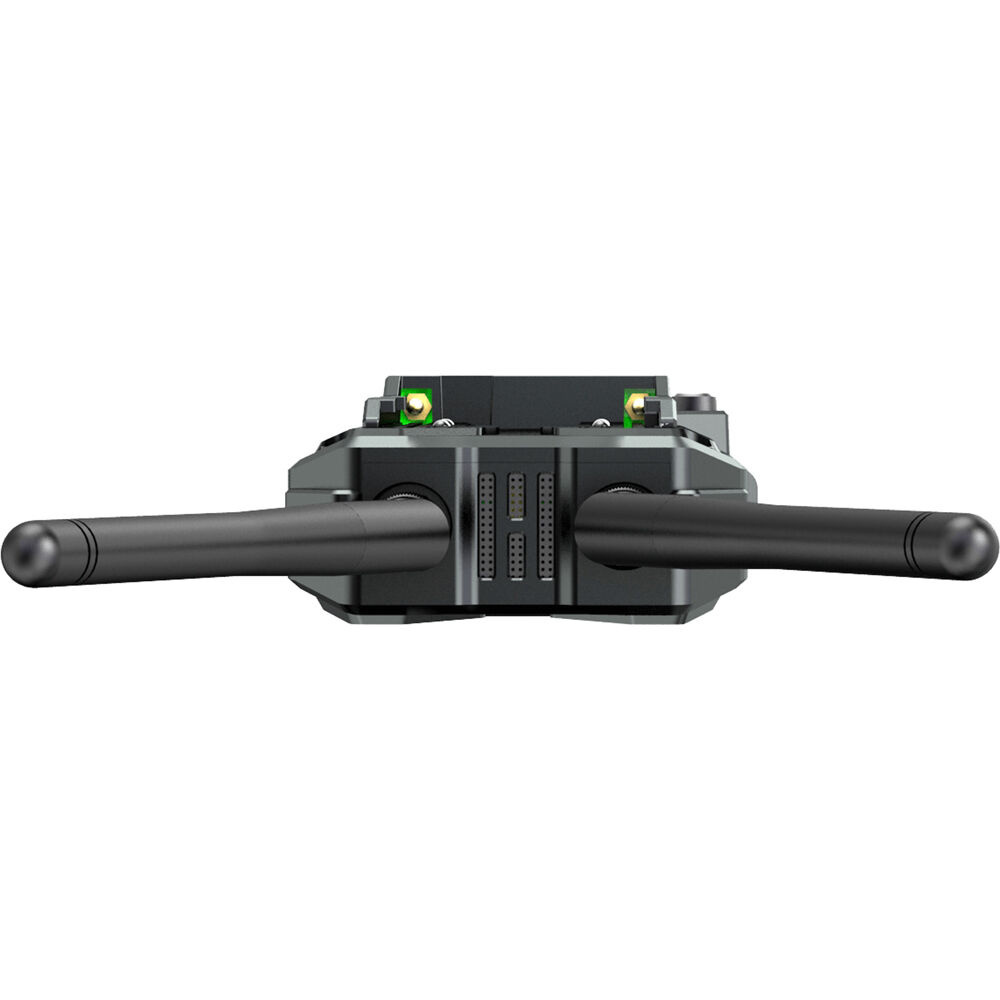

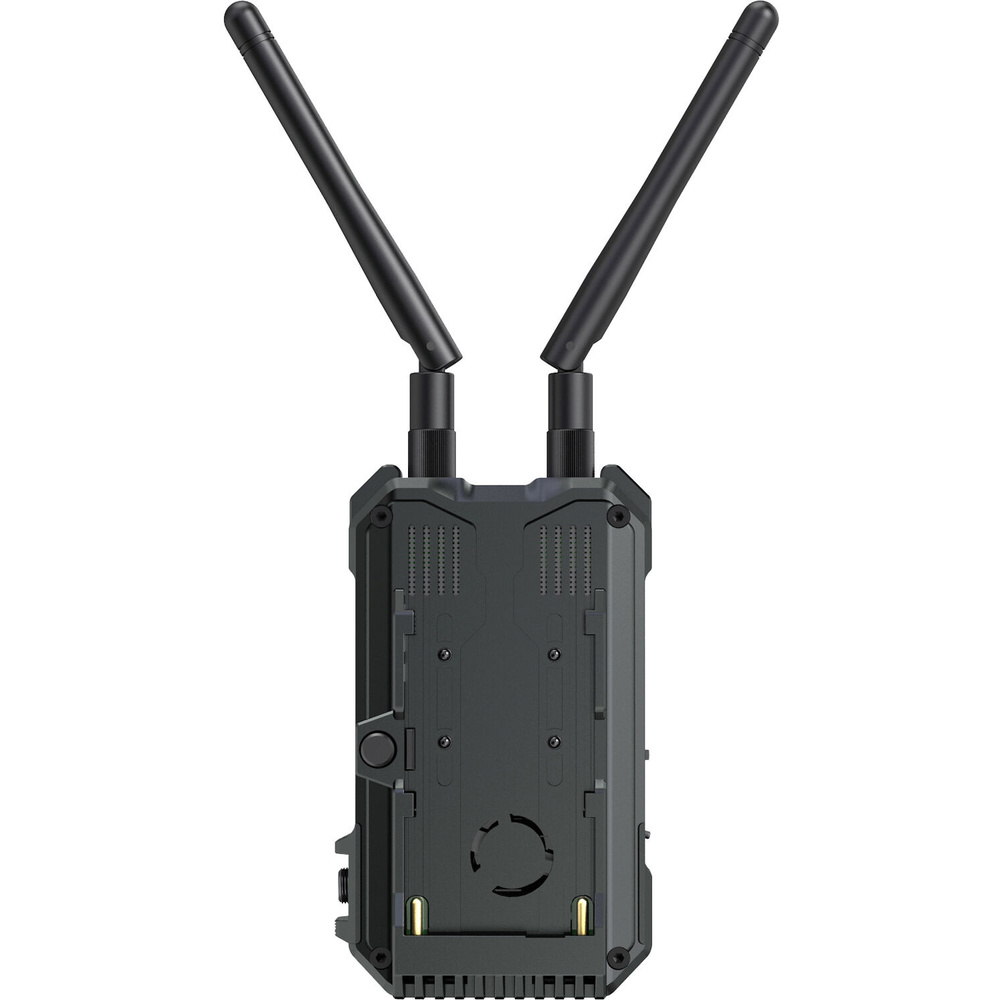

Hollyland Pyro H Wireless Receiver: a wireless video system.
Highlights include 400m LOS range, 0.06s low latency, 2.4GHz and 5GHz dual band, 4K30 transmission and HDMI loopout.
Key specifications: dimensions 109 x 62.3 x 33.4mm; DC input 2.0mm core socket; HDMI input HDMI 1.4b; USB-C USB 2.0 OTG; antenna SMA male.
Also available in other configuration options: Transmission System (1TX + 1RX), Transmitter Only. Manufacturer model number Pyro H-RX-AU.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Receiver | |
|---|---|
| DC input | 2.0mm core socket |
| HDMI input | HDMI 1.4b |
| USB-C | USB 2.0 OTG |
| Antenna | SMA male |
| Power supply | USB-C: 5V/2A (not supported in broadcast mode) Battery voltage range: 6.8-8.4V DC voltage range: 6-16V |
| Power consumption | < 4W |
| Input/outputs | HDMI 720p50/60 1080i50/60 1080p24/25/30 1080p50/60 4K30/25/24 |
| Operating frequency | 5 GHz Frequency Band 5.150-5.250 GHz 5.250-5.350 GHz 5.470-5.725 GHz 5.725-5.850 GHz 2.4 GHz Frequency Band 2.412-2.484 GHz |
| Receiver sensitivity | -85 dBm (Broadcast: -80dBm) |
| Latency | 0.06s |
| Range | 400m |
| Bandwidth | 20 MHz |
| Net weight | 192g |
| Dimensions | 109 x 62.3 x 33.4mm |
Product details
| Configuration | Receiver Only |
|---|
In the box
- Hollyland Pyro H Wireless Receiver
