Description
Hollyland Cosmo C2 Solo HDMI/SDI Wireless Video Transmission System: a wireless video system.
Highlights include wireless video Transmitter/Receiver set, transmitter: HDMI/SDI in, SDI loop out, receiver: 2 HDMI/SDI outputs, 3000' Line-of-Sight 1080p60 transmission and 5.1 to 5.85 GHz frequency bands.
Key specifications: mounting Transmitter/Receiver: 1/4"-20 Female (Bottom); frequency range 5.1 to 5.85 GHz; battery type Transmitter: 1x L-Series Receiver: 1x V-Mount; antenna I/O Transmitter/Receiver: 2x RP-SMA; embedded audio HDMI/SDI.
Also available in other configuration options: Transmission System (2TX + 1RX), Transmitter Only. In the box: Hollyland cosmo C2 HDMI/SDI wireless video transmitter, cosmo C2 receiver, 5x Blade Antenna, USB-C OTG Adapter, expansion accessory and cold shoe mount and 2 more items. Manufacturer model number COSMO C2 SOLO-AU.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs/Outputs | |
|---|---|
| Antenna I/O | Transmitter/Receiver: 2x RP-SMA |
| Video I/O | Transmitter: 1x HDMI 1.4b Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x HDMI 1.4b Output Receiver: 2x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x Barrel Input |
| Other I/O | Transmitter/Receiver: 1x USB-C Receiver: 1x RJ45 (10/100 Ethernet) |
| Encryption | No |
| Wireless | |
| Wireless Range | 3000' / 914.4 m |
| Channel Bandwidth | 40 MHz |
| Frequency Range | 5.1 to 5.85 GHz |
| Latency | 33 ms |
| RF Power | < 23 dBm |
| RF Sensitivity | -90 dBm |
| Wi-Fi | Yes |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | No |
| Power | |
| Input Power | 6 to 16 VDC |
| Battery Type | Transmitter: 1x L-Series Receiver: 1x V-Mount |
| Power Consumption | Transmitter: 10 W Receiver: 11 W |
| Mounting | |
| Mounting | Transmitter/Receiver: 1/4"-20 Female (Bottom) |
| General | |
| Status Display | Receiver: LCD |
| Environmental Resistance | No |
| Dimensions | Transmitter: 4.5 x 2.7 x 1.4" / 114.8 x 69 x 35.5 mm Receiver: 5.6 x 3.4 x 1.3" / 142 x 87.2 x 33.2 mm |
| Weight | Transmitter: 7.4 oz / 210.00 g Receiver: 15.5 oz / 440.00 g |
Product details
| Configuration | Transmission System (1TX + 1RX) |
|---|

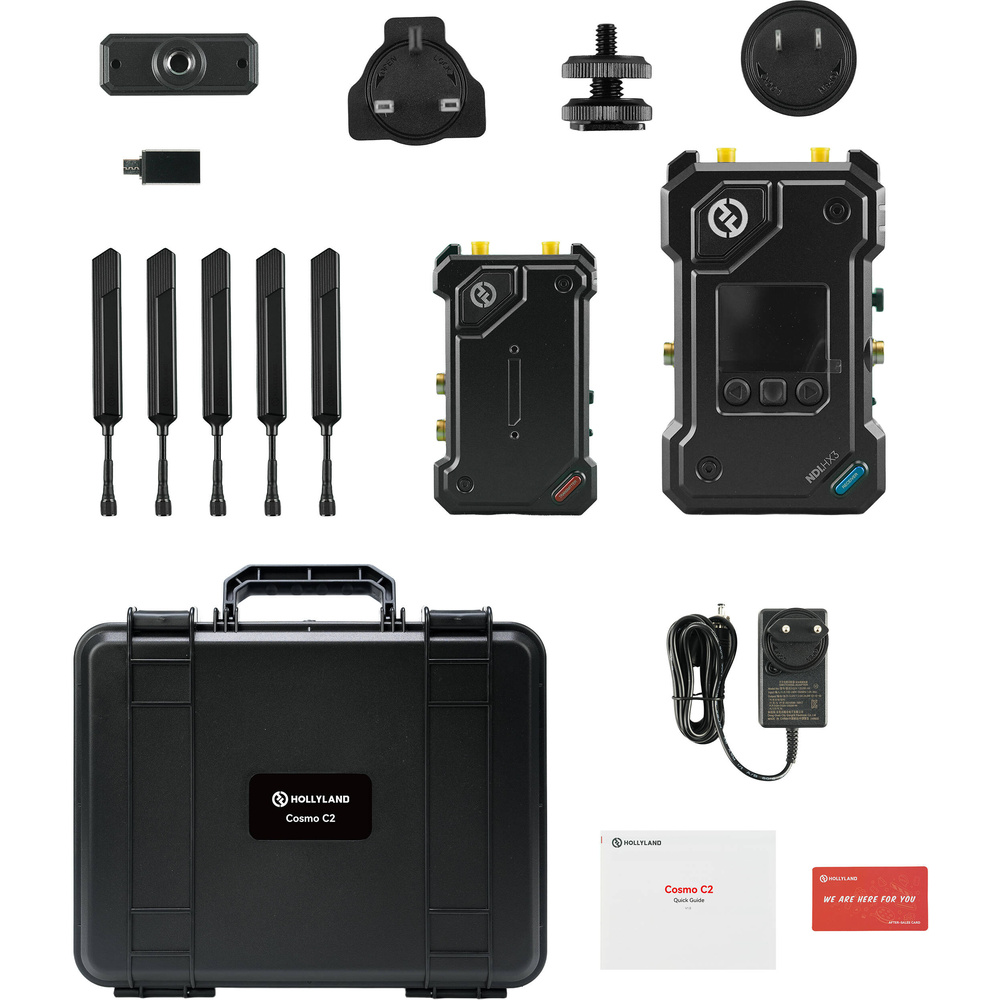

In the box
- Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmitter
- Cosmo C2 Receiver
- 5x Blade Antenna
- USB-C OTG Adapter
- Expansion Accessory
- Cold Shoe Mount
- Power Adapter
- Carrying Case
