Description

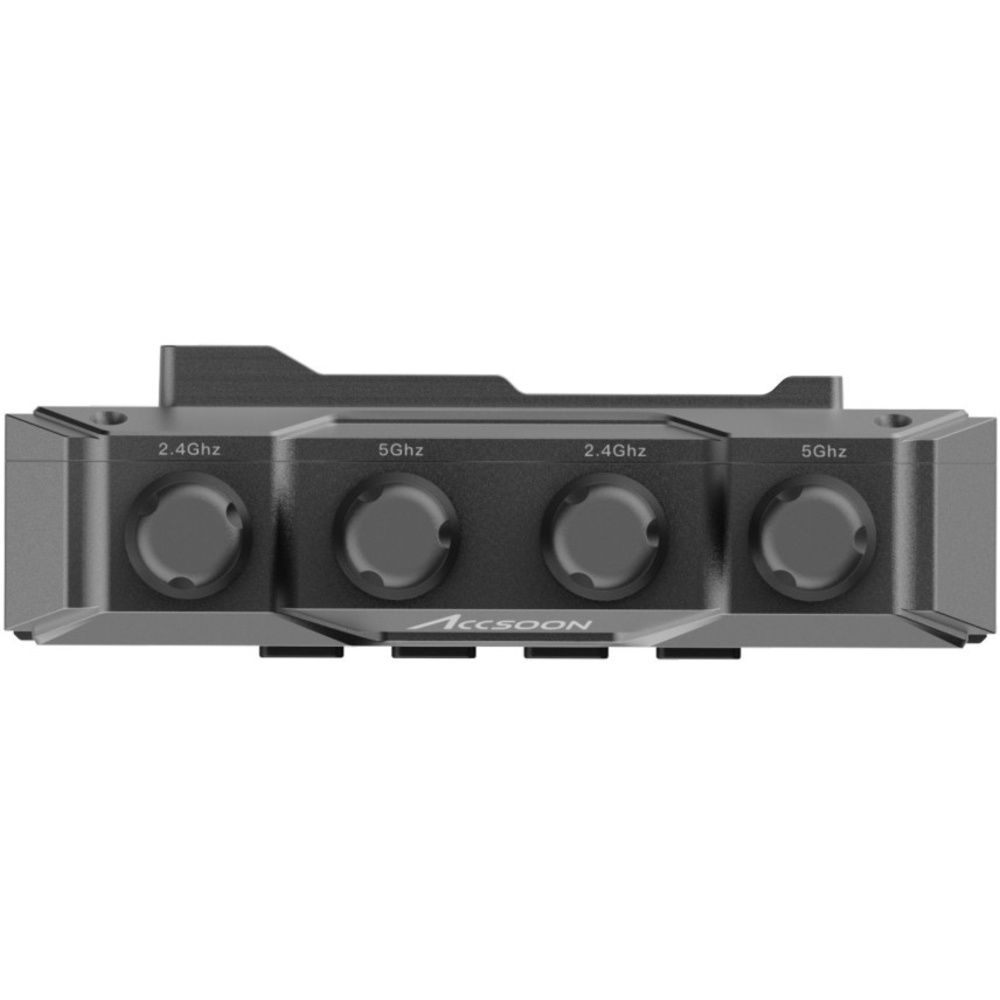

Accsoon CineView SE Transmitter and Receiver: a wireless video system.
Highlights include <50ms Latency, 1200ft, SDI IN&OUT, HDMI IN&OUT and NP-F Battery.
Key specifications: video input SDI/HDMI; HDMI input format 1080p 23.98/24/25/29.97/30/50/59.94/60fps; DC port 5.5mmx2.1mm center positive; DC voltage 7.4~16.8V; audio 44.1KHz/48KHz 16bit/24bit PCM.
Also available in other configuration options: Receiver Only, Transmitter Only. Manufacturer model number WIT04-SE.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Transmitter | |
|---|---|
| Video Input | SDI/HDMI |
| SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5mmx2.1mm center positive |
| DC Voltage | 7.4~16.8V |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM |
| Latency | <0.05s (Camera latency not included) |
| OLED Display | 1.3inch |
| Transmission Power | 17~20dBm |
| Transmission Range | 1200ft (No obstacles, no interference) |
| Power Consumption | 4.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105mmx66mmx32mm (Antennas not included) |
| Weight | 210g (Antennas not included) |
| Receiver | |
| Video Output | SDI/HDMI |
| SDI Output Format | 1080p 24/25/30/50/60fps Level A |
| HDMI Output Format | 1080p 24/25/30/50/60fps |
| Power Consumption | 3.5Watt (Typical) |
Product details
| Configuration | Transmission System (1TX + 1RX) |
|---|
