Description

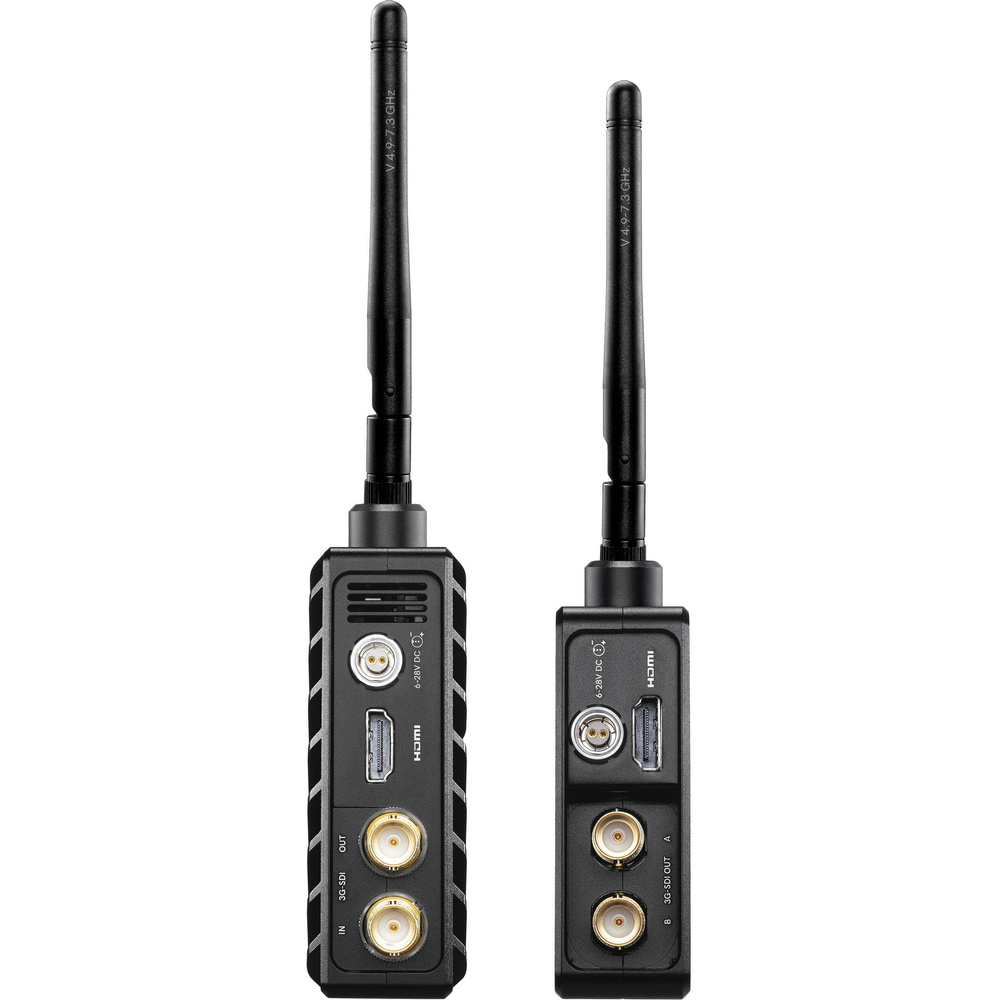

The Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit is a wireless video system.
Highlights include 3G-SDI/HDMI transmitter & receiver set, supports new 6 GHz frequency band, transmits up to 750' line of sight, supports up to 4K30 resolution input and 3G-SDI/HDMI inputs & outputs.
Key specifications: mounting 1 x 1/4"-20 Female 1 x 3/8"-16 Female; weight Transmitter: 206 g Receiver: 292 g; material of construction Aluminium, Polycarbonate; embedded audio HDMI: 2-Channel SDI: 2-Channel; power Transmitter/Receiver: 1 x LEMO 2-Pin Input.
In the box: Teradek bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver kit, bolt 6 LT 750 3G-SDI/HDMI transmitter, bolt 6 LT 750 3G-SDI/HDMI receiver, 2-Pin to D-Tap Power Cable (18"), USB 2.0 Type-A Male to Micro-USB Male Cable (39") and HDMI Type A Male to HDMI Type A Male Cable (18") and 5 more items. Manufacturer model number 53.10-2260.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs / Outputs | |
|---|---|
| Antenna Ports | Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video I/O | Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 1.4b Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 9 W Receiver: 11 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | Transmitter: 103 x 60 x 33 mm Receiver: 122 x 94 x 27 mm |
| Weight | Transmitter: 206 g Receiver: 292 g |
In the box
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
