Description
DJI Transmission Combo: a wireless video system.
Highlights include transmitter & High-Bright RX Monitor kit, transmit 1080p60 video over 6 km LoS, HDMI/3G-SDI input / output, 7" 1920 x 1200 touchscreen display and gyroscopic sensor to control gimbals.
Key specifications: mounting Cold Shoe; resolution Receiver: 1920 x 1200; panel type Receiver: LCD; display size 7.0" / 17.8 cm; aspect ratio Receiver: 16:10.
In the box: DJI Transmission Combo, DJI Wireless Video Transmitter, High-Bright remote RX Monitor, remote Monitor hood, WB37 Battery Adapter (TX) and WB37 Intelligent Battery and 11 more items. Manufacturer model number CP.RN.00000209.01.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | Receiver: LCD |
| Display Size | 7.0" / 17.8 cm |
| Display Size | Receiver: 7.0" / 17.8 cm |
| Resolution | Receiver: 1920 x 1200 |
| Aspect Ratio | Receiver: 16:10 |
| Touchscreen | Yes |
| Image Controls | False Colour, Focus Peaking, Screen Markers, Waveform, Zebra |
| I/O | |
| Video | Transmitter: 1 x HDMI Type A (HDMI 1.4) Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 2.0) Input Receiver: 1 x HDMI Type A (HDMI 1.4) Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio | Receiver: 1 x 1/8" / 3.5 mm Headphone Output |
| Power | Transmitter/Receiver: 1 x Barrel Input |
| Other I/O | Receiver: 1 x USB 2.0 (USB Type-C) Input |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 6 km (Line-of-Sight) |
| No. of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz |
| Latency | 68 ms |
| RF Power | < 33 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Format Support | |
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Wireless Video Compression | Compressed |
| Power | |
| DC Input Power | 6 to 18 VDC |
| Battery Type | Transmitter/Receiver: 1 x L-Series (Interchangeable Mount) |
| Power Consumption | Transmitter/Receiver: 11 W |
| Mounting | |
| Mounting | Cold Shoe |
| Environmental | |
| IP Rating | None |
| Certifications | COE, FCC, as per Manufacturer |
| Operating Temperature | -10 to 45°C |
| General | |
| Dimensions | Transmitter: 127 x 87 x 26 mm Receiver: 213 x 135 x 51 mm |
| Weight | Transmitter: 350 g, Excluding Antenna Receiver: 727 g, Excluding Antenna |
In the box
- DJI Transmission Combo
- DJI Wireless Video Transmitter
- High-Bright Remote RX Monitor
- Remote Monitor Hood
- WB37 Battery Adapter (TX)

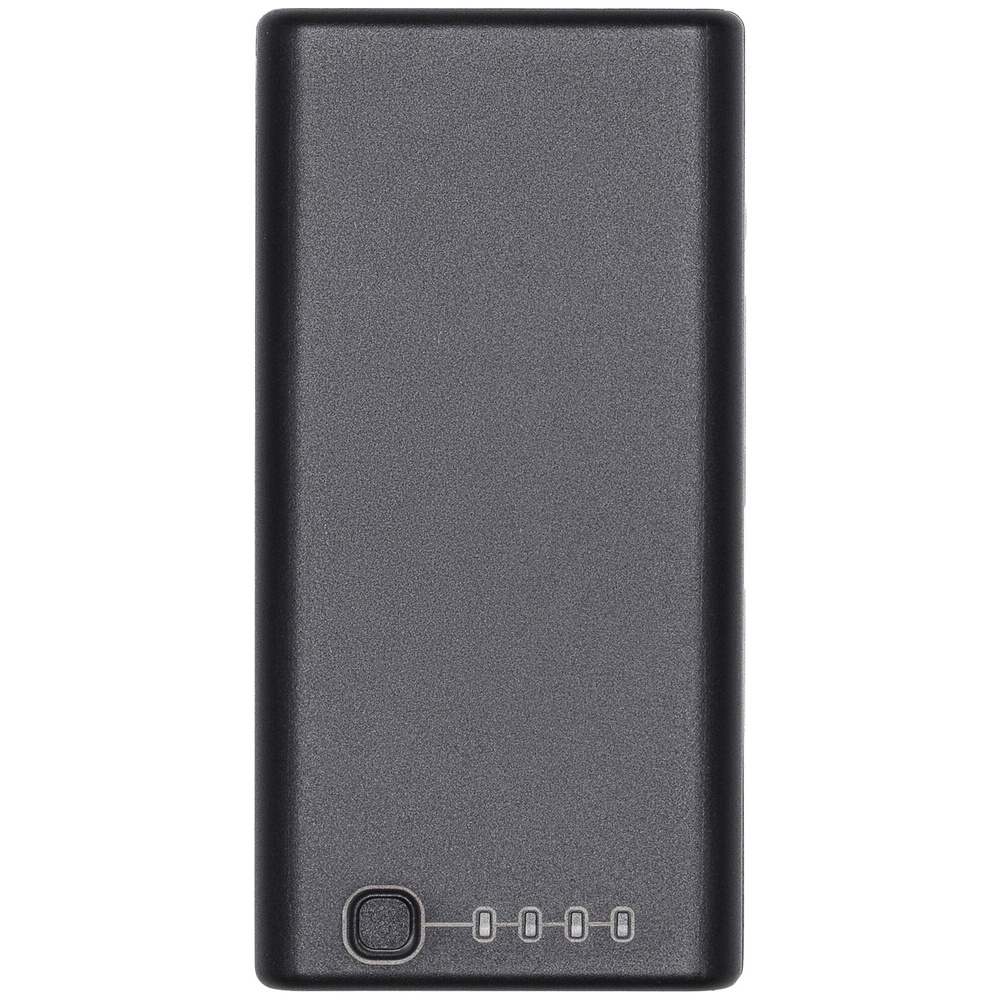

- WB37 Intelligent Battery
- WB37 Battery Charging Hub (USB Type-C)
- L-Series Battery Adapter (TX)

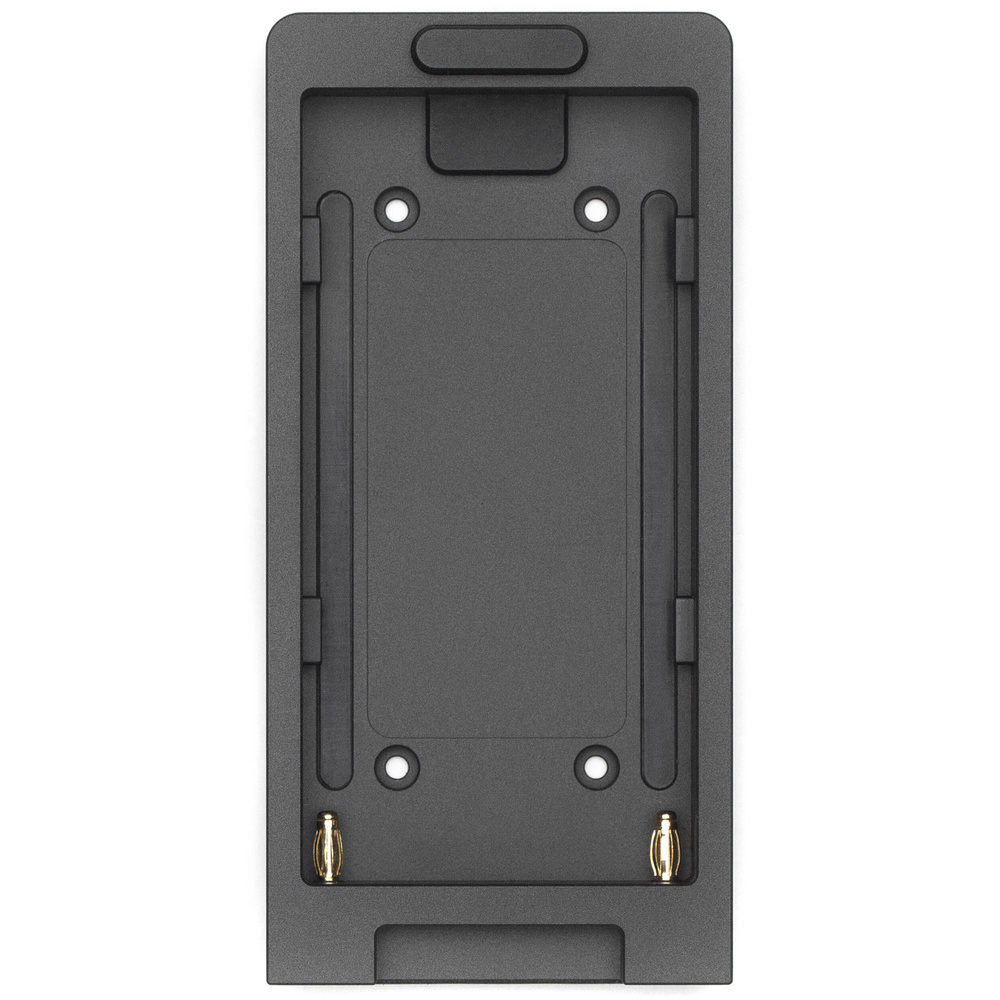

- L-Series Battery Adapter (RX)
- USB Type-C to LEMO Power Cable
- RS Gimbal Mounting Plate
- USB Type-C Cable
- SDI Cable
- DC Power Cable
- DC to D-Tap Power Cable

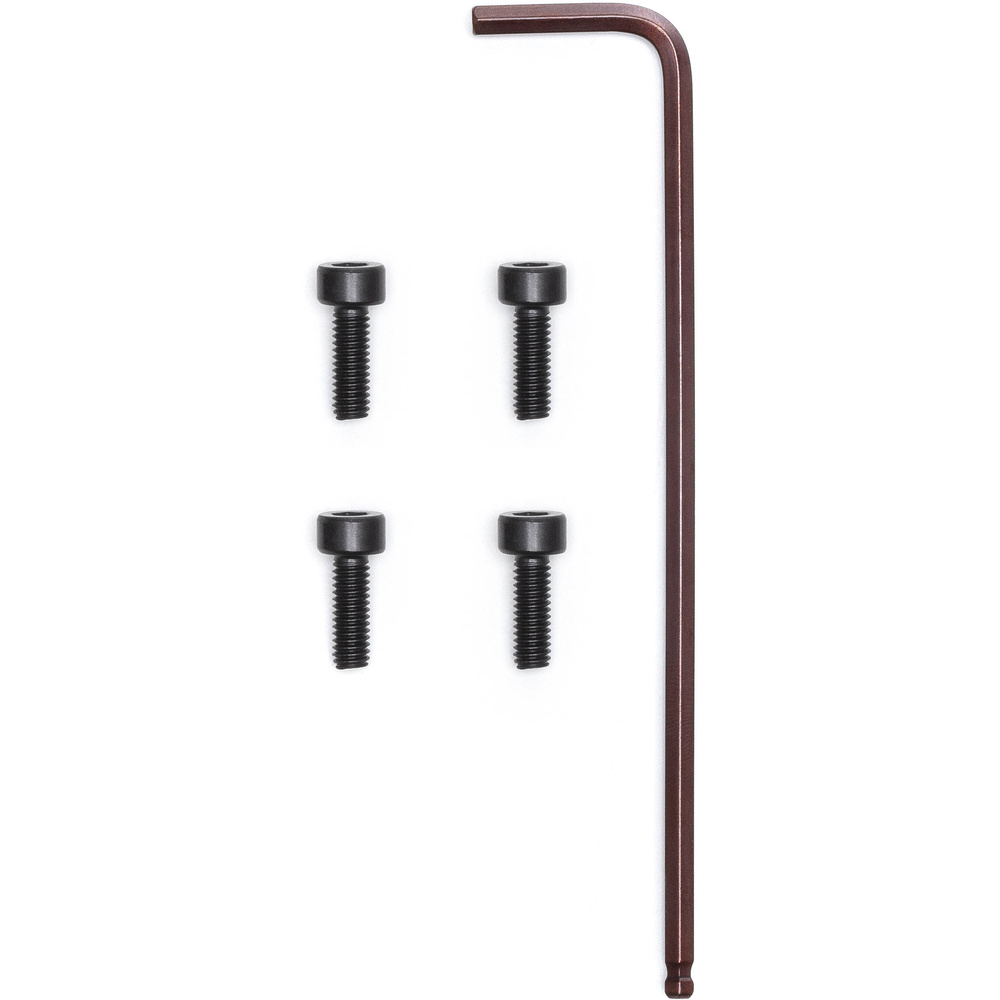

- Installation Toolkit
- Protector Case
