Description

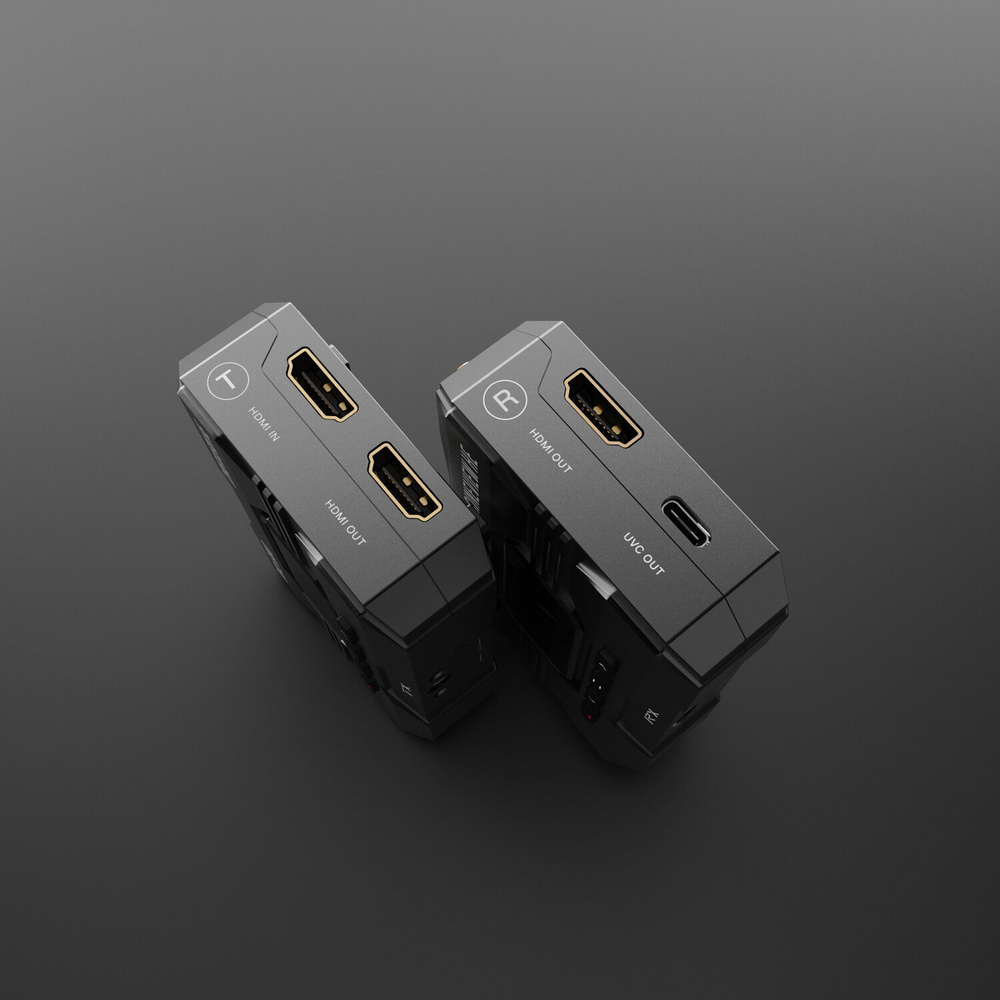

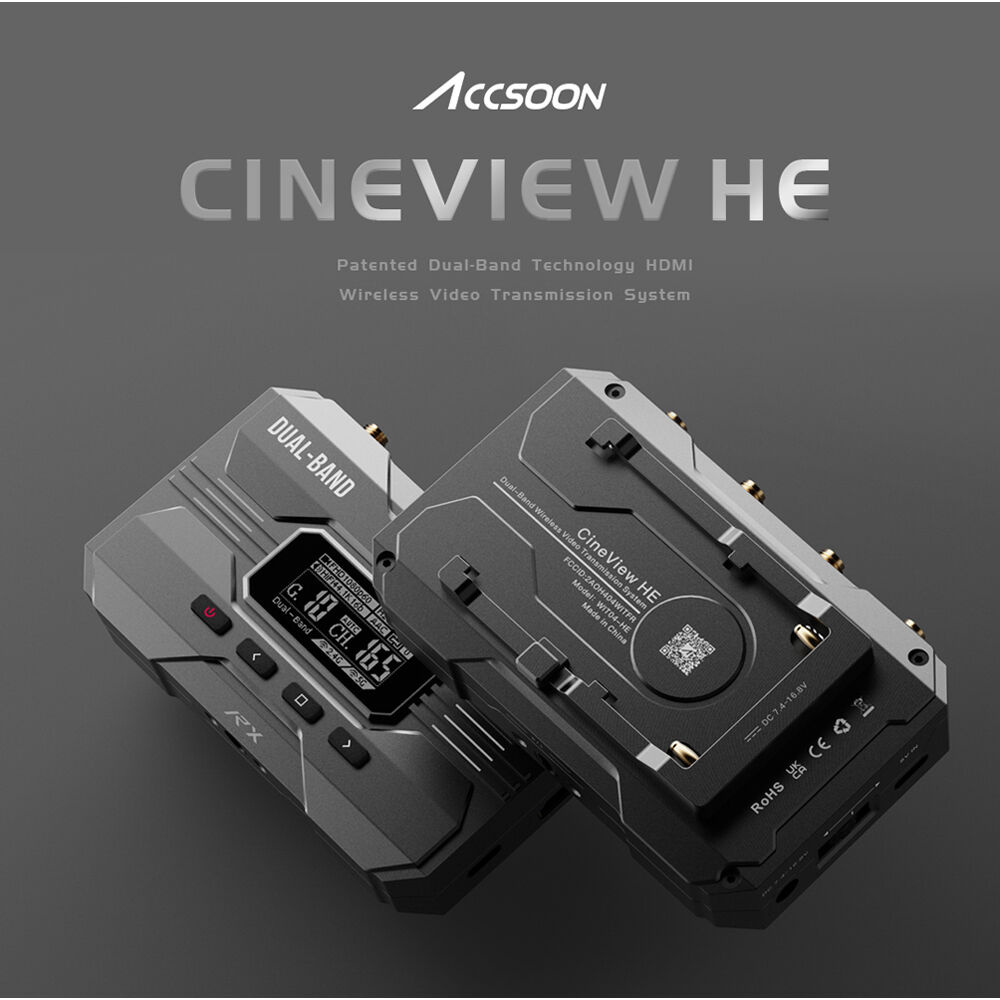

The Accsoon CineView HE is an HDMI wireless video transmitter and receiver kit for monitoring camera video on set or sending a signal to a display and mobile devices. It suits solo operators, small crews and live stream setups that need a compact wireless link with low latency and simple HDMI connectivity.
It supports HDMI input and output at 1080p from 23.98fps through 60fps, with latency under 0.06 seconds excluding camera latency. The system uses dual-band wireless transmission, has a stated range of up to 1200ft, and can send to the receiver plus up to three other devices. The receiver includes USB Type-C UVC output for live streaming.
In practice, it connects to an HDMI camera and can pair with a monitor, tablet or phone for viewing on set. It works as a 1TX + 1RX system and can mix up to four receivers, tablets and phones. The box includes one transmitter, one receiver, nine antennas and two shoe mount adapters.
Specifications
| Transmitter | |
|---|---|
| Video Input | HDMI |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
| DC Port | 5.5 x 2.1 mm centre positive |
| DC Voltage | 7.4~16.8V |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM |
| Latency | <0.06s (Camera latency not included) |
| OLED Display | 1.3inch |
| Transmission Power | 17~20dBm |
| Transmission Range | 1200ft (No obstacles, no interference) |
| Power Consumption | 4.5Watt (Typical) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions | 105 x 66 x 32mm (Antennas not included) |
| Weight | 200g (Antennas included) |
| Receiver | |
| Video Output | HDMI |
| HDMI Output Format | 1080p 24/25/30/50/60fps |
| DC Port | 5.5 x 2.1mm centre positive |
| Power Consumption | 4.2Watt (Typical) |
Product details
| Configuration | Transmission System (1TX + 1RX) |
|---|
In the box
- Transmitter
- Receiver
- 9 x Antenna
- 2 x Shoe Mount Adapter
