Description

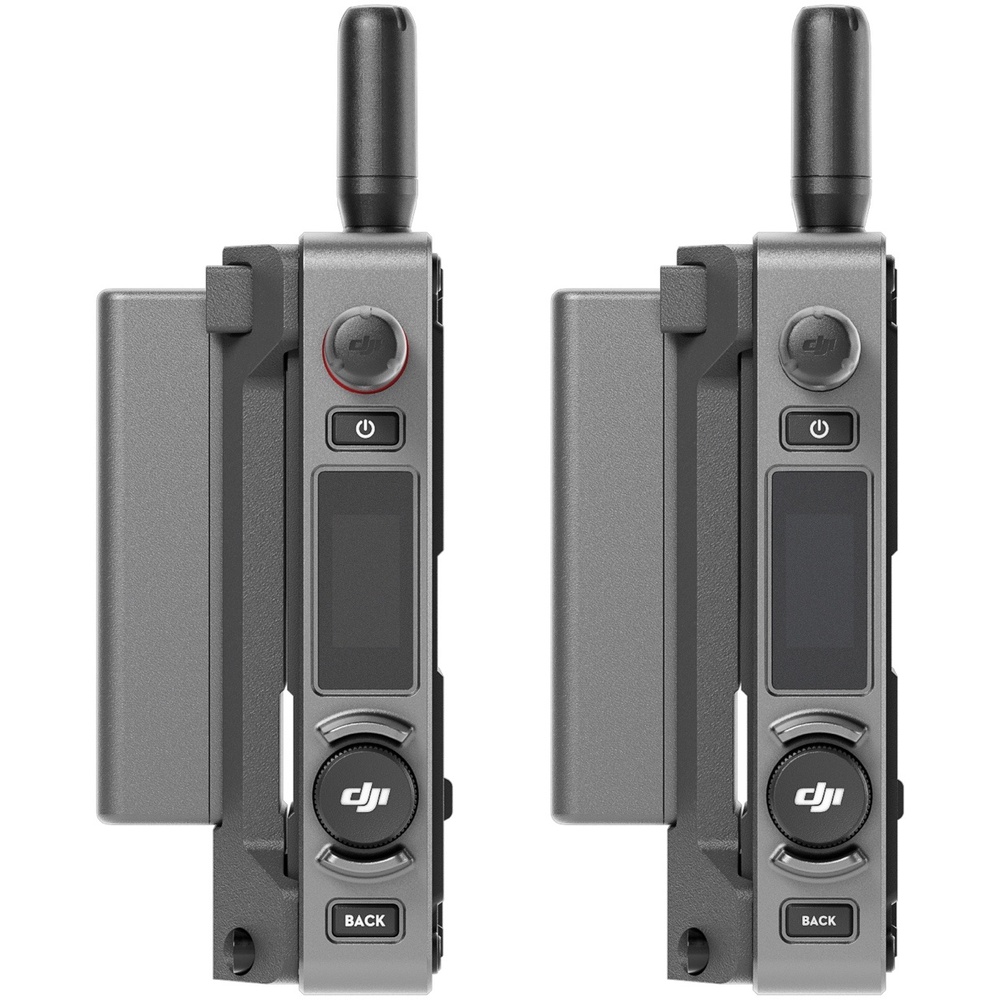

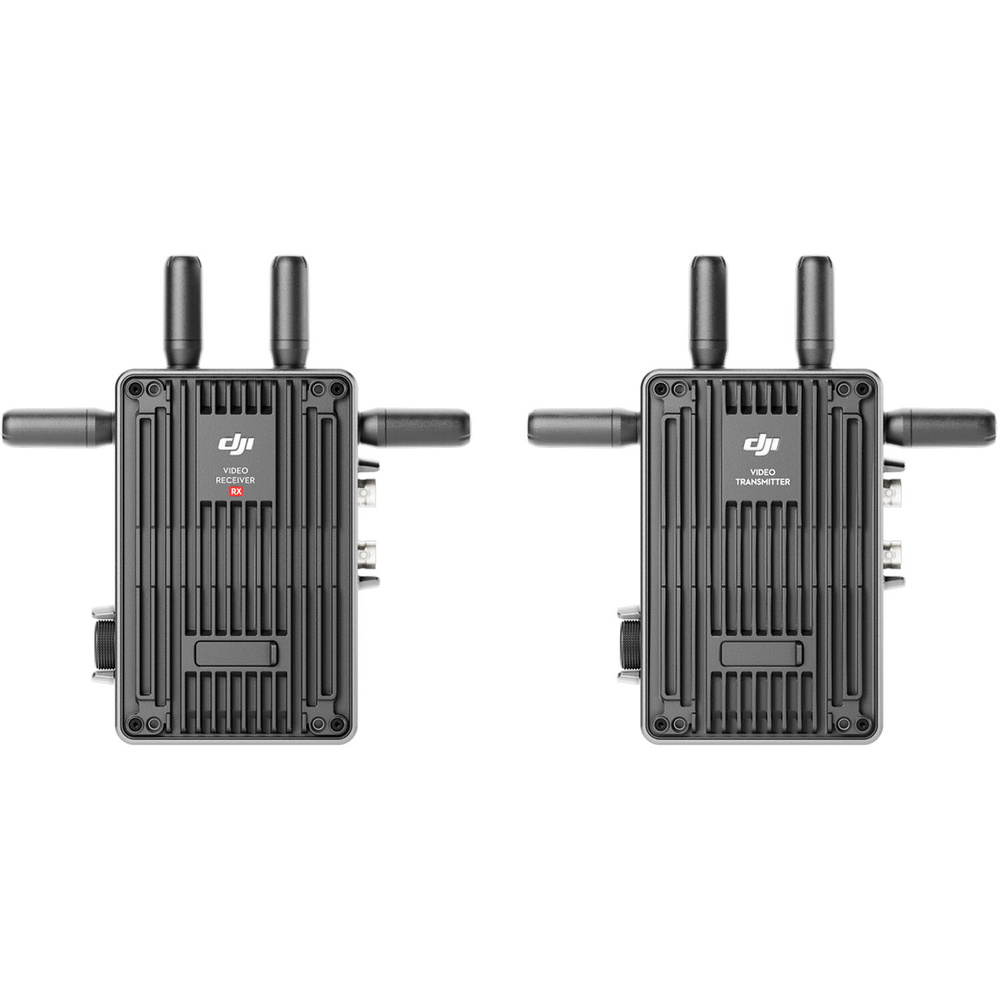

The DJI Transmission Standard TX/RX Combo is a wireless video system. Compatible with DJI WB37.
Highlights include video transmitter & receiver system, WB37 batteries, plates & charger, L-Series battery plates, Power, SDI & USB-C Cables and includes carry case.
Key specifications: battery type 1 x L-Series (Interchangeable Mount); battery chemistry Lithium-Ion Polymer (LiPo); weight 12.3 oz / 350 g; dimensions 5 x 3.4 x 1" / 127 x 87 x 26 mm; compatibility DJI WB37.

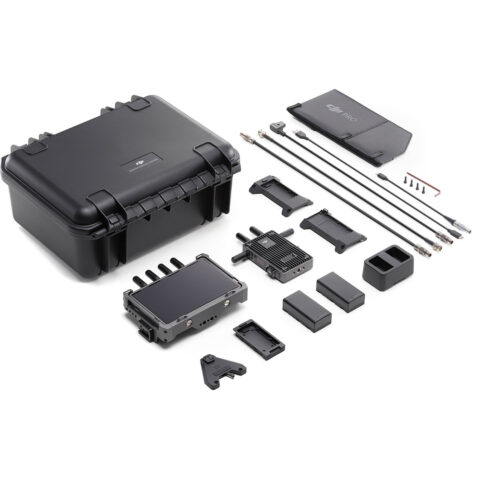

In the box: DJI Wireless Video Transmitter, DJI Wireless Video Receiver, DJI WB37 Battery Charging Hub (USB Type-C), DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh) and carry case. Manufacturer model number CP-RN-00000318.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs / Outputs | |
|---|---|
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x BNC (3G-SDI) Input 1 x HDMI 1.4 Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power I/O | 1 x USB-C Input 1 x Barrel Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 3.7 Miles / 6 km (Line-of-Sight) |
| Number of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz |
| Latency | 68 ms |
| RF Power | < 33 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | None |
| Mobile App Compatible | No *As of June, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| Power | |
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 11 W |
| Mounting | |
| Mounting | 1 x Cold Shoe 1 x 3/8"-16 Female 2 x 1/4"-20 Female |
| Environmental | |
| Environmental Protection | None |
| Certifications | COE, FCC *as per Manufacturer |
| Operating Temperature | 22 to 77°F / -10 to 45°C |
| General | |
| Dimensions | 5 x 3.4 x 1" / 127 x 87 x 26 mm |
| Weight | 12.3 oz / 350 g |
| Inputs / Outputs | |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output |
| Wireless | |
| Latency | 70 ms |
| Power | |
| Battery Type | 1 x L-Series, DJI WB37 (Interchangeable Mount) |
| Power Consumption | 9 W |
| DJI WB37 Battery Charging Hub (USB Type-C) | |
| Quantity | 1 |
| General | |
| Compatibility | DJI WB37 |
| Power | |
| Power Source | USB (Not Included) |
| Power I/O | 1 x USB Type-C Input |
| Physical | |
| Weight | 5.3 oz / 150 g |
| DJI WB37 LiPo Battery Pack For Select DJI Accessories (7.6V, 4920mAh) | |
| Compatibility | DJI CrystalSky / High-Bright Remote Monitor / Cendence Remote Controller / Video Transmitter / FPV Remote Controller / Transmission |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 4920 mAh / 37.39 Wh |
| Battery Configuration | 2 S / 7.6 V |
Product details
| Battery | Lithium-Ion Included |
|---|
In the box
- DJI Wireless Video Transmitter
- DJI Wireless Video Receiver
- DJI WB37 Battery Charging Hub (USB Type-C)
- DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh)
- Carry Case
