Description

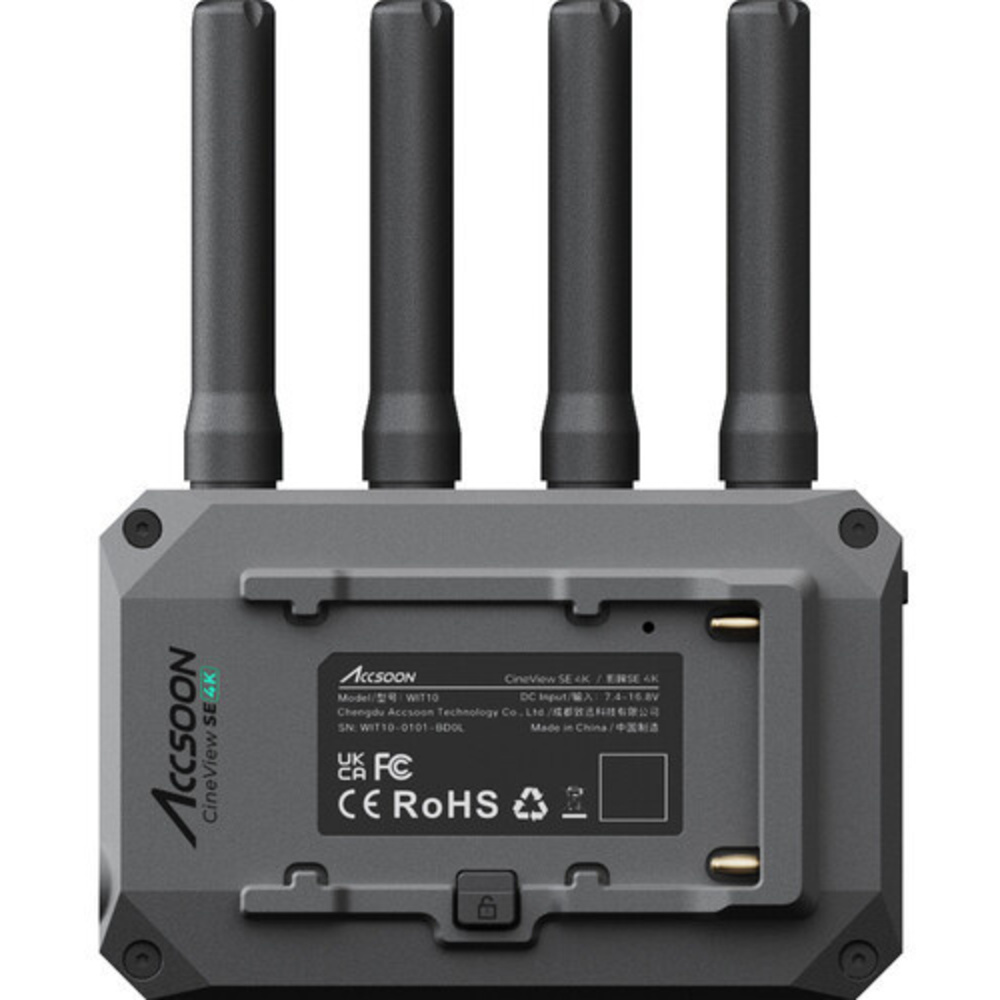

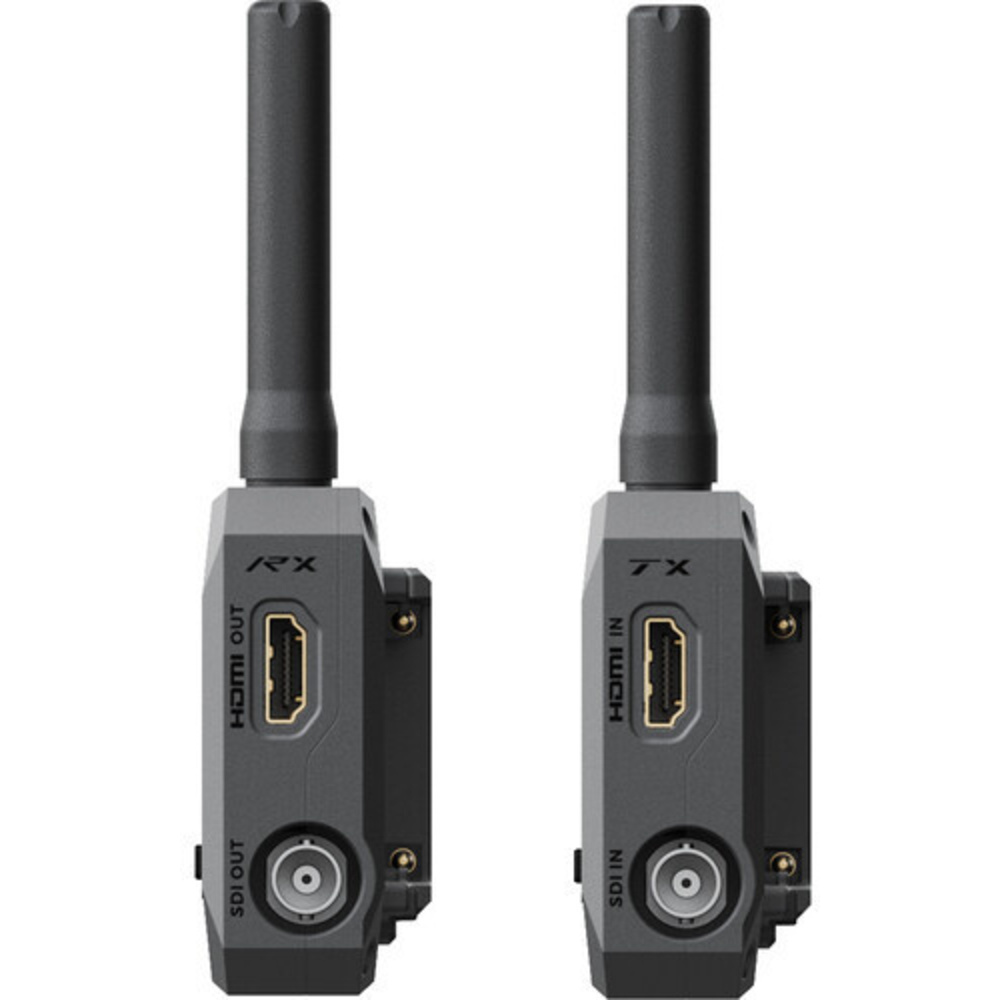

The Accsoon CineView SE 4K Wireless Video Transmission System is a wireless video system.
Highlights include UHD 4K wireless transmission, 400 m range (line of sight), dual-band: 2.4 & 5 GHz, latency below 50 ms and HDMI and 3G-SDI ports.
Key specifications: battery compatibility NP-F550, NP-F750, NP-F970; weight (Antennas Excluded) 245 g; dimensions (Antennas Excluded) 11 x 3.27 x 7.4 cm; protocol Proprietary RTMS 4.0; video input port 1x HDMI, 1x 3G-SDI.
Also available in other configuration options: Receiver Only, Transmitter Only. In the box: Accsoon CineView SE 4K transmitter, Accsoon CineView SE 4K receiver, 8 x Antennas, 2 x Cold Shoe Mount Adapters and allen key. Manufacturer model number WIT10.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Transmitter | |
|---|---|
| Protocol | Proprietary RTMS 4.0 |
| Video Input Port | 1x HDMI, 1x 3G-SDI |
| Video Output Port | 1x USB Video Out |
| Camera Control | 1x USB-C |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps Level A/B |
| HDMI Input Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| DC Port | 5.5 mm x 2.1 mm (Center Positive) |
| DC Voltage | 7.4 to 16.8 V |
| Battery Compatibility | NP-F550, NP-F750, NP-F970 |
| Power Consumption | 4.4 W (Average) |
| Audio Input | HDMI Embedded, SDI Embedded |
| Latency | 1080p < 50 ms 4K < 100 ms |
| Transmission Range | Up to 400 m (Line of Sight) |
| Operating Temperature | -10 to 40°C |
| Dimensions (Antennas Excluded) | 11 x 3.27 x 7.4 cm |
| Weight (Antennas Excluded) | 245 g |
| Receiver | |
| Video Output Port | 1x HDMI, 1x 3G-SDI, 1x USB Video Out |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A |
| HDMI Output Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| Audio Input | 1x HDMI Embedded, 1x SDI Embedded |
Product details
| Configuration | Transmission System (1TX + 1RX) |
|---|
In the box
- Accsoon CineView SE 4K Transmitter
- Accsoon CineView SE 4K Receiver
- 8 x Antennas
- 2 x Cold Shoe Mount Adapters
- Allen Key
