Description

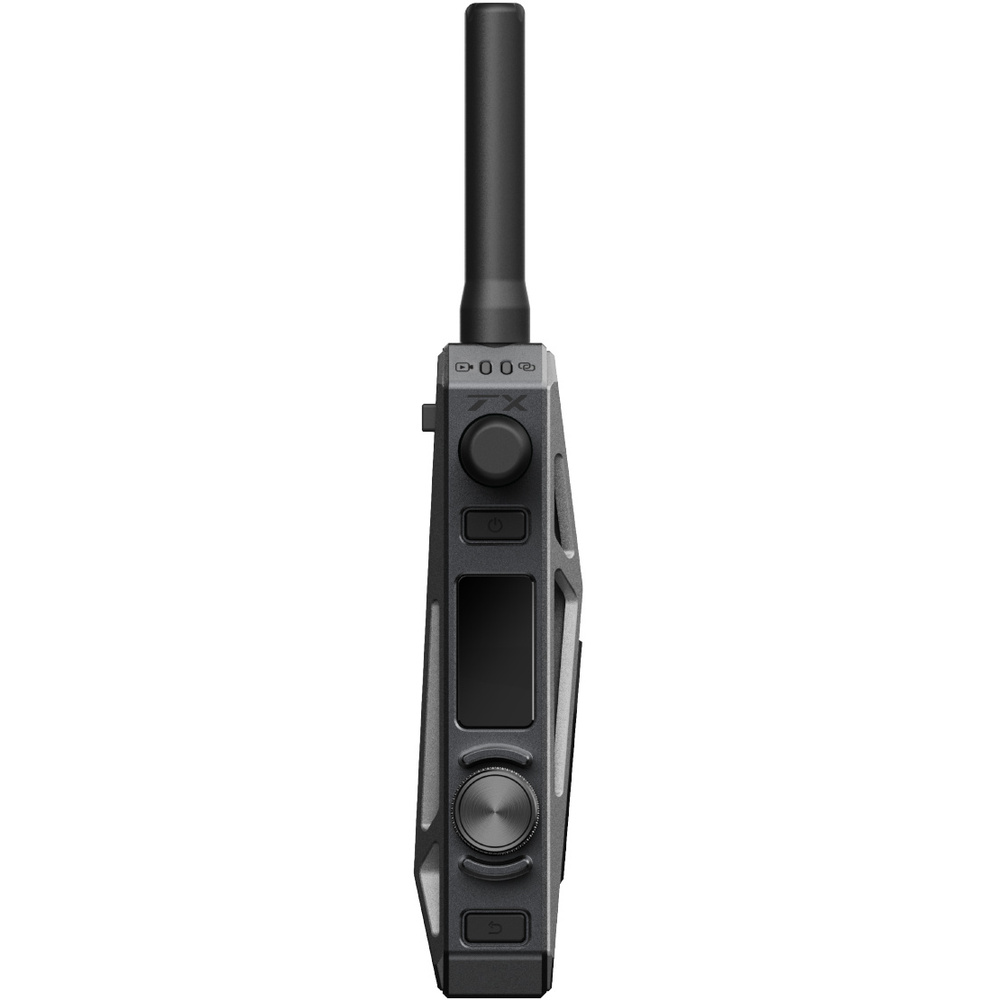

The Accsoon CineView Master 4K Wireless Video Transmitter is a wireless video system.
Highlights include end-to-end true 4K60 video, cutting-edge wireless technology, Accsoon tri-band transmission and all new 6GHz frequency.
Key specifications: battery Compatible with NP-F550, NP-F750, NP-F970 battery; A/V processor 8K High Performance Processor; protocol Proprietary RTMS 4.0 protocol developed by Accsoon; video input HDMI, 3G SDI; video output HDMI Loop-Out USB Video Out (to iOS).
Also available in other configuration options: Receiver Only, Transmission System (1TX + 1RX). Manufacturer model number WIT07-TX.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| A/V Processor | 8K High Performance Processor |
|---|---|
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon |
| Video Input | HDMI, 3G SDI |
| Video Output | HDMI Loop-Out USB Video Out (to iOS) |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i |
| HDMI Input Format | 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i |
| HDMI Loop-out Format | Identical to the HDMI video input |
| DC Port | 5.5mmx2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery |
| Power Consumption | 6.5W average *Without powering other devices |
| Audio | HDMI embedded, SDI embedded |
| Latency | 1080p 60 < 25ms 4K 60 < 35ms (Camera latency not included) |
| Transmission Range | ≥ 2.5 km (No obstacles, no interference) |
| Operating Environment Temperature | -10~40℃ |
| Dimensions (Antennas Not Included) | 130mm x 95mm x 32 mm |
| Weight (Antennas Not Included) | 322g |
Product details
| Configuration | Transmitter Only |
|---|
Reviews
There are no reviews yet.
