Description

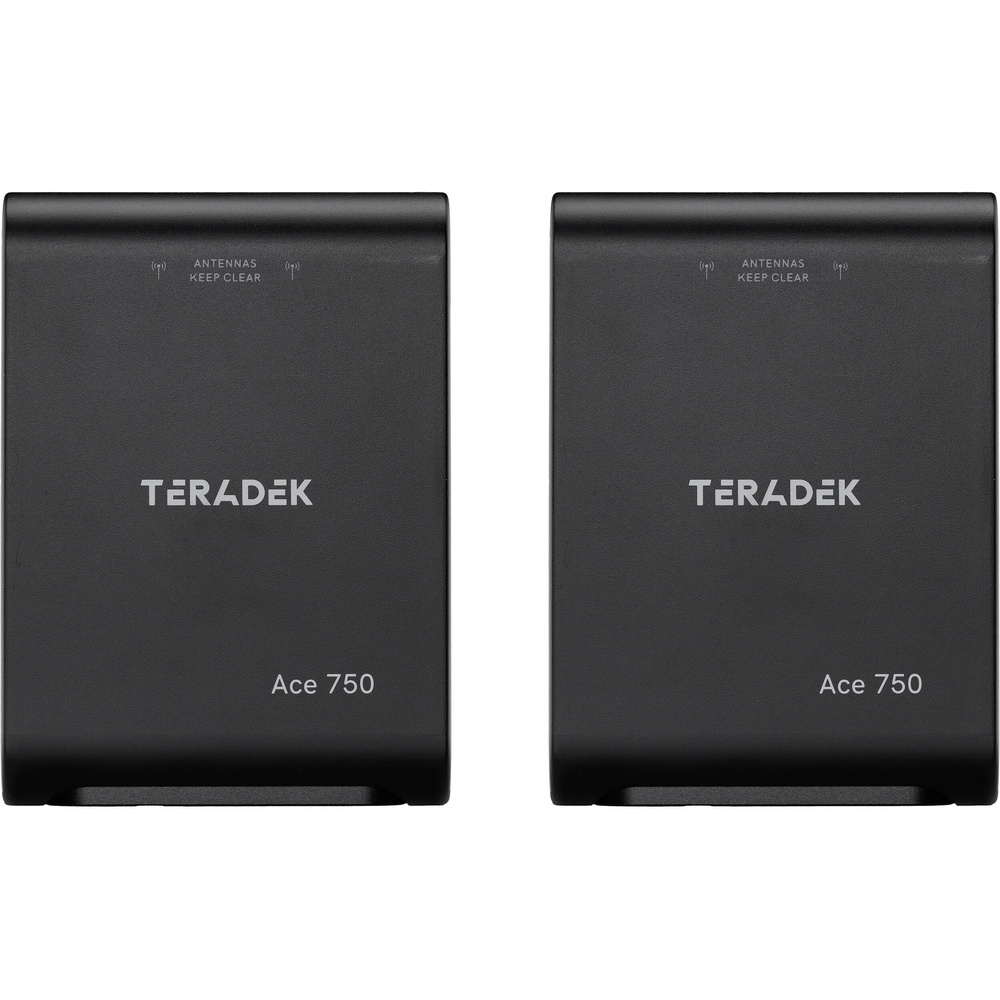

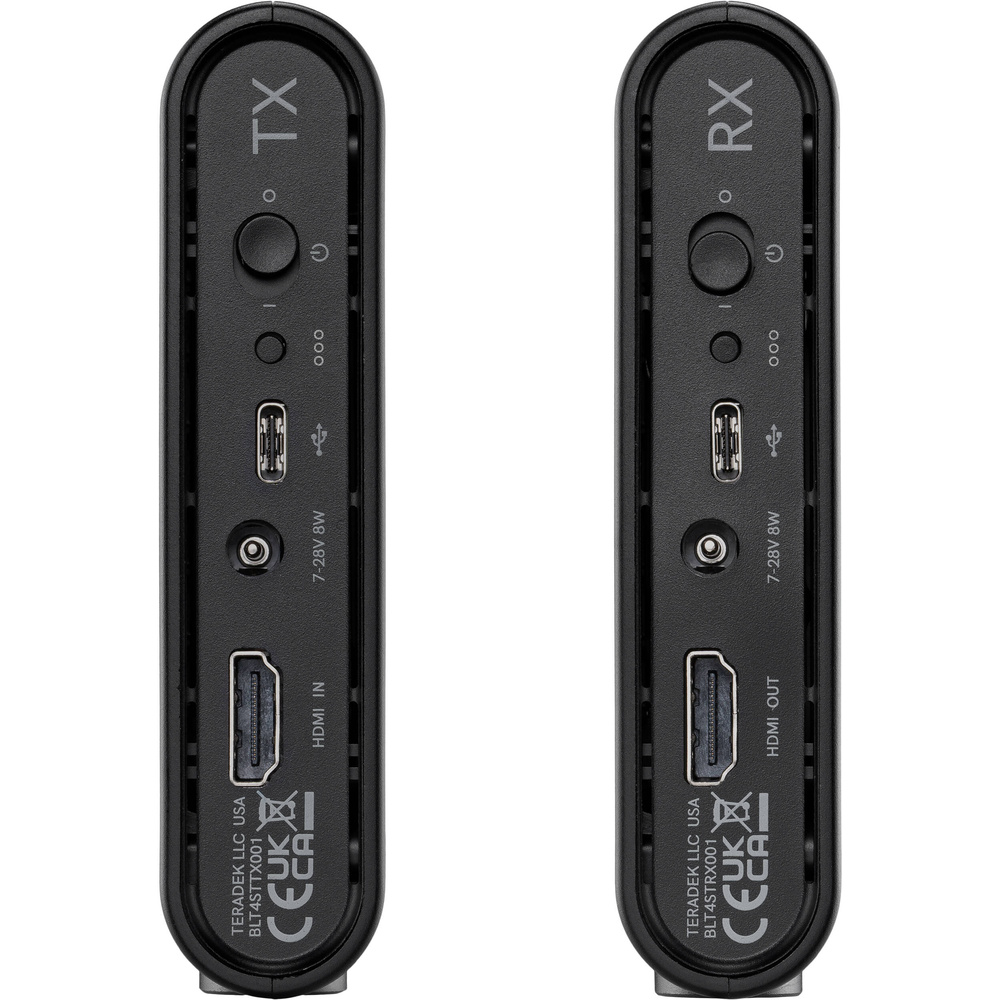

Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set: a wireless video system.
Highlights include includes transmitter and receiver units, Transmit/Receive up to 4K30 HDR video, compatible with bolt 4K and bolt 6 units, transmission up to 750' line of sight and HDMI Input/Output, built-in antennas.
Key specifications: mounting 1x 1/4"-20 Female; weight 6.6 oz / 187 g; dimensions 4.4 x 3.2 x 1" / 112 x 81 x 25 mm; material of construction Plastic; video I/O 1x HDMI 1.4b Input.
In the box: Teradek ace 750 wireless video transmitter and Teradek ace 750 HDMI wireless video receiver. Manufacturer model number 53.10-2240.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Video I/O | 1x HDMI 1.4b Input |
| Embedded Audio | HDMI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Power Consumption | 6 W |
| Mounting | 1x 1/4"-20 Female |
| Inputs / Outputs | |
| Antenna I/O | No |
| Audio I/O | No |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| RF Power | 19 dBm |
| Wi-Fi | No |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup |
| Cellular Support | No |
| Format Support | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| Input Power | 7 to 18 VDC |
| Environmental | |
| Environmental Protection | No |
| Certifications | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| General | |
| Material of Construction | Plastic |
| Dimensions | 4.4 x 3.2 x 1" / 112 x 81 x 25 mm |
| Weight | 6.6 oz / 187 g |
| Key Specs | |
| Video I/O | 1x HDMI 1.4b Output |
| Inputs / Outputs | |
| Power I/O | 1x Barrel (18 VDC) Input |
| Wireless | |
| RF Power | 17 dBm |

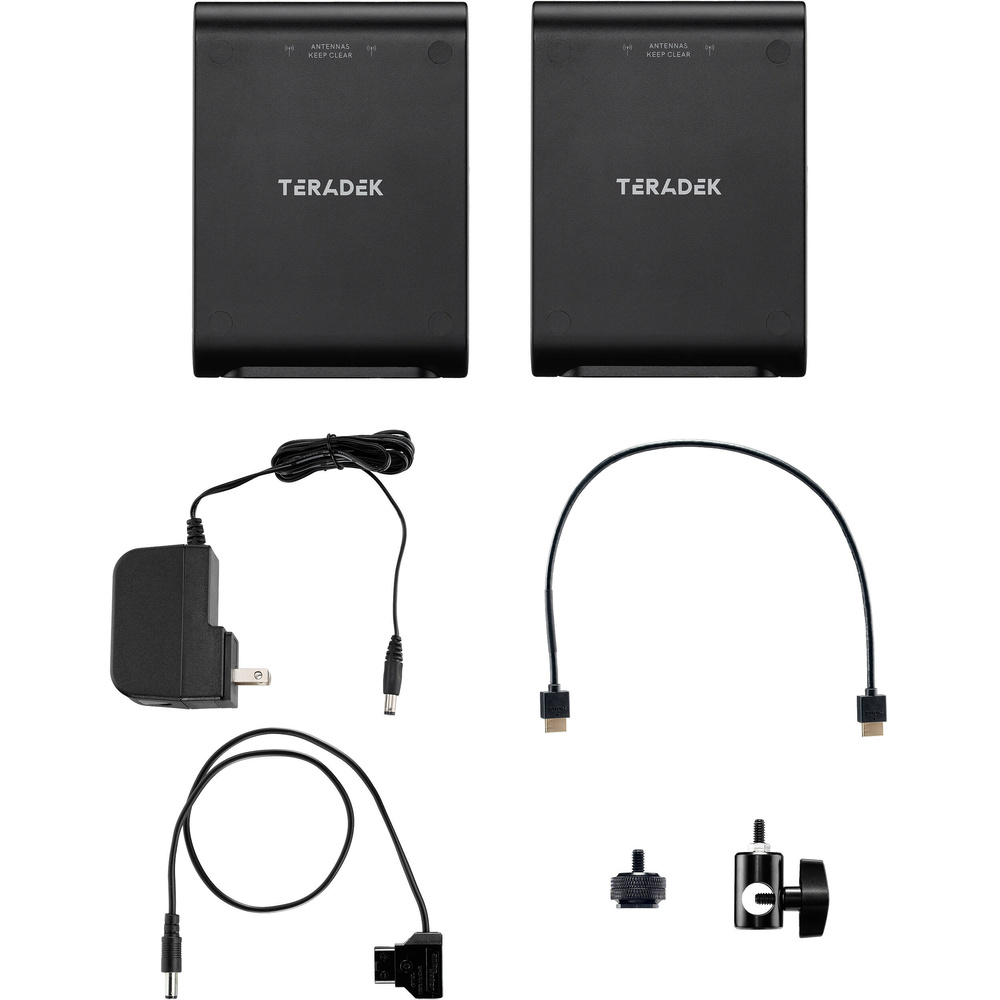

In the box
- Teradek Ace 750 Wireless Video Transmitter
- Teradek Ace 750 HDMI Wireless Video Receiver
