Description

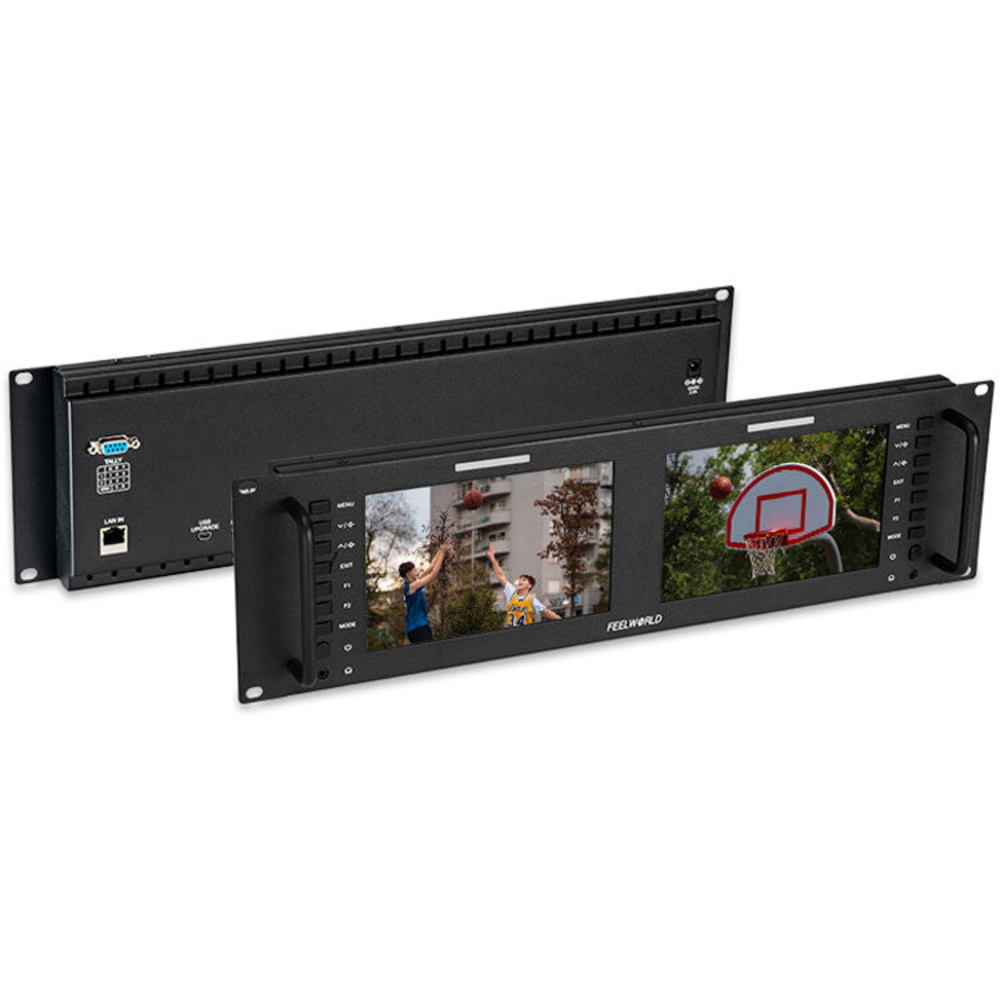

FeelWorld D71 PLUS Dual 7" 3 RU Rackmount 4K HDMI Monitor: a production monitor.
Highlights include two 7" 1900 x 1200 IPS displays, HDMI, Composite BNC I/O, up to 4K input via HDMI, LAN control of up to multiple units and 160° L/R viewing angle.
Key specifications: weight 1.890 kg; dimensions 482.6 x 132 x 30.5 mm; screen size 7"; resolution 1920 x 1200; material of construction Metal.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: FeelWorld D71 PLUS dual 7" 3 RU rackmount 4K HDMI Monitor, Power adapter and tally kit. Manufacturer model number D71PLUS-H.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 450 nits / cd/m 2 |
| Contrast Ratio | 1100:1 |
| Dot Pitch | 0.07875 x 0.07875 mm |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra |
| Inputs / Outputs | |

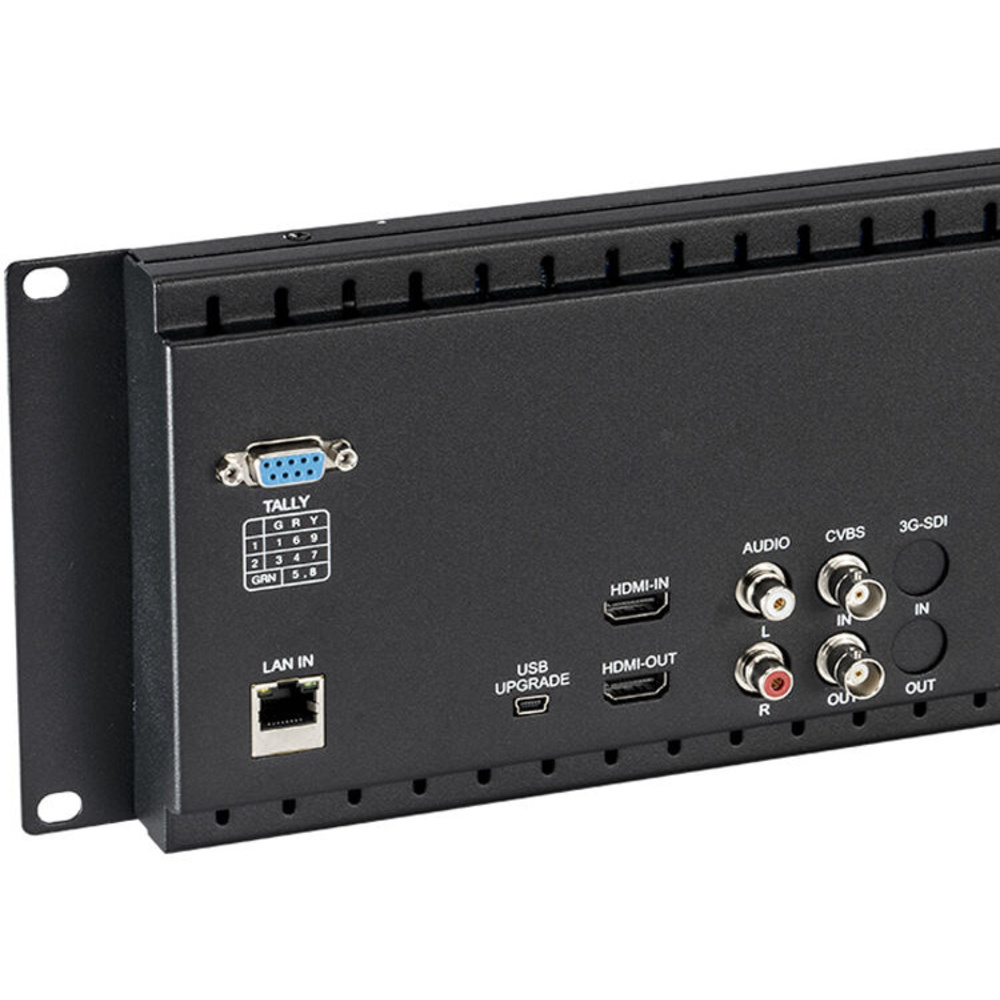

| Video I/O | 2 x BNC (Composite) Input 2 x HDMI 1.4 Input 2 x BNC (Composite) Output 2 x HDMI 1.4 Output |
| Audio I/O | 2 x 2RCA Input 2 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x XLR 4-Pin (3 A / 12 VDC) Input 1 x Barrel (3 A / 12 VDC) Input |
| Other I/O | 1 x DE-9/DB-9 (Tally) Input 1 x RJ45 (LAN) 1 x Mini-USB (Firmware), (LUT Upload) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Gamma Curve | Rec709 |
| Power | |
| DC Input Power | 9 to 24 VDC |
| Power Consumption | 21 W |
| Mounting | |
| Rack Form Factor | 3 RU |
| Environmental | |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| General | |
| Material of Construction | Metal |
| Dimensions | 482.6 x 132 x 30.5 mm |
| Weight | 1.890 kg |
Product details
| Screen Size | 7" |
|---|---|
| Screen Resolution | 1900 x 1200 |
In the box
- FeelWorld D71 PLUS Dual 7" 3 RU Rackmount 4K HDMI Monitor
- Power Adapter
- Tally Kit
