Description
The Atomos Shinobi II is a 5.2-inch camera monitor for shooters who want a bright external screen with touch control, exposure tools and camera control in a compact body. It suits vloggers, photographers and filmmakers who need a monitor for framing, focus and exposure checks while working on camera rigs or lightweight setups.

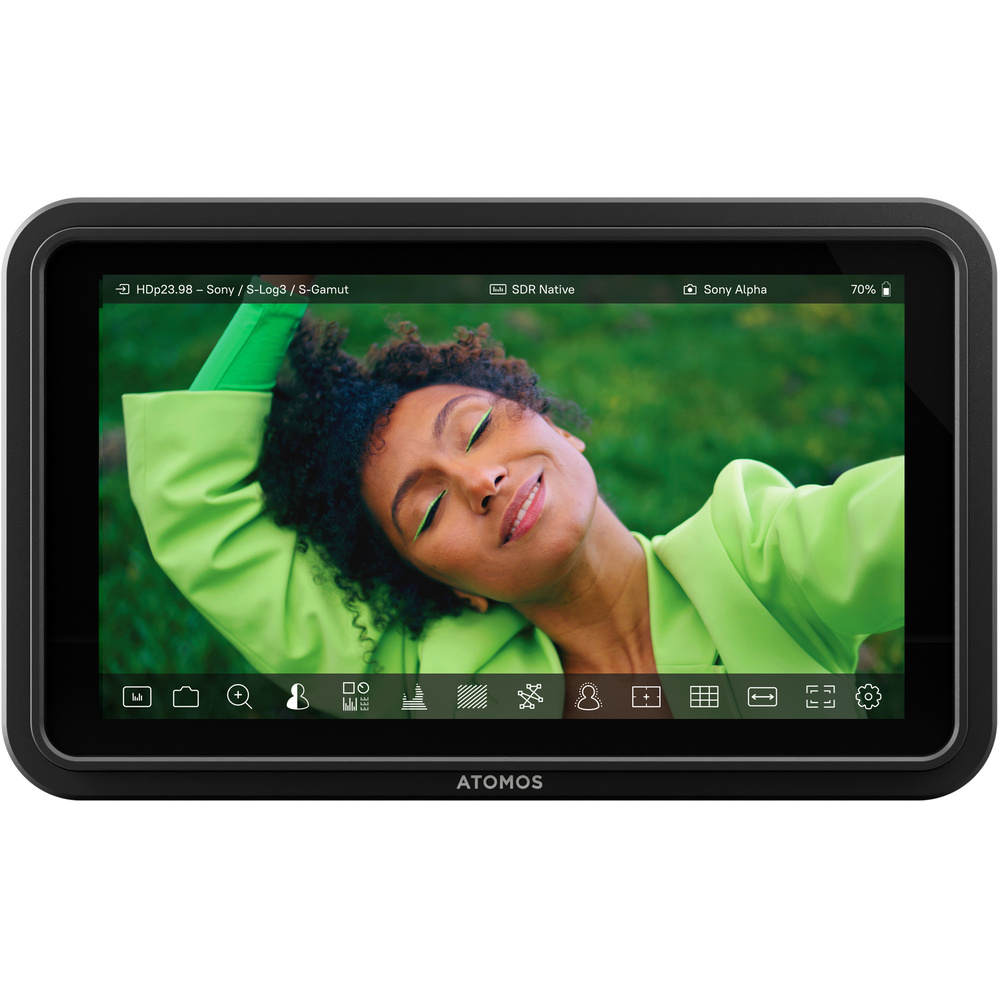

It has a 5.2-inch 1920 x 1080 capacitive touchscreen with 1500 nit brightness, HDR support and AtomHDR mode. Monitoring tools include waveform, histogram, vectorscope, frame guides and a 9-grid. The monitor weighs 210g, measures 151mm x 91.5mm x 20.8mm, uses passive cooling, and runs from NPF L series batteries or USB-C PD power. It has one bottom 1/4-20 mount point with anti-rotational points.
In practice, it works as an on-camera display for HDMI shooting and USB-C camera control. It can be powered by an optional battery eliminator with DC in, or by D-Tap with the right cable. The box includes the monitor, a USB-C 2.0 cable, and an HDMI plus USB-C locking cable adapter.
Specifications
| Physical Specifications | |
|---|---|
| Dimensions (W x H x D mm) | 151mm x 91.5mm x 20.8mm (28.5mm with locking cable adaptor attached) |
| Weight | 210g / 7.4 oz |
| Mount points | Bottom: 1 x 1/4-inch 20 with anti-rotational points |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction & Control | |
| Body | ABS polycarbonate |
| Cooling | Passive heat sink |

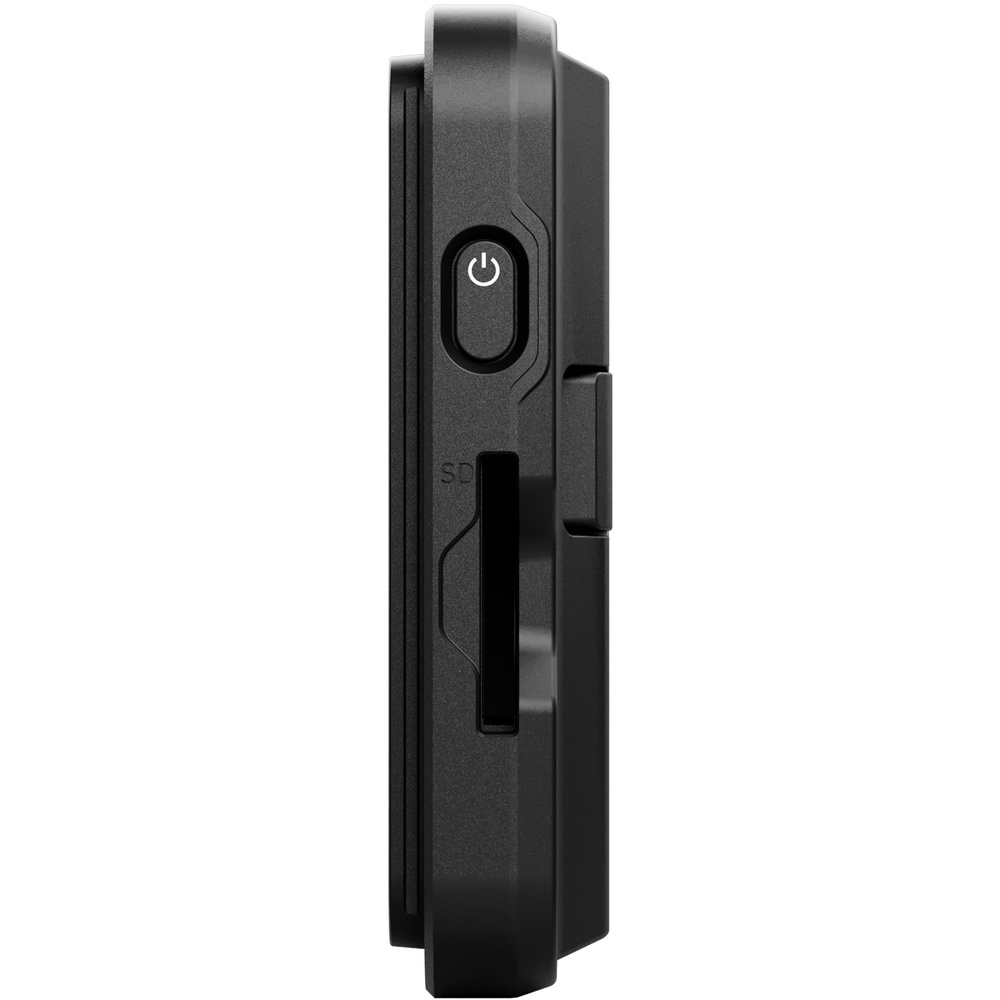

| Multi-function button | Power / lock screen |
| Power | |
| Input voltage | 6.2V to 16.8V |
| Operating power | <10W |
| Compatible batteries | NPF L series |
| Built in battery | No |
| Continuous power | Via NPF battery and USB-C PD Power |
| DC in connector | Via Battery Eliminator (optional) |
| DTAP | Via Battery Eliminator and optional D-Tap to DC barrel cable |
| USB PD IN | < 10W |
| USB PD OUT | > 13W |
| Display | |
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Bit depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness | (cdm2 / Nits) 1500 |
| Black Level | (cdm2 / Nits) |
| Aspect ratio | 16/9 |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C) |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3,Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG,JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709, Sony S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709, Canon Cinema / BT.2020 / DCI P3 / DCI P3plus / Rec.709, Panasonic V Gamut / Rec.709, Arri Alexa Wide Gamut / Rec.709, JVC LS300 / Rec.709, Red DragonColor / DragonColor2 / RedColor2 /RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube Format (17 & 33 points supported) |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
| Video Input | |
| HDMI | 1 x HDMI (1.4) |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Audio In/Out | |
| HDMI | 2 channel, 24-bit, input dependent |
| Analogue Audio in | 3.5mm headphone jack, 2 channel |
| Headphone out | 3.5mm headphone jack, 2 channel |
| Timecode / Sync / Control | |
| Embedded | HDMI (display only) |
| Resolution & Frame Rates (Monitor) | |
| 4K DCI | 23.98/24/25/29.97/30 |
| 4K UHD | 23.98/24/25/29.97/30 |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60 |
| FHD 1920 x 1080 Interlaced | 50i/60i |
| 1280 x 720p | 50/59.94/60p |
| Supported media | |

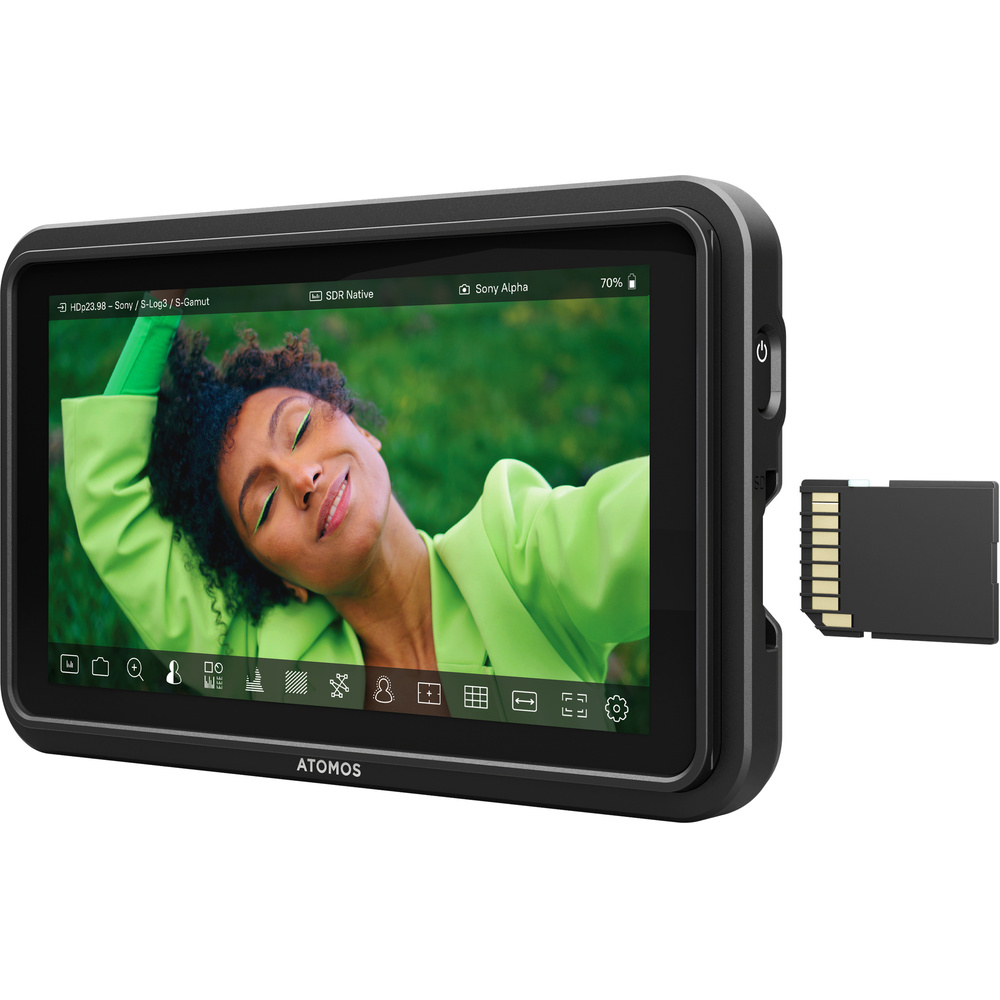

| SD | Update firmware & upload LUTs |
| File System | FAT32, NTFS |
| On screen tools | |
| MultiScope Analysis View | Image, WFM, vector, histogram |
| Waveform | 3 sizes - adjustable opacity & brightness |
| Histogram | 3 sizes - adjustable opacity & brightness |
| RGB parade | 3 sizes - adjustable opacity & brightness |
| Vector scope | 1 size - adjustable opacity & brightness |
| 1 x Zoom | Tap to zoom |
| 2 x Zoom | Tap to zoom |
| 4 x Zoom | Tap to zoom |
| Focus peaking | 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
| Atomos False color | Yes, with Scale |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe areas | SMPTE safe title area - 93% & 90% |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip | Horizontal & vertical |
| Remote Control | |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| External Device Control | |
| Serial 2.5mm Jack | Camera control for Z CAM cameras via optional USB to Serial Cable |
| USB | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator |
| RJ45 | A235A236:B23A51:B239 |
Product details
| Screen Resolution | 1920 x 1080 |
|---|---|
| Screen Size | 5" |
| Connection | HDMI |
In the box
- Atomos Shinobi II 5" Monitor
- USB-C 2.0 cable
- HDMI + USB-C Locking Cable Adapter
