Description
SmallHD INDIE 5 Touchscreen On-Camera Monitor: a production monitor.
Highlights include 5" 1920 x 1080 touchscreen-only display, 1000 cd/m², 10-Bit, LCD Panel, HDMI & 3G-SDI inputs & outputs, supports video input up to UHD 4K30 and SmallHD PageOS 5.
Key specifications: mounting 4 x 1/4"-20 Female; screen size 5"; resolution 1920 x 1080; material of construction Aluminium; panel type LCD.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. Manufacturer model number 33.1.16-0525.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 cd/m 2 |
| Bit Depth / Colour Support | 10-Bit (1.07 Billion Colours) |
| Pixels Per Inch (ppi) | 440 ppi |
| Colour Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, False Colour, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |

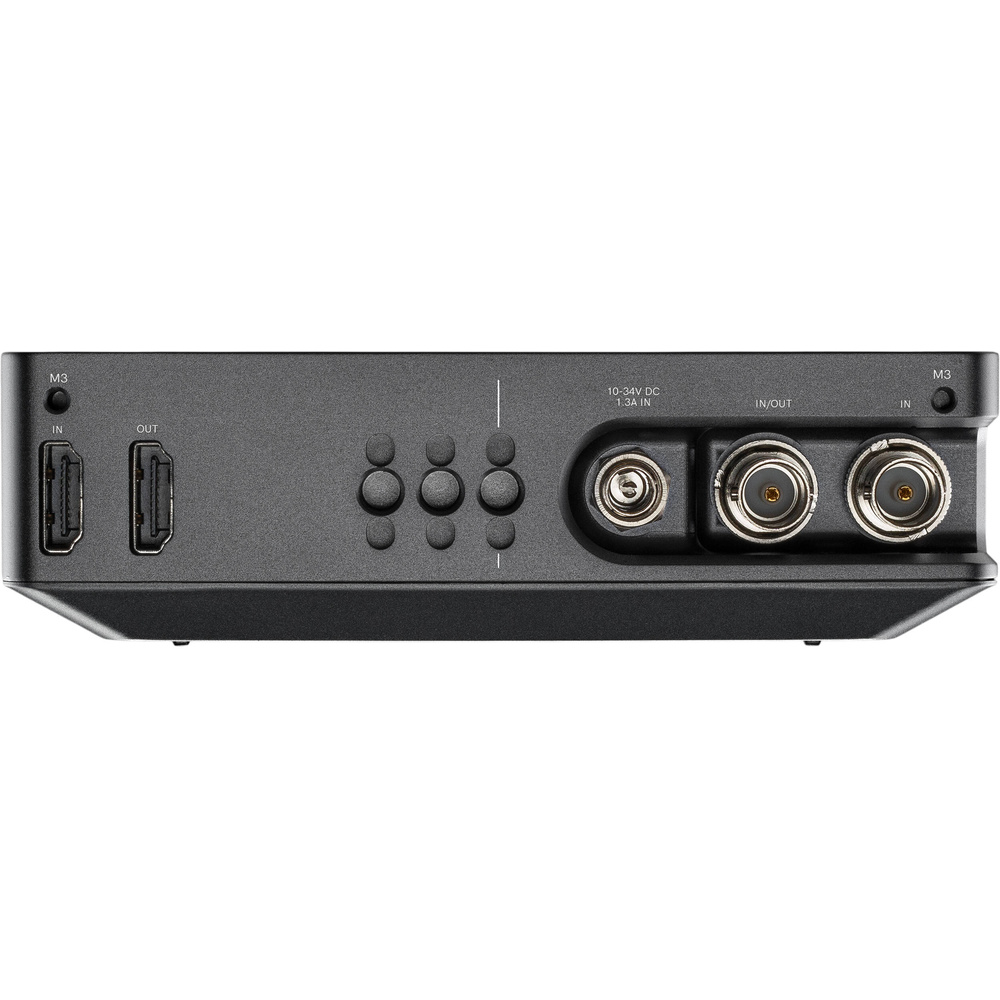

| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI) Input 1 x BNC (3G-SDI/HD-SDI) Output |
| Embedded Audio | HDMI SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (10 VDC) Input |
| Other I/O | 1 x Micro-USB Output |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4 RGB, YCC) UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Power | |
| DC Input Power | 10 to 34 VDC |
| Mounting | |
| Mounting | 4 x 1/4"-20 Female |
| General | |
| Material of Construction | Aluminium |
Product details
| Screen Size | 5" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- SmallHD INDIE 5 Touchscreen On-Camera Monitor
