Description

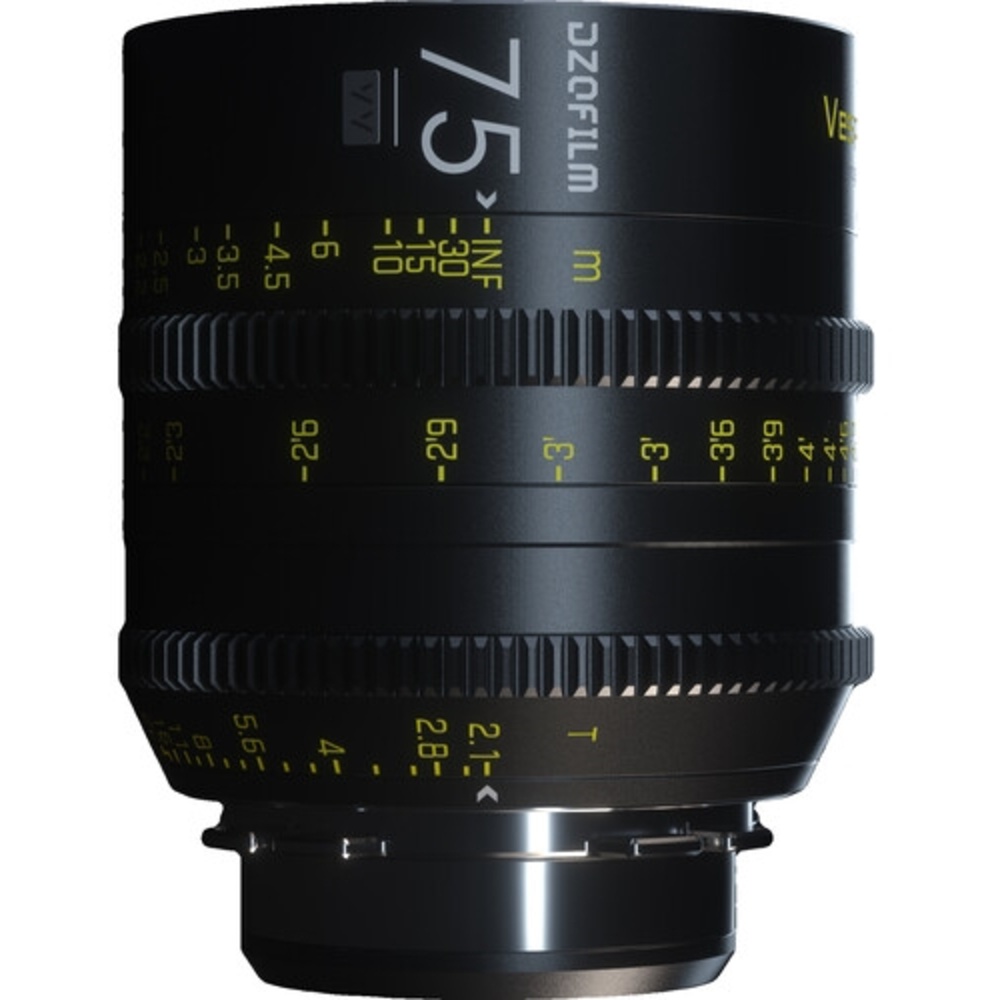

The DZOFilm VESPID 75mm T2.1 is a full frame cine prime for controlled, manual focus work on narrative, documentary and commercial productions. It suits crews and solo operators who want a compact 75mm lens with a PL mount and a straightforward mechanical layout for camera rigs, matte boxes and follow focus use.
It offers a 75mm focal length, T2.1 maximum stop and T22 minimum stop, with a 46.5 mm image circle for full frame coverage. The lens has 16 iris blades, 0.8 MOD gearing on focus and iris, 270° focus rotation, 68° iris rotation, an 80 mm front diameter, 77 mm filter thread and a 2.0' / 0.6 m minimum focus distance. It weighs 865 g and is 87 mm long.

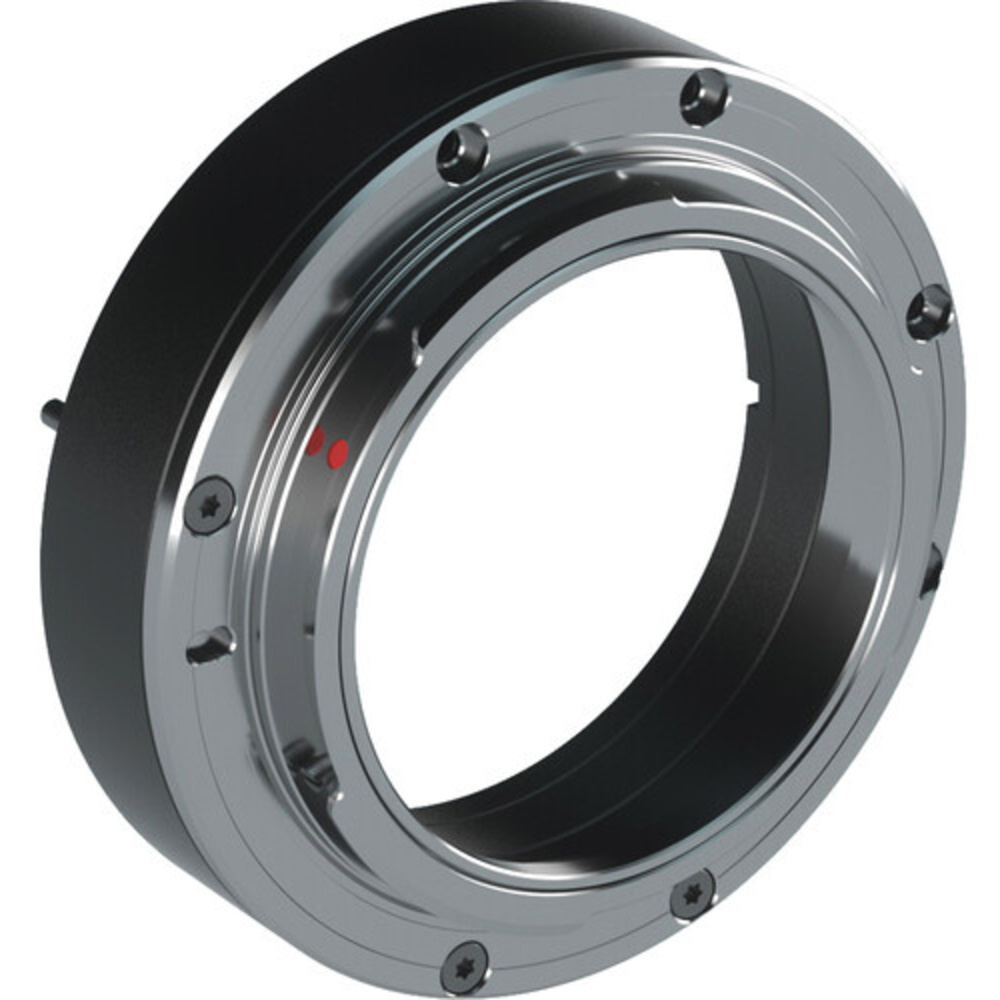

In practice, this lens is suited to PL mount cinema cameras and other rigs that accept ARRI PL lenses. It is a manual lens with no electronic communication, so camera settings are controlled separately. The box includes the lens, front lens cap, rear lens cap and an EF Mount Tool Kit, which is useful when changing the mount setup.
Specifications
| Focal Length | 75mm |
|---|---|
| Lens Mount | ARRI PL |
| Format | Full Frame |
| Image Circle | 46.5 mm |
| Maximum T-Stop | T2.1 |
| Minimum T-Stop | T22 |
| Minimum Focus Distance | From Image Plane: 2.0' / 0.6 m |
| Iris Blades | 16 |
| Gear MOD & Pitch | |
| Focus | 0.8 MOD / 32 Pitch |
| Iris | 0.8 MOD / 32 Pitch |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Imperial |
| Focus Rotation | 270° |
| Iris Rotation | 68° |
| Electronic Communication | No |
| Length | 3.4" / 87 mm |
| Weight | 865 g |
Product details
| Zoom or Prime Lens | Prime |
|---|---|
| Maximum Aperture | T2.1 |
| Lens Type | Standard |
In the box
- DZOFilm VESPID 75mm T2.1 Lens (PL Mount)
- Front Lens Cap
- Rear Lens Cap
- EF Mount Tool Kit
