Description

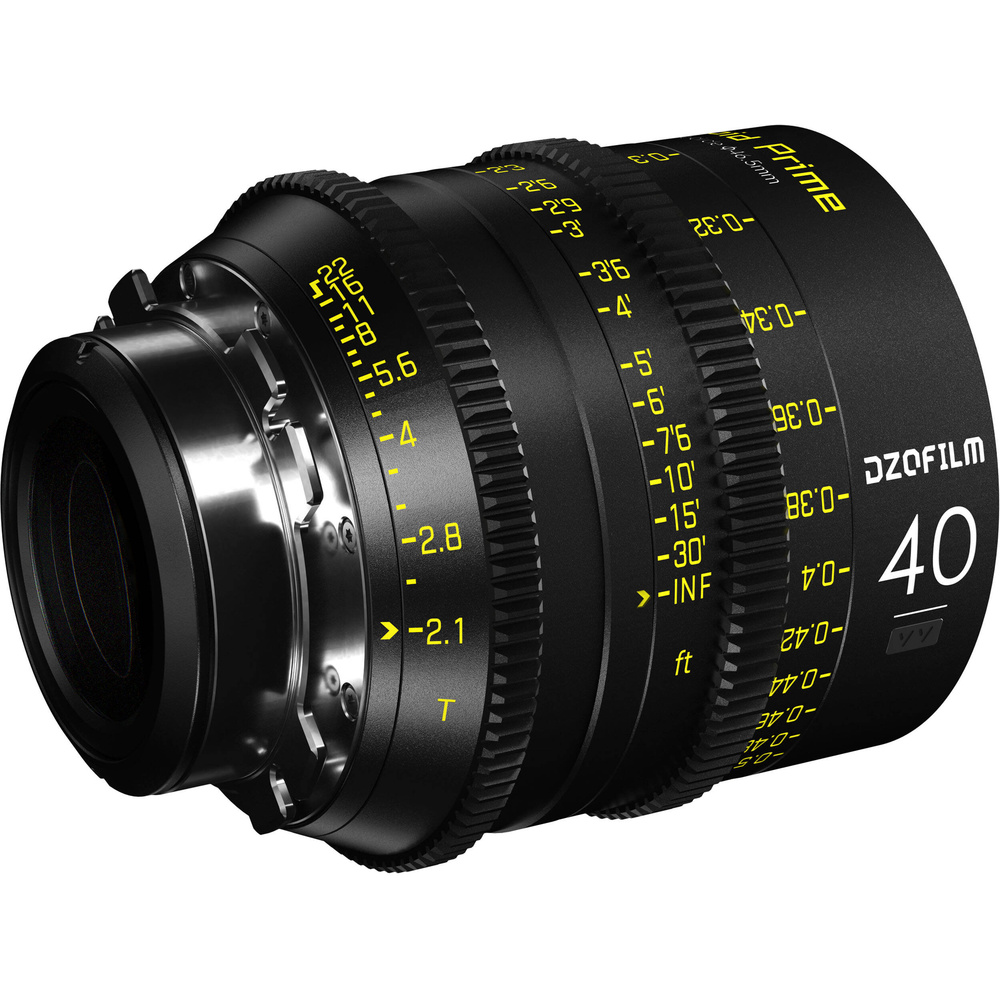

The DZOFilm VESPID 40mm T2.1 is a manual full-frame cine prime for filmmakers who want a natural perspective for narrative, documentary or gimbal work. It suits cameras that use PL or EF mounts and gives a compact option for production setups where a 40mm lens is a useful general-purpose focal length.
It opens to T2.1 and stops down to T22, with a 16-blade iris for controlled aperture changes. The lens covers full-frame sensors with a 46.5 mm image circle, uses 0.8 MOD focus and iris gearing, and offers 270° focus rotation and 64° iris rotation. It also has metric and imperial focus scales, a 77 mm filter thread, an 80 mm front diameter and a weight of 980 g.
In practice, this lens works well on cinema rigs that accept PL or EF mounts and need manual focus control. It pairs with matte boxes that fit an 80 mm front and filters that fit the 77 mm thread. The box includes the lens, EF mount, EF-mount tool kit, and front and rear lens caps.
Specifications
| Maximum Aperture | T2.1 |
|---|---|
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full-Frame |
| Image Circle | 46.5 mm |
| Focus Scales | Metric, Imperial |
| Filter Thread | 77 mm |
| Aperture/Iris Blades | 16 |
| Image Stabilisation | No |
| Gear Standard | Focus, Iris: 0.8 MOD |
| Gear Rotation | Focus: 270° Iris: 64° |
| Electronic Communication | No |
| Diameter | Front: 3.1" / 80 mm |
| Length | 3.4" / 87 mm |
| Weight | 34.6 oz / 980 g |
Product details
| Zoom or Prime Lens | Prime |
|---|---|
| Lens Mount | Canon EF |
| Lens Type | Standard |
In the box
- DZOFilm VESPID 40mm T2.1 Lens (PL & EF Mounts)
- DZOFilm EF-Mount Tool Kit for Select Lenses
- EF Mount
- Front Lens Cap
- Rear Lens Cap
