Description
DZOFilm Arles FF/VV Prime Cine 5-Lens Set (ARRI PL, Meters): a digital cine lens.

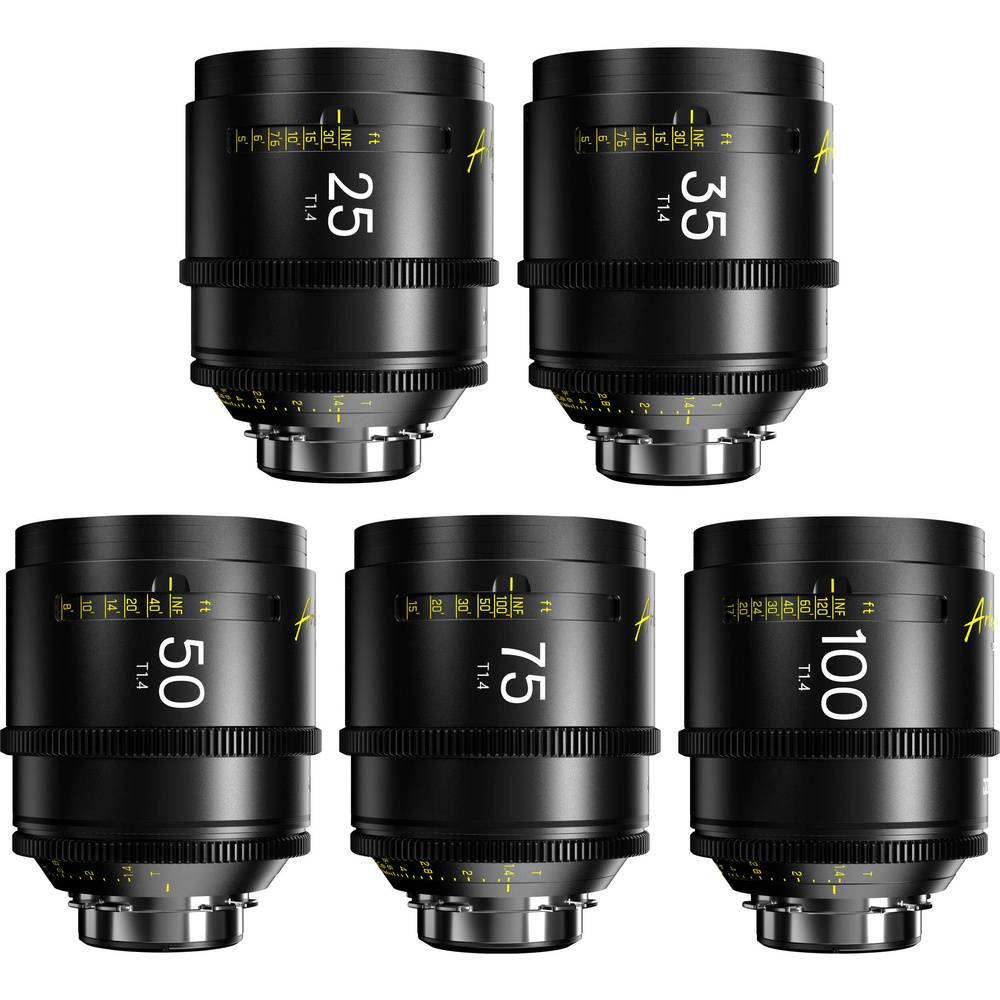

Highlights include 25, 35, 50, 75, and 100mm Lenses, all lenses cover full-frame format, T1.4 to T22 aperture range, 16-Blade iris, M86 filter thread and 95mm front diameter.
Key specifications: lens mount ARRI PL; focal length 25mm; maximum aperture T1.4; length 4.8" / 121 mm; weight 3.3 lb / 1490 g.

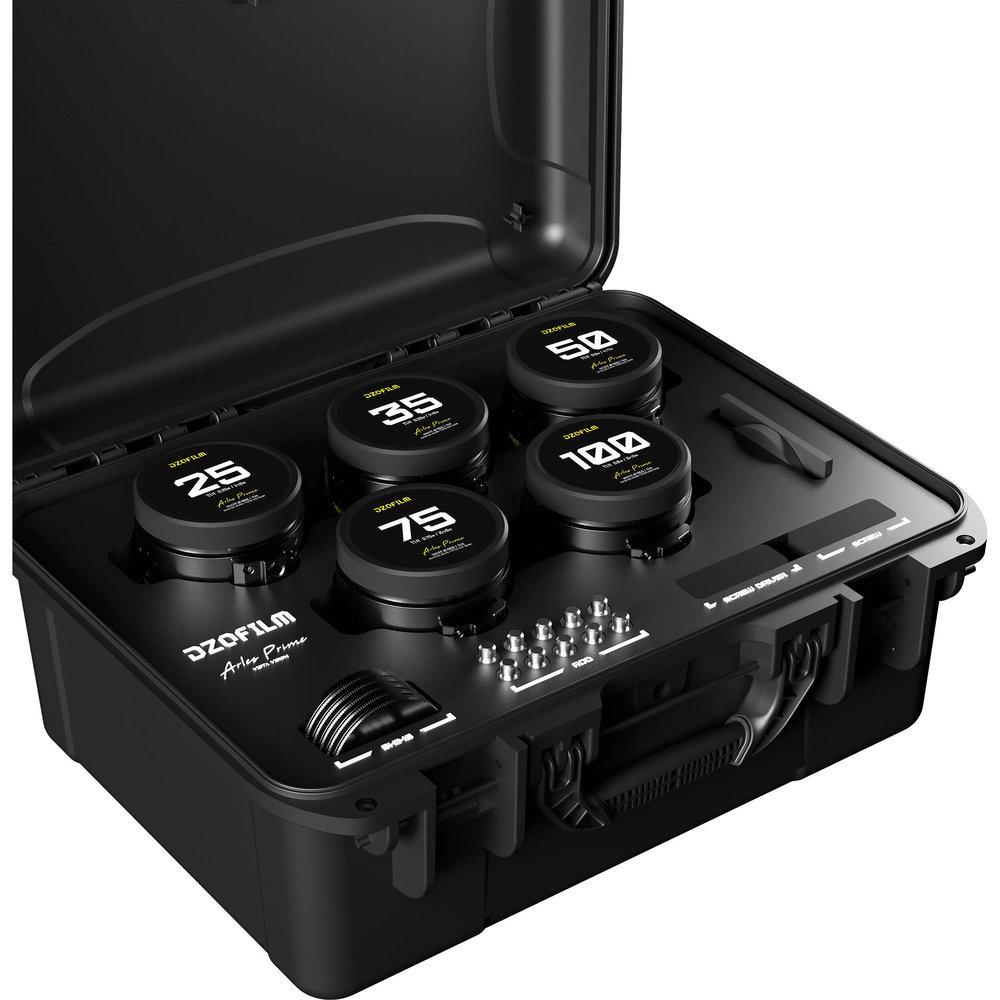

In the box: DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL), DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL), DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL), DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL), DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL) and hard case. Manufacturer model number DZO-SAP5A25MPL.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Focal Length | 25mm |
| Maximum Aperture | T1.4 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full Frame |
| Filter Thread | 86 mm |
| Image Stabilisation | No |
| Minimum Aperture | T22 |
| Image Circle | 46.5 mm |
| Angle of View | Full Frame Horizontal: 80.36° Vertical: 47.28° Diagonal: 87.44° |
| Focus Scales | Metric |
| Optical Design | 14 Elements in 12 Groups |
| Minimum Focus Distance | From Camera Sensor: 13.78" / 0.35 m |
| Diaphragm Blades | 16 |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD |
| Gear Rotation | Focus: 270° (Manual Only) Iris: 77° (Manual Only) |
| Diameter | 3.7" / 95 mm |
| Length | 4.8" / 121 mm |
| Weight | 3.3 lb / 1490 g |
| Focal Length | 35mm |
| Angle of View | Full Frame Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15° |
| Gear Rotation | Focus: 270° (Manual Only) Iris: 80° (Manual Only) |
| Coatings | Multi-Coating |
| Environmental Resistance | No |
| Weight | 3.6 lb / 1650 g |
| Focal Length | 50mm |
| Angle of View | Full Frame Horizontal: 45.17° Vertical: 24.61° Diagonal: 50.23° |
| Optical Design | 13 Elements in 9 Groups |
| Minimum Focus Distance | From Camera Sensor: 19.7" / 0.5 m |
| Weight | 3.7 lb / 1688 g |
| Focal Length | 75mm |
| Angle of View | Full Frame Horizontal: 30.45° Vertical: 16.35° Diagonal: 34.1° |
| Minimum Focus Distance | From Camera Sensor: 2.46' / 0.75 m |
| Gear Rotation | Focus: 270° (Manual Only) Iris: 82° (Manual Only) |
| Weight | 3.7 lb / 1662 g |
| Focal Length | 100mm |
| Angle of View | Full Frame Horizontal: 23.12° Vertical: 12.34° Diagonal: 25.96° |
| Optical Design | 13 Elements in 8 Groups |
| Minimum Focus Distance | From Camera Sensor: 3.0' / 0.9 m |
| Gear Rotation | Focus: 270° (Manual Only) Iris: 90° (Manual Only) |
| Weight | 4 lb / 1830 g |
Product details
| Lens Type | Wide to Telephoto |
|---|---|
| Zoom or Prime Lens | Prime |
In the box
- DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
- DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
- DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
- DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
- DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

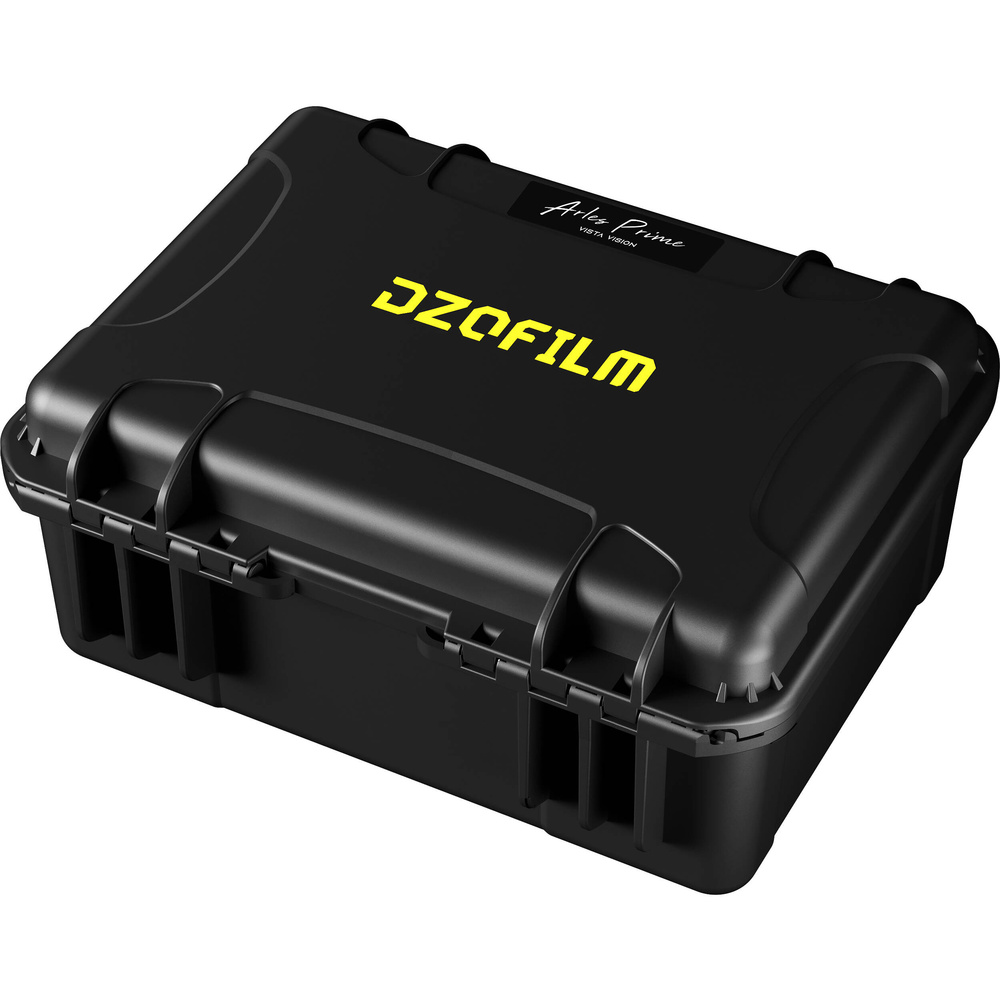

- Hard Case
