Description

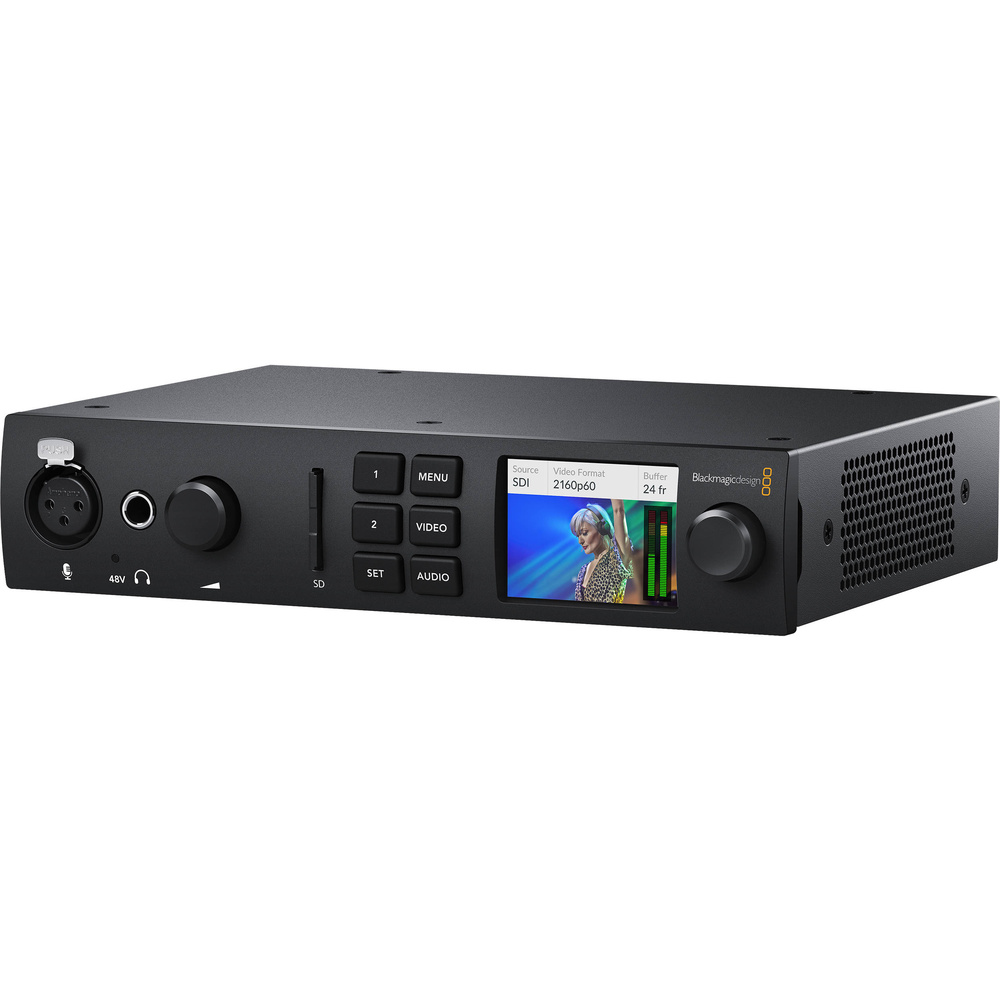

The Blackmagic UltraStudio 4K Mini sits in our Video Capture & Playback range.
Highlights include 12G‑SDI Technology for ultra HD, Thunderbolt 3 and 12G-SDI, HDMI 2.0.
Key specifications: weight 2.65 lb / 1.2 kg; dimensions 8.27 x 7 x 1.8" / 21 x 17.78 x 4.57 cm; video input 1 x BNC. SDI; video output 2 x BNC, SDI Program Out; SDI rate 12G, 6G, 3G, 1.5G, 270 Mb.
Manufacturer model number BDLKULSDMINI4K.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Video | |
|---|---|
| Video Input | 1 x BNC. SDI |
| Video Output | 2 x BNC, SDI Program Out |
| Supported Video Format | |
| SDI Rate | 12G, 6G, 3G, 1.5G, 270 Mb |
| Supported Video Resolutions | SDI Input/Output: |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8-, 10-, 12-Bit RGB 4:4:4 in 2D Modes up to 4Kp30 DCI |
| SDI Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and Closed Captioning |
| Supported Video Resolutions | HDMI Input/Output: |
| HDMI Video Sampling | 4:4:4, 4:2:2, 4:2:0 |
| HDMI Color Precision | 8-, 10-, 12-Bit |
| Sync | |
| Sync Input | 1 x BNC, Tri-Sync/Black Burst |
| Interface | |
| Thunderbolt | 1 x Thunderbolt 3 Connector |
| USB | 1 x USB Type-C, USB 3.1 Gen 1 (Up to 5 Gb/s) |
| Control | |
| Remote | 1 x D-Sub 9, RS-422 (Sony Compatible) |
| Audio | |
| Audio Input | 2 x 1/4" RCA. Analog Audio |
| Audio Output | 2 x BNC, 3G/HD/SD-SDI |
| Embedded Audio | Input/Output: |
| Audio Sampling | 24-Bit, 48 kHz |
| Media | |
| Card Reader Slot | 1 x SD Card (UHS-I & UHS-II) |
| Supported Codecs | |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR |
| General | |
| Power Requirements, Internal | 100 to 240 VAC |
| Maximum Power Consumption | 75.3 W |
| Environmental Operating Temperature: | 32 to 104°F / 5 to 40°C |
| Storage Temperature: | -4 to 113°F / -20 to 45°C |
| Humidity: | 0 to 90%, Non-Condensing |
| Dimensions | 8.27 x 7 x 1.8" / 21 x 17.78 x 4.57 cm |
| Weight | 2.65 lb / 1.2 kg |
