Description

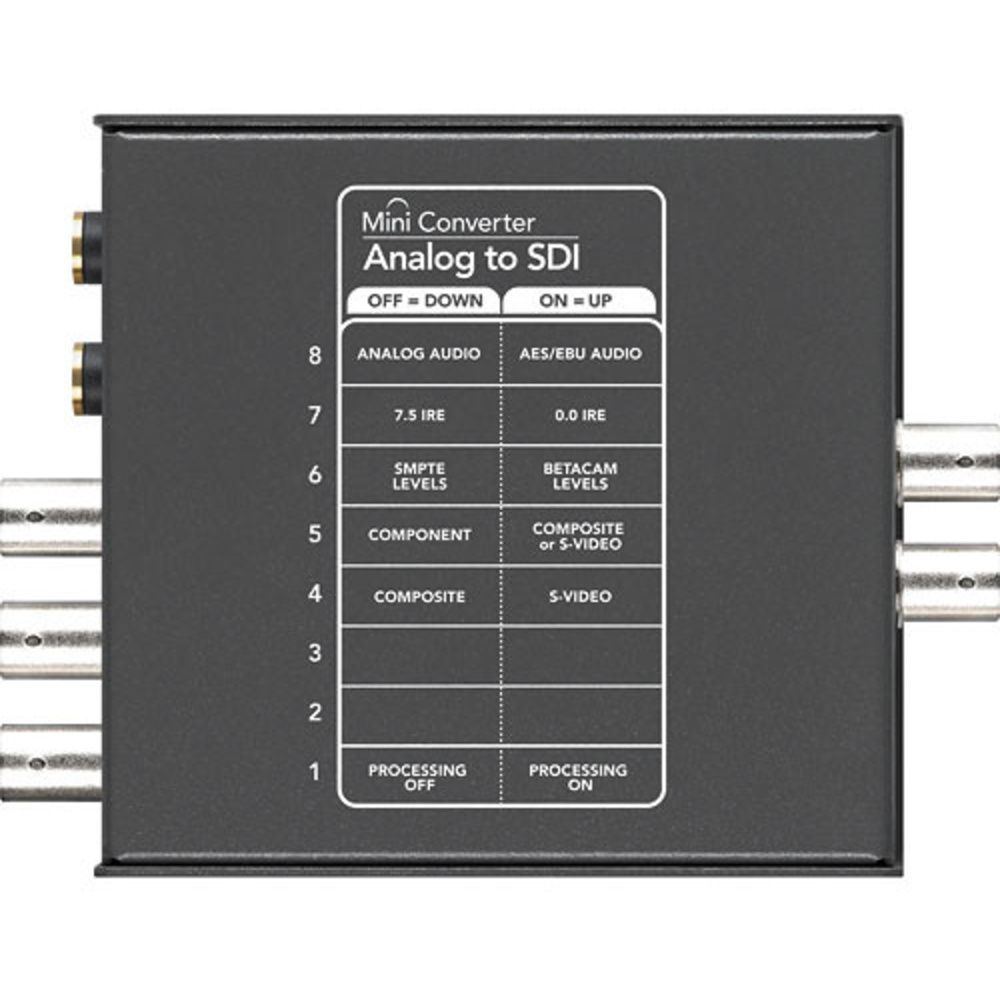

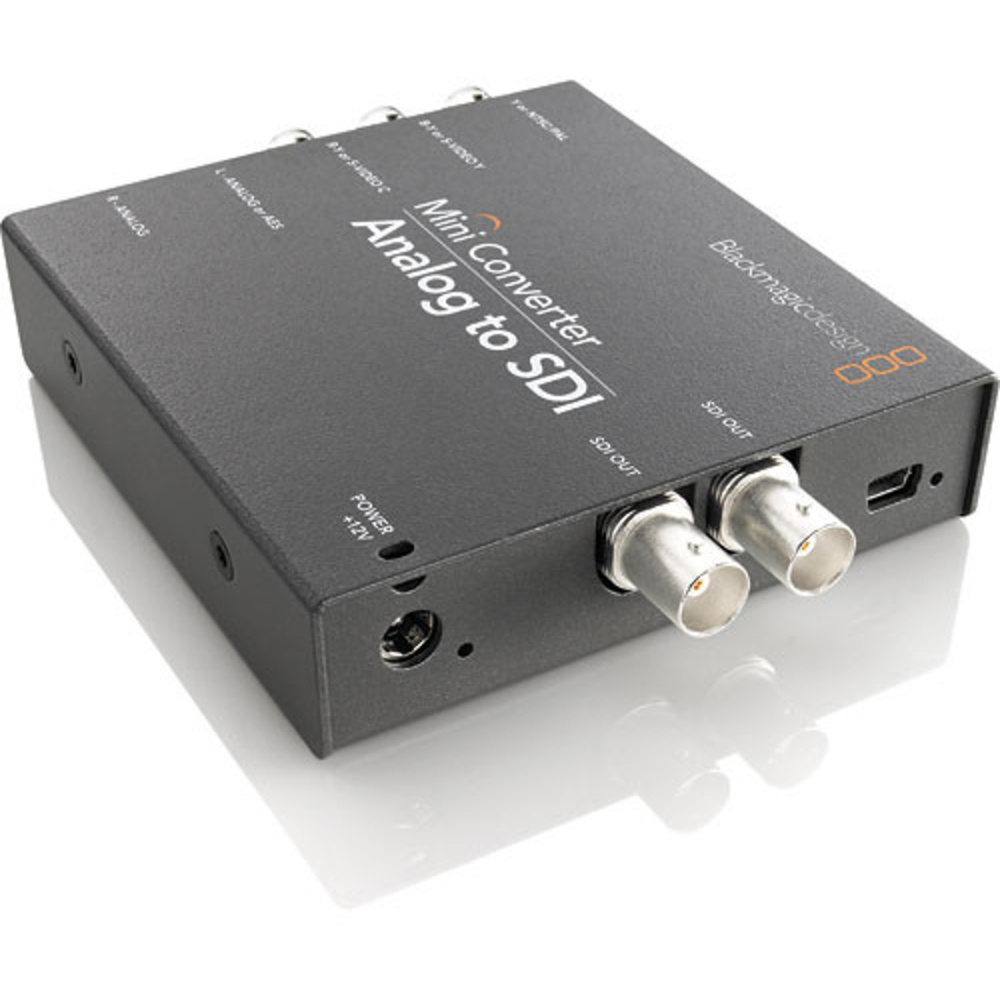

The Blackmagic Design Analog to SDI Mini Converter is a signal converter.
Highlights include analogue to SDI conversion and embedded Audio.
Key specifications: weight Not specified by manufacturer; input (1) component, NTSC, PAL, and S-video via 3x BNCs; output (2) SDI (switchable between SD, HD & 3Gbs SDI); power 12VDC.
In the box: convertor, Power supply and three-year warranty against defects in material & workmanship. Manufacturer model number CONVMA.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input | (1) component, NTSC, PAL, and S-video via 3x BNCs |
|---|---|
| Video Standards | SD Video Standards 525i59.94 NTSC, 625i50 PAL,HD Video Standards 720p50,720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60 |
| Output | (2) SDI (switchable between SD, HD & 3Gbs SDI) |
| Audio | Analogue: (2) channels of professional balanced analogue with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard (Audio inputs are shared) SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. |
| Power | 12VDC |
| Dimensions (HxWxD) | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
In the box
- Convertor
- Power Supply
- Three-Year Warranty Against Defects in Material & Workmanship
