Description
The Blackmagic Audio Monitor 12G G3 (1 RU) sits in our Audio Monitors range.
Highlights include dual-subwoofer Design, SMPTE 2110 input capabilities, Class-D amplifiers, 12G-SDI, AES/EBU & analogue inputs and SDI loop out & HDMI 2.0 output.
Key specifications: SDI video inputs 1; SDI video outputs 1 loop out.; SDI rates 270Mb, 1.5G, 3G, 6G, 12G.; analog audio inputs 2 x XLR. 2 x RCA HiFi.; analog audio outputs 1 x 6.5mm headphone socket..
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications

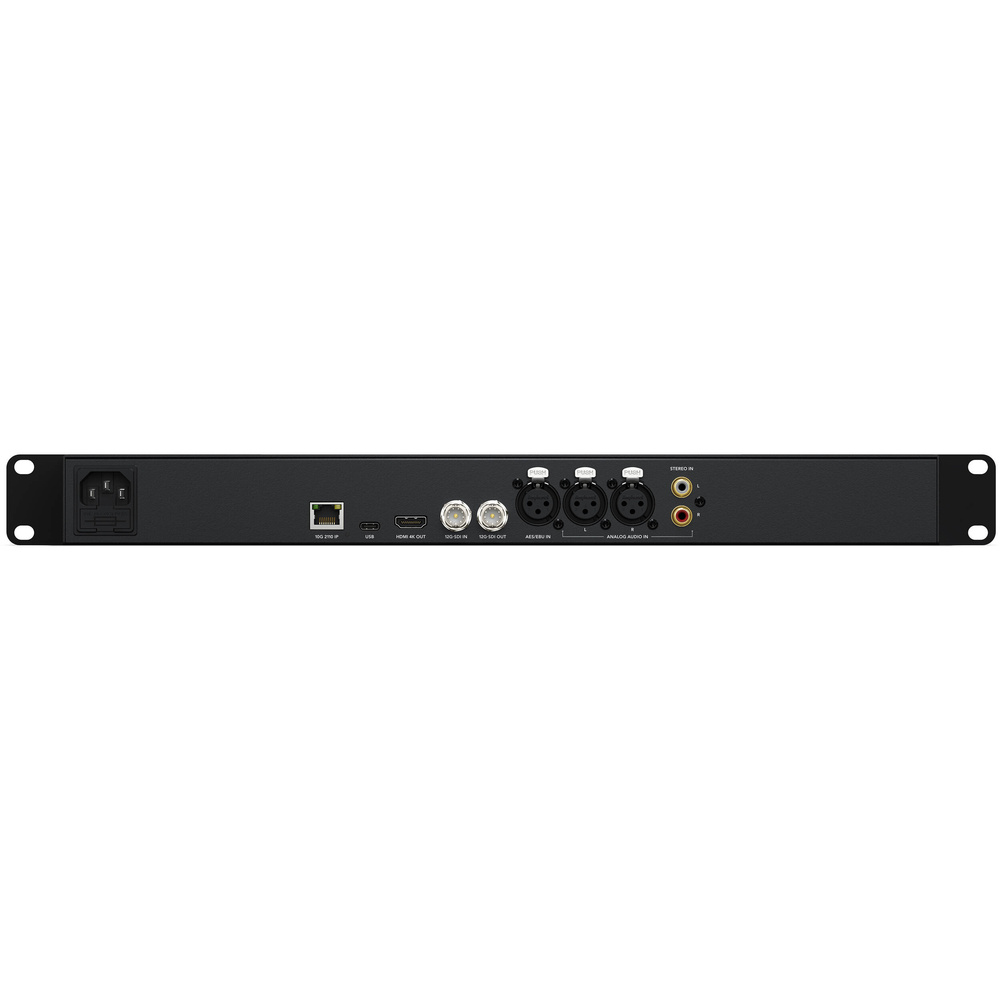

| Connections | |
|---|---|
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 loop out. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Outputs | 1 |
| Multi Rate Support | SDI and HDMI are switchable between standard definition, high definition and ultra high definition. |
| SDI Video Loop | 1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI. |
| Analog Audio Inputs | 2 x XLR. 2 x RCA HiFi. |
| Analog Audio Outputs | 1 x 6.5mm headphone socket. |
| Digital Audio Inputs | 1 x XLR. |
| Built in Speaker | Stereo with 2‑way crossover and independent stereo subwoofers. |
| AES/EBU Audio Inputs | 2 channels balanced 110Ω AES/EBU via XLR. |
| SDI Audio Inputs | 16 channels embedded in SD, HD and UltraHD 4K. |
| SDI Audio Outputs | 16 channels embedded audio loop out. |
| HDMI Audio Outputs | 8 Channels embedded in SD, HD and 4K. |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
| Computer Interface | USB‑C for configuration and firmware updates. |
| Metering | 2 x 27 RGB segment LED VU, PPM or Loudness meters. |
| Modes | Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1. |
| SDI Auto Switching | Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI. |
| Audio Sampling | 96 KHz and 24 bit. |
| Video Sampling | 4:2:2 and 4:4:4 |
| Audio Meter Ballistics | 54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale. |
| IP Video Compliance | |
| SMPTE 2110‑20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110‑21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110‑30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110‑40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol | IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 |
| NMOS IS‑04 Discovery and Registration | v1.3.2 Peer‑to-peer via mDNS/DNS‑SD |
| NMOS IS‑05 Connection Management | v1.1.2 |
| NMOS BCP‑002‑01 | Natural Grouping |
| NMOS BCP‑004‑01 | Receiver capabilities |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Control | |
| Built-in Control Panel | 2.2 inch display for viewing video input, video standard and selected audio input. |
| Software | |
| Internal Software Upgrade | Via USB connection and Ethernet |
| Operating Systems | Mac 10.13 High Sierra, Mac 10.14 Mojave or later. Windows 8.1 and 10. |
| Display | |
| Display Element | 2.2 inch diagonal color LCD. |
| Display Resolution | 320 x 240. |
| Input Display | SDI video, format, audio type and audio channels. |
| Power Requirements | |
| Power Supply | 1 x Internal 100 - 240V AC. |
| Power Usage | 55 Watts |
| Physical Installation | 1 rack unit. |
| Environmental | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
In the box
- Blackmagic Design Audio Monitor 12G G3 (1 RU)
