Description
The amaran Ray 120c RGB LED Monolight is a compact COB light for creators who need a controllable key or fill light for video, interviews and vlogging. It suits users who want colour control, practical output and the option to run the light from mains power or a battery setup.
It offers RGB, daylight and tungsten modes, with colour temperature from 2300 to 10,000K in standard mode and 1800 to 20,000K in CCT+ mode. Output is rated at 8719 lumens and 6850 lux at 3.3 ft without a modifier. Colour accuracy is listed at CRI 95 and TLCI 95, with TM-30 Rf 94, TM-30 Rg 100, SSI 80 at 5600K and SSI 87 at 3200K. Dimming runs from 0 to 100 percent, and it includes fan cooling, preprogrammed effects, Bluetooth control and app control.

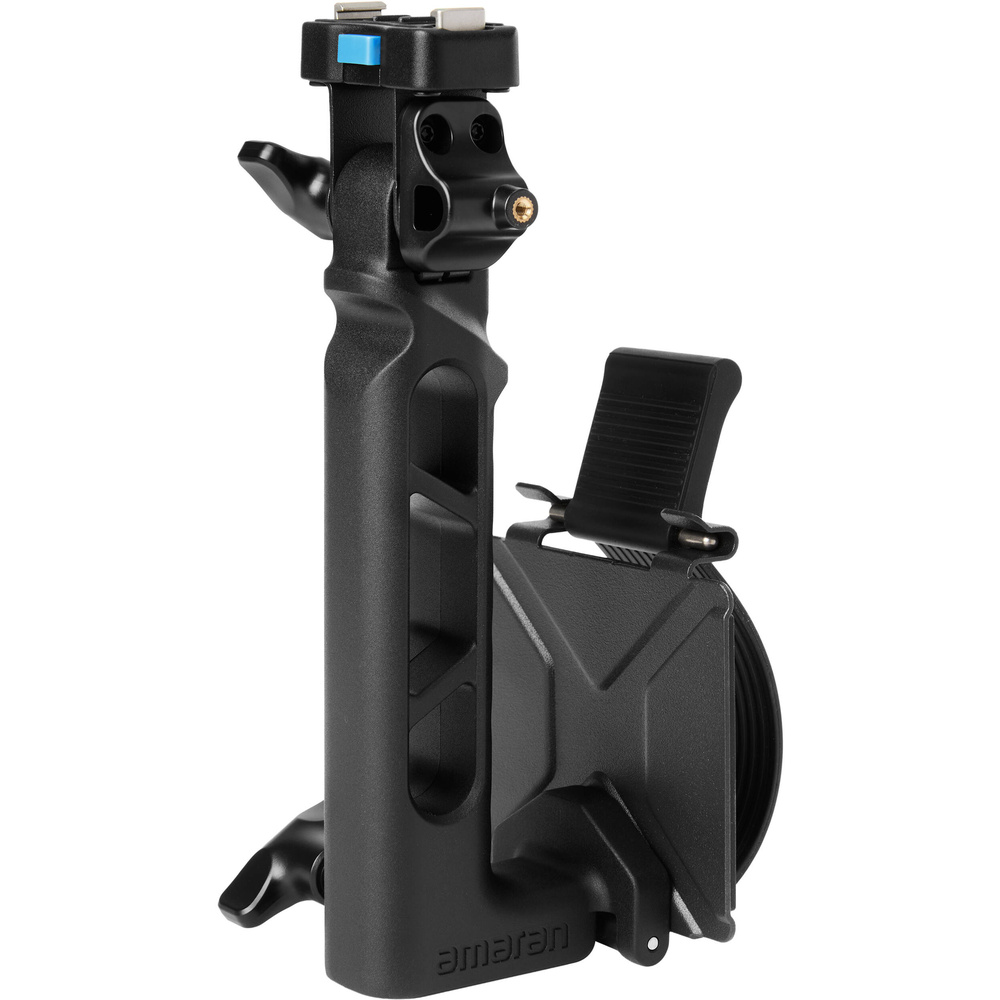

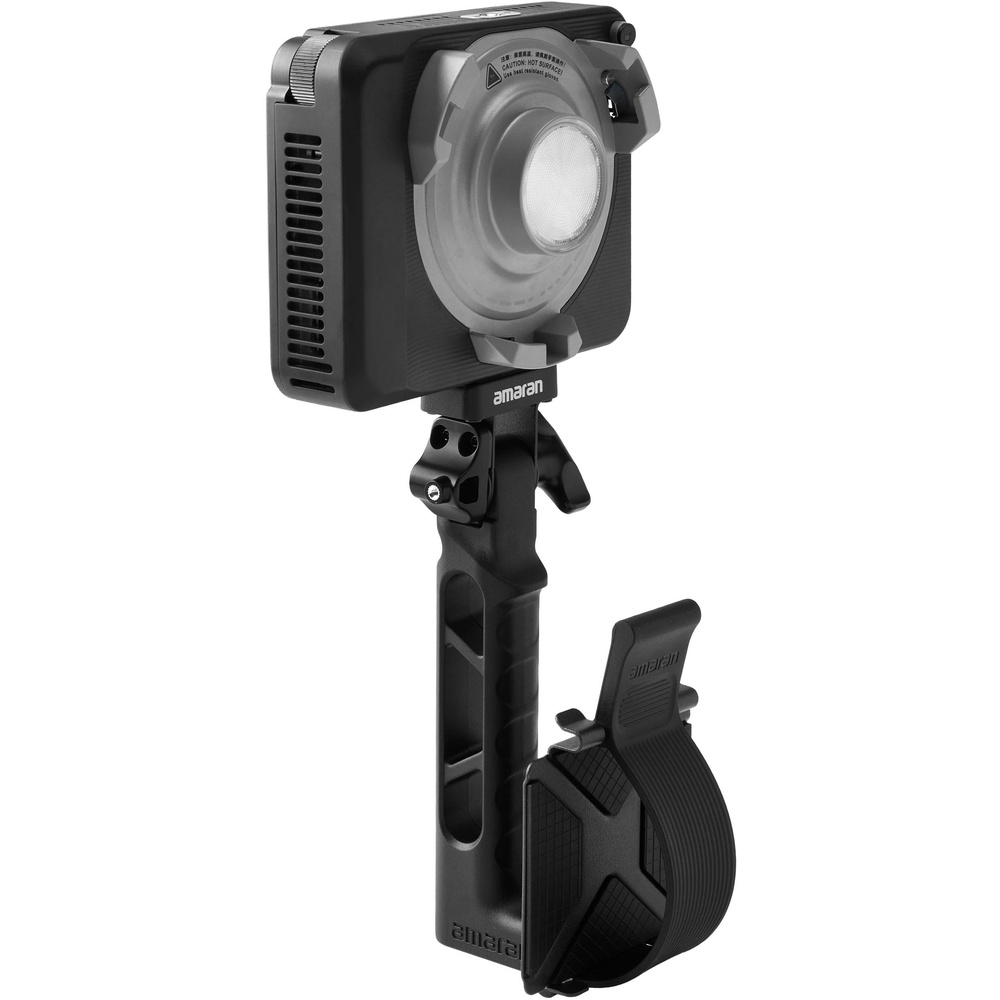

In practice, it can be mounted to Bowens S accessories and includes a softbox with removable grid, a diffuser and an umbrella mount. It works with AC power from the included adapter, and battery use is also supported. The box includes the Ray 120c, Ace Lock to Baby Pin adapter grip, Octa Dome 30, diffusion cloth, light control grid, power adapter, power cable and carry bag.
Specifications
| Light Fixture | |
|---|---|
| Item Type | 1x COB LED Monolight |
| Included Light Modifier | 1x Softbox with Removable Grid 1x Diffuser |
| Included Storage Case | Yes |
| Lumens | 8719 |
| Photometrics | 3200K: 636 fc / 6850 Lux at 3.3' / 1 m (Unmodified) 70 fc / 761 Lux at 9.8' / 3 m (Unmodified) 3200K: 231 fc / 2497 Lux at 3.3' / 1 m (with Softbox) 25 fc / 277 Lux at 9.8' / 3 m (with Softbox) 5600K: 605 fc / 6520 Lux at 3.3' / 1 m (Unmodified) 67 fc / 724 Lux at 9.8' / 3 m (Unmodified) 5600K: 220 fc / 2378 Lux at 3.3' / 1 m (with Softbox) 24 fc / 264 Lux at 9.8' / 3 m (with Softbox) |
| Colour Temperature | 1800 to 20,000K 2300 to 10,000K |
| Colour Modes | RGB, Daylight, Tungsten |
| Colour Accuracy Standard | CRI 95 TLCI 95 TM-30 Rf 94 TM-30 Rg 100 SSI 80 at 5600K SSI 87 at 3200K |
| Dimming | App-Controlled / Built-In Dimmer • 0 to 100% |
| Cooling System | Fan |
| Beam Angle | 70° |
| Built-In Flash | No |
| Preprogrammed Effects | Yes |
| Umbrella Mount | Yes |
| Front Accessory Mount | Bowens S |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth |
| Mobile App Compatible | Yes: Android & iOS App Name: amaran Functionality: Remote Control |
| Wireless Range | 262.5' / 80 m (Bluetooth) |
| Power & I/O | |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |
| Inputs/Outputs | 1x Barrel / Coax Power Input (12 to 24 VDC) 1x USB-C Battery/Power/Firmware Input/Output |
| Battery | 1x Proprietary Rechargeable (Not Included) |
| Input Power | 12 to 24 VDC 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| Included Adapter / Cable | 1x USA Type-A/B Plug to Barrel / Coax AC to DC Adapter (14.8' / 4.5 m) • 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 140 W (Maximum) |
| Mounting | |
| Fixture Mounting | 1x 1/4"-20 Female Thread Proprietary |
| Included Adapter | 1x Swivel Mount: 5/8" Receiver to Proprietary |
| General | |
| Display | LCD |
| Environmental Resistance | Dust/Water-Resistant (IP54) |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Storage Conditions | -4 to 176°F / -20 to 80°C |
| Dimensions | 5.7 x 4.5 x 2" / 14.5 x 11.4 x 5.1 cm (Fixture) |
| Weight | 1.32 lb / 0.6 kg (Fixture) |
Product details
| Colour Temperature | 2300 - 10,000K |
|---|
In the box
- amaran Ray 120c RGB LED Monolight
- Ace Lock to Baby Pin Adapter Grip
- Octa Dome 30
- Octa Dome 30 Diffusion Cloth
- Octa Dome 30 Light Control Grid
- AC to DC 150W Power Adapter (1.6')
- AC Power Cable (13')
- Carry Bag
