Description

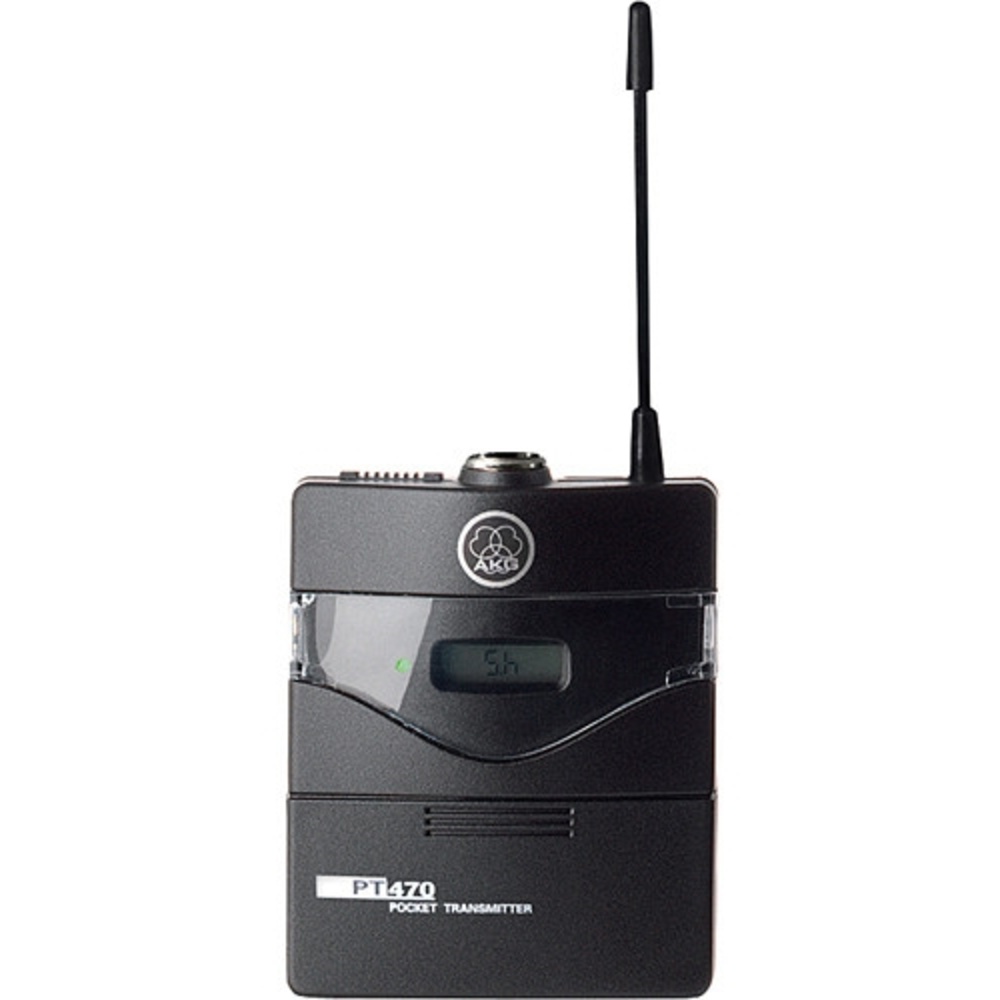

The AKG PT 470 Wireless Bodypack Transmitter (Band 1) sits in our Transmitters range.
Highlights include for WMS470 system, Mini-XLR connector, 1200 selectable frequencies and up to 16 pre-programmed frequencies.
Key specifications: audio frequency bandwidth 35 - 20000 Hz; signal to noise 120 dB-A; THD at 1 kHz 0.7 Prozent; peak deviation 48 kHz; nominal deviation 20 kHz.
Manufacturer model number PT470-BD1.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Audio frequency bandwidth | 35 - 20000 Hz |
|---|---|
| Signal to Noise | 120 dB-A |
| THD at 1 kHz | 0.7 Prozent |
| Peak deviation | 48 kHz |
| Nominal deviation | 20 kHz |
| Radio Output Power (min/max) | 10 to 50 mW |
| Transmitter Synchronization | Infrared |
| Mute Switch Type | Jack Mono (1/4") |
| Mute Switch Gender | Female |
| Switching bandwidth | 30 MHz |
| Recommended simultaneous channels | 24 |
| Number of selectable frequencies | 1220 (selectable in 25kHz steps) |
| Frequency Selection | Selectable frequency in 25kHz steps |
| Radio range (Line of sight) | 100m (depending on antenna system) |
| Switchable RF power | no |
| Pilot Tone | yes |
In the box
- AKG PT 470 Wireless Bodypack Transmitter
