Description

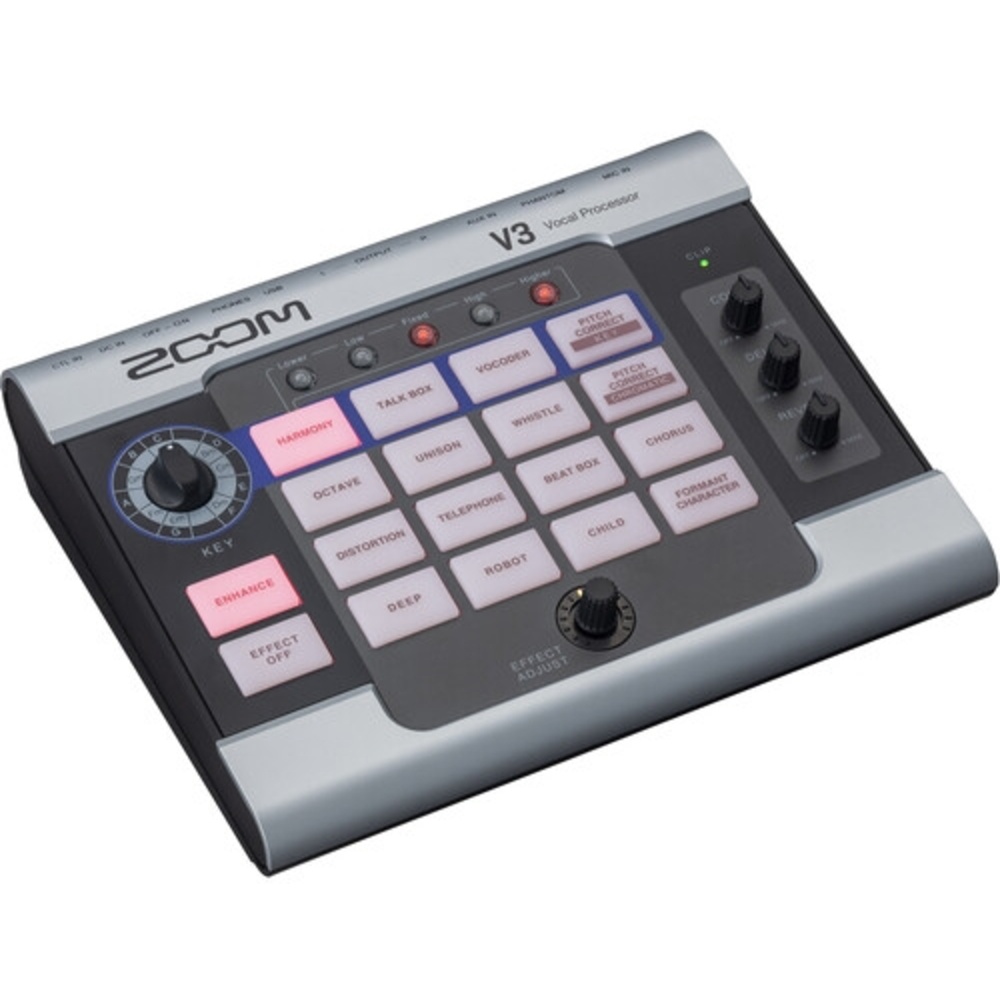

The Zoom V3 Vocal Processor sits in our Reverb & Effects Processors range.
Highlights include 16 voice effects, compression, reverb, delay, and enhance, adds up to 2 voices for 3-Part harmonies, XLR mic input with 48V phantom Power and 3.5mm stereo aux input.
Key specifications: mounting 1 x 1/4"-20 Female Thread; frequency response 20 Hz to 20 kHz (+1 dB / −3 dB, 10-Kilohm Load); battery life Up to 3.5 Hours; weight 1.3 lb / 0.6 kg (Excluding Batteries); dimensions (D x W x H) 5.9 x 7.5 x 2" / 15 x 19 x 5 cm.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Effects | 16 (up to Five Concurrent Effects) |
|---|---|
| Sample Rate | 44.1 kHz |
| Bit Depth | Signal Processing: 32-Bit AD/DA Conversion: 24-Bit, 128x Oversampling |
| Inputs | 1 x XLR 3-Pin Female Balanced Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Stereo Aux Input |
| Outputs | 2 x 1/4" TS Female Unbalanced Line Outputs 1 x 1/8" / 3.5 mm TRS Female Unbalanced Stereo Headphone Output |
| Control Input | 1 x 1/4" TS (Compatible with Zoom FS01 and FP02M ) |
| USB Port | 1 x Micro-USB 2.0 |
| Audio Interface | 2-Input / 2-Output USB 2.0 Full Speed at 44.1 kHz / 16-, 24-, or 32-Bit |
| Frequency Response | 20 Hz to 20 kHz (+1 dB / −3 dB, 10-Kilohm Load) |
| Input Gain | Mic Input: +3 to +40 dB |
| Input Level | Mic Input: +4 dBu (Maximum) Aux Input: -10 dBu (Rated) |
| Output Level | Line Outputs: +6 dBu (Maximum) |
| Headphone Output Power | 20 mW + 20 mW into 32-Ohm Load (Maximum) |
| Input Impedance | Mic Input: 3 Kilohms or Greater (1 kHz) Aux Input: 22 Kilohms |
| Output Impedance | Line Outputs: 100 Ohms |
| Equivalent Input Noise | Mic Input: -125 dBu or Less (Phantom Power Off, A-Weighted, 150-Ohm Input, +40 dB Input Gain) |
| Noise Floor | -75 dBu |
| Phantom Power | +48 VDC |
| Power Requirements | 4 x AA Batteries (not Included), 5 VDC via USB Bus Power, or 9 VDC via AC Power Adapter (Available Separately) |
| Power Adapter | 9 VDC, 500 mA (Centre-Positive) via Zoom AD-16 AC Adapter (Available Separately) |
| Battery Life | Up to 3.5 Hours |
| Security | Kensington Lock Slot |
| Mounting | 1 x 1/4"-20 Female Thread |
| Dimensions (D x W x H) | 5.9 x 7.5 x 2" / 15 x 19 x 5 cm |
| Weight | 1.3 lb / 0.6 kg (Excluding Batteries) |
In the box
- Zoom V3 Vocal Processor
