Description

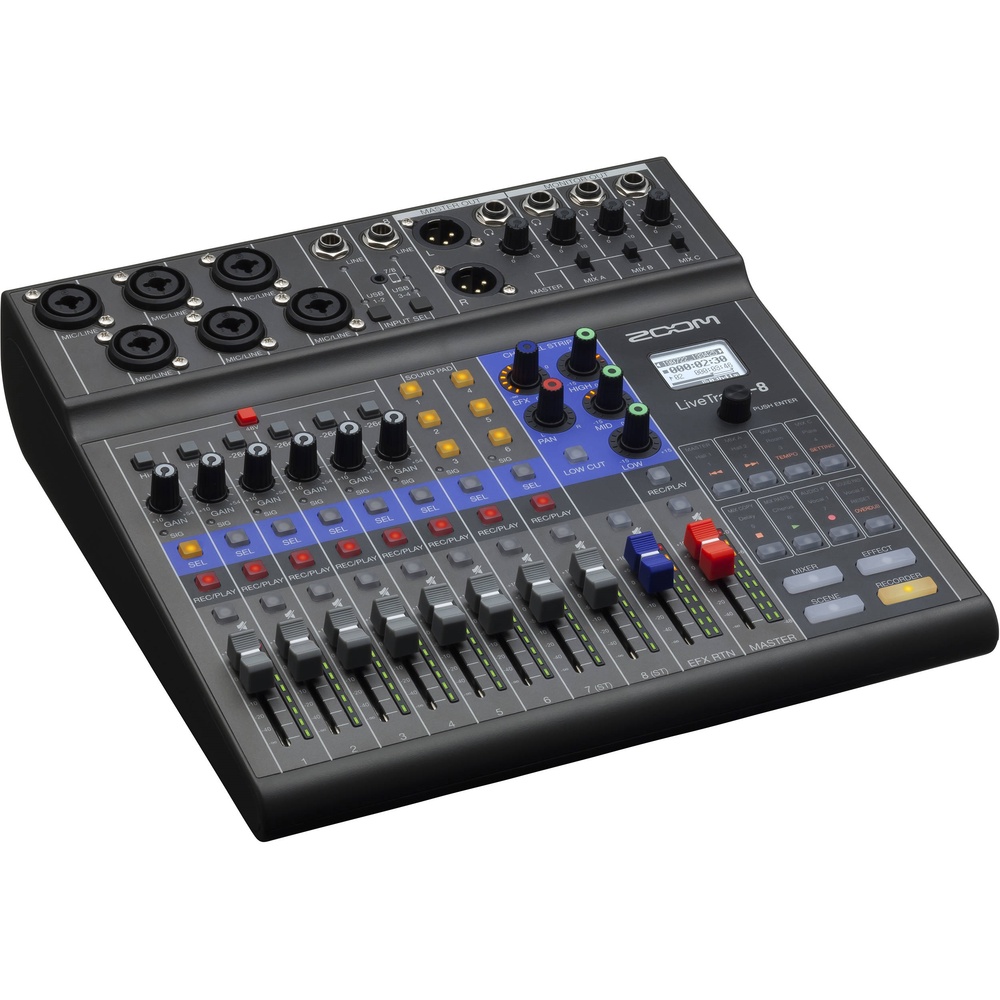

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer: a multitrack recorder.
Highlights include portable Podcasting/Music studio, 6 XLR-1/4" Mic/Line inputs with +48V, 10 faders to control Audio levels, multitrack recording via SD card and USB and mix-minus prevents call echo & feedback.
Key specifications: weight Not Specified by Manufacturer; input gain Mic/Line Inputs: +10 to +54 dB; phantom power +48 VDC; output impedance XLR: 100 Ohms 1/4" TRS: 10 Ohms; buses Master: 1 Monitor: 3 Send EFX: 1.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Zoom LiveTrak L-8 portable 8-Channel Digital mixer, 3.5mm TRRS Cable, USB Cable and Zoom AD-17 AC adapter for select Zoom Devices.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs | 2 x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs 4 x XLR-1/4" TRS Combo Balanced Mic/Line Inputs 2 x 1/4" TS Unbalanced Line Inputs 1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O |
|---|---|
| Outputs | 2 x 3-Pin XLR Male Balanced Line Outputs 4 x 1/4" TRS Female Unbalanced Headphone Outputs |
| Input Gain | Mic/Line Inputs: +10 to +54 dB |
| Input Impedance | XLR: 3 Kilohms 1/4" TRS/TS Line: 3 Kilohms 1/4" TS Hi-Z: 510 Kilohms 3.5 mm TRRS: 3 Kilohms |
| Maximum Input Level | Mic/Line Inputs (Pad Off): -2 dBu at 0 dBFS Mic/Line Inputs (Pad On): +24 dBu at 0 dBFS 1/4" TS Line Inputs: +4 dBu 3.5 mm TRRS: +4 dBu |
| Phantom Power | +48 VDC |
| Output Impedance | XLR: 100 Ohms 1/4" TRS: 10 Ohms |
| Maximum Output Level | XLR: +14.5 dBu 1/4" TRS: 10 mW per Channel (60-Ohm Load) |
| Buses | Master: 1 Monitor: 3 Send EFX: 1 |
| Channel Control | Low-Cut Filter: 75 Hz at 12 dB/Octave High AEQ (Shelving): ±15 dB at 10 kHz Mid AEQ (Peaking): ±15 dB at 2.5 kHz Low AEQ (Shelving): ±15 dB at 100 Hz |
| Level Metres | 12 x 9-Segment LEDs |
| Effects | 8 Types |
| Recorder | Maximum Simultaneous Recording Tracks: 12 Maximum Simultaneous Playback Tracks: 10 Format: WAV Bit Depth: 16-Bit or 24-Bit Sample Rate: 44.1, 48, or 96 kHz |
| Supported Media Card Types | SDHC: 4 to 32 GB (Class 10 or Higher) SDXC: 64 to 512 GB (Class 10 or Higher) |
| Audio Interface | Recording: 12 Channels Playback: 4 Channels Bit Depth: 24-Bit Sample Rate: 44.1 or 48 kHz Interface: USB 2.0 |
| Card Reader | Class: Mass Storage USB 2.0 High Speed |
| Frequency Response | 20 Hz to 20 kHz -1 dB at 44.1 kHz 20 Hz to 40 kHz -3 dB at 96 kHz |
| Equivalent Input Noise | 121 dB EIN (IHF-A) at +54 dB, 150-Ohm Input |
| Display | 96 x 64 Backlit LCD |
| Power Requirements | Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium) AC: Zoom AD-17 AC Adapter DC: 5 V, 1 A USB Bus Power |
| Battery Life | Alkaline: Up to 2 Hours (Battery Save On, Phantom Power Off) NiMH: Up to 3 Hours (Battery Save On, Phantom Power Off) |
| Power Consumption | 5 W |
| Dimensions (W x D x H) | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
In the box
- Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer
- 3.5mm TRRS Cable
- USB Cable
- Zoom AD-17 AC Adapter for Select Zoom Devices
