Description

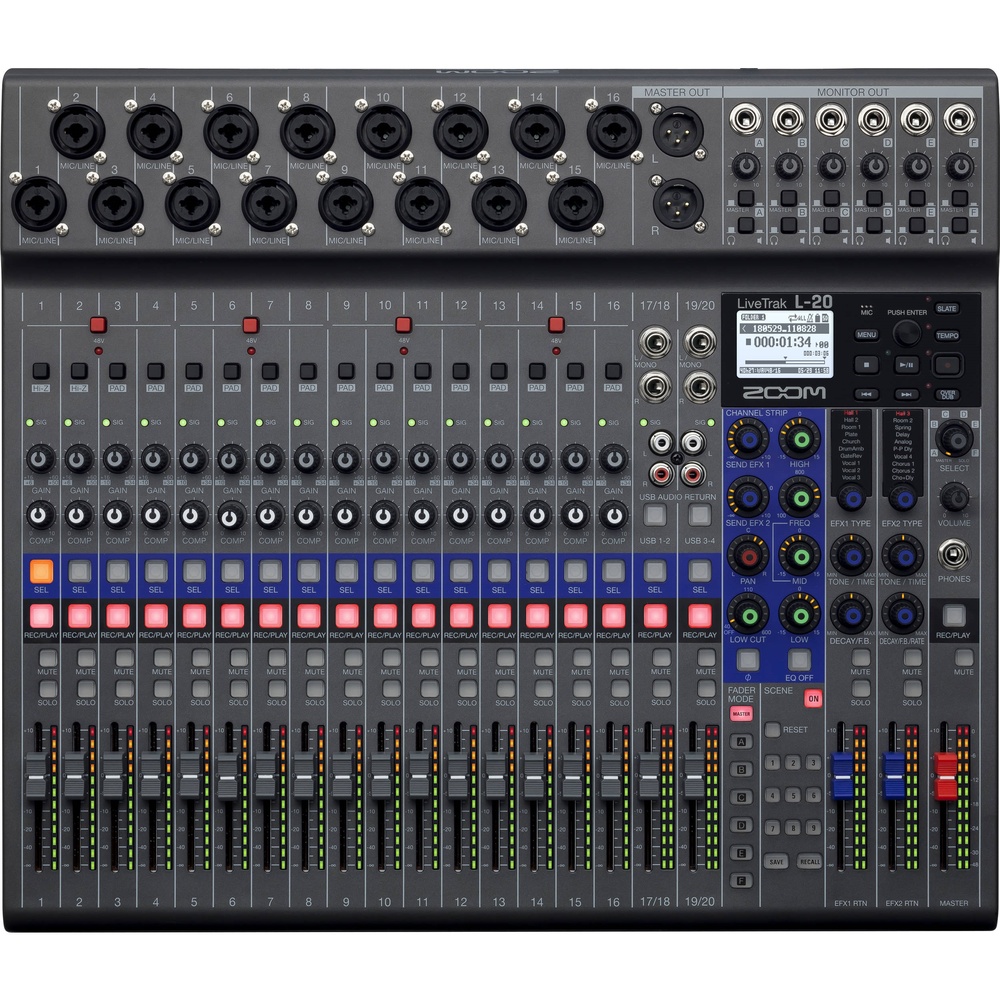

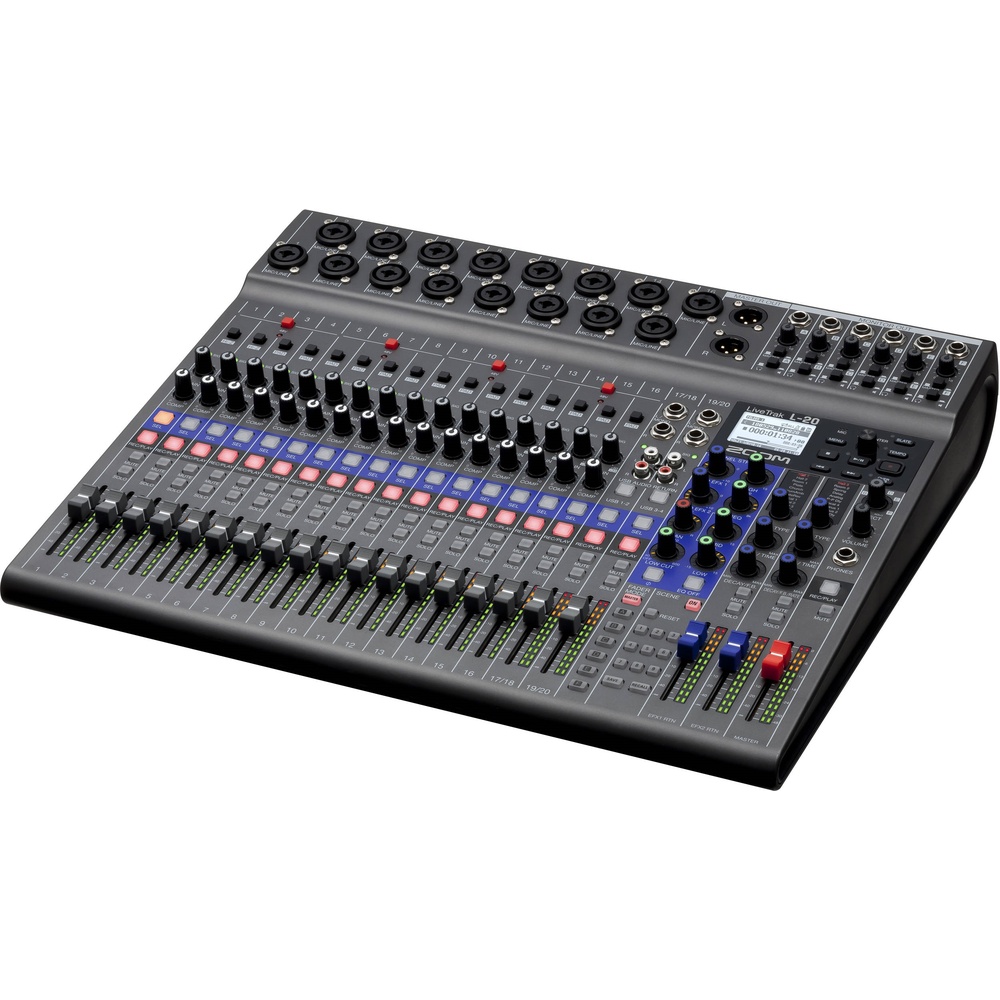

Zoom LiveTrak L-20 Desk Digital Mixer: a multitrack recorder.
Highlights include built-in 22-Track SD recorder, USB Audio interface (iOS compatible), 16 mono inputs + 2 stereo inputs, channels 1-2 offer Hi-Z inputs and phantom Power and -26 dB pad.
Key specifications: weight 8.2 lb / 3.7 kg; dimensions (W x D x H) 17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm; input impedance XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z on); phantom power 48 V; output impedances 100 Ohms.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Zoom LiveTrak L-20 - 20-Input Digital mixer & multitrack recorder, Power adapter and USB 2.0 Cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Number of Inputs | Mono (Mic/Line): 16 x Combo XLR-1/4" / 6.35 mm Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs) |
|---|---|
| Number of Outputs | Master Out: 2 x XLR Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS Headphone: 1 x 1/4" / 6.35 mm |
| Input Gain | Pad Off: +16 to +60 dB Pad On: -10 to +34 dB Hi-Z ON: +6 to +50 dB |
| Input Impedance | XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z on) |
| Maximum Input Levels | Mono (Mic/Line) Pad Off: 0 dBu (at 0 dBFS) Pad On: +26 dBu (at 0 dBFS) Stereo (Line): +14 dBu |
| Phantom Power | 48 V |
| Maximum Output Levels | Master Out: +14.5 dBu Monitor A-F (TRS): +14.5 dBu Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms |
| Output Impedances | 100 Ohms |
| Buses | Master: 1 Monitor: 6 Send EFX: 2 |
| Channel Control | Channel Strip Comp: Yes, channels 1 to 16 Low Cut: 40 to 600 Hz, 12 dB/oct AEQ High: 10 kHz, ±15 dB, shelving Mid: 100 Hz to 8 kHz, ±15 dB, peaking Low: 100 Hz, ±15 dB, shelving |
| Level Metres | 12-segment |
| Effects | 20 types |
| Recorder | Maximum Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz Maximum Simultaneous Playback Tracks: 20 Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo Recording Media: 16 MB to 2 GB SD cards 4 to 32 GB SDHC cards 64 to 512 GB SDXC cards |
| Audio Interface | 44.1 / 48 kHz Recording: 22 channels Playback: 4 channels Bit Depth: 24-bit Interface: USB 2.0 |
| Card Reader | Mass Storage: SD, SDHC, SDXC |
| USB Host | Class-compliant USB 2.0 high-speed |
| Sample Rate (Audio) | 44.1, 48, 96 kHz |
| Frequency Characteristics | 44.1 kHz: 20 Hz - 20 kHz (-1.0 dB) 96 kHz: 20 Hz - 40 kHz (-3.0 dB) |
| Equivalent Input Noise | Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input |
| Display | LCD with backlight (128×64 resolution) |
| Power Supply | AD-19 AC Adapter: 12 VDC / 2 A |
| Power Consumption | 24 W maximum |
| Dimensions (W x D x H) | 17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm |
| Weight | 8.2 lb / 3.7 kg |
In the box
- Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder
- Power Adapter
- USB 2.0 Cable
