Description

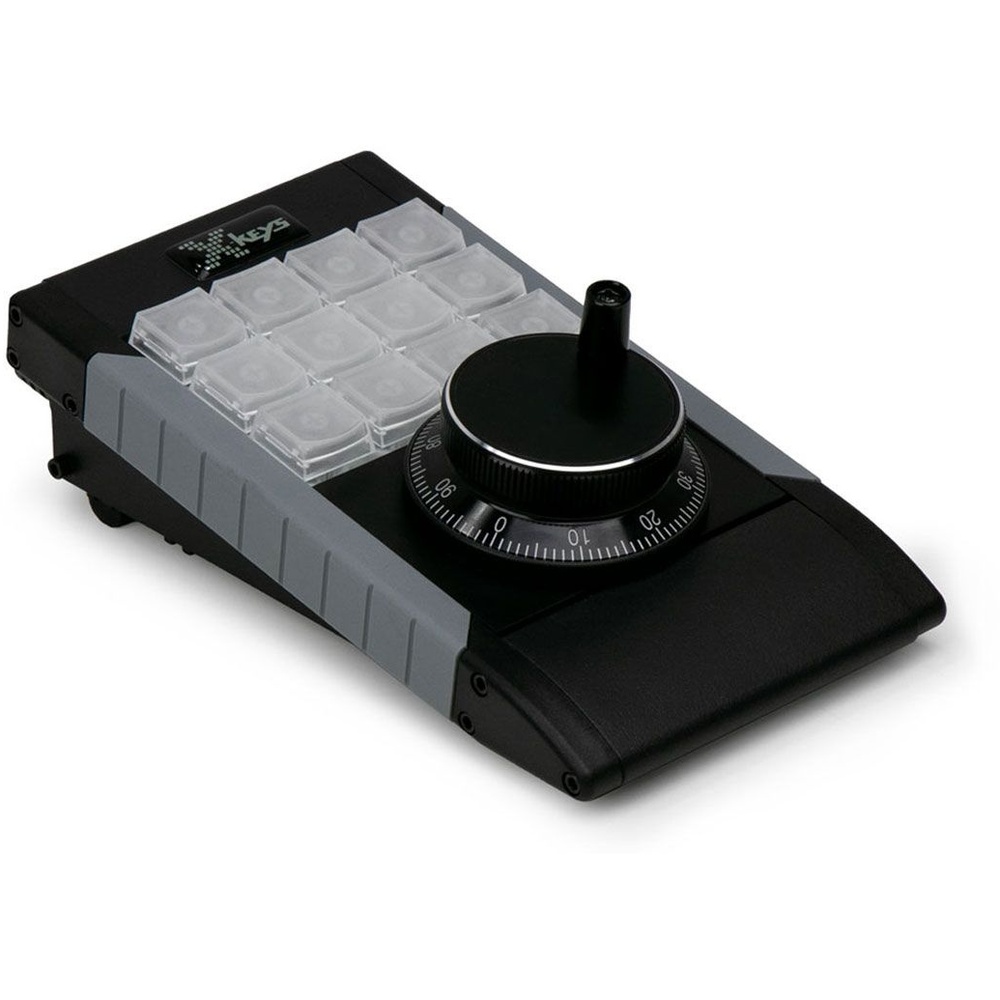

X-Keys XBE-12 Handwheel: an edit controller.
Highlights include 12 programmable keys, RGB backlighting, low-profile aluminium case and customisable layout.
Key specifications: connector Wired USB standard “A” plug; weight 24 oz. (680 g); dimensions 7” x 3” x 2” (178mm x 76mm x 50mm); free programming software Windows: MacroWorks 3.1; emulation modes HID keyboard, HID mouse, HID game controller.
Manufacturer model number XBA-5011-HWM-R.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Operating System | Use: Any OS via USB HID Programming: Windows XP through 11, Mac OS 10.14 - Mac OS 13 |
|---|---|
| Free Programming Software | Windows: MacroWorks 3.1 |
| Free Software Development Kits | Windows (C++, C#, VB.NET) Linux (C++) Android (Java) Raw HID (any language/OS) |
| Emulation Modes | HID keyboard, HID mouse, HID game controller |
| Handwheel | 100 detents, independent clockwise and counterclockwise commands |
| Switch Types | Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations |
| Number of Keys | 12 single keys |
| Actuation Force | Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold |
| Keycaps | 0.625” (16mm) sq.; relegendable with Cherry MX compatible stem |
| Key Spacing | 0.75" O.C. |
| Optional Keys | 2X1, 1X2, 2X2, and 1x1 blocker |
| Backlighting | 2 RGB LEDs per switch, 24 total, individually addressable |
| Connector | Wired USB standard “A” plug |
| Cord Length | 118” (3m) |
| Dimensions | 7” x 3” x 2” (178mm x 76mm x 50mm) |
| Weight | 24 oz. (680 g) |
| USB Type | USB 1.1 compatible through 3.2 Type-c with adapter |
| Power Source | USB port, nominal voltage = 5 VDC |
| Current Draw | No backlight: 18 mA, Blue backlight full: 38 mA, Red backlight full: 57 mA, All backlights: 75 mA |
| Temperature Range | -20 to 60 C |
| Memory Capacity | Approximately 21,000 keystrokes or commands in onboard memory |
| Memory Type | EEPROM, non-volatile memory (X-keys retains memory for over 200 years) |
| Environmental Rating | IP 40, typical indoor office environment |
| Certifications | FCC class B, CE, Declaration of Conformity, WEEE compliant |
In the box
- X-Keys XBE-12 Handwheel
