Description

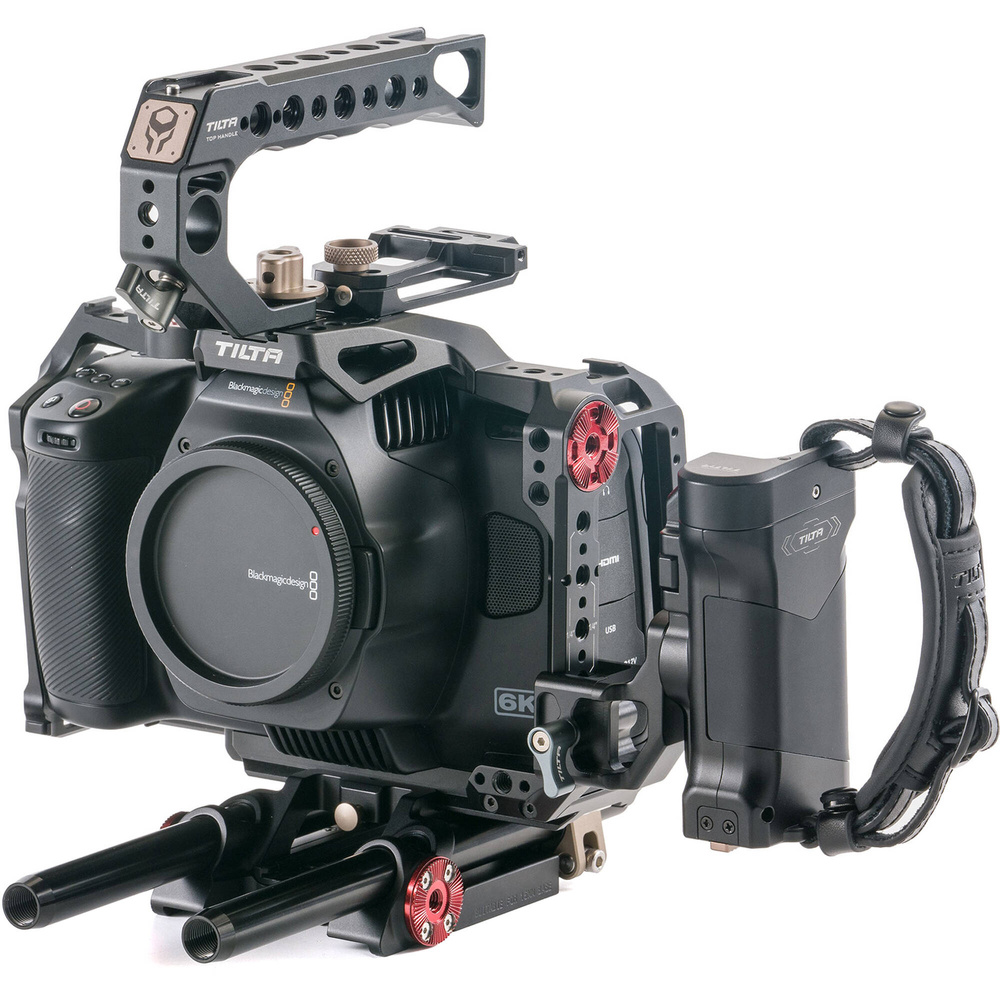

The Tilta Advanced Camera Cage Kit for BMPCC 6K Pro/G2/BMPCC 6K (Black) sits in our Digital Cine Supports & Rigs range. Designed for BMPCC 6K Pro/G2/BMPCC 6K. Compatible with Blackmagic Design Pocket Cinema Camera 6K G2.
Highlights include formfitting, modular full cage, 15mm LWS baseplate, 2 x 12" 15mm rods, Run/Stop & quick release top handles, SSD holder for Samsung T5 and accessory mount for 6K Pro battery grip.
Key specifications: camera mounting 1/4"-20 Male Screw; mounting 1 x NATO Rail Clamp; connector 1 1 x Male HDMI Type A; cable connector HDMI Female; length 11.81" / 300 mm.
A cage protects the body and adds threaded mounting points and cold shoes for a monitor, microphone, handle and light. In the box: Tilta full Camera cage for BMPCC 6K Pro/G2/BMPCC 6K (Black), Tilta quick release top handle (Black), Tilta Samsung T5 SSD holder for BMPCC 4K cages (Black), Tilta left-side advanced Power handle with Run/Stop (F570, black), Tilta tiltaing advanced left-side handle adapter type VI (Black) and Tilta tiltaing 15mm LWS baseplate type VI (Tactical gray) and 5 more items. Manufacturer model number TA-T11-A.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Mounting | |
|---|---|
| Battery Plate Type | No |
| Accessory Mounting | Multiple x 1/4"-20 Female Thread, Multiple x 3/8"-16 Female Thread |
| Camera Mounting | 1/4"-20 Male Screw |
| Tripod Mounting | Built-In Arca-Type Plate 1/4"-20 Female Thread 3/8"-16 Female Thread |
| Shoe Mounting | Top: 3 x Cold Shoe |
| Rosettes | 2 x ARRI Rosette w/ M6 Female Thread |
| Rail Mounting | 1 x NATO Rail |
| General | |
| Support Type | Cage |
| Grip Type | No |
| Camera Compatibility | Blackmagic Pocket Cinema Camera 6K, Blackmagic Pocket Cinema Camera 6K G2, Blackmagic Pocket Cinema Camera 6K Pro |
| Filter Compatibility | No |
| Materials | Aluminium, Steel |
| Dimensions | 7.7 to 5.7 x 4.3" / 195.7 to 145 x 110 mm |
| Weight | 6.6 oz / 187.3 g |
| Key Specs | |
| Item Type | Topside Handle |
| Attachment Method | Attaches via Rod Ports |
| Accessory Mounting | 9 x 1/4"-20 Thread 1 x Anti-Twist 1/4"-20 Thread 9 x 3/8"-16 Thread 2 x Anti-Twist 3/8"-16 Thread |
| Shoe Mounting | 2 x Built-In Cold Shoe Slot |
| Rotation | No |
| Built-In Controls | No |
| Mounting | |
| Rod Ports | 1 x 15 mm Rod Port |
| Rosettes | No |
| Rail Mounting | No |
| General | |
| Dimensions | Not Specified by Manufacturer |
| Weight | 6.08 oz / 172 g |
| Material of Construction | Aluminium, Stainless Steel |
| Weight | 1.3 oz / 37 g |
| Key Specs | |
| Item Type | Left-Side Handgrip |
| Attachment Method | Attaches via Screw (Unspecified Type) |
| Built-In Controls | Remote Trigger |
| Mounting | |
| Shoe Mounting | No |
| General | |
| Inputs/Outputs | 1 x USB-C (8 VDC) 1 x DC Barrel (12 VDC) |
| Materials | Aluminium |
| Weight | Not Specified by Manufacturer |
| Compatibility | Tiltaing Advanced Side Handles |
| Physical | |
| Mounting | 1 x NATO Rail Clamp |
| Colour | Black |
| Material of Construction | Aluminium Alloy |
| Dimensions | 2 x 1.7 x 1.6" / 50.7 x 43.9 x 41 mm |
| Weight | 1.7 oz / 49 g |
| Mounting | |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Accessory Mounting | Base: 4 x 1/4"-20 Female Thread |
| Tripod Mounting | 1/4"-20 Female Thread 3/8"-16 Female Thread |
| Rod Ports | 2 x 15 mm Rod Port |
| Physical | |
| Support Type | Baseplate |
| Camera Compatibility | Blackmagic Pocket Cinema Camera 6K Pro |
| Connector 1 | 1 x Male HDMI Type A |
| Connector 2 | 1 x Female HDMI Type A |
| Weight | 0.6 oz / 16.8 g |
| General | |
| Compatibility | Tilta Camera Cage for BMPCC 4K |
| Inputs / Outputs | |
| Connector 1 | 1 x USB Type-C Male |
| Connector 2 | 1 x USB Type-C Male |
| Physical | |
| Material of Construction | ABS Plastic, Rubber, Stainless Steel |
| Cable Length | 11.8" / 30 cm |
| Weight | 2 oz / 56 g |
| Diameter | 15 mm |
| Length | 11.81" / 300 mm |
| Material | Aluminium |
| Thread Type | Female / Female |
| Number of Rods | 1 |
Product details
| Compatible Camera | Blackmagic Design Pocket Cinema Camera 6K G2 |
|---|---|
| Support Type | Hand-Held Support w/Cage |
| Cable Connector | HDMI Female |
In the box
- Tilta Full Camera Cage for BMPCC 6K Pro/G2/BMPCC 6K (Black)
- Tilta Quick Release Top Handle (Black)
- Tilta Samsung T5 SSD Holder for BMPCC 4K Cages (Black)
- Tilta Left-Side Advanced Power Handle with Run/Stop (F570, Black)
- Tilta Tiltaing Advanced Left-Side Handle Adapter Type VI (Black)
- Tilta Tiltaing 15mm LWS Baseplate Type VI (Tactical Gray)
- Tilta HDMI Right-Angle Adapter for BMPCC 4K Camera Cage
- Tilta 90° USB Type-C Cable for Tilta BMPCC 4K Cage (12")
- Tilta Threaded 15mm Rod (Black, 12", Single)
- Run/Stop Cable for USB-C
- Accessory Mounting Bracket for BMPCC 6K Pro Battery Grip
