Description

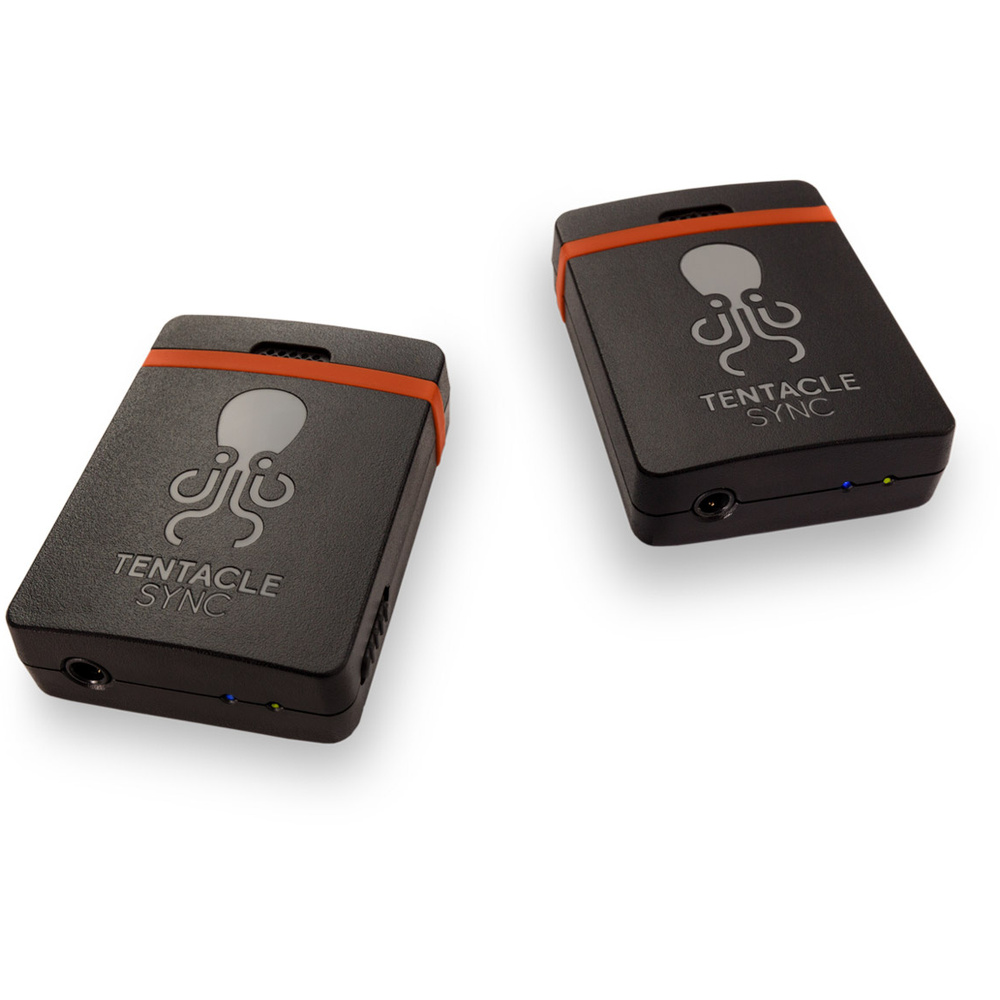

The Tentacle Sync E mk2 Timecode Generator with Bluetooth is a dual set for matching timecode across camera and audio setups. It suits solo operators, small crews and multi-camera shoots that need a compact way to keep devices in sync and reduce time spent aligning recordings in post.
It generates LTC timecode to SMPTE-12M standard and supports 23.98, 24, 25, 29.97, 29.97DF and 30 frame rates. The high precision TCXO is rated at less than 1 frame drift in 24 hours across -30°C to +85°C. It has a built-in reference microphone, adjustable frame rate and TC output level through the Tentacle Setup App, and a built-in lithium polymer battery with up to 35 hours operating time. USB-C fast charging takes up to 1.5 hours.
In use, the units can jam-sync to an external timecode source or generate SMPTE timecode for connected gear with TRS input. The set works with the Tentacle Setup App on iOS, Android, macOS and Windows, and includes two software licences for Tentacle Sync Studio. The box includes 2 timecode generators, 2 angled mini jack cables, 2 USB-C cables, 2 clamps, 10 Velcro loop pads, 4 coloured rubber bands and a quickstart guide.
Specifications
| LTC timecode | According to SMPTE-12M standard |
|---|---|
| Drift | High precision TCXO: accuracy less than 1 frame drift in 24 hours (-30°C to +85°C) |
| Frame rates | 23.98, 24, 25, 29.97, 29.97DF, 30 |
| Timecode I/O | Mini jack socket |
| Audio | Built-in reference mic |
| Power | Built-in lithium polymer battery, up to 35 hrs operating |
| Charging | Fast charging via USB-C (max. 1.5 hrs) |
| Mounting | Integrated hook surface on the back for easy mounting |
| Weight | 30 g / 1 oz |
| Dimensions | 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inche |
Product details
| Battery | Lithium-Polymer Included |
|---|
In the box
- 2 x Tentacle SYNC E mkII - timecode generators with Bluetooth™ functionality
- 2 x Mini jack cable (90° angled) for syncing devices with TRS input
- 2 x USB-C cable for charging and setup (Windows/Mac)
- 2 x Tentacle clamps for locking your right-angled cables to the Tentacle SYNC E
- 10 x Velcro loop pads for mounting the Tentacle to any device
- 4 x Coloured rubber bands
- 1 x Quickstart guide
- 2 x Software activation details and manual include
