Description

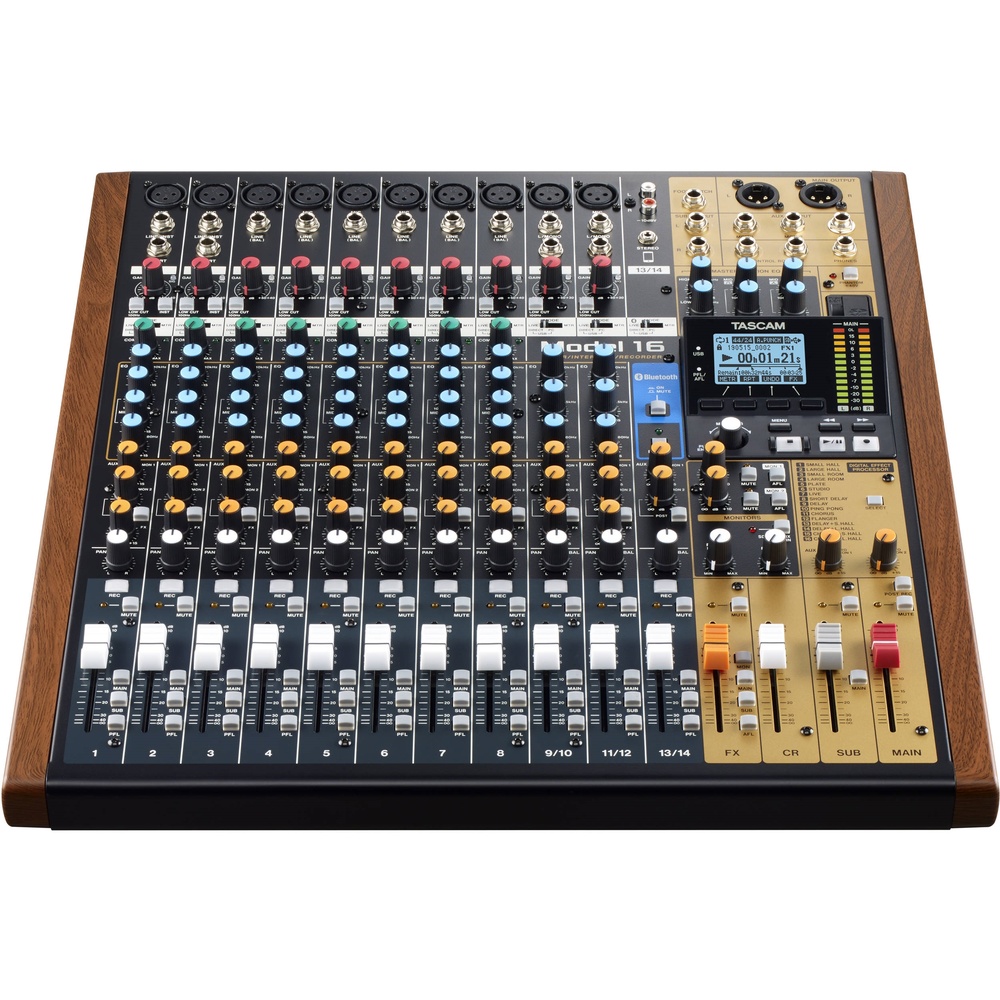

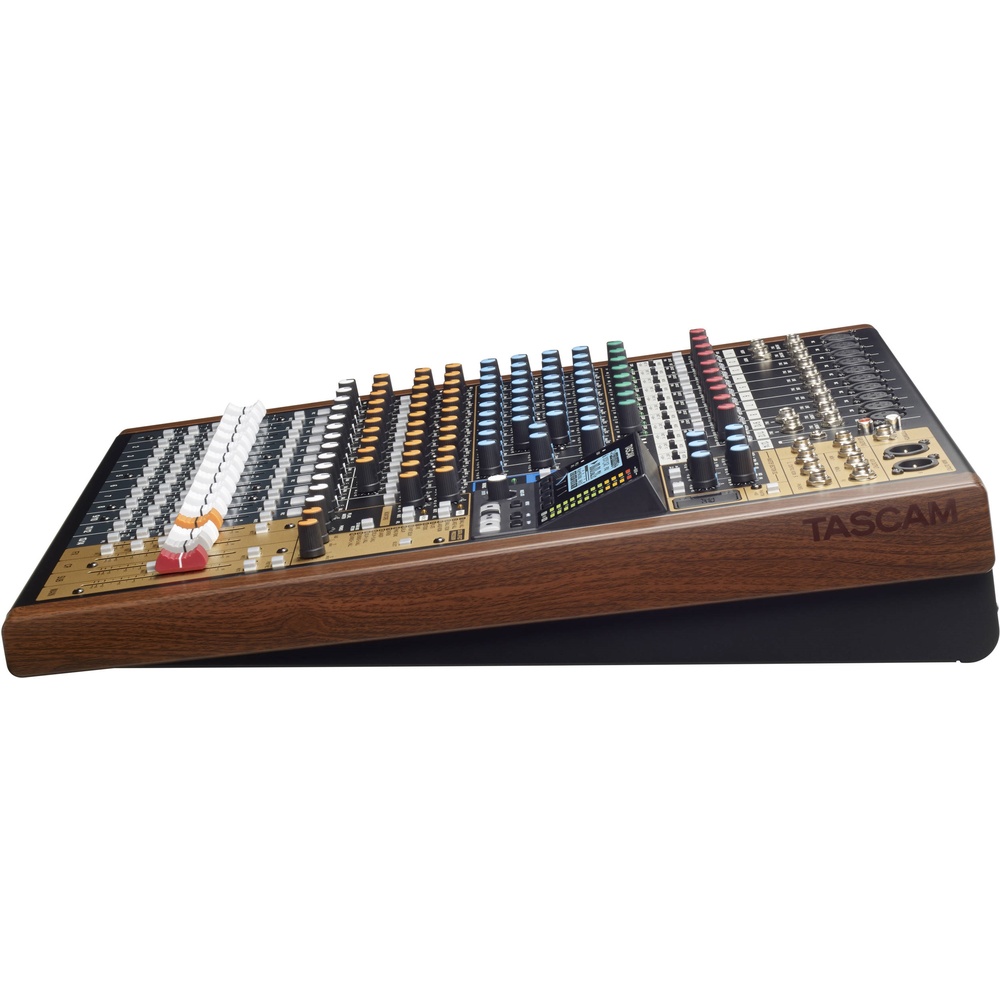

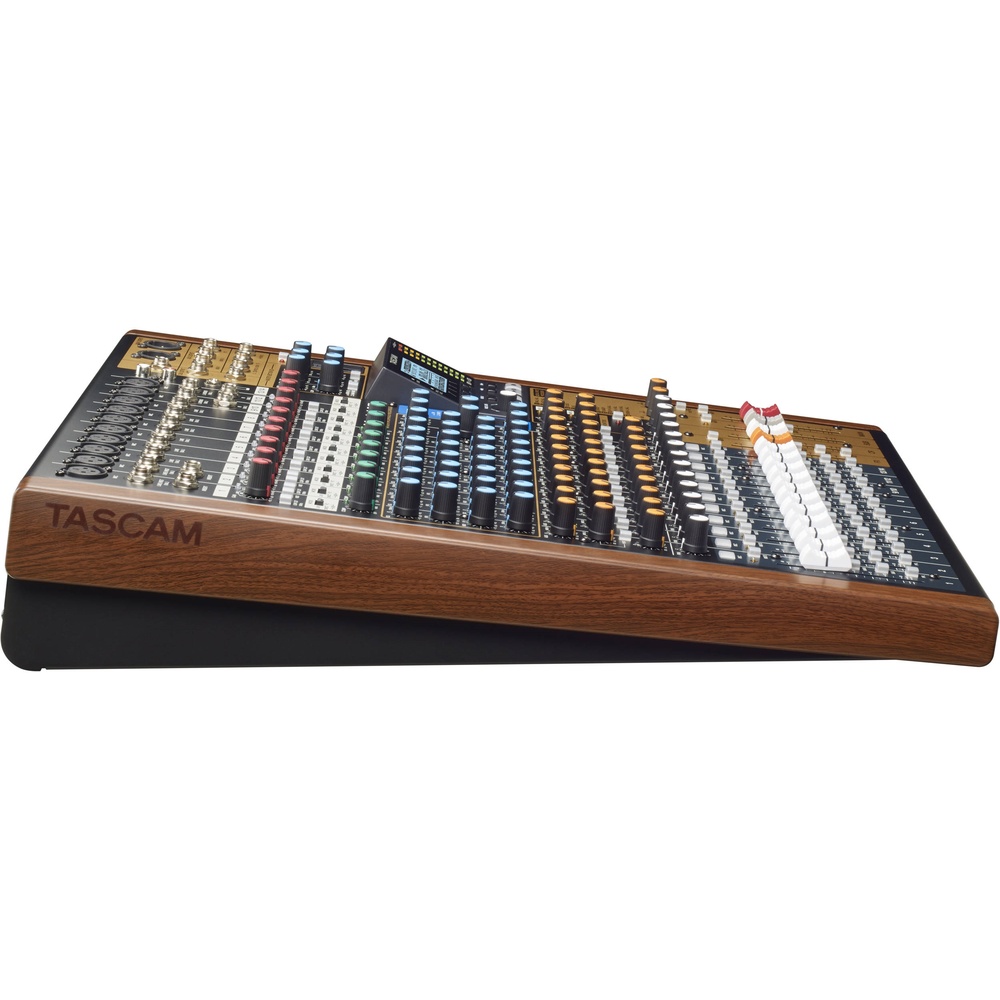

Tascam Model 16 Hybrid 14-Channel Mixer: a large format mixer.
Highlights include 14 input channels, 10 HDDA microphone preamps, 14 line inputs and 2 Hi-Z inputs, single-knob compressor on channels 1-8 and 4-Band AEQ for main or Monitor outputs.
Key specifications: weight 15.4 lb / 7 kg; file system SD: FAT16 SDHC: FAT32 SDXC: exFAT; audio file formats supported WAV (BWF); bit depth 16-/24-Bit; sampling frequency 44.1 or 48 kHz.
In the box: Tascam model 16 hybrid 14-Channel mixer, multitrack recorder, and USB Audio interface and AC Power Cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System Specifications | |
|---|---|
| System Requirements | macOS 10.12 or Later 2 GHz or Faster Dual-Core CPU 2 GB RAM 1280 x 800 Minimum Screen Resolution Core Audio Driver Available USB 2.0 Port Windows 7 SP1 or Later (32-/64-Bit) 2 GHz or Faster Dual-Core CPU 2 GB RAM 1280 x 800 Minimum Screen Resolution USB Audio Class 2.0, ASIO2.0, or WDM (MME) Driver Available USB 2.0 Port |
| Memory Card Support | SD: 512 MB to 2 GB SDHC: 4 GB to 32 GB SDXC: 64 GB to 512 GB Class 10 or Higher Required |
| File System | SD: FAT16 SDHC: FAT32 SDXC: exFAT |
| Audio File Formats Supported | WAV (BWF) |
| Bit Depth | 16-/24-Bit |
| Sampling Frequency | 44.1 or 48 kHz |
| Input Channels | 14 |
| USB Audio In/Out | Inputs: 16 Outputs: 14 Format: USB 2.0 High-Speed, Mass-Storage Class / USB Audio Class |
| Connectivity | |
| Inputs | 10 x 3-Pin XLR Female Mic Inputs (Balanced) 12 x 1/4" TRS Female Line Inputs (Balanced) 2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced) 1 x 1/8" / 3.5 mm Stereo Mini Jack (Unbalanced) |
| Inserts | 2 x 1/4" TRS (Unbalanced, Tip = Send, Ring = Return, Sleeve = Ground) |
| Outputs | 2 x 3-Pin XLR Male Main Outputs (Balanced) 3 x 1/4" TRS Female Aux Outputs (Balanced) 2 x 1/4" TRS Female Control Room Outputs (Balanced) 2 x 1/4" TRS Female Sub Outputs (Balanced) 1 x 1/4" TRS Female Stereo Headphone Output (Unbalanced) |
| Footswitch Input | 1 x 1/4" TS |
| Host Connection | 1 x USB 2.0 Type-B |
| Bluetooth Specifications | |
| Bluetooth Class | Class 2 |
| Bluetooth Range | Up to 32.8' / 10 m |
| Bluetooth Profile Support | A2DP AVRCP 1.0 |
| Bluetooth Codecs | AAC SBC |
| Content Protection | SCMS-T |
| Equaliser | |
| Channel AEQ | Low Cut: 18 dB/Octave at 100 Hz Low Shelving: ±15 dB at 80 Hz Mid Peaking (Mono): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 0.55 Mid Peaking (Stereo): ±15 dB at 600 Hz, Q= 0.55 MID-Band Q Fix: 0.55 High Shelving: ±15 dB at 12 kHz |
| Master AEQ Frequency | Low Shelving: ±15 dB at 60 Hz Mid Peaking (Narrow): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 5 Mid Peaking (Wide): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 0.5 High Shelving: ±15 dB at 10 kHz |
| Audio Performance | |
| Maximum Input Level | XLR Mic Inputs: +10 dBu 1/4" Line Inputs: +22 dBu Insert Returns: +18 dBu RCA Inputs: +8 dBV 3.5 mm Input: +8 dBV |
| Nominal Input Level | XLR Mic Inputs: -8 dBu 1/4" Line Inputs: +4 dBu Insert Returns: 0 dBu RCA Inputs: -10 dBV 3.5 mm Input: -10 dBV |
| Minimum Input Level | XLR Mic Inputs: -58 dBu |
| Gain Range | XLR Mic Inputs: 0 to 50 dB 1/4" Line Inputs 1-8: -10 to +40 dB 1/4" Line Inputs 9-12: -20 to +30 dB |
| Maximum Output Level | Main Outputs: +22 dBu Sub, Monitor, FX, and Control Room Outputs: +16 dBu Insert Sends: +18 dBu Headphone Output: 80 mW per Channel |
| Nominal Output Level | Main Outputs: +4 dBu Sub, Monitor, FX, and Control Room Outputs: -2 dBu Insert Sends: 0 dBu |
| Frequency Response | Analogue: 20 Hz to 30 kHz (+0.5 dB, -1.0 dB) Digital: 20 Hz to 20 kHz (+0.5 dB, -1.0 dB) |
| Maximum Gain | Mic to Main Out: 74 dB Mic to Insert Out: 50 dB Mic to Sub Out: 74 dB Mic to Control Room Out: 79 dB Mic to Monitor Out: 75 dB Mic to FX Out: 75 dB USB/SD to Main Out: 24 dB |
| Total Harmonic Distortion | Maximum Input Level: <0.01% (Gain Knob Minimum, +10 dBu, 1 kHz, Mic In to Main Out) Nominal Input Level: <0.004% (Gain Knob Minimum, +4 dBu, 1 kHz, Mic In to Main Out) |
| Crosstalk | -80 dB (Channels/Input and Output, 1 kHz) |
| Residual Output Noise | -100 dBu (Main Out, Main Fader at Minimum) |
| Equivalent Input Noise | -127 dBu (Mono Input Channel, 150-Ohm Resistance, Gain Knob at Maximum) |
| Input Impedance | XLR Mic Inputs: 1.8 Kilohms 1/4" Line Inputs: 22 Kilohms Insert Returns: 10 Kilohms RCA Inputs: 10 Kilohms 3.5 mm Input: 10 Kilohms |
| Output Impedance | Main Outputs: 100 Ohms Sub, Monitor, FX, and Control Room Outputs: 200 Ohms Insert Sends: 100 Ohms Headphone Output: 32 Ohms |
| Power Specifications | |
| Phantom Power | +48 VDC, Globally Selectable |
| Power Consumption | 40 W |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Physical | |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions (W x D x H) | 16.9 x 18.2 x 4.4" / 43 x 46.3 x 11.3 cm (Including Knob Height and Protrusions) |
| Weight | 15.4 lb / 7 kg |
In the box
- Tascam Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface
- AC Power Cable
