Description

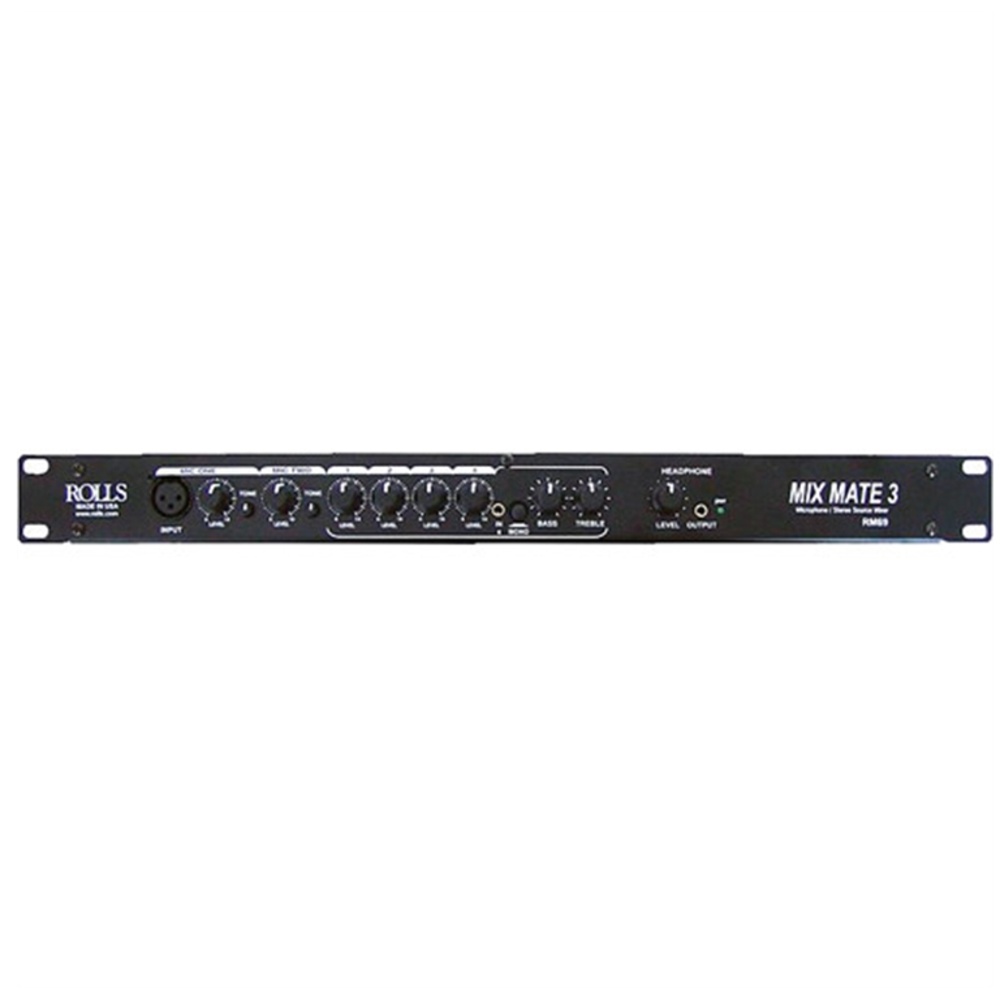

The Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone Mixer is a rackmount mixer.
Highlights include 2 XLR microphone channels, 4 RCA stereo Source channels, individually switchable phantom Power, tone control for microphone channels and 2-Band programme AEQ for Source channels.
Key specifications: weight 2.3 kg; dimensions (W x H x D) 19 x 1.75 x 4" (48.3 x 4.5 x 10 cm); outputs Balanced XLR x 2 Unbalanced RCA stereo pair x 1; maximum input level Mic: -14 dBV Source: 24 dBV; phantom power +15 VDC.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs | |
|---|---|
| Input Connectors | Balanced XLR microphone x 3 RCA stereo pair x4 1/8" stereo x 1 |
| Input Impedances | Mic: 600 Ohms RCA: 22K Ohms 1/4" TRS insert: 22K Ohms |
| Maximum Input Level | Mic: -14 dBV Source: 24 dBV |
| Phantom Power | +15 VDC |
| Outputs | |
| Outputs | Balanced XLR x 2 Unbalanced RCA stereo pair x 1 |
| Output Impedance | 100 Ohms Balanced |
| Headphone Jack | 1/8" Stereo Impedance: > 8 Ohms |
| Output Level | +17 dBV max |
| Performance | |
| Maximum Gain | Mic: 60 dB Source: 26 dB |
| Equalisation | Source programme AEQ: Bass @ 100 Hz, +/-12 dB Treble @ 11 kHz, +/-12 dB |
| Noise Floor | -80 dB |
| THD | < 0.025% |
| S/N Ratio | 96 dB |
| General | |
| Current Drain | 50 mA 15 VDC |
| Dimensions (W x H x D) | 19 x 1.75 x 4" (48.3 x 4.5 x 10 cm) |
| Weight | 2.3 kg |
In the box
- Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone Mixer
